Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

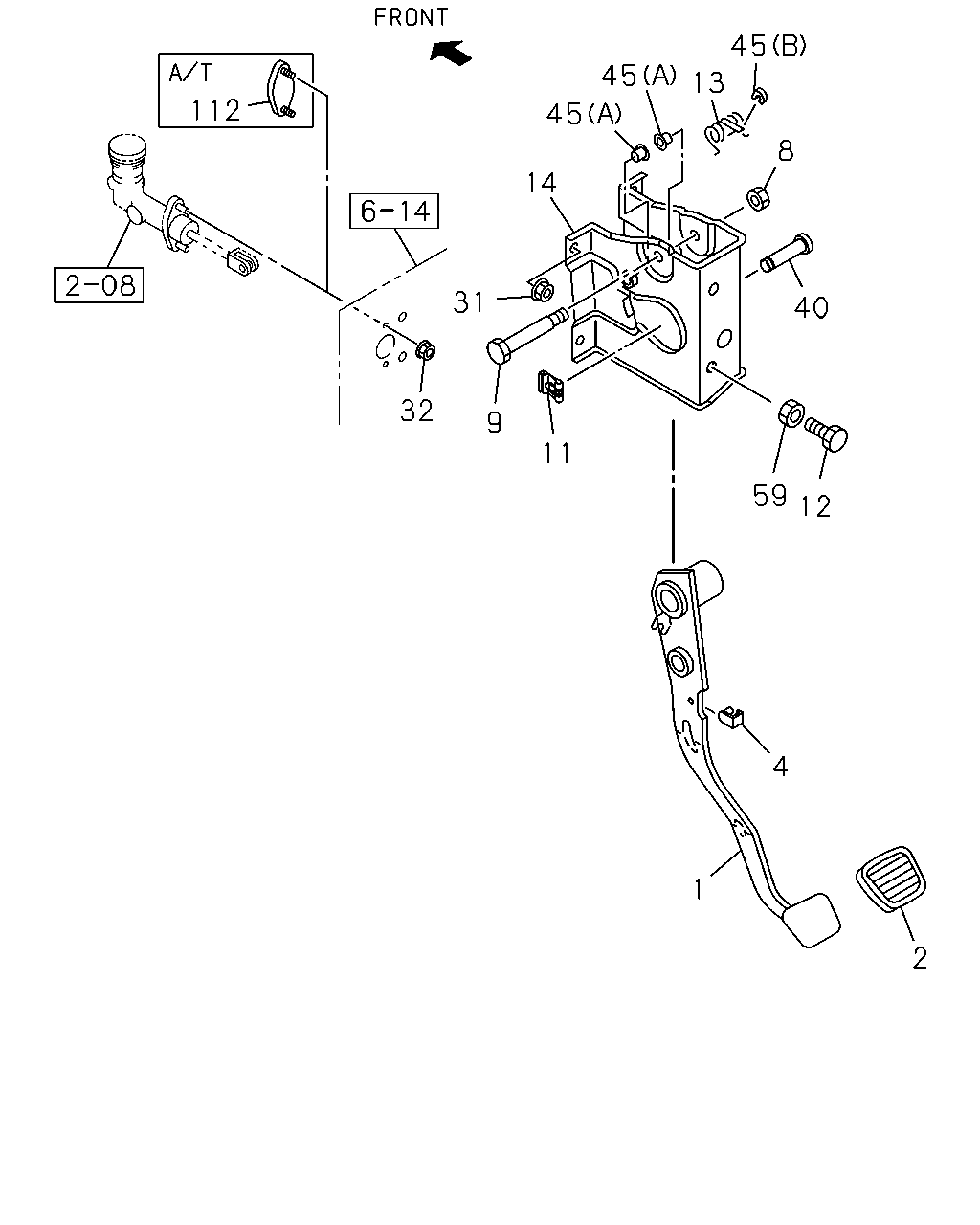

2-03 — CLUTCH PEDAL AND CONTROL
(#132590) — 16 parça
112
14
45
45
45
31
13
8
40
11
9
32
59
4
2
1
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
M/T MUX 5 SPEED 5S(MZJ)
8-97942-742-0
01
1
1312-
2
COVER; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) IMA
8-97318-799-0
01
1
1312-
4
STOPPER; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ)
8-94463-258-0
01
1
1312-
8
NUT; PIN TO PEDAL
M/T MUX 5 SPEED 5S(MZJ) M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1312-
9
PIN; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ)
8-97942-315-0
01
1
1312-
11
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUX 5 SPEED 5S(MZJ) IMA
8-98007-161-0
01
1
1312-
12
BOLT; CLU PEDAL ADJ
M/T MUX 5 SPEED 5S(MZJ) M10X35 FLANGE
0-28651-035-0
01
1
1312-
13
SPRING; ASSIST,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) IMA
8-97942-312-0
01
1
1312-
14
BRACKET ASM; CLU PEDAL MTG
M/T MUX 5 SPEED 5S(MZJ)
8-97942-310-0
01
1
1312-
31
NUT; MTG BRKT TO BODY
M/T MUX 5 SPEED 5S(MZJ) M8 FLANGE IMA
0-91180-108-0
04
1
1312-
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE IMA
0-91180-108-0
02
1
1312-
40
PIN; JOINT,CLU DAMPER
M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5 IMA
8-97312-338-0
01
1
1312-
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) (A) IMA
8-97942-313-0
02
1
1312-
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) (B) IMA
8-97942-314-0
01
1
1312-
59
NUT; CLU PEDAL ADJ
M/T MUX 5 SPEED 5S(MZJ) M10
0-91110-510-0
01
1
1312-
112
PLUG; METAL,M/CYL
A/T AISIN(RMD)
8-97945-168-0
01
1
1506-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
