◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#132587) — 92 parça

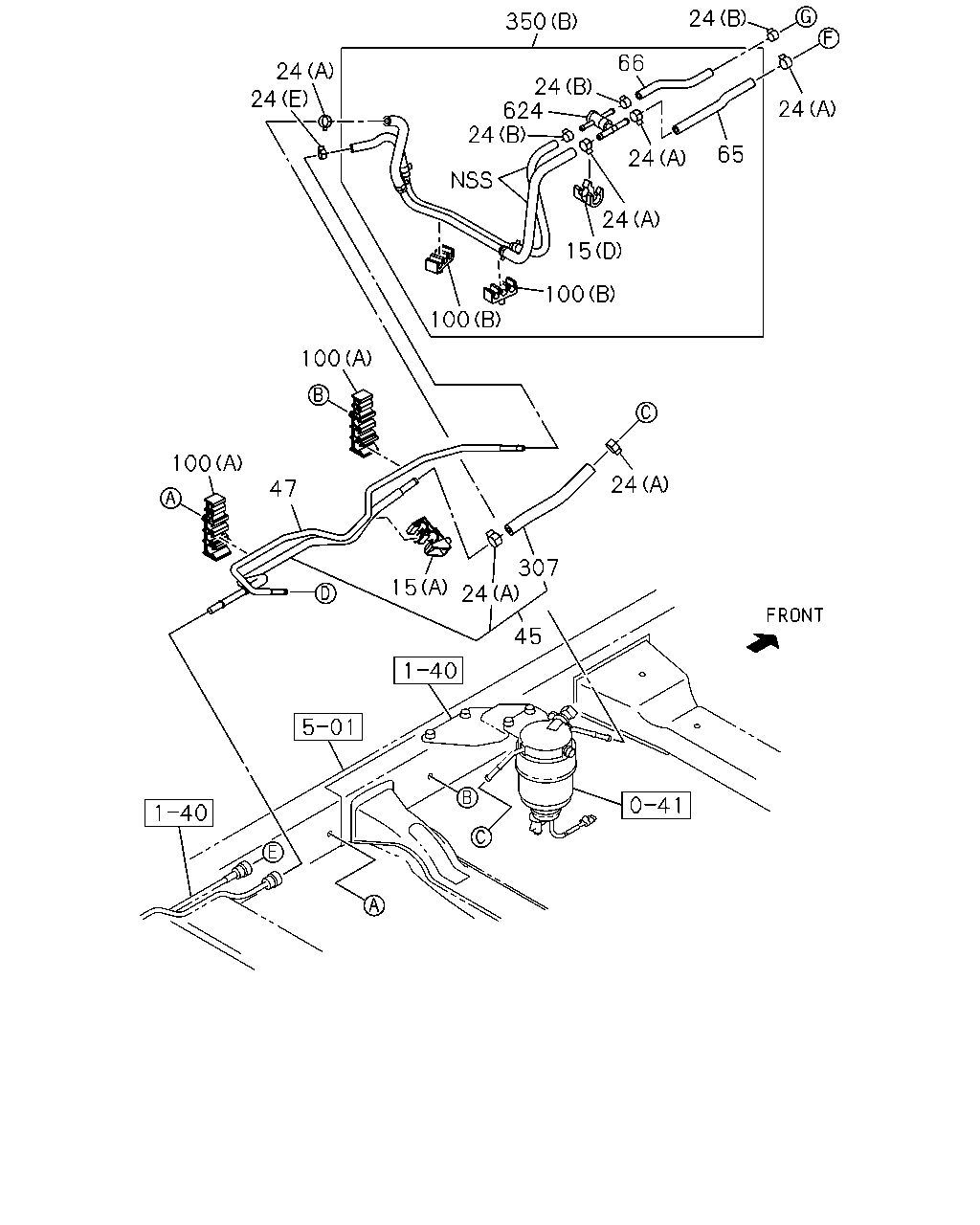

çizim 401280
24 24 350 24 624 24 66 24 24 65 24 24 15 100 24 100 100 47 100 15 24 45 307
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(B) 		8-97944-137-0 02 1 1312-
15 CLIP; FUEL PIPE
(D) 		8-98179-603-0 01 1 1312-
15 CLIP; FUEL PIPE
(A) IND 		8-97251-125-0 01 1 1312-
15 CLIP; FUEL PIPE
(C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1312-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98008-096-0 02 1 1312-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98008-096-0 03 1 1312-
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-98035-873-0 02 1 1312-
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-98035-873-0 04 1 1312-
24 CLIP; FUEL HOSE
(D) ID=17.8 		8-97944-611-0 01 1 1312-
24 CLIP; FUEL HOSE
(C) ID=16 IMA 		8-98030-682-0 01 1 1312-
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-98051-892-0 01 1 1312-
45 PIPE; FUEL,DELIVERY
IND 		8-97944-626-1 01 1 1312-
47 PIPE; FUEL,RETURN
IND 		8-98051-783-1 01 1 1312-
65 HOSE; FUEL,DELIVERY PIPE 8-97944-133-0 01 1 1312-1505
65 HOSE; FUEL,DELIVERY PIPE
M/T MUX 5 SPEED 5S(MZJ) 		8-97944-133-0 01 1 1506-
66 HOSE; FUEL,RETURN PIPE 8-97944-134-0 01 1 1312-1505
66 HOSE; FUEL,RETURN PIPE
M/T MUX 5 SPEED 5S(MZJ) 		8-97944-134-0 01 1 1506-
100 CLIP; FUEL PIPE
(B) ID=10.3X3 		8-98051-899-0 02 1 1312-
100 CLIP; FUEL PIPE
(A) IND 		8-97251-128-0 02 1 1312-
307 HOSE ASM; FUEL,DELIVERY & RETURN
L=150 SERVICED BY L=3000 		0-01658-300-0 01 1 1312-
350 PIPE; FUEL,DEL & RET
(A) 		8-97944-729-1 01 1 1312-1505
350 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-729-1 01 1 1506-
350 PIPE; FUEL,DEL & RET
(B) 		8-98177-463-0 01 1 1312-1505
350 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98177-463-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (D) 		8-97944-726-1 01 1 1506-
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (C) 		8-98177-462-0 01 1 1506-
624 VALVE; 1 WAY,FUEL 8-97375-919-0 01 1 1312-

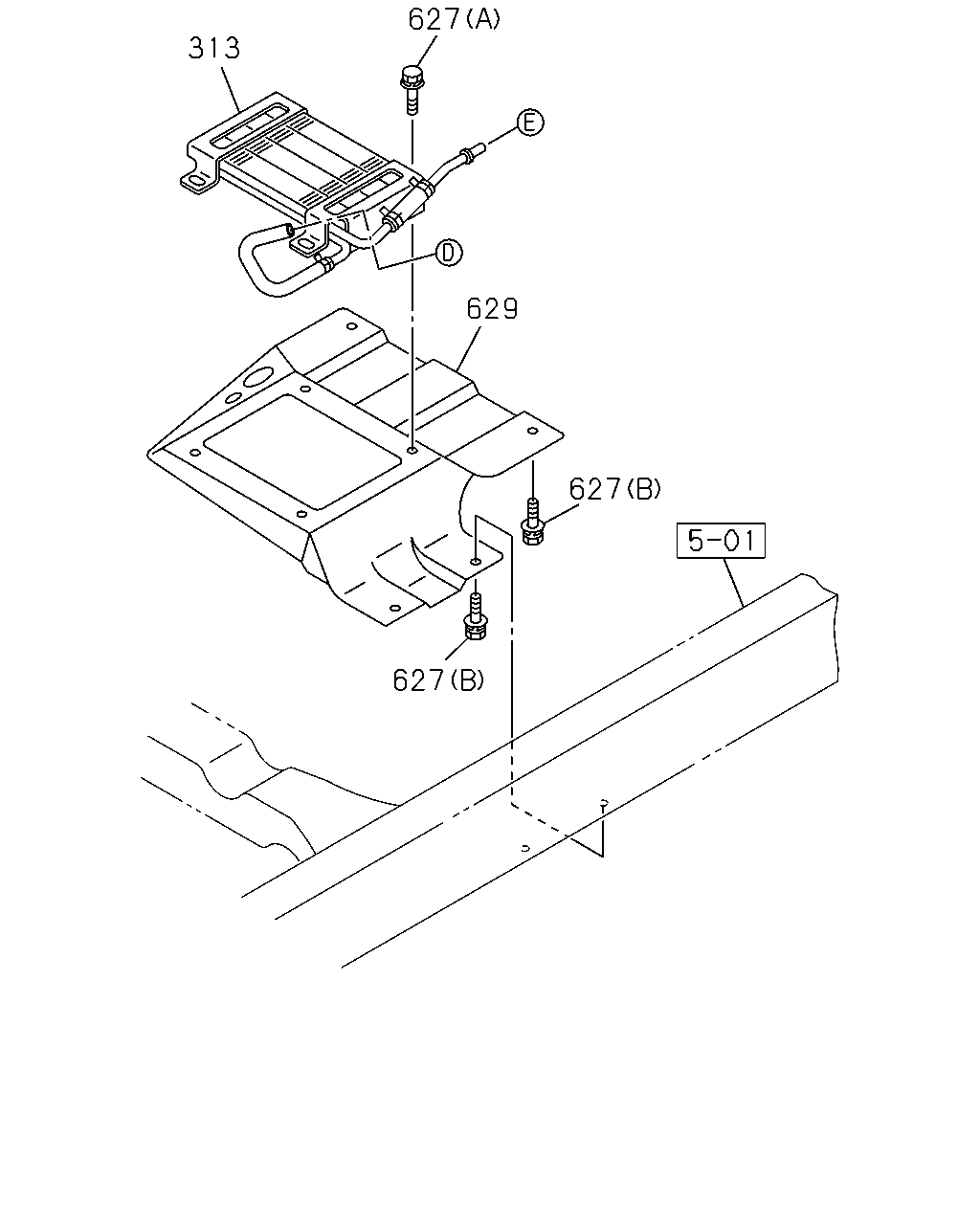

çizim 401286
313 627 629 627 627
BalonParca AdiParca NoAdetTipApplied Date
313 COOLER ASM; FUEL 8-97946-973-0 01 1 1312-
627 BOLT; FUEL CLR
(A) M6X20 FLANGE IMA 		0-28650-620-0 04 1 1312-
627 BOLT; FUEL CLR
(B) M10X28 W/LK&PL WASHER IMA 		8-97945-706-0 04 1 1312-
629 BRACKET; FUEL CLR 8-97945-577-0 01 1 1312-

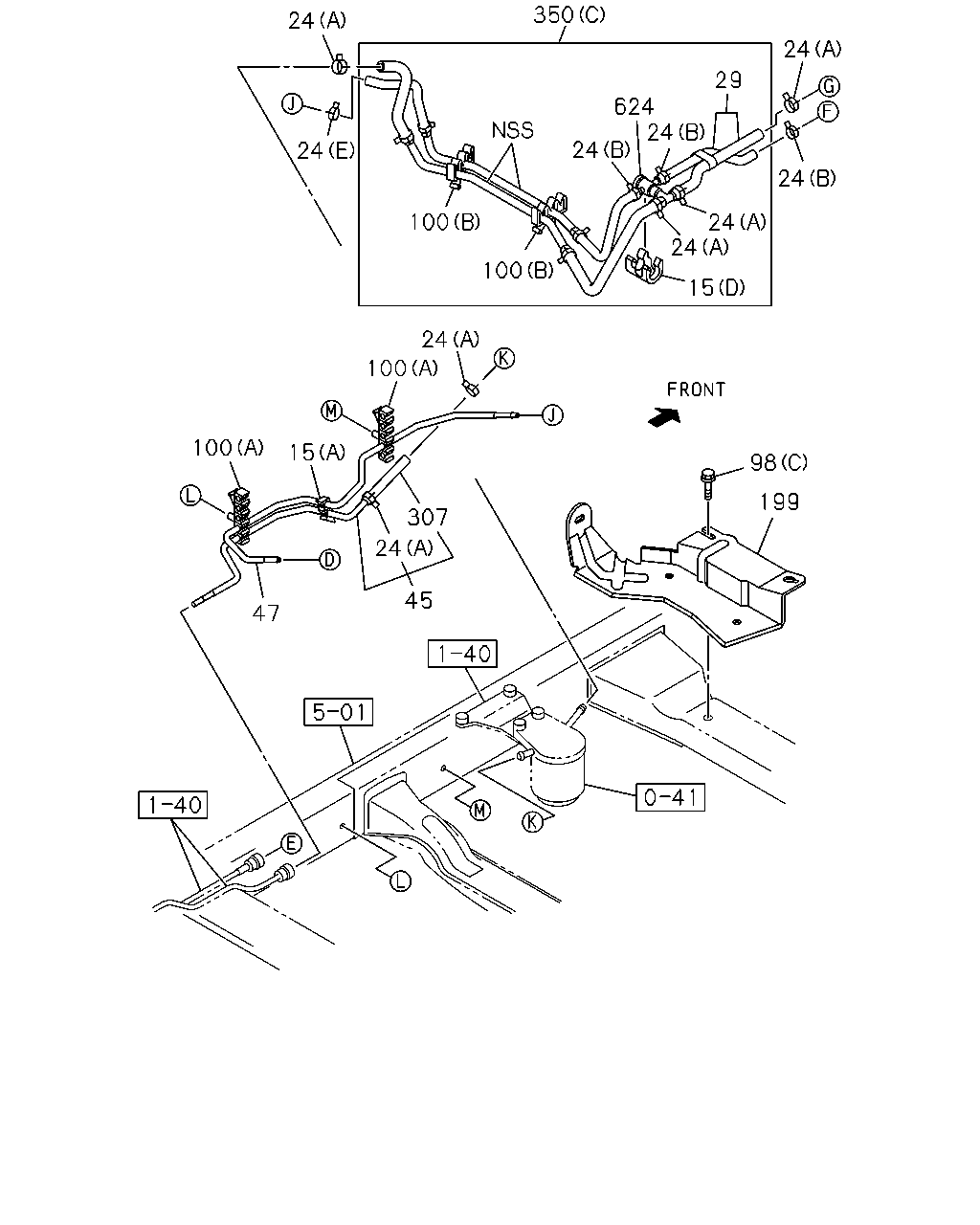

çizim 401959
24 24 100 100 24 624 24 350 29 24 24 24 24 15 24 100 15 100 307 24 45 47 199 98
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(B) 		8-97944-137-0 02 1 1312-
15 CLIP; FUEL PIPE
(D) 		8-98179-603-0 01 1 1312-
15 CLIP; FUEL PIPE
(A) IND 		8-97251-125-0 01 1 1312-
15 CLIP; FUEL PIPE
(C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1312-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98008-096-0 02 1 1312-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98008-096-0 03 1 1312-
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-98035-873-0 02 1 1312-
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-98035-873-0 04 1 1312-
24 CLIP; FUEL HOSE
(D) ID=17.8 		8-97944-611-0 01 1 1312-
24 CLIP; FUEL HOSE
(C) ID=16 IMA 		8-98030-682-0 01 1 1312-
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-98051-892-0 01 1 1312-
29 HOSE; FUEL
A/T AISIN(RMD) 		8-98060-820-0 01 1 1506-
45 PIPE; FUEL,DELIVERY
IND 		8-97944-626-1 01 1 1312-
47 PIPE; FUEL,RETURN
IND 		8-98051-783-1 01 1 1312-
98 BOLT; BRKT,FUEL PIPE
(A) M6X16 FLANGE IMA 		0-28650-616-0 01 1 1312-
98 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) (B) M6X10 FLANGE IMA 		0-28050-610-0 01 1 1506-
98 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) (C) M6X20 FLANGE IMA 		0-28650-620-0 03 1 1506-
100 CLIP; FUEL PIPE
(B) ID=10.3X3 		8-98051-899-0 02 1 1312-
100 CLIP; FUEL PIPE
(A) IND 		8-97251-128-0 02 1 1312-
199 PROTECTOR; FUEL PIPE
A/T AISIN(RMD) 		8-97944-851-0 01 1 1506-
307 HOSE ASM; FUEL,DELIVERY & RETURN
L=150 SERVICED BY L=3000 		0-01658-300-0 01 1 1312-
350 PIPE; FUEL,DEL & RET
(A) 		8-97944-729-1 01 1 1312-1505
350 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-729-1 01 1 1506-
350 PIPE; FUEL,DEL & RET
(B) 		8-98177-463-0 01 1 1312-1505
350 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98177-463-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (D) 		8-97944-726-1 01 1 1506-
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (C) 		8-98177-462-0 01 1 1506-
624 VALVE; 1 WAY,FUEL 8-97375-919-0 01 1 1312-

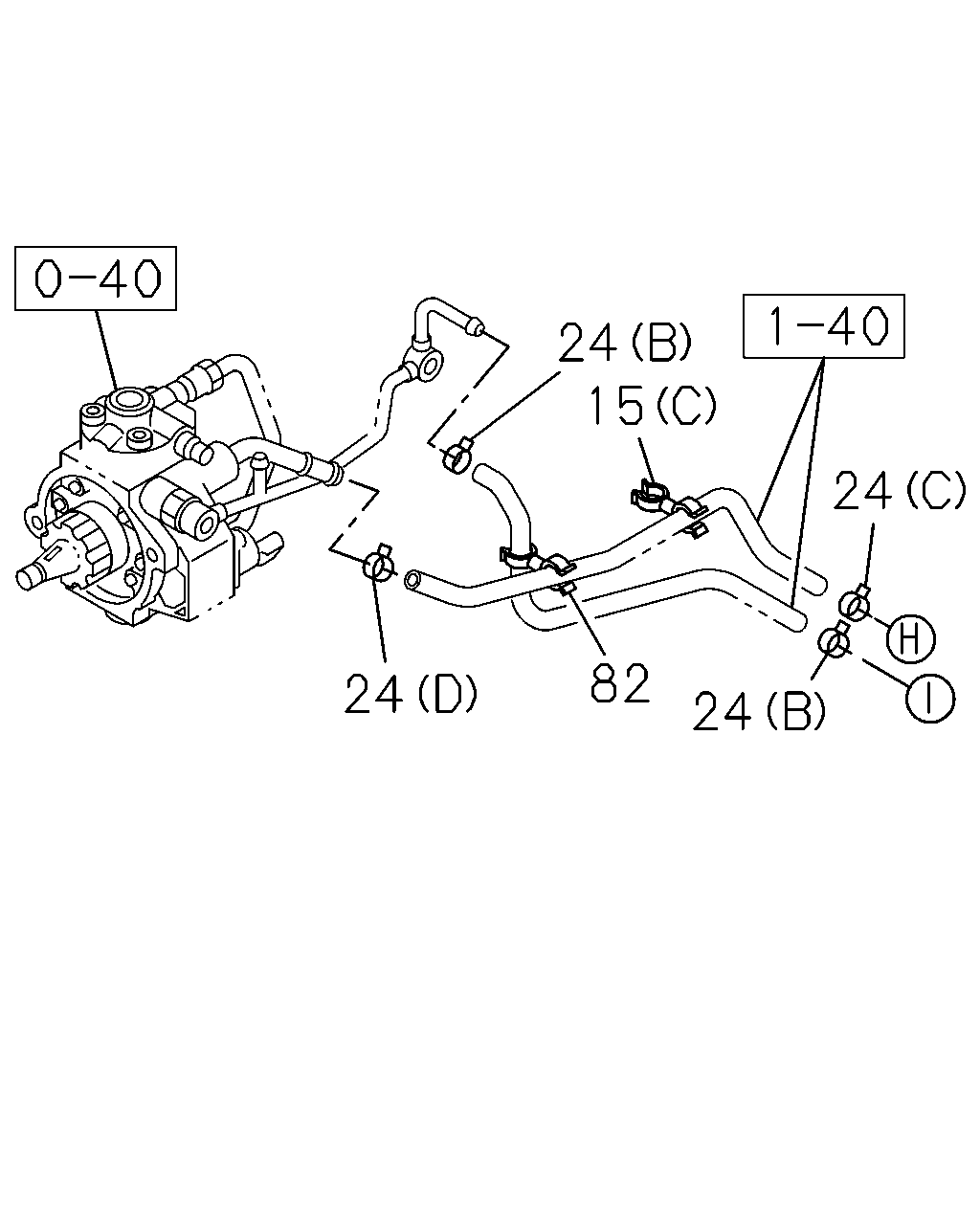

çizim 479334
24 15 24 24 82 24
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(B) 		8-97944-137-0 02 1 1312-
15 CLIP; FUEL PIPE
(D) 		8-98179-603-0 01 1 1312-
15 CLIP; FUEL PIPE
(A) IND 		8-97251-125-0 01 1 1312-
15 CLIP; FUEL PIPE
(C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1312-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98008-096-0 02 1 1312-
24 CLIP; FUEL HOSE
(B) ID=11.5 		8-98008-096-0 03 1 1312-
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-98035-873-0 02 1 1312-
24 CLIP; FUEL HOSE
(A) ID=14.2 		8-98035-873-0 04 1 1312-
24 CLIP; FUEL HOSE
(D) ID=17.8 		8-97944-611-0 01 1 1312-
24 CLIP; FUEL HOSE
(C) ID=16 IMA 		8-98030-682-0 01 1 1312-
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-98051-892-0 01 1 1312-
82 CLIP; FUEL HOSE
ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1312-

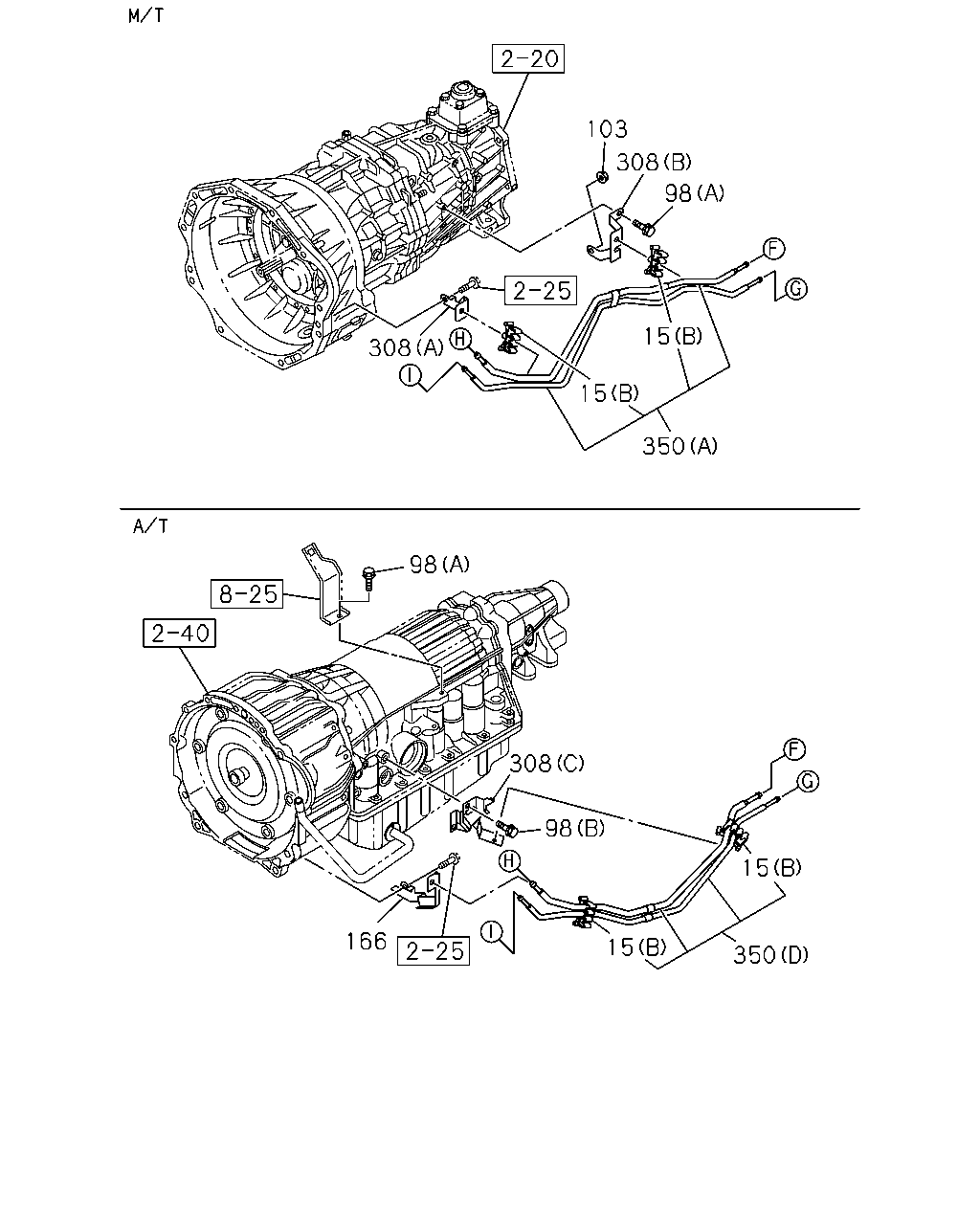

çizim 479379
103 308 98 15 350 15 308 98 308 98 166 15 350 15
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(B) 		8-97944-137-0 02 1 1312-
15 CLIP; FUEL PIPE
(D) 		8-98179-603-0 01 1 1312-
15 CLIP; FUEL PIPE
(A) IND 		8-97251-125-0 01 1 1312-
15 CLIP; FUEL PIPE
(C) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1312-
98 BOLT; BRKT,FUEL PIPE
(A) M6X16 FLANGE IMA 		0-28650-616-0 01 1 1312-
98 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) (B) M6X10 FLANGE IMA 		0-28050-610-0 01 1 1506-
98 BOLT; BRKT,FUEL PIPE
A/T AISIN(RMD) (C) M6X20 FLANGE IMA 		0-28650-620-0 03 1 1506-
103 NUT; BRKT
M6 FLANGE IMA 		0-91180-106-0 01 1 1312-1505
103 NUT; BRKT
M/T MUX 5 SPEED 5S(MZJ) M6 FLANGE IMA 		0-91180-106-0 01 1 1506-
166 PROTECTOR; FUEL HOSE
A/T AISIN(RMD) 		8-97944-739-0 01 1 1506-
308 BRACKET; FUEL PIPE
(A) 		8-97944-743-0 01 1 1312-1505
308 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-743-0 01 1 1506-
308 BRACKET; FUEL PIPE
(B) 		8-97944-747-0 01 1 1312-1505
308 BRACKET; FUEL PIPE
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-747-0 01 1 1506-
308 BRACKET; FUEL PIPE
A/T AISIN(RMD) (C) 		8-97944-741-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
(A) 		8-97944-729-1 01 1 1312-1505
350 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-729-1 01 1 1506-
350 PIPE; FUEL,DEL & RET
(B) 		8-98177-463-0 01 1 1312-1505
350 PIPE; FUEL,DEL & RET
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98177-463-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (D) 		8-97944-726-1 01 1 1506-
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (C) 		8-98177-462-0 01 1 1506-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
