Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#132586) — 31 parça
◀

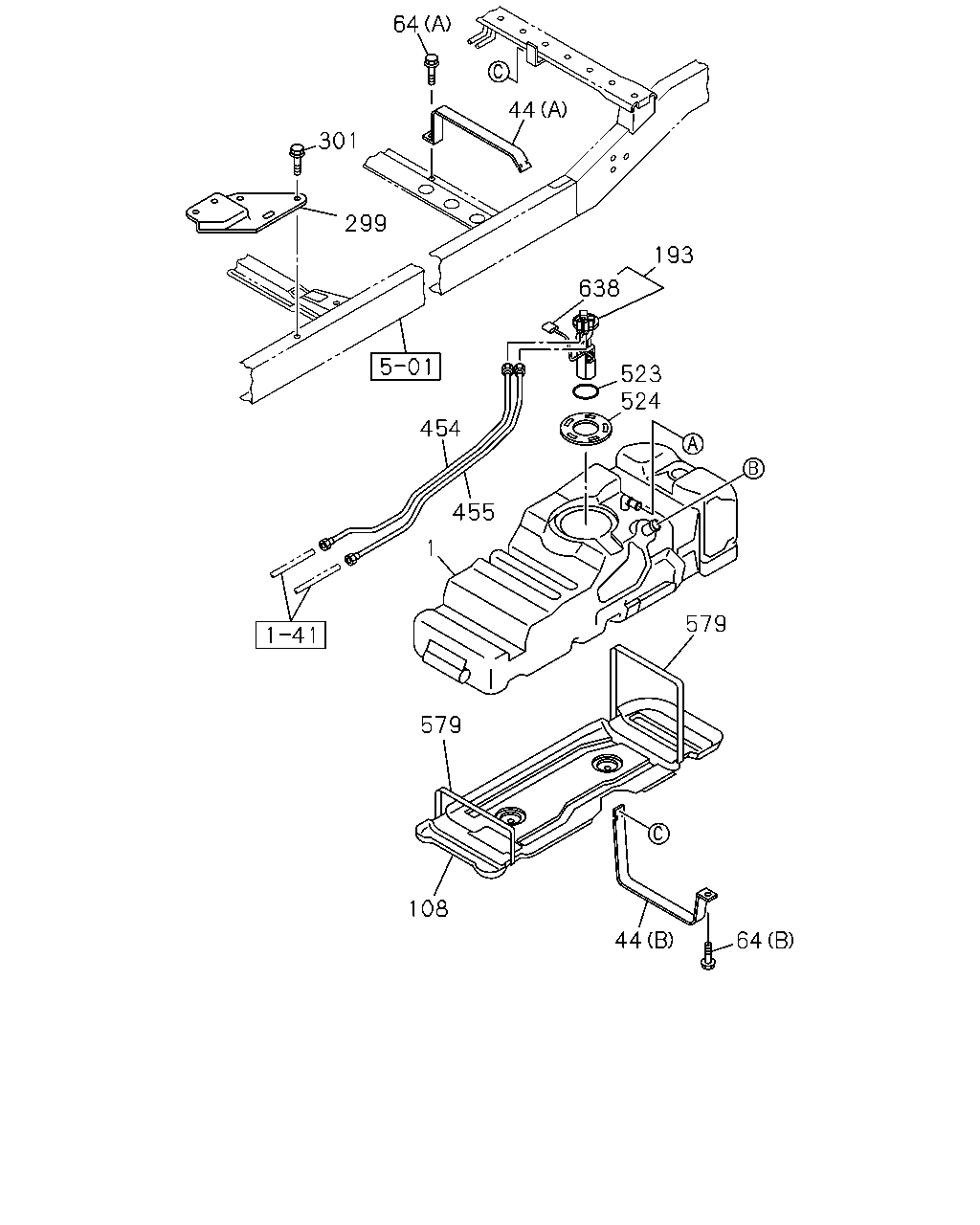

[140A] FUEL TANK (15 parça)

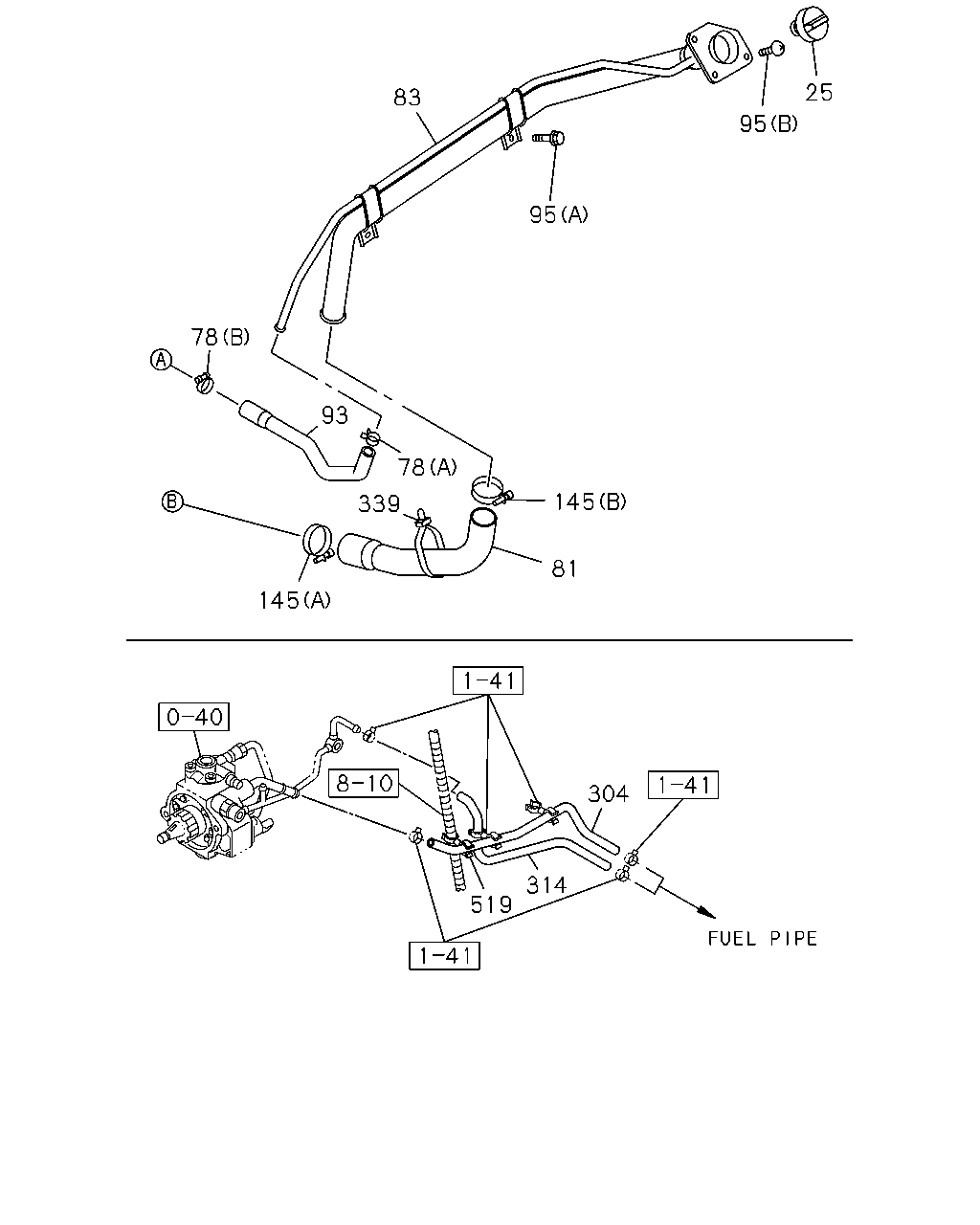

[140A] FUEL FILLER NECK AND HOSE (14 parça)

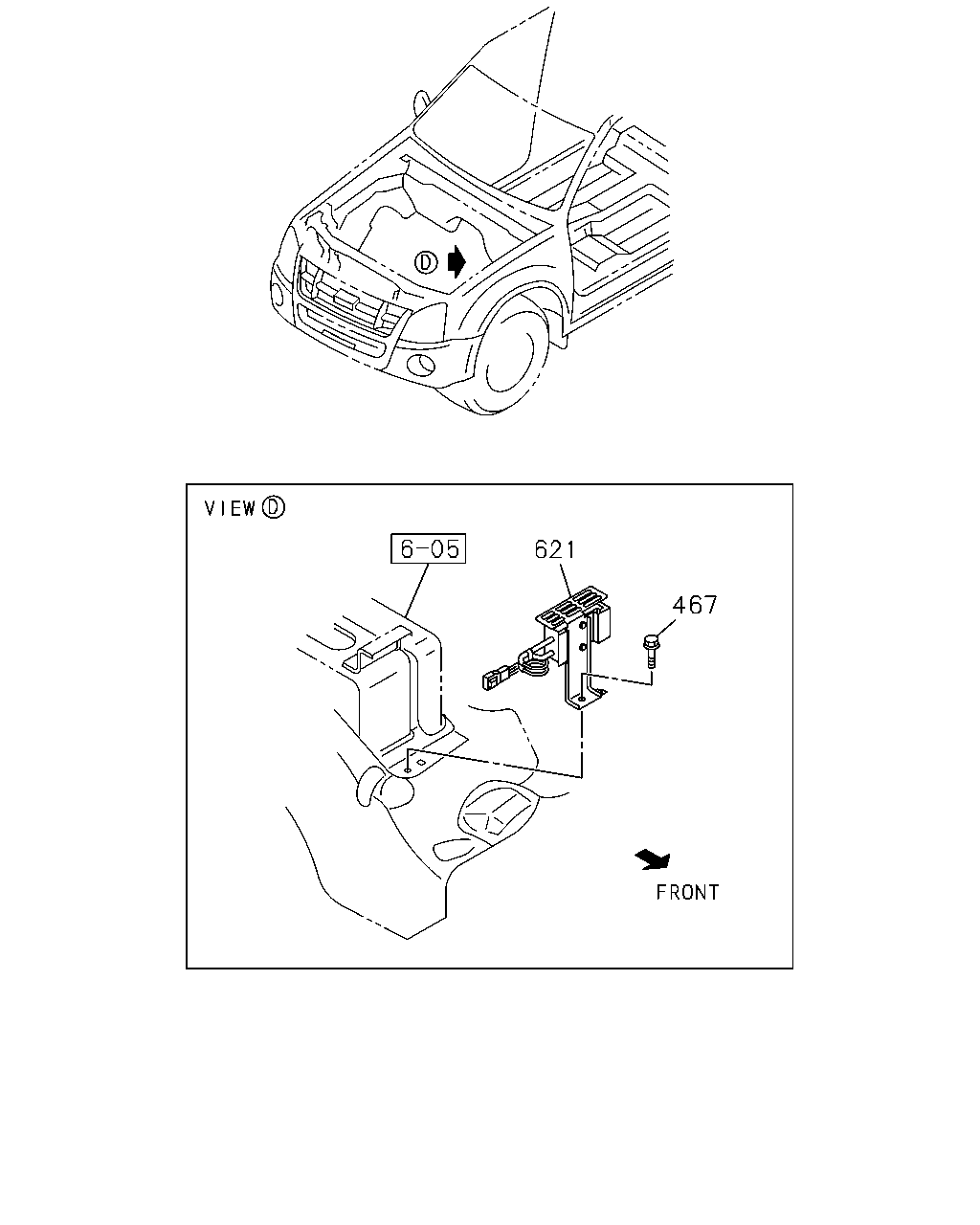

[140A] OTHER PARTS (2 parça)
▶
64
44
301
299
193
638
523
524
454
455
1
579
108
44
579
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
8-97944-573-0
01
1
1312-
44
BAND; FUEL TANK
(A)
8-97944-281-0
01
1
1312-
44
BAND; FUEL TANK
(B)
8-97944-282-0
01
1
1312-
64
BOLT; FUEL TANK
(A) M10X35 FLANGE IMA
0-28661-035-0
01
1
1312-
64
BOLT; FUEL TANK
(B) M10X50 FLANGE IMA
8-97301-165-0
01
1
1312-
108
PROTECTOR; FUEL TANK
8-97943-300-0
01
1
1312-
193
PUMP; FUEL
8-98159-357-0
01
1
1312-
299
BRACKET; FUEL FILTER
8-97945-336-0
01
1
1312-
301
BOLT; BRKT TO SEDIMENTER
M10X25 FLANGE IMA
0-28651-025-0
02
1
1312-
454
PIPE; FUEL,DELIVERY
8-97943-511-0
01
1
1312-
455
PIPE; FUEL,RETURN
8-97945-528-0
01
1
1312-
523
SEAL; FUEL SENSOR
8-97943-141-0
01
1
1312-
524
RING; RETAINER
8-97942-306-0
01
1
1312-
579
BAND; FUEL TANK TO PROTECTOR
8-97329-245-0
02
1
1312-
638
SENSOR; FUEL LEVEL
8-97945-259-0
01
1
1312-
83
95
95
25
145
81
78
93
78
339
145
304
314
519
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
CAP; FILLER,FUEL TANK
8-94310-199-4
01
1
1312-
78
CLIP; BREATHER HOSE
(A) ID=21
8-94242-034-0
01
1
1312-
78
CLIP; BREATHER HOSE
(B) ID=28
9-09915-421-1
01
1
1312-
81
HOSE; FUEL FILLER
8-97943-434-0
01
1
1312-
83
NECK; FUEL FILLER
8-98224-700-0
01
1
1312-
93
HOSE; BREATHER,FUEL TANK
8-97943-433-0
01
1
1312-
95
SCREW; FILLER NECK
(A) M6X12 FLANGE
0-28450-612-0
02
1
1312-
95
SCREW; FILLER NECK
(B) M6X16
8-98022-271-0
03
1
1312-
145
CLIP; HOSE,FILLER NECK
(A) ID=54
9-09915-412-1
01
1
1312-
145
CLIP; HOSE,FILLER NECK
(B) ID=48
9-09915-512-1
01
1
1312-
304
HOSE; RUBBER,FUEL FILTER TO INJ PUMP
8-97944-783-0
01
1
1312-
314
HOSE; RUBBER,FUEL RETURN
8-97944-784-2
01
1
1312-
339
CLIP; BAND,FUEL HOSE
L=330
5-09709-118-0
01
1
1312-
519
RETAINER; FUEL PUMP
ID=20 & 16.5
8-94486-835-0
01
1
1312-
621
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
467
BOLT
M6X16 FLANGE IMA
0-28650-616-0
01
1
1312-
621
RESISTOR ASM; FUEL PUMP
8-98041-186-0
01
1
1312-
