Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

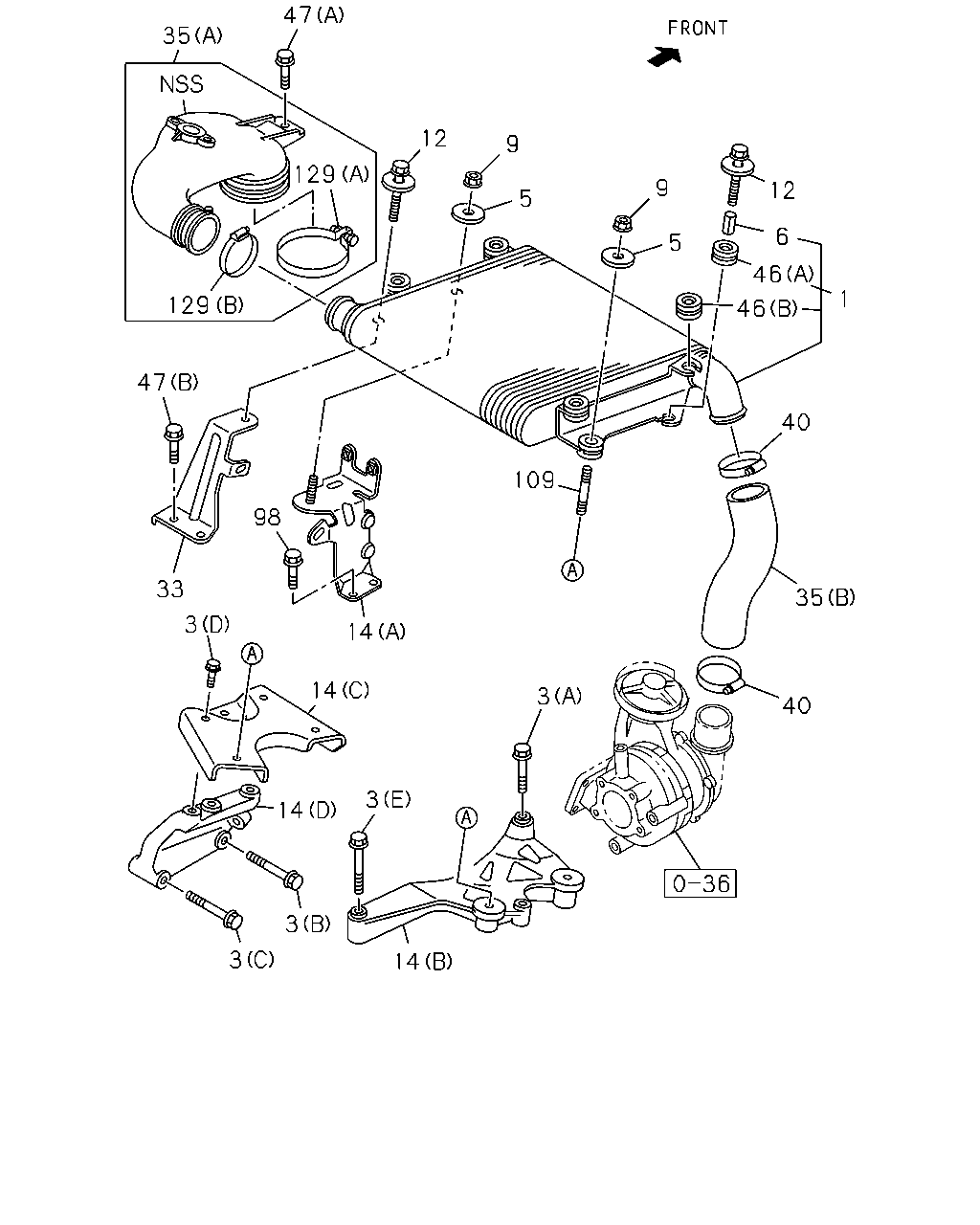

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#132585) — 26 parça
12
6
1
5
5
9
9
12
47
35
129
129
47
98
33
3
14
14
14
3
3
14
3
3
40
35
40
109
46
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
8-98114-815-0
01
1
1312-
3
BOLT; CHARGE AIR COOLER
EURO3 SPECIFICATION(NT3) (C) M6X45 FLANGE IMA
0-28050-645-0
01
1
1312-
3
BOLT; CHARGE AIR COOLER
EURO3 SPECIFICATION(NT3) (D) M8X20 FLANGE IMA
0-28050-820-0
03
1
1312-
3
BOLT; CHARGE AIR COOLER
EURO3 SPECIFICATION(NT3) (B) M10X45 FLANGE
0-28151-045-0
01
1
1312-
3
BOLT; CHARGE AIR COOLER
EURO4 SPECIFICATION(NT4) (A) M8X50 FLANGE IMA
0-28050-850-0
01
1
1312-
3
BOLT; CHARGE AIR COOLER
EURO4 SPECIFICATION(NT4) (E) M8X60 FLANGE IMA
0-28050-860-0
01
1
1312-
5
WASHER; PL,CHARGE AIR COOLER
ID=8.5 OD=36
8-94221-082-0
02
1
1312-
6
COLLAR; MTG,CHARGE AIR COOLER
8-97107-898-0
04
1
1312-
9
NUT; CHARGE AIR COOLER
M8 FLANGE IMA
0-91180-108-0
02
1
1312-
12
BOLT; CHARGE AIR COOLER
8-98044-006-0
02
1
1312-
14
BRACKET; CHARGE AIR COOLER
(A)
8-98012-016-3
01
1
1312-
14
BRACKET; CHARGE AIR COOLER
EURO3 SPECIFICATION(NT3) (C)
8-98156-390-1
01
1
1312-
14
BRACKET; CHARGE AIR COOLER
EURO3 SPECIFICATION(NT3) (D)
8-98156-391-1
01
1
1312-
14
BRACKET; CHARGE AIR COOLER
EURO4 SPECIFICATION(NT4) (B)
8-98039-405-0
01
1
1312-
33
BRACKET; CHARGE AIR COOLER,FRT
8-97389-214-2
01
1
1312-
35
HOSE; CONNECTING
(A)
8-98076-084-0
01
1
1312-
35
HOSE; CONNECTING
(B)
8-98160-197-0
01
1
1312-
40
CLIP; RUBBER HOSE
ID=60-65
8-98096-418-0
02
1
1312-
46
RUBBER; MTG,CHARGE AIR COOLER
(B)
8-97181-886-0
04
1
1312-
46
RUBBER; MTG,CHARGE AIR COOLER
(A)
8-97232-774-0
04
1
1312-
47
BOLT; CHARGE AIR COOLER BRKT
(B) M8X16 FLANGE IMA
0-28050-816-0
02
1
1312-
47
BOLT; CHARGE AIR COOLER BRKT
(A) M6X16 FLANGE IMA
0-28650-616-0
01
1
1312-
98
BOLT; BRKT TO CHARGE AIR COOLER
M8X16 FLANGE IMA
0-28050-816-0
02
1
1312-
109
STUD; BRKT
M8X40 L=52 IMA
0-41010-840-0
01
1
1312-
129
CLAMP; HOSE
(A)
8-98080-783-0
01
1
1312-
129
CLAMP; HOSE
(B)
8-98080-785-0
01
1
1312-
