51506 - UCR RHD (INDIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

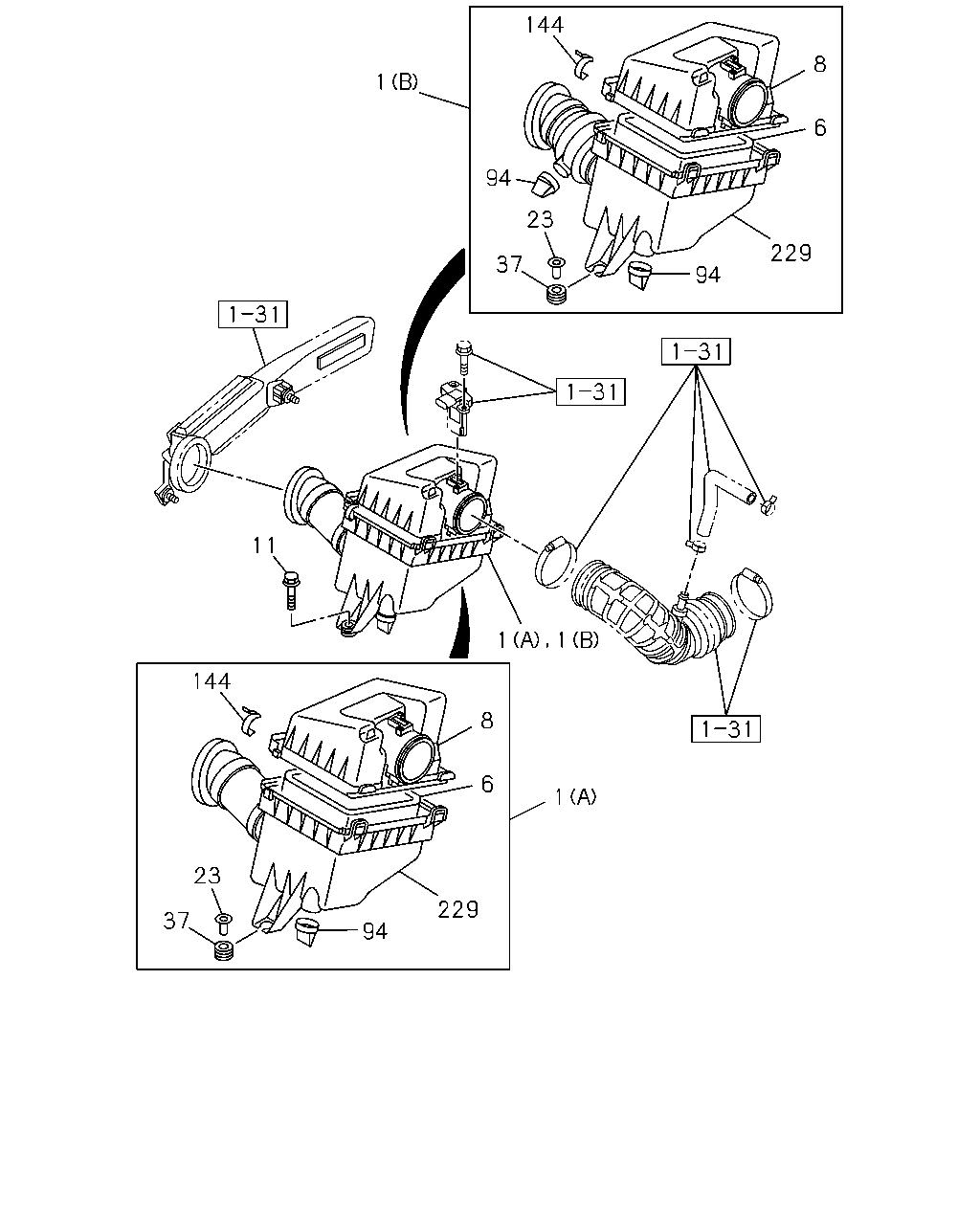

1-30 — AIR CLEANER
(#132583) — 13 parça
1
144
94
23
37
94
229
6
8
11
1
1
1
6
8
144
23
37
94
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
HEAVY DUTY AIR CLEANER<K46> (B)
8-98008-889-2
01
1
1312-
1
CLEANER ASM; AIR
AIR CLEANER DRY ELEMENT<S9R> (A)
8-98008-888-2
01
1
1312-
6
FILTER; ACL
8-98027-480-0
01
1
1312-
8
COVER ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98053-566-0
01
1
1312-
8
COVER ASM; ACL
AIR CLEANER DRY ELEMENT<S9R>
8-98036-124-1
01
1
1312-
11
BOLT; ACL
M8X30 FLANGE IMA
0-28650-830-0
03
1
1312-
23
COLLAR; ACL STAY
8-98036-127-0
03
1
1312-
37
RUBBER; MTG,ACL
8-98036-126-0
03
1
1312-
94
VALVE; VACUATOR
HEAVY DUTY AIR CLEANER<K46> IMA
8-94447-157-0
02
1
1312-
94
VALVE; VACUATOR
AIR CLEANER DRY ELEMENT<S9R> IMA
8-94447-157-0
01
1
1312-
144
CLIP; ACL
IMA
8-97324-624-0
02
1
1312-
229
BODY ASM; ACL
HEAVY DUTY AIR CLEANER<K46>
8-98037-310-0
01
1
1312-
229
BODY ASM; ACL
AIR CLEANER DRY ELEMENT<S9R>
8-98036-125-0
01
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
