◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#132578) — 22 parça

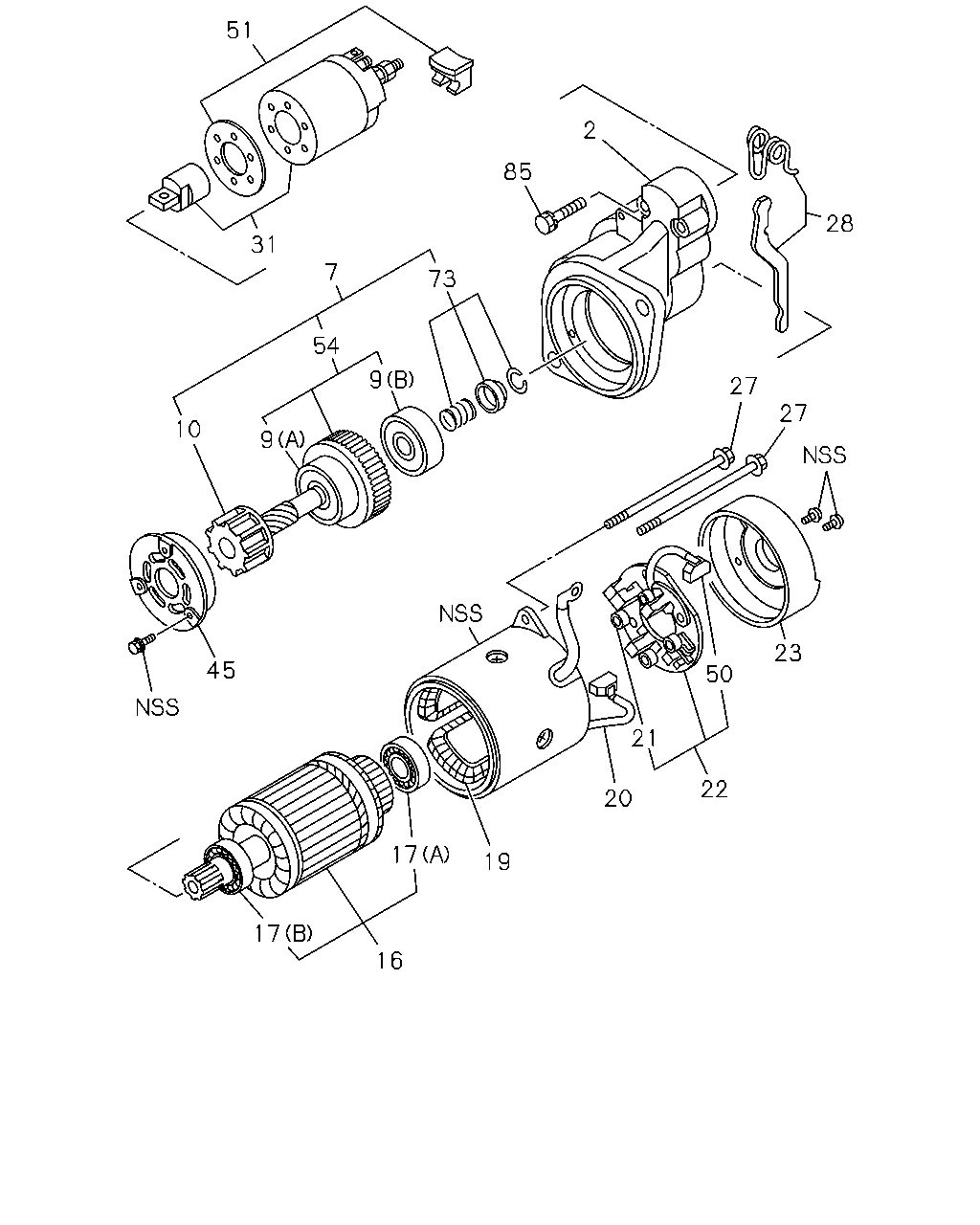

çizim 401217
28 27 23 22 21 20 50 27 17 19 16 17 45 10 54 7 73 9 9 85 2 51 31
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97368-562-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97229-910-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(A), IMA ASM PART: A = 8-98028-199-0 		8-97047-549-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(B), IMA ASM PART: A = 8-98028-199-0 		8-97047-550-0 01 1 -
10 SHAFT; GEAR STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97130-189-1 01 1 -
16 ARMATURE; STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97262-027-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A), IMA ASM PART: A = 8-98028-199-0 		8-94228-436-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B), IMA ASM PART: A = 8-98028-199-0 		8-94228-437-0 01 1 -
19 COIL; FIELD,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97376-957-1 01 1 -
20 BRUSH; (+),STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97113-286-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
IMA ASM PART: A = 8-98028-199-0 		8-94242-064-0 04 1 -
22 HOLDER; BRUSH STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97112-559-1 01 1 -
23 COVER; RR COVER STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97319-418-0 01 1 -
27 BOLT; THROUGH,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97319-423-0 02 1 -
28 LEVER; SHIFT,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97351-967-0 01 1 -
31 SWITCH; ENGAGE STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97368-561-1 01 1 -
45 RETAINER; BEARING,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-94435-570-0 01 1 -
50 BRUSH; (-),STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97113-286-0 02 1 -
51 COVER SET; DUST ENGAGE SW STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97368-563-0 01 1 -
54 CLUTCH; PINION,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-97229-911-0 01 1 -
73 STOPPER SET; PINION
IMA ASM PART: A = 8-98028-199-0 		8-94228-450-0 01 1 -
85 BOLT; ENGAGE SW FIX,STARTER
IMA ASM PART: A = 8-98028-199-0 		8-94408-500-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
