◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#132574) — 31 parça

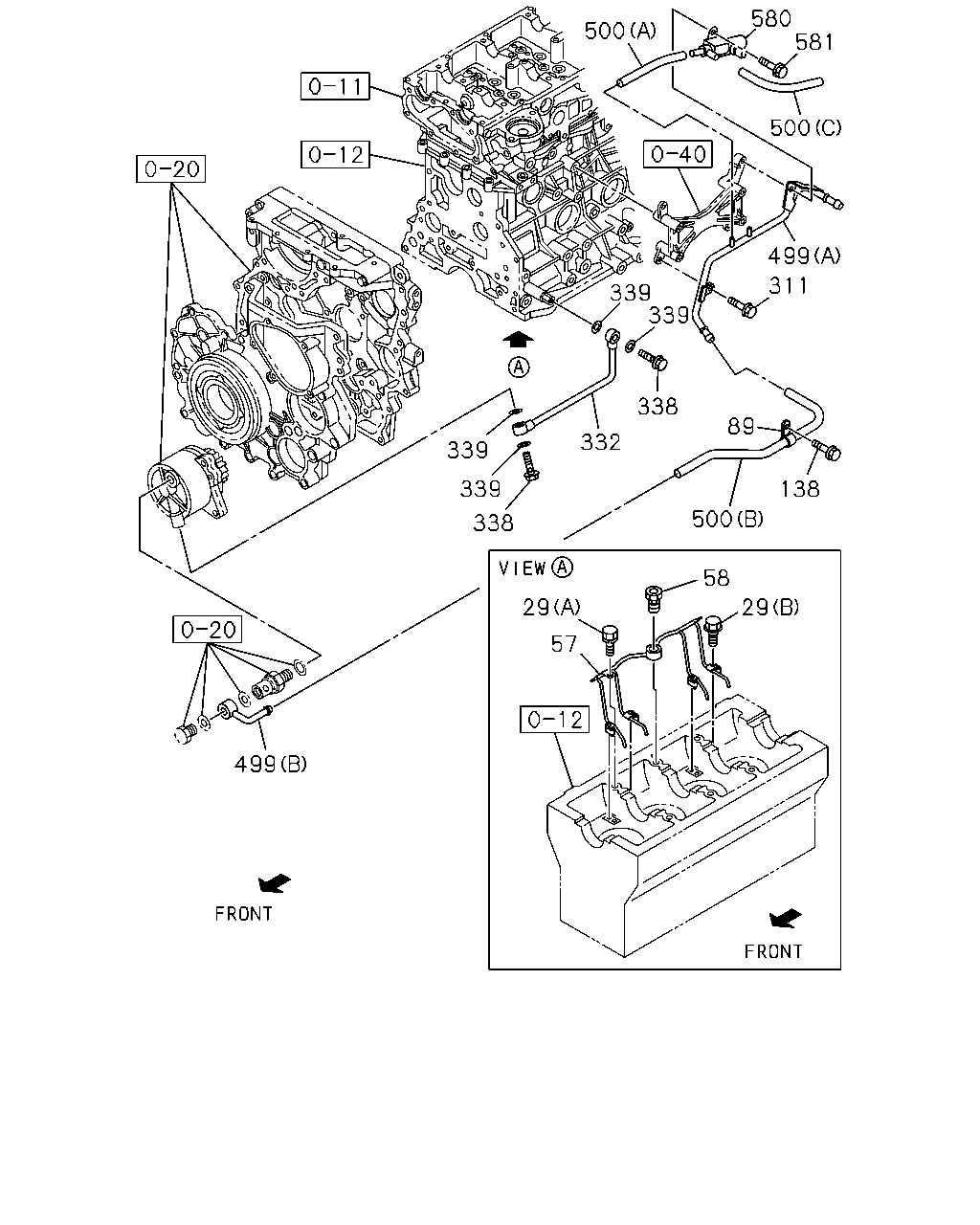

çizim 401179
500 580 581 500 499 311 339 339 338 332 339 339 338 499 500 58 138 89 29 57 29
BalonParca AdiParca NoAdetTipApplied Date
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE IMA 		0-28050-810-0 01 1 1312-
29 BOLT; OIL PIPE,OIL JET
(B) M6X20 FLANGE IMA 		8-97380-673-1 04 1 1312-
57 PIPE; OIL,OIL JET
IMA 		8-97312-132-3 01 1 1312-
58 VALVE; RELIEF,OIL JET,PISTON COOLING
IMA 		8-97379-464-0 01 1 1312-
89 CLIP; VAC HOSE
ID=16 L=20 IMA 		0-95235-536-0 01 1 1312-
138 BOLT; CLIP FIX
M8X16 FLANGE IMA 		0-28050-816-0 01 1 1312-
311 BOLT; PIPE FIX
M6X12 FLANGE IMA 		0-28050-612-0 01 1 1312-
332 PIPE; OIL,C/BL TO VAC PUMP 8-98038-929-0 01 1 1312-
338 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT IMA 		8-97910-296-1 02 1 1312-
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=14.0 T=1.0 IMA 		9-09571-408-0 04 1 1312-
499 PIPE; VACUUM
(A) 		8-98011-526-1 01 1 1312-
499 PIPE; VACUUM
(B) IMA 		8-98011-527-1 01 1 1312-
500 HOSE; VACUUM
(A) 		0-04420-110-0 01 1 1312-
500 HOSE; VACUUM
(B) 		0-08508-230-0 01 1 1312-
500 HOSE; VACUUM
(C) 		8-97369-589-0 01 1 1312-
580 VALVE; VAC SW
IMA 		8-97352-145-0 01 1 1312-
581 BOLT; VSV
M8X16 FLANGE IMA 		0-28050-816-0 01 1 1312-

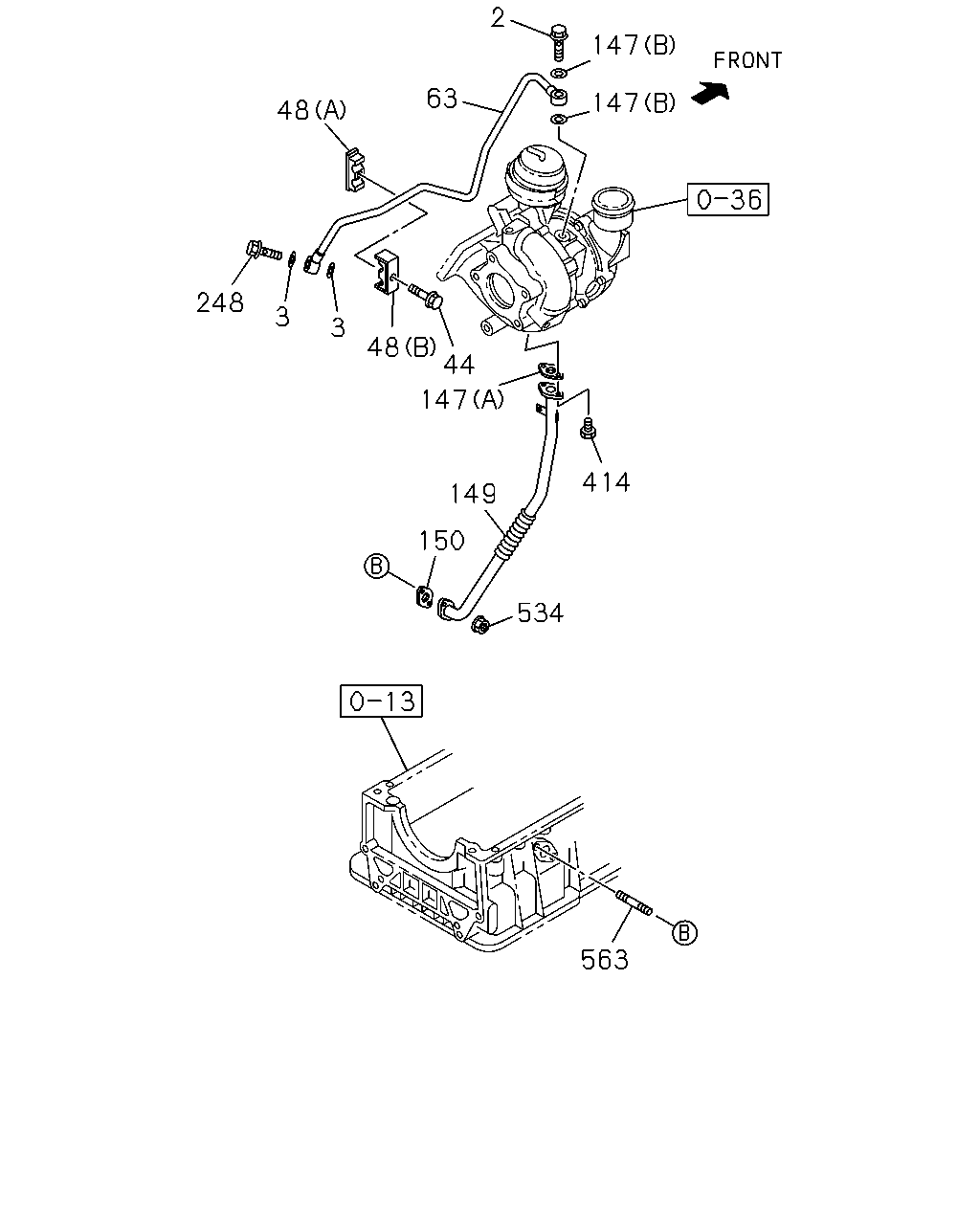

çizim 401184
563 534 414 149 150 147 44 48 3 3 248 48 63 2 147 147
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; EYE,OIL PIPE
M10X25 FLANGE IMA 		8-98151-063-1 01 1 1312-
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0 IMA 		9-09571-410-0 02 1 1312-
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28650-630-0 01 1 1312-
48 CLIP; OIL PIPE
(A) 		8-97389-843-1 01 1 1312-
48 CLIP; OIL PIPE
(B) 		8-97389-844-0 01 1 1312-
63 PIPE; OIL,TURBOCHARGER FEED 8-98156-380-0 01 1 1312-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) IMA 		8-98132-017-0 01 1 1312-
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 IMA 		9-09571-410-0 02 1 1312-
149 PIPE; OIL RETURN,TURBOCHARGER
IMA 		8-98156-381-0 01 1 1312-
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-98132-018-1 01 1 1312-
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M10X22 		1-09675-028-0 01 1 1312-
414 BOLT; OIL PIPE
M6X16 FLANGE IMA 		0-28050-616-0 02 1 1312-
534 NUT; OIL PIPE
M8 FLANGE IMA 		0-91180-208-0 02 1 1312-
563 STUD; OIL PIPE
M8X20 L=32 IMA 		0-41010-820-0 02 1 1312-
