51506 - UCR RHD (INDIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

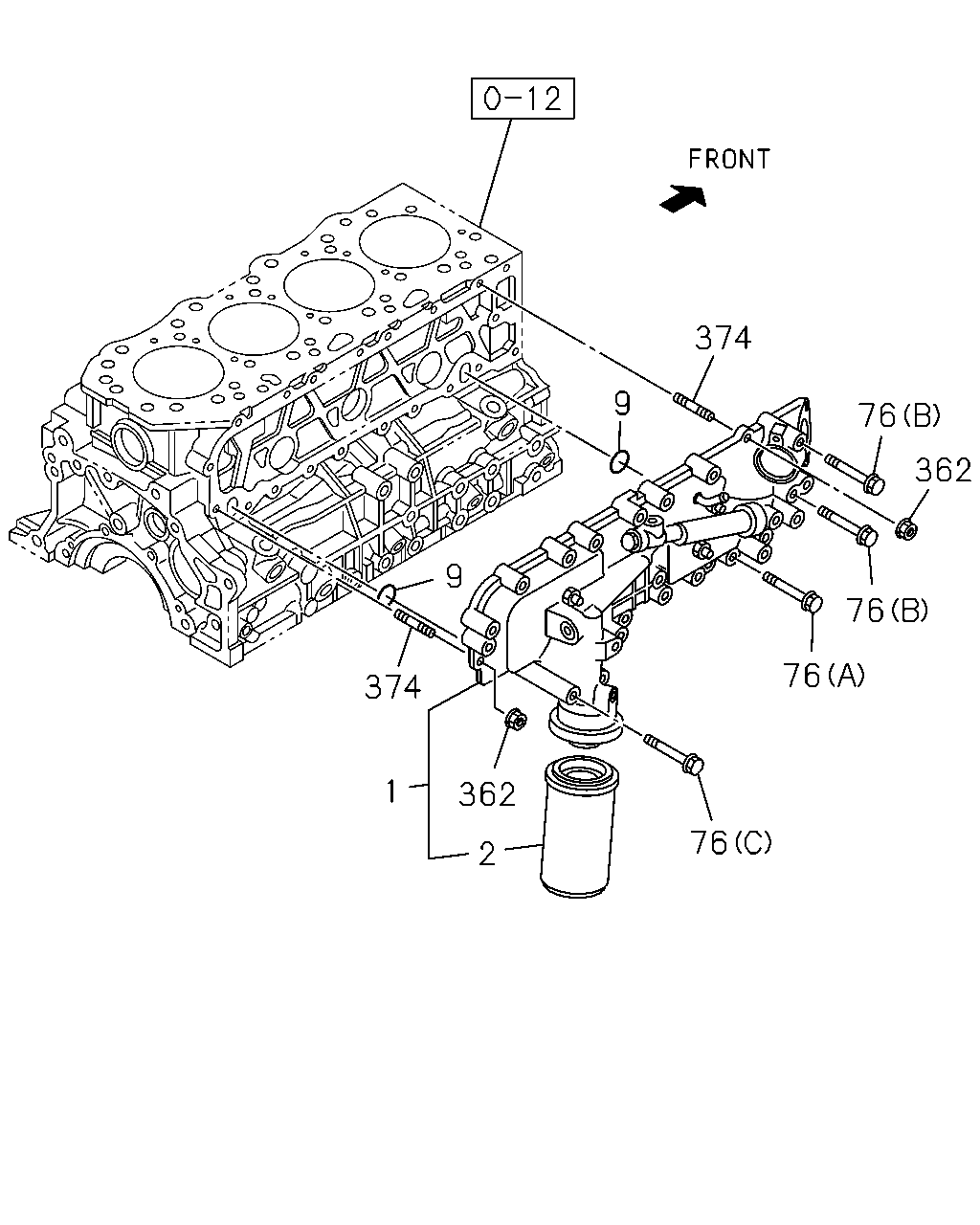

0-50 — OIL COOLER AND OIL FILTER
(#132572) — 9 parça
374
76
362
76
76
76
9
9
374
362
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER & COOLER ASM; OIL
EURO3 SPECIFICATION(NT3)
8-98025-403-4
01
1
1312-
1
FILTER & COOLER ASM; OIL
EURO4 SPECIFICATION(NT4)
8-98011-506-4
01
1
1312-
2
ELEMENT; OIL FILTER
8-97358-720-0
01
1
1312-
9
GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.2 IMA
9-09566-226-0
02
1
1312-
76
BOLT; OIL FILTER
(A) M8X45 FLANGE IMA
0-28050-845-0
14
1
1312-
76
BOLT; OIL FILTER
(B) M8X70 FLANGE
0-28050-870-0
02
1
1312-
76
BOLT; OIL FILTER
(C) M8X110 FLANGE IMA
0-28055-811-0
02
1
1312-
362
NUT; OIL FILTER
M8 FLANGE IMA
0-91180-208-0
02
1
1312-
374
STUD; OIL FILTER
M8X20 L=32 IMA
0-41010-820-0
02
1
1312-
