0-41 — FUEL FILTER AND BRACKET (#132571) — 28 parça

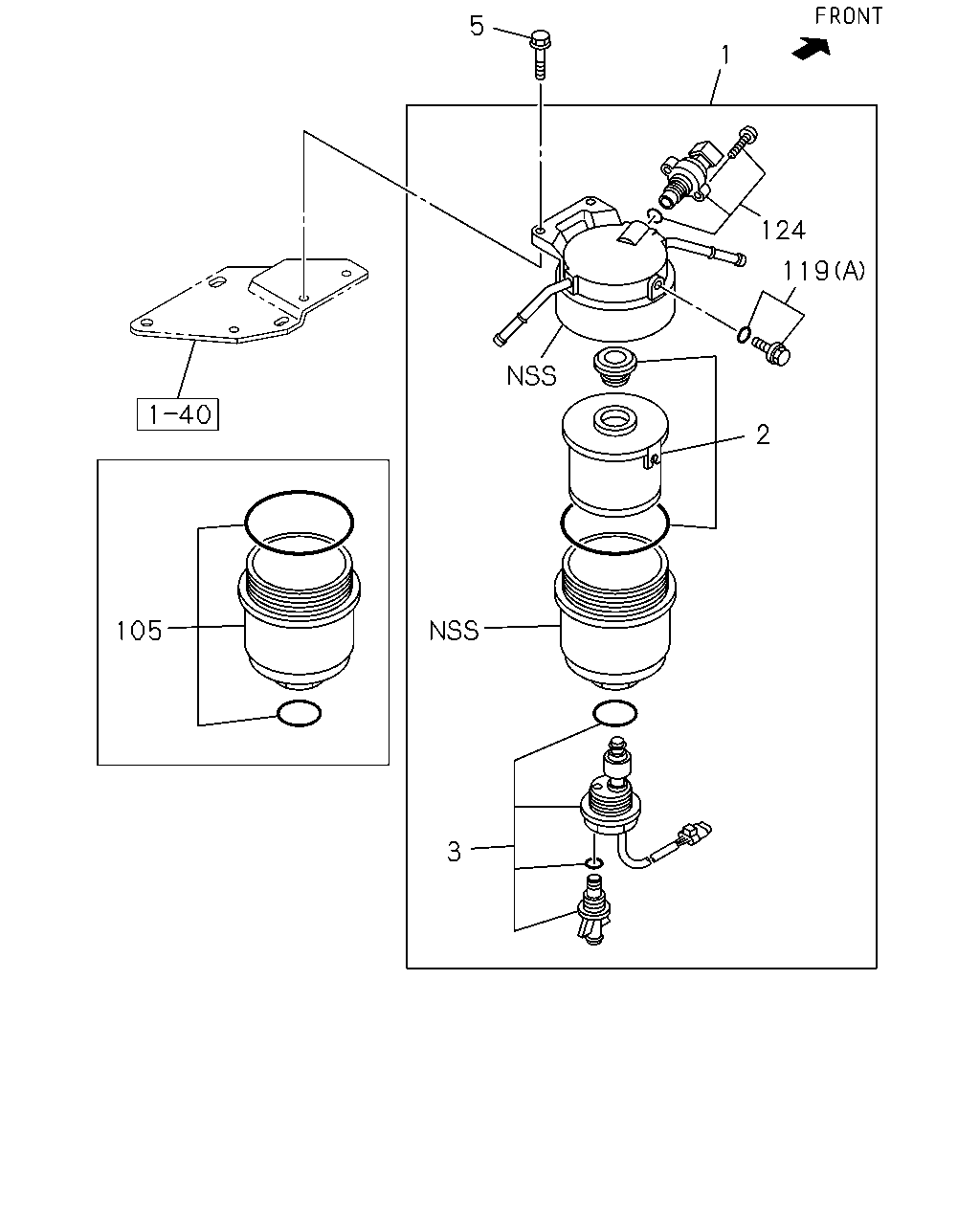

çizim 401159
5 1 124 119 2 3 105
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98150-029-0 01 1 1312-
2 ELEMENT KIT; FUEL FILTER 8-98149-982-0 01 1 1312-
3 SENSOR ASM; FUEL FILTER 8-98047-661-0 01 1 1312-
5 BOLT; FUEL FILTER
M8X30 FLANGE IMA 		0-28650-830-0 02 1 1312-
105 CASE; FUEL FILTER 8-98048-537-0 01 1 1312-
119 PLUG; DRAIN,FUEL FILTER
(A) 		8-98048-185-0 01 1 1312-
119 PLUG; DRAIN,FUEL FILTER
(B) 		8-98048-635-0 01 1 1312-
124 SWITCH; PRESSURE,FUEL FILTER 8-98036-319-0 01 1 1312-

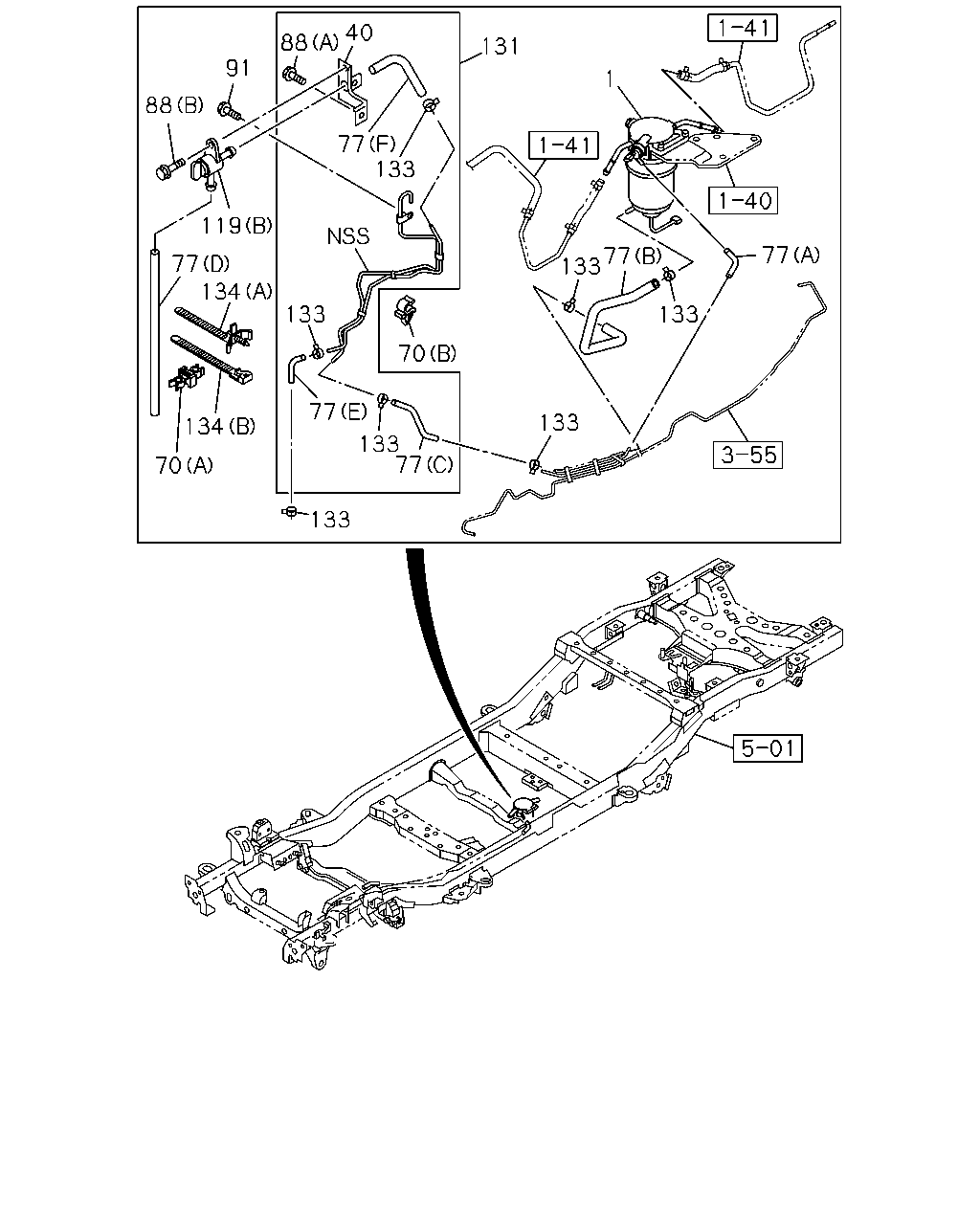

çizim 401161
1 131 133 77 133 77 133 77 133 133 133 70 77 133 77 91 88 40 88 119 77 134 134 70
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98150-029-0 01 1 1312-
40 BRACKET; FUEL FILTER
IND 		8-98043-611-1 01 1 1312-
70 CLIP; FUEL PIPE
(A) ID=7.5 & 7.5 IMA 		8-97019-084-0 01 1 1312-
70 CLIP; FUEL PIPE
(B) ID=6.8 		8-97134-154-0 01 1 1312-
77 HOSE; FUEL FILTER
(E) L=120 SERVICED BY L=3000 IMA 		0-04740-300-0 01 1 1312-
77 HOSE; FUEL FILTER
(A) L=78.7 		8-98034-993-0 01 1 1312-
77 HOSE; FUEL FILTER
(D) L=940 		8-98049-047-0 01 1 1312-
77 HOSE; FUEL FILTER
(B) L=249 		8-98165-271-0 01 1 1312-
77 HOSE; FUEL FILTER
(F) L=120 IND 		8-98165-853-0 01 1 1312-
77 HOSE; FUEL FILTER
(C) L=220 IND 		8-98165-854-0 01 1 1312-
88 BOLT; BRKT,FUEL FILTER
(A) M6X16 FLANGE IMA 		0-28650-616-0 01 1 1312-
88 BOLT; BRKT,FUEL FILTER
(B) M6X16 FLANGE IMA 		8-98049-357-0 01 1 1312-
91 BOLT; FUEL FILTER
M6X20 FLANGE IMA 		0-28650-620-0 01 1 1312-
119 PLUG; DRAIN,FUEL FILTER
(A) 		8-98048-185-0 01 1 1312-
119 PLUG; DRAIN,FUEL FILTER
(B) 		8-98048-635-0 01 1 1312-
131 PIPE; FILTER
IND 		8-98165-820-0 01 1 1312-
133 CLAMP; HOSE
ID=11.5 IMA 		8-98051-892-0 02 1 1312-
133 CLAMP; HOSE
ID=11.5 IMA 		8-98051-892-0 05 1 1312-
134 CLIP; FUEL HOSE
(A) L=135 		8-94473-399-0 01 1 1312-
134 CLIP; FUEL HOSE
(B) L=158.7 		8-97922-209-0 01 1 1312-
