0-40 — FUEL INJECTION SYSTEM (#132570) — 51 parça

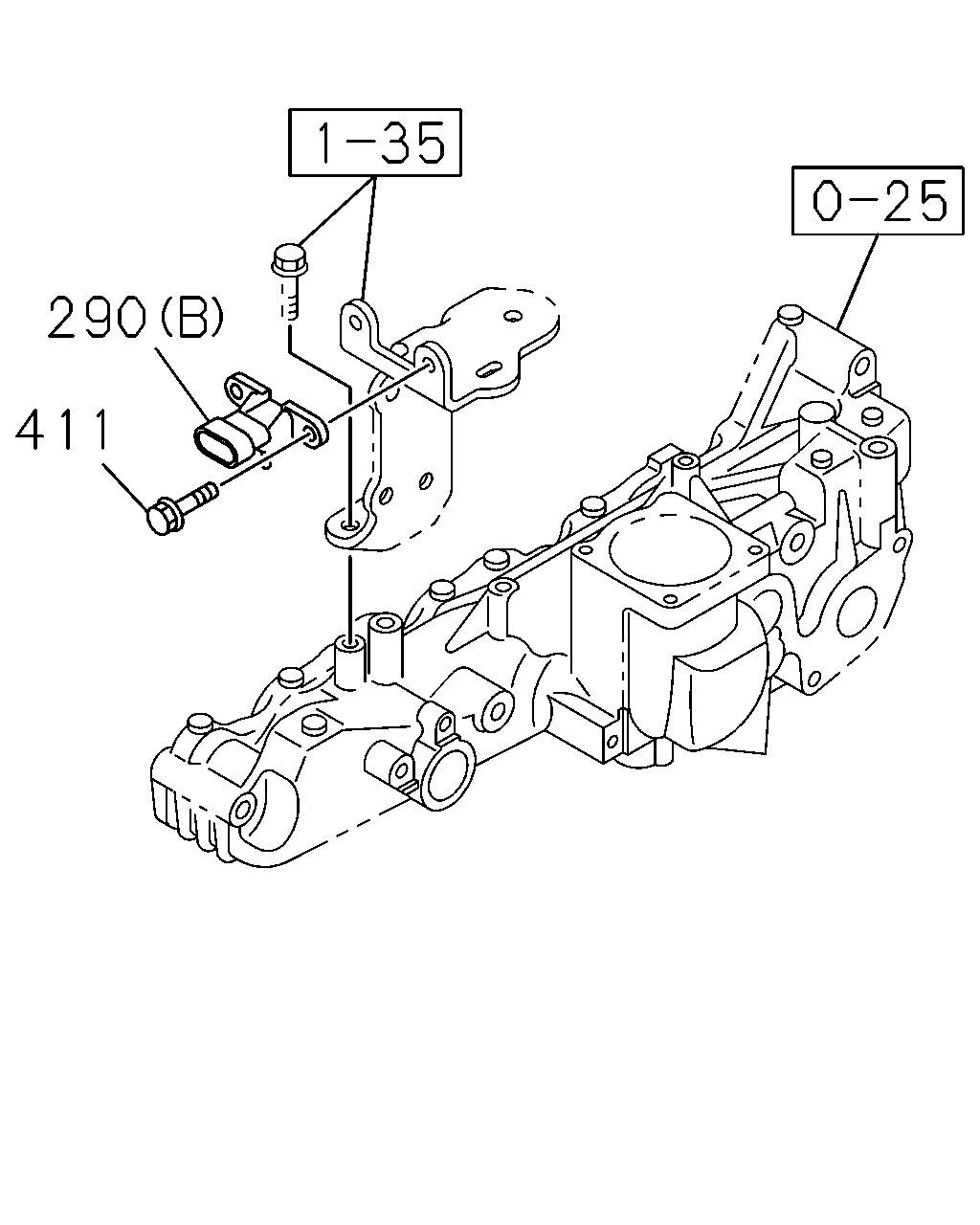

çizim 401132
290 411
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98011-606-0 01 1 1312-
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 1312-
290 SENSOR; PRESS
(A) IMA 		8-98181-616-0 01 1 1312-
411 BOLT; SENSOR
M6X20 FLANGE IMA 		0-28650-620-0 02 1 1312-1508
411 BOLT; SENSOR
M6X16 FLANGE IMA 		0-28050-616-0 02 1 1509-

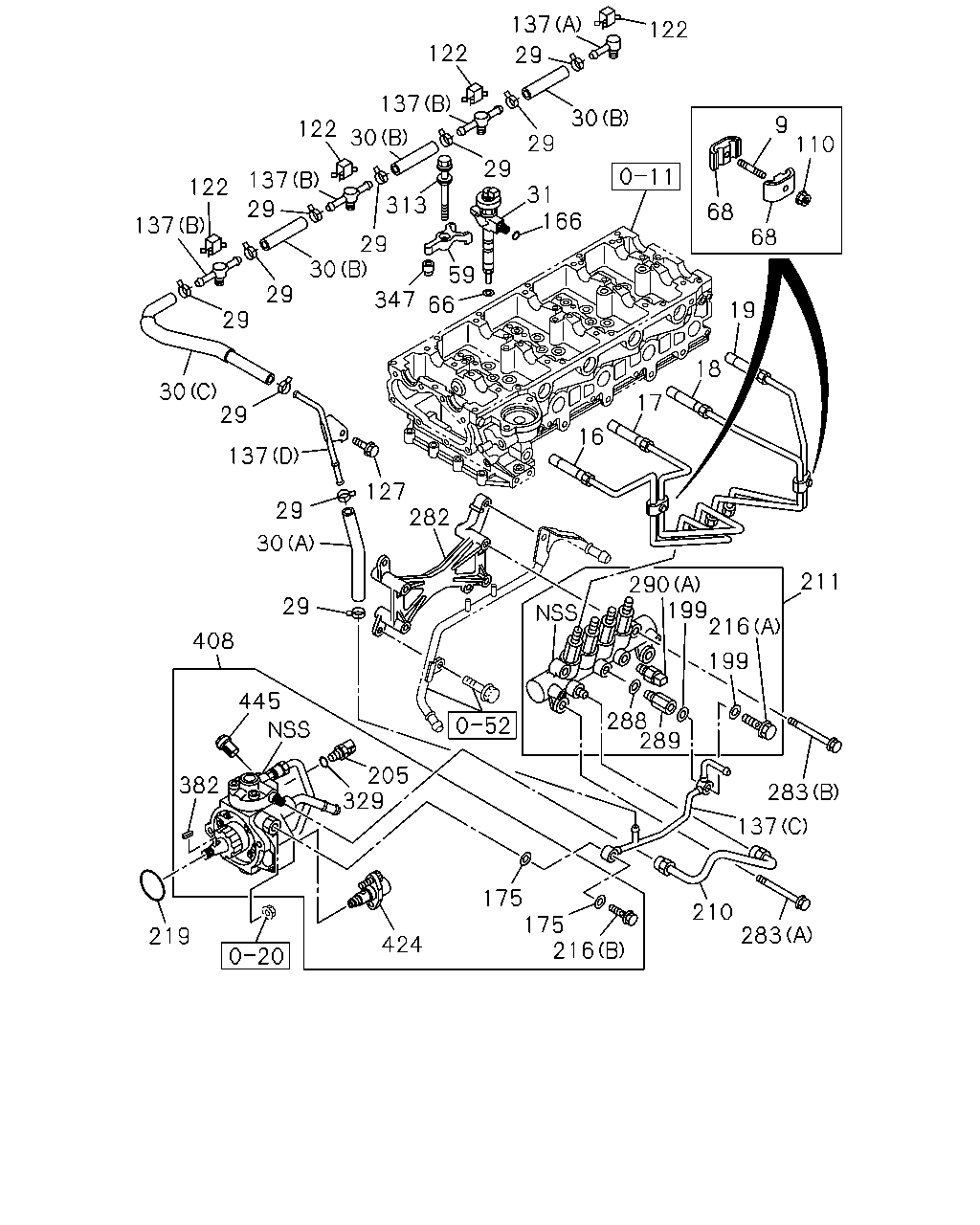

çizim 401134
122 137 122 29 30 29 29 137 122 137 30 122 137 29 313 29 30 29 29 30 137 30 29 127 282 31 59 347 166 66 110 9 68 68 19 18 17 6 211 216 199 199 290 288 289 283 137 210 283 216 175 175 424 219 329 445 205 382 408 29 29
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X25 L=36 		8-97214-234-1 02 1 1312-
16 PIPE; INJ NO.1 8-98011-606-0 01 1 1312-
17 PIPE; INJ NO.2 8-98043-684-0 01 1 1312-
18 PIPE; INJ NO.3 8-98011-608-0 01 1 1312-
19 PIPE; INJ NO.4 8-98011-609-0 01 1 1312-
29 CLIP; HOSE
ID=10.5 IMA 		8-97944-126-0 10 1 1312-
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		8-98053-692-0 01 1 1312-
30 HOSE; RUBBER,FUEL LEAK
(B) L=96 IMA 		8-98053-693-0 03 1 1312-
30 HOSE; RUBBER,FUEL LEAK
(C) 		8-98112-034-0 01 1 1312-
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1312-
59 CLAMP; NOZZLE HOLDER
IMA 		8-98092-539-0 04 1 1312-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98181-540-0 04 1 1312-
68 CLIP; INJ PIPE 8-97213-481-0 04 1 1312-
110 NUT; CLIP
M6 FLANGE IMA 		0-91180-106-0 02 1 1312-
122 CLIP; LEAK OFF PIPE
IMA 		8-97315-286-0 04 1 1312-
127 BOLT; CLIP LEAK OFF PIPE
M8X12 FLANGE IMA 		0-28050-812-0 01 1 1312-
137 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1312-
137 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1312-
137 PIPE ASM; LEAK OFF
(C) 		8-97357-916-4 01 1 1312-
137 PIPE ASM; LEAK OFF
(D) 		8-97372-938-3 01 1 1312-
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 IMA 		9-09566-111-0 04 1 1312-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1312-1505
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
IMA 		1-15619-508-0 02 1 1506-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-218-0 02 1 1312-
205 SENSOR; FUEL TEMP
IMA 		8-98023-581-0 01 1 1312-
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1312-
211 RAIL ASM; COMMON 8-98052-238-1 01 1 1312-
216 BOLT; EYE
(B) 		9-88130-088-0 01 1 1312-1409
216 BOLT; EYE
(B) IMA 		8-98209-777-0 01 1 1410-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1312-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 IMA 		1-09623-541-0 01 1 1312-
282 BRACKET; COMMON RAIL 8-98011-890-1 01 1 1312-
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1312-
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1312-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1312-
289 LIMITER; FUEL PRESS
IMA 		8-98032-549-0 01 1 1312-
290 SENSOR; PRESS
(B) IMA 		8-98020-514-0 01 1 1312-
290 SENSOR; PRESS
(A) IMA 		8-98181-616-0 01 1 1312-
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-98095-575-0 04 1 1312-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1312-1409
347 PIN
IMA 		8-98165-035-0 04 1 1312-
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1312-1409
382 KEY; DRIVE SHAFT
IMA 		8-98161-995-0 01 1 1410-
408 PUMP ASM; FUEL,SUPPLY
IMA 		8-98155-988-3 01 1 1312-
424 OVERHAUL KIT; SUPPLY PUMP
IMA 		8-98145-455-1 01 1 1312-
445 SCREW; FILTER,INLET
IMA 		8-98209-778-0 01 1 1312-
