◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#132569) — 60 parça

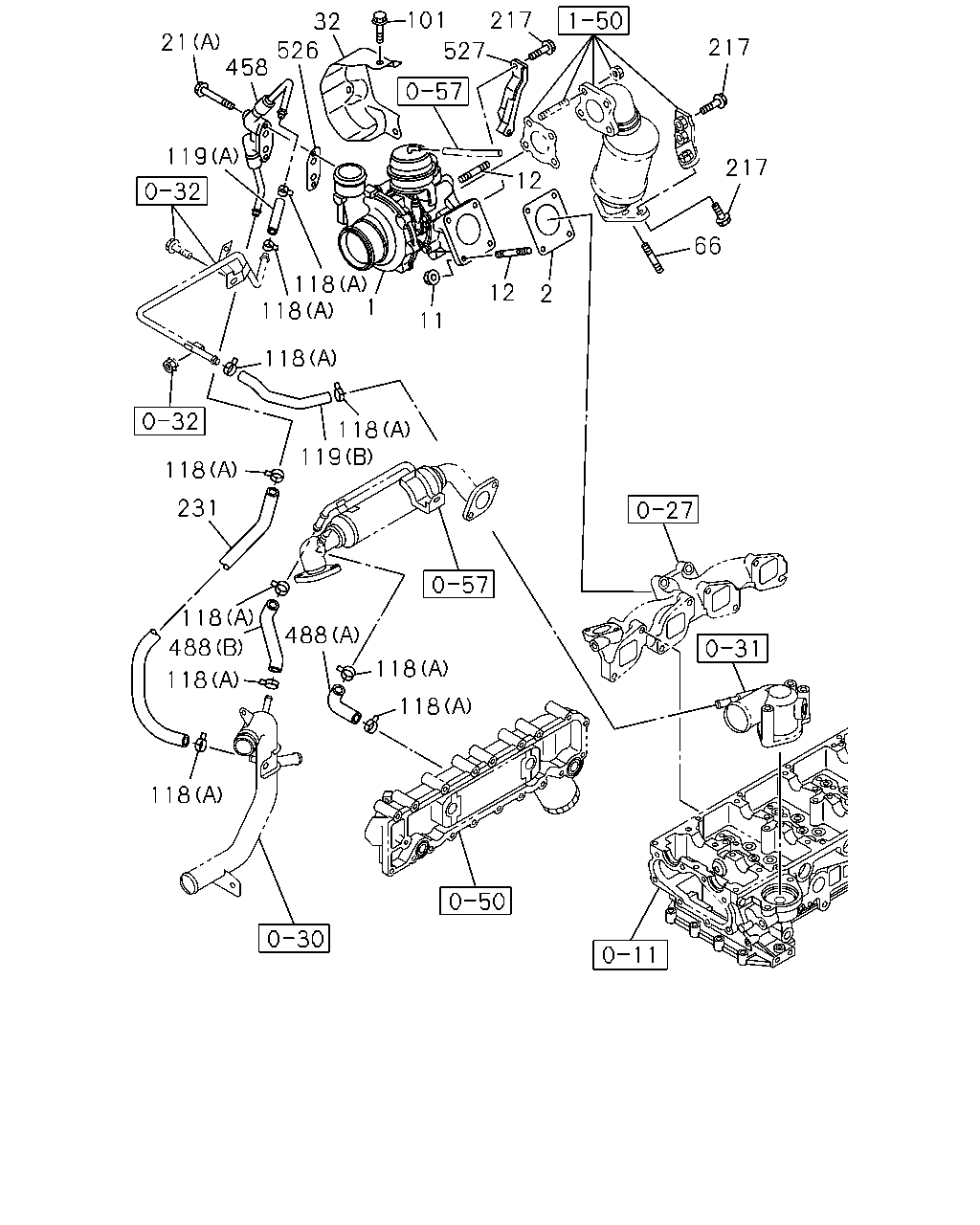

çizim 401126
11 118 118 118 118 118 118 118 118 118 118 119 1 12 2 12 217 527 101 32 526 458 21 119 231 488 488 217 217 66
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-98132-069-2 01 1 1312-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98132-073-0 01 1 1312-
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97379-384-0 04 1 1312-
12 STUD; TURBOCHARGER
M8X25 L=36 IMA 		8-97378-062-0 02 1 1312-
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 1312-
21 BOLT; PIPE
(A) M6X45 FLANGE IMA 		0-28050-645-0 02 1 1312-
21 BOLT; PIPE
EURO4 SPECIFICATION(NT4) (B) M8X40 FLANGE IMA 		0-28650-840-0 02 1 1312-
32 PROTECTOR; HEAT,TURBOCHARGER
IMA 		8-98156-389-0 01 1 1312-
66 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 1312-
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE IMA 		0-28050-812-0 02 1 1312-
118 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1312-
118 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3) (A) ID=12.8 		8-97944-125-0 04 1 1312-
118 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4) (B) ID=20.8 IMA 		8-97944-127-0 06 1 1312-
119 HOSE; WATER,TURBOCHARGER
(A) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
119 HOSE; WATER,TURBOCHARGER
(B) 		8-97369-590-1 01 1 1312-
217 BOLT; BRKT
M8X20 FLANGE IMA 		0-28650-820-0 01 1 1312-
217 BOLT; BRKT
M8X25 FLANGE IMA 		0-28650-825-0 02 1 1312-
217 BOLT; BRKT
M8X18 FLANGE IMA 		8-97378-076-0 01 1 1312-
217 BOLT; BRKT
M8X28 FLANGE 		8-98041-363-0 01 1 1312-
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
458 PIPE; WATER,TURBOCHARGER 8-98132-035-2 01 1 1312-
488 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) (A) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
488 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) (B) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
488 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (C) 		8-98011-632-1 01 1 1312-
488 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (D) 		8-98011-633-1 01 1 1312-
488 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (E) 		8-98031-860-0 01 1 1312-
526 GASKET; PLATE
IMA 		8-97352-985-0 01 1 1312-
527 BRACKET; TURBOCHARGER
IMA 		8-98156-388-0 01 1 1312-

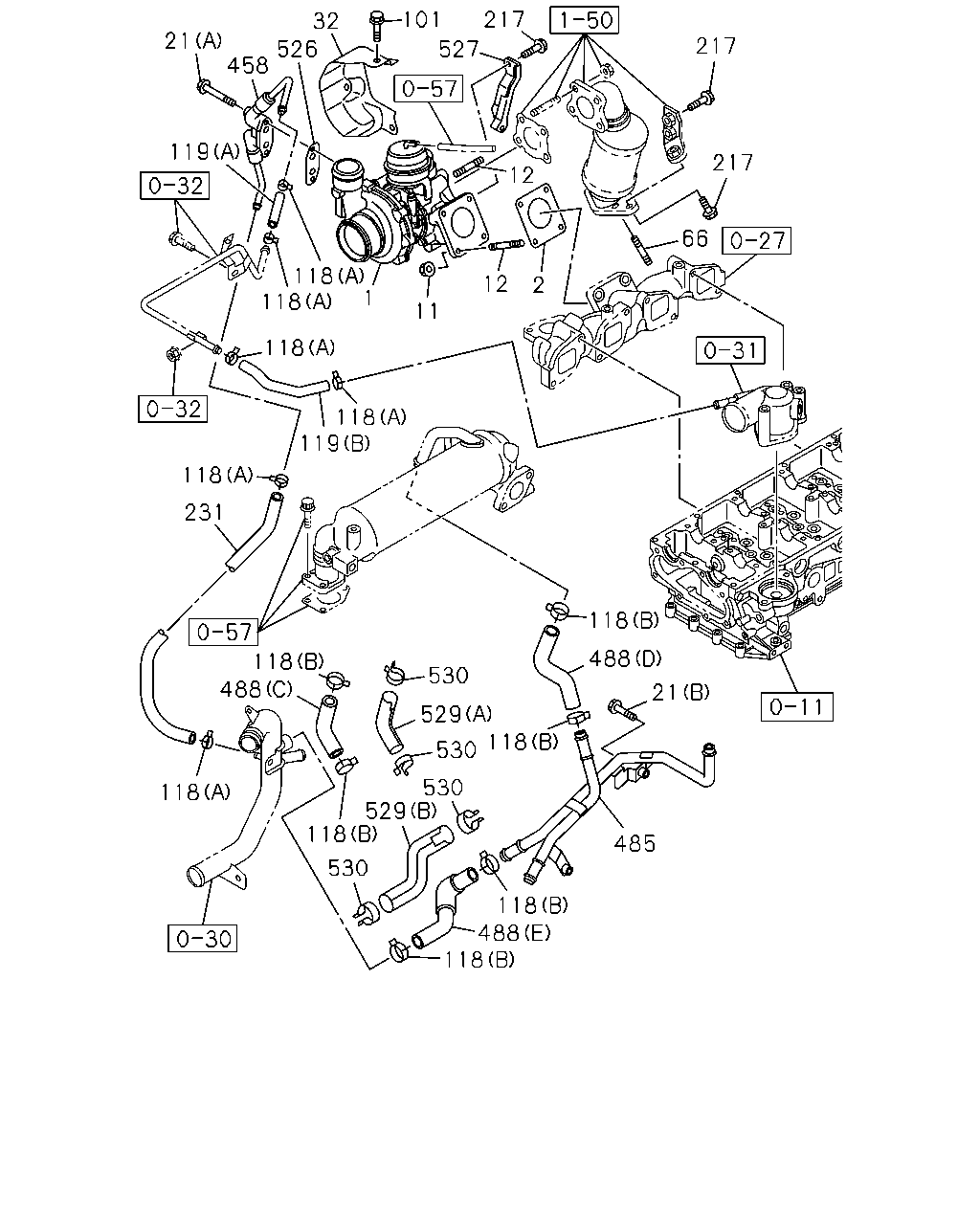

çizim 401842
488 118 21 485 118 488 530 529 530 530 529 530 118 488 118 118 231 118 119 118 118 118 118 11 1 12 2 12 527 217 101 32 526 458 21 119 217 217 66 118 118
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-98132-069-2 01 1 1312-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98132-073-0 01 1 1312-
11 NUT; TURBOCHARGER
M8 FLANGE IMA 		8-97379-384-0 04 1 1312-
12 STUD; TURBOCHARGER
M8X25 L=36 IMA 		8-97378-062-0 02 1 1312-
12 STUD; TURBOCHARGER
M8X30 L=41 IMA 		8-97378-064-0 02 1 1312-
21 BOLT; PIPE
(A) M6X45 FLANGE IMA 		0-28050-645-0 02 1 1312-
21 BOLT; PIPE
EURO4 SPECIFICATION(NT4) (B) M8X40 FLANGE IMA 		0-28650-840-0 02 1 1312-
32 PROTECTOR; HEAT,TURBOCHARGER
IMA 		8-98156-389-0 01 1 1312-
66 STUD; EXH PIPE
M10X22 L=43 		0-43211-022-0 02 1 1312-
101 BOLT; HEAT PROTECTOR
M8X12 FLANGE IMA 		0-28050-812-0 02 1 1312-
118 CLIP; WATER HOSE
(A) ID=12.8 		8-97944-125-0 06 1 1312-
118 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3) (A) ID=12.8 		8-97944-125-0 04 1 1312-
118 CLIP; WATER HOSE
EURO4 SPECIFICATION(NT4) (B) ID=20.8 IMA 		8-97944-127-0 06 1 1312-
119 HOSE; WATER,TURBOCHARGER
(A) L=170 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
119 HOSE; WATER,TURBOCHARGER
(B) 		8-97369-590-1 01 1 1312-
217 BOLT; BRKT
M8X20 FLANGE IMA 		0-28650-820-0 01 1 1312-
217 BOLT; BRKT
M8X25 FLANGE IMA 		0-28650-825-0 02 1 1312-
217 BOLT; BRKT
M8X18 FLANGE IMA 		8-97378-076-0 01 1 1312-
217 BOLT; BRKT
M8X28 FLANGE 		8-98041-363-0 01 1 1312-
231 HOSE; RUBBER,TURBOCHARGER OUT
L=210 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
458 PIPE; WATER,TURBOCHARGER 8-98132-035-2 01 1 1312-
485 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) 		8-98011-520-2 01 1 1312-
488 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) (A) L=150 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
488 HOSE; RUBBER
EURO3 SPECIFICATION(NT3) (B) L=220 SERVICED BY L=3000 		0-03559-300-0 01 1 1312-
488 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (C) 		8-98011-632-1 01 1 1312-
488 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (D) 		8-98011-633-1 01 1 1312-
488 HOSE; RUBBER
EURO4 SPECIFICATION(NT4) (E) 		8-98031-860-0 01 1 1312-
526 GASKET; PLATE
IMA 		8-97352-985-0 01 1 1312-
527 BRACKET; TURBOCHARGER
IMA 		8-98156-388-0 01 1 1312-
529 INSULATOR; HOSE
EURO4 SPECIFICATION(NT4) (A) IMA 		8-98031-883-0 01 1 1312-
529 INSULATOR; HOSE
EURO4 SPECIFICATION(NT4) (B) IMA 		8-98031-884-0 01 1 1312-
530 CLIP; INSULATOR
EURO4 SPECIFICATION(NT4) IMA 		8-97101-337-0 04 1 1312-
