◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#132566) — 8 parça

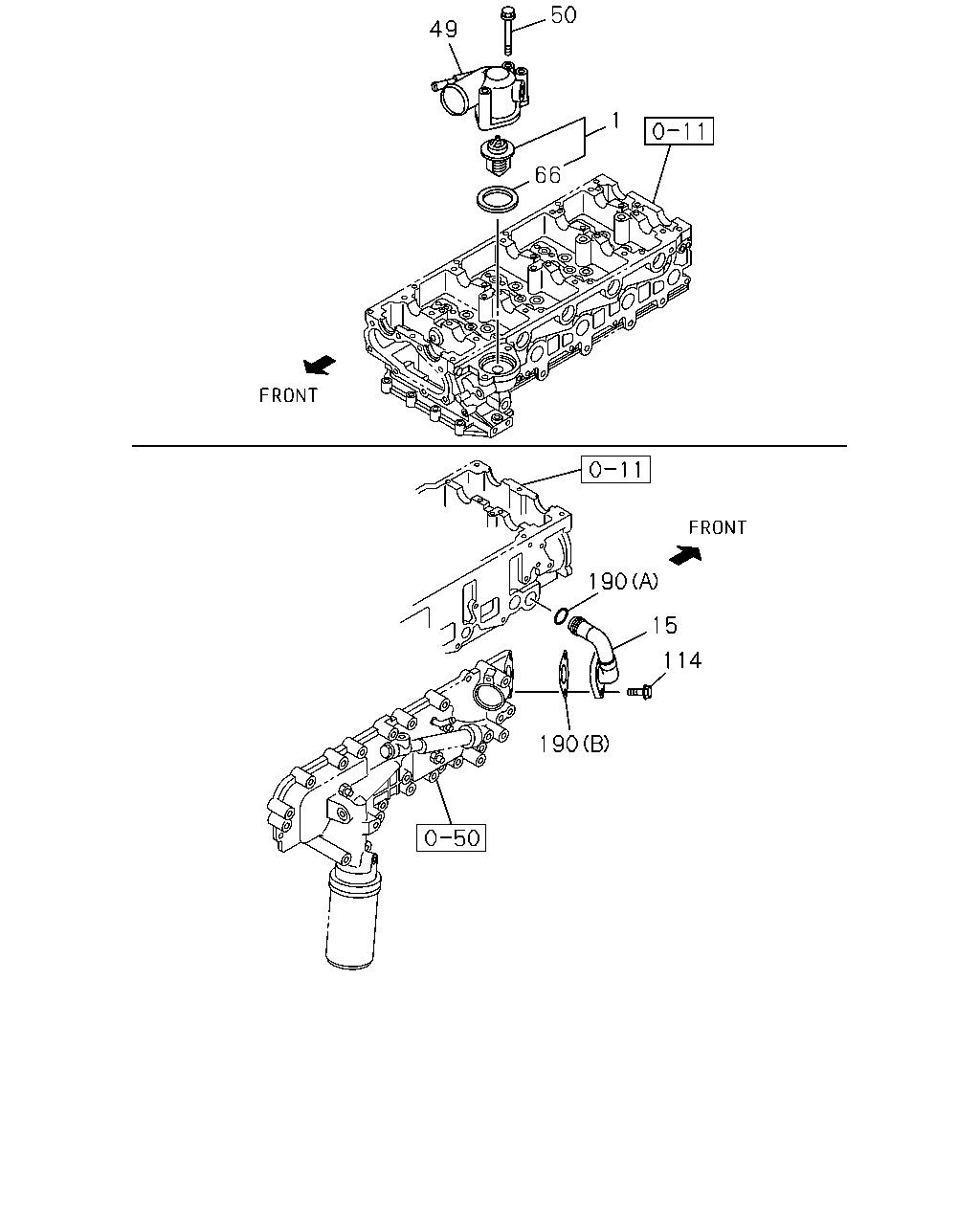

çizim 401094
49 50 1 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
85 CELSIUS IMA 		8-98017-027-2 01 1 1312-
15 PIPE; BYPASS 8-97318-732-2 01 1 1312-
49 PIPE; WATER OUTLET 8-98120-945-0 01 1 1312-
50 BOLT; OUTLET PIPE
M8X80 FLANGE IMA 		0-28050-880-0 02 1 1312-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA 		8-98114-587-0 01 1 1312-
114 BOLT; BYPASS PIPE
M8X25 FLANGE IMA 		0-28650-825-0 02 1 1312-
190 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) IMA 		0-95690-226-0 01 1 1312-
190 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97318-494-2 01 1 1312-
