51506 - UCR RHD (INDIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

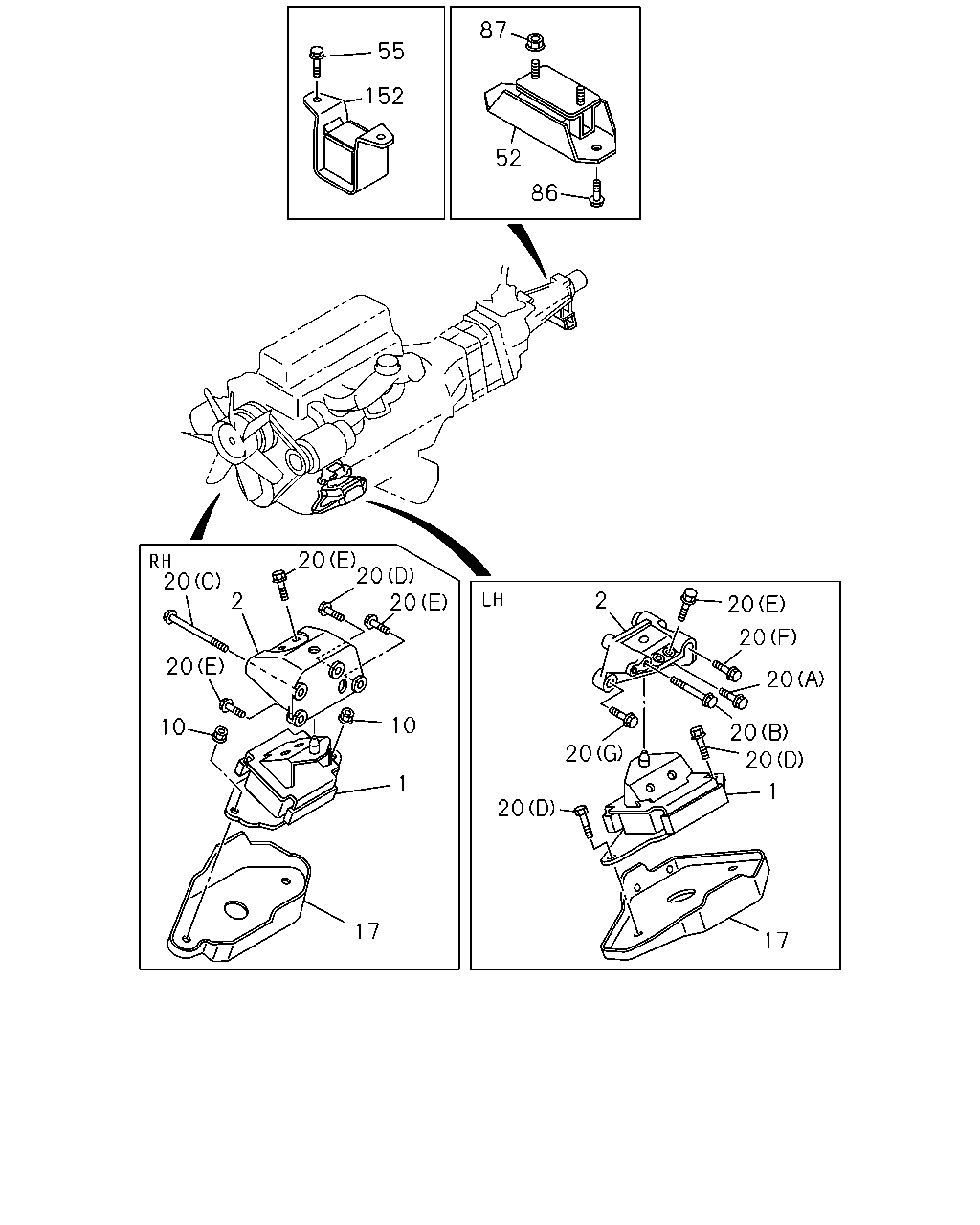

0-22 — ENGINE MOUNTING
(#132562) — 22 parça
55
152
87
52
86
20
20
2
20
20
20
2
20
20
20
10
1
20
10
17
20
20
1
20
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-97363-543-0
01
1
1312-
1
RUBBER; ENG FOOT,FRT
8-97367-273-0
01
1
1312-
2
FOOT; ENG
8-97355-476-0
01
1
1312-
2
FOOT; ENG
8-97355-478-1
01
1
1312-
10
NUT; MTG RUBBER
M10 FLANGE IMA
0-91180-210-0
02
1
1312-
17
COVER; CUSHION RUBBER,FRT
8-97381-228-0
01
1
1312-
17
COVER; CUSHION RUBBER,FRT
8-97385-745-0
01
1
1312-
20
BOLT; ENG FOOT
(B) M10X100 FLANGE
0-28051-000-0
01
1
1312-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE IMA
0-28051-020-0
01
1
1312-
20
BOLT; ENG FOOT
(C) M10X80 FLANGE
0-28051-080-0
01
1
1312-
20
BOLT; ENG FOOT
(D) M10X25 FLANGE IMA
0-28651-025-0
01
1
1312-
20
BOLT; ENG FOOT
(D) M10X25 FLANGE IMA
0-28651-025-0
02
1
1312-
20
BOLT; ENG FOOT
(E) M10X30 FLANGE
0-28651-030-0
04
1
1312-
20
BOLT; ENG FOOT
(E) M10X30 FLANGE
0-28651-030-0
02
1
1312-
20
BOLT; ENG FOOT
(F) M10X40 FLANGE
0-28651-040-0
01
1
1312-
20
BOLT; ENG FOOT
(G) M14X45 FLANGE
0-28851-445-0
01
1
1312-
52
RUBBER; CUSHION,ENG MTG,RR
M/T MUX 5 SPEED 5S(MZJ)
8-98051-338-0
01
1
1312-
52
RUBBER; CUSHION,ENG MTG,RR
A/T AISIN(RMD)
8-98051-348-0
01
1
1506-
55
BOLT; BRKT,ENG MTG,RR
M/T MUX 5 SPEED 5S(MZJ) M10X25 FLANGE IMA
0-28651-025-0
04
1
1312-
86
BOLT; ENG MTG RR TO FRAME
M10X35 FLANGE IMA
0-28751-035-0
02
1
1312-
87
NUT; ENG MTG RR
M10 FLANGE IMA
0-91180-210-0
02
1
1312-
152
DAMPER; DYNAMIC,ENG MTG
M/T MUX 5 SPEED 5S(MZJ)
8-98036-707-0
02
1
1312-
