0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#132561) — 47 parça

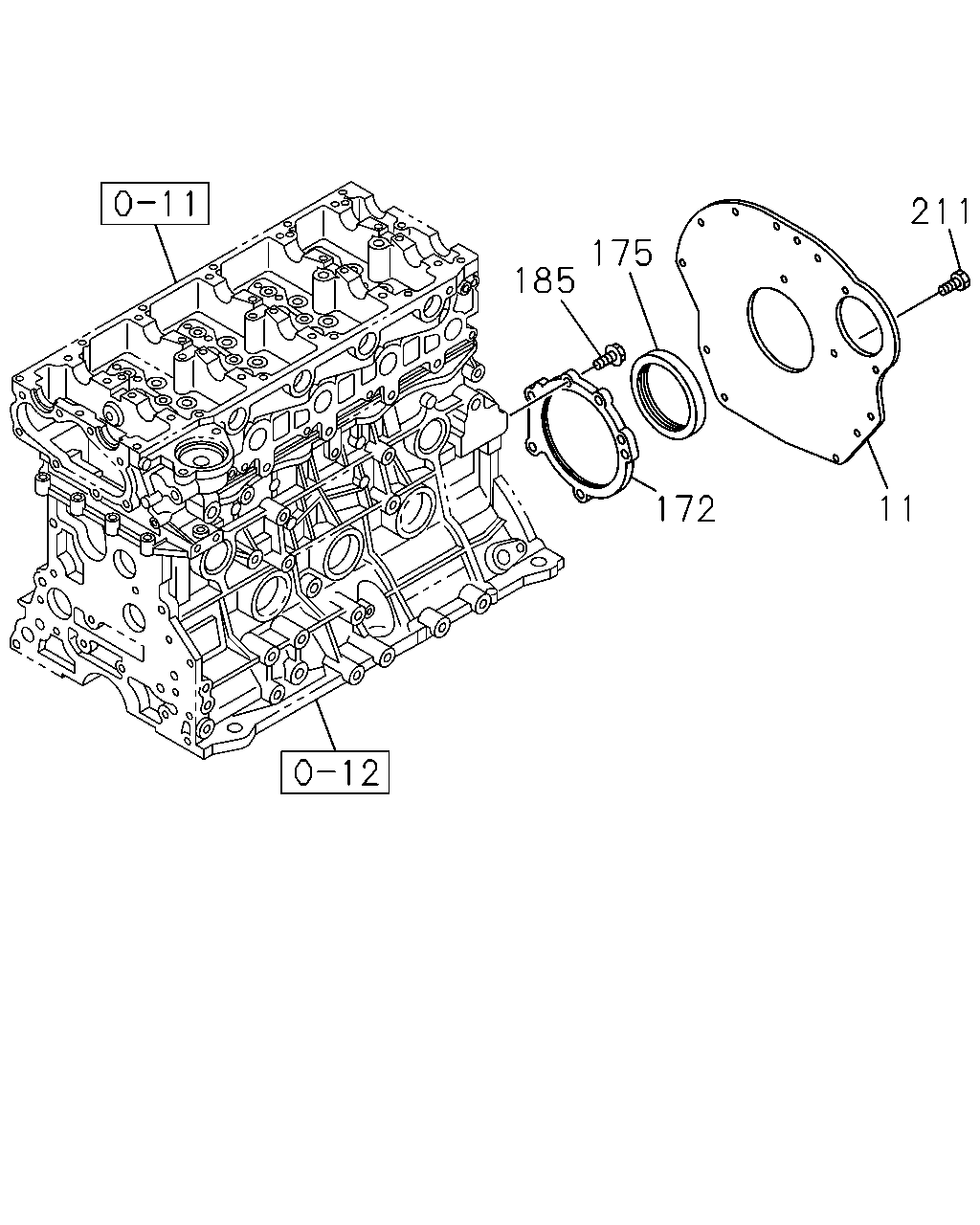

çizim 401051
185 175 172 11 211
BalonParca AdiParca NoAdetTipApplied Date
11 PLATE; RR,C/BL 8-98011-507-2 01 1 1312-1505
11 PLATE; RR,C/BL
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-507-2 01 1 1506-
11 PLATE; RR,C/BL
A/T AISIN(RMD) 		8-98020-515-1 01 1 1506-
172 RETAINER; CR/SHF
IMA 		8-97379-826-0 01 1 1312-
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 IMA 		8-97071-561-1 01 1 1312-
185 BOLT; RET TO C/BL
M8X25 FLANGE IMA 		0-28650-825-0 05 1 1312-
211 BOLT; HSG
M12X25 IMA 		8-97916-324-1 03 1 1312-

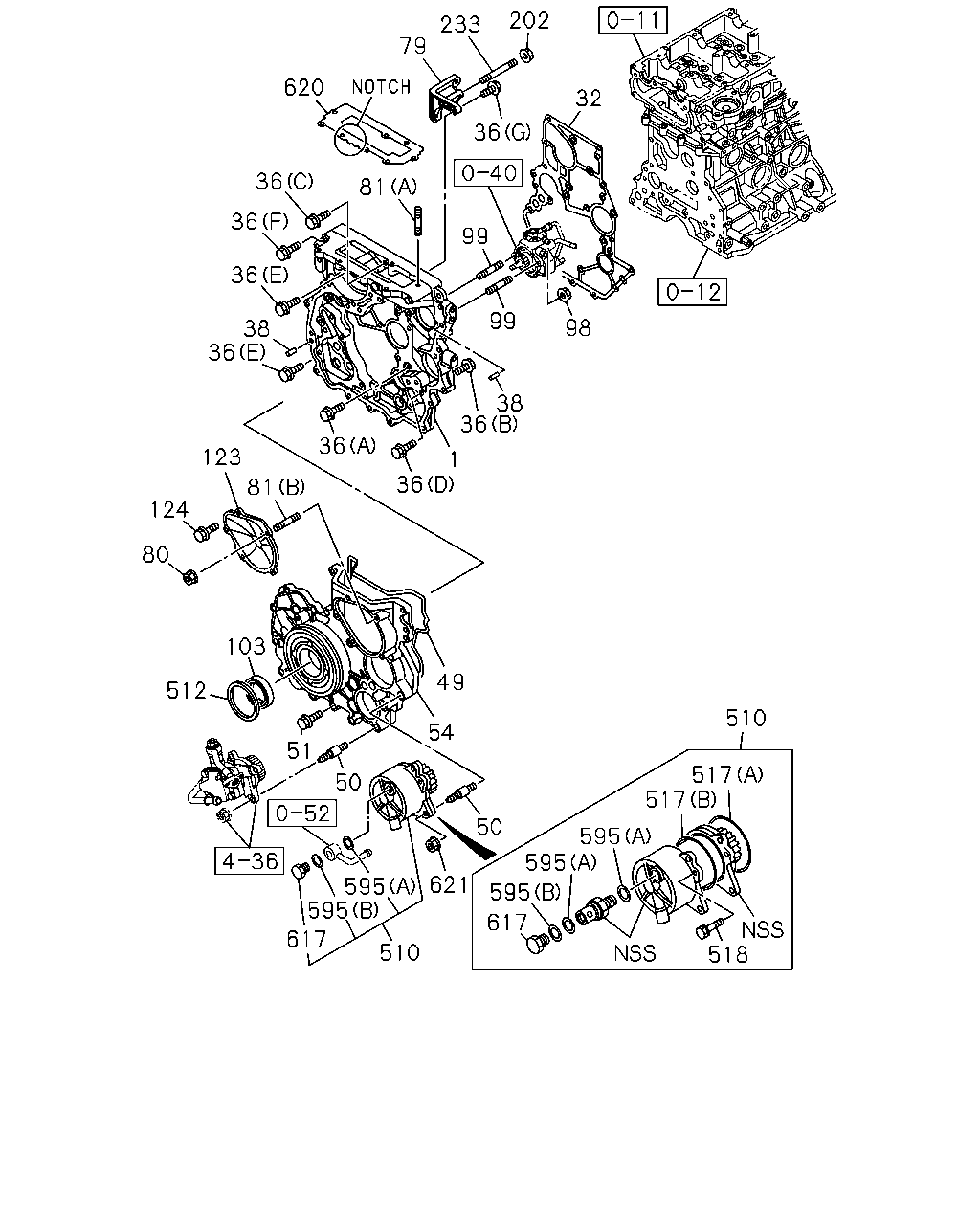

çizim 401649
620 36 36 36 38 36 79 233 202 36 32 81 99 99 98 36 38 36 36 123 124 80 81 1 49 54 51 103 512 50 50 595 595 621 595 595 617 510 517 517 595 617 518 510
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TIMING GEAR 8-98074-747-1 01 1 1312-
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-221-2 01 1 1312-
36 BOLT; GEAR CASE
(A) M8X16 FLANGE IMA 		0-28050-816-0 01 1 1312-
36 BOLT; GEAR CASE
(B) M8X20 FLANGE IMA 		0-28050-820-0 01 1 1312-
36 BOLT; GEAR CASE
(C) M8X35 FLANGE IMA 		0-28050-835-0 01 1 1312-
36 BOLT; GEAR CASE
(D) M8X45 FLANGE IMA 		0-28050-845-0 02 1 1312-
36 BOLT; GEAR CASE
(F) M8X60 FLANGE IMA 		0-28050-860-0 01 1 1312-
36 BOLT; GEAR CASE
(E) M8X25 FLANGE IMA 		0-28650-825-0 15 1 1312-
36 BOLT; GEAR CASE
(G) M8X30 FLANGE IMA 		0-28650-830-0 03 1 1312-
38 PIN; GEAR CASE COVER
OD=10 L=20 IMA 		9-08151-020-0 02 1 1312-
49 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97945-298-0 01 1 1312-
50 STUD
M8X27,M8X14 L=64.5 IMA 		8-97354-808-2 06 1 1312-
51 BOLT; GEAR CASE COVER
IMA 		8-97354-697-1 14 1 1312-
54 COVER; GEAR CASE 8-98170-215-0 01 1 1312-1411
54 COVER; GEAR CASE
IMA 		8-98228-336-1 01 1 1412-
79 BRACKET; GEAR CASE COVER
IMA 		8-98107-106-0 01 1 1312-
80 NUT; COVER
M6 FLANGE IMA 		0-91180-206-0 02 1 1312-
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 IMA 		0-41010-616-0 02 1 1312-
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 IMA 		0-49140-830-0 02 1 1312-
98 NUT; STUD,INJ PUMP
M8 FLANGE IMA 		0-91180-208-0 02 1 1312-
99 STUD; INJ PUMP
M8X30 L=48 IMA 		0-49140-830-0 02 1 1312-
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97943-951-0 01 1 1312-
123 COVER; TIMING,LWR 8-98158-145-0 01 1 1312-
124 BOLT; TIMING COVER
M6X16 FLANGE IMA 		0-28050-616-0 03 1 1312-
202 NUT; BRKT
M8 FLANGE IMA 		0-91180-208-0 01 1 1312-
233 STUD; BRKT
M8X71 L=83 IMA 		8-97367-083-0 01 1 1312-
510 PUMP ASM; VACUUM 8-98211-157-0 01 1 1312-1312
510 PUMP ASM; VACUUM
IMA 		8-98251-765-0 01 1 1401-
512 RUBBER; SPACE
IMA 		8-97373-716-0 01 1 1312-
517 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97184-175-0 01 1 1312-1312
517 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) IMA 		8-98251-768-0 01 1 1401-
517 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) IMA 		0-95690-271-0 01 1 1312-
518 BOLT; VAC PUMP
IMA 		8-97184-180-0 03 1 1312-
595 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 1312-
595 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 1312-
617 BOLT; CHECK VLV
IMA 		8-97376-402-0 01 1 1312-
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE A T=1.40 1-NOTCH IMA 		8-97328-828-2 01 1 1312-
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE B T=1.45 2-NOTCH IMA 		8-97331-631-2 01 1 1312-
620 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) GRADE C T=1.50 3-NOTCH IMA 		8-97331-632-2 01 1 1312-
621 NUT; VAC PUMP
M8 FLANGE IMA 		0-91180-208-0 03 1 1312-
