◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#132558) — 15 parça

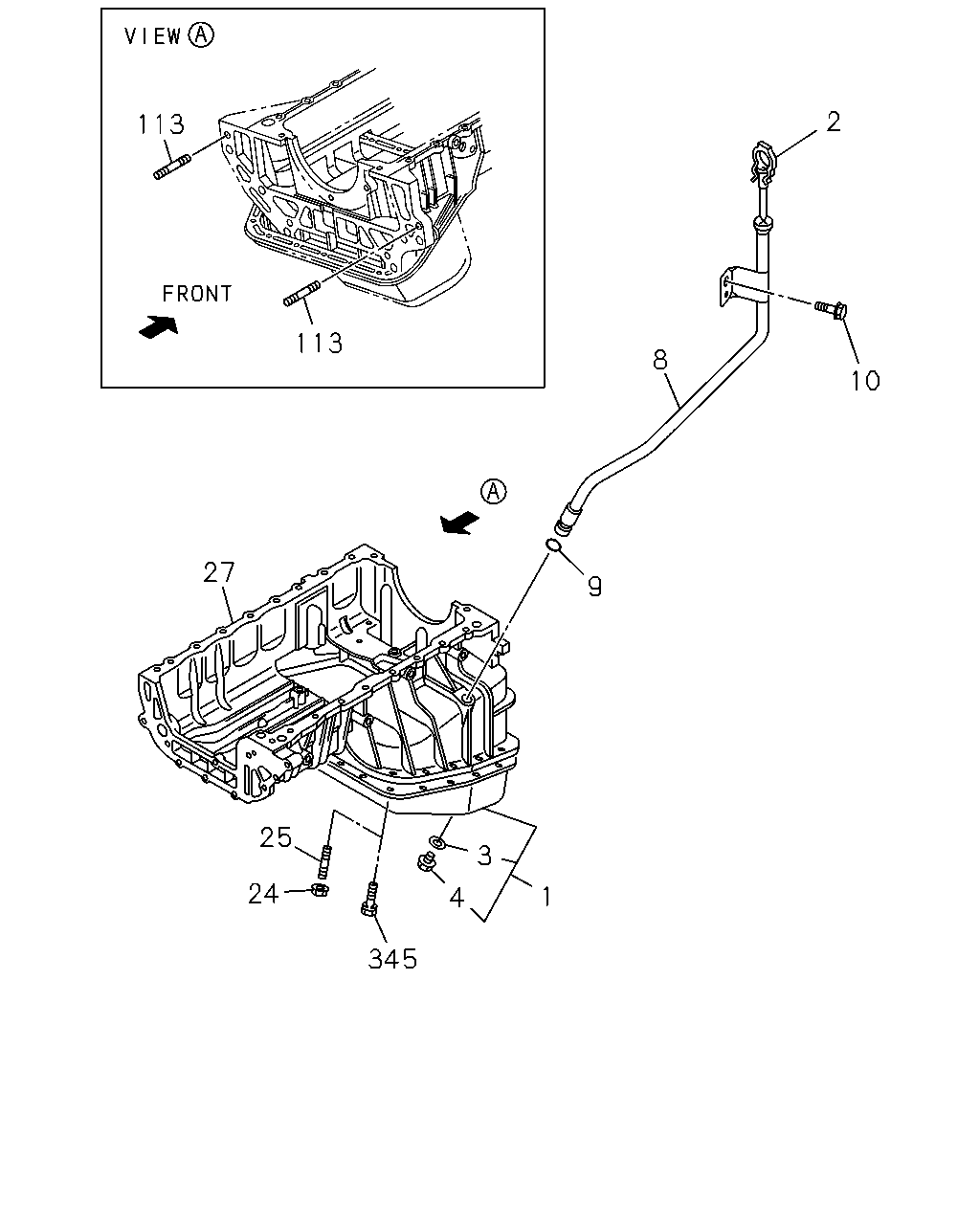

çizim 401028
113 113 27 25 24 345 4 3 1 9 8 10 2
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL 8-98156-371-0 01 1 1312-
2 GAUGE; OIL LEVEL 8-98053-833-1 01 1 1312-
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 IND 		8-94158-328-0 01 1 1312-
4 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 1312-
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-98011-973-1 01 1 1312-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=15.8 IMA 		8-98034-629-0 01 1 1312-
10 BOLT; GUIDE TUBE
M8X16 FLANGE IMA 		0-28050-816-0 01 1 1312-
24 NUT; OIL PAN
M8 FLANGE IMA 		0-91180-208-0 02 1 1312-
25 STUD; OIL PAN
M8X16 L=28 IMA 		0-41010-816-0 02 1 1312-
27 CRANKCASE 8-98011-497-2 01 1 1312-1505
27 CRANKCASE
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-497-2 01 1 1506-
27 CRANKCASE
A/T AISIN(RMD) 		8-98013-794-1 01 1 1506-
113 PIN; STRAIGHT
OD=10 L=32 		9-08161-032-0 02 1 1312-1505
113 PIN; STRAIGHT
M/T MUX 5 SPEED 5S(MZJ) OD=10 L=32 		9-08161-032-0 02 1 1506-
345 BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE IMA 		0-28050-812-0 21 1 1312-
