Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

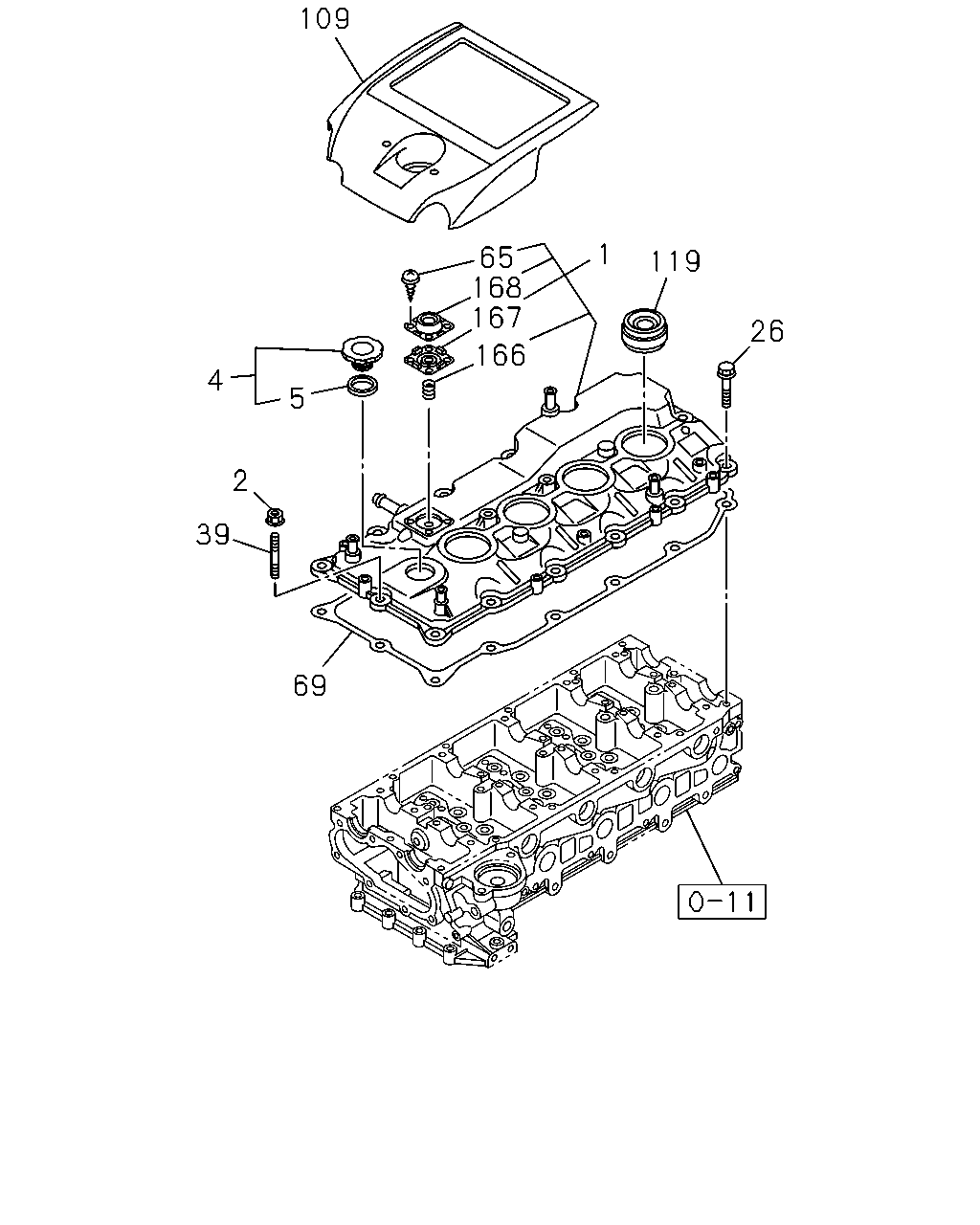

0-10 — CYLINDER HEAD COVER
(#132555) — 13 parça
109
4
5
2
39
69
166
167
168
65
1
119
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-98156-392-1
01
1
1312-
2
NUT; COVER,HD
M6 FLANGE IMA
0-91180-206-0
01
1
1312-
4
CAP; OIL FILLER
8-98026-084-0
01
1
1312-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-97918-298-0
01
1
1312-
26
BOLT; CYL HD COVER
M6X25 FLANGE IMA
0-28650-625-0
13
1
1312-
39
STUD; COVER,HD
M6X25 L=34
0-41010-625-0
01
1
1312-
65
SCREW; ADAPTER
M5X10 W/LK WASHER
8-97366-592-0
04
1
1312-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98156-394-0
01
1
1312-
109
COVER; ENG
8-98175-666-0
01
1
1312-
119
COVER; SEAL,NOZZLE
8-98037-543-0
04
1
1312-
166
SPRING; VENTILATOR
8-97365-998-0
01
1
1312-
167
DIAPHRAGM; VENTILATOR
8-98226-101-0
01
1
1312-
168
COVER; VENTILATOR
8-97365-992-0
01
1
1312-
