8-90 — RADIO AND TV (#132551) — 30 parça

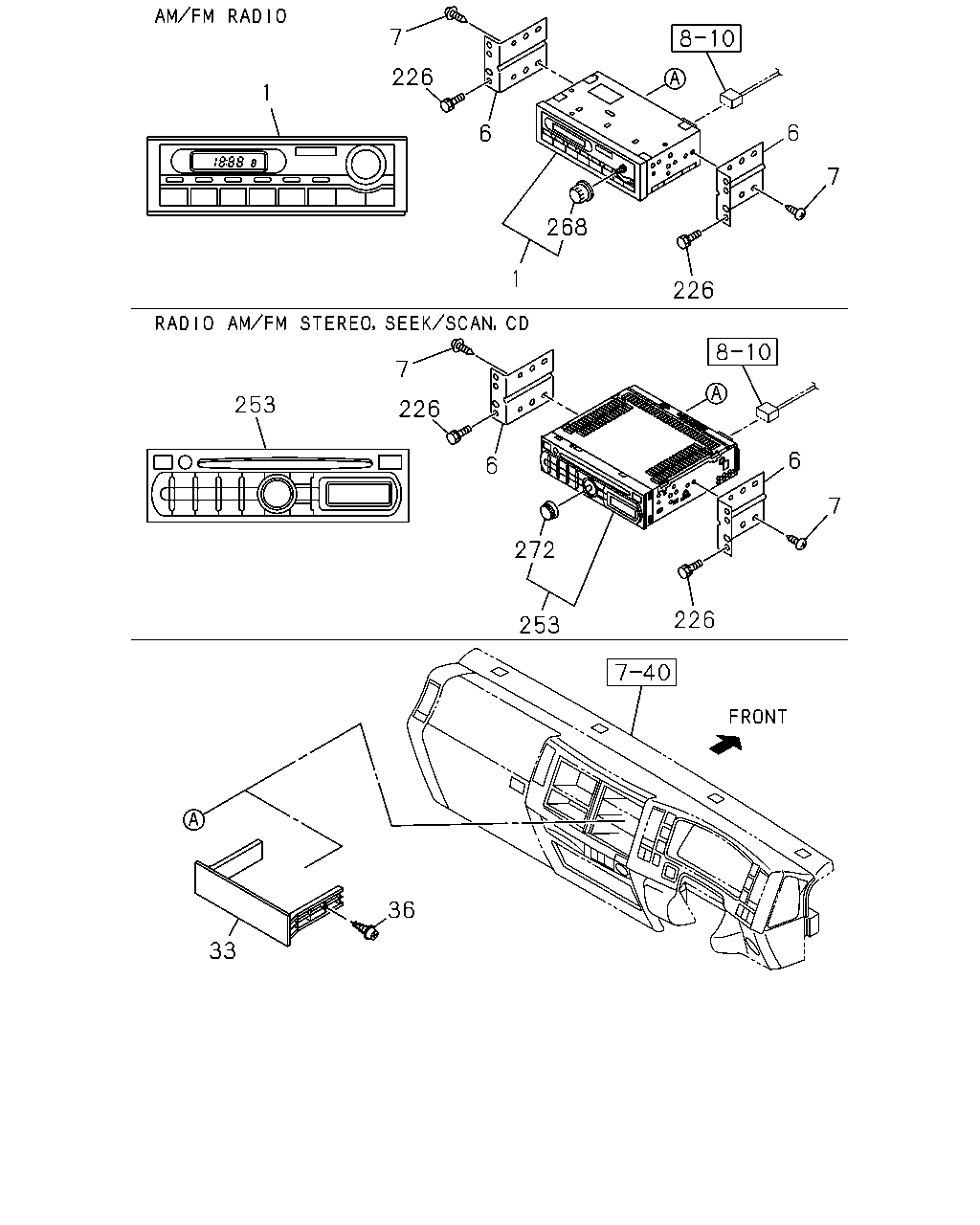

çizim 402493
7 1 226 6 6 7 226 268 6 7 226 272 253 36 33 226 253 6 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
AM/FM RADIO(U69) MAL 		8-98083-559-0 01 1 1401-1401
1 RADIO
VOLTAGE 12V<TRQ> AM/FM RADIO(U69) MAL 		8-98083-559-0 01 1 1402-
1 RADIO
AM/FM RADIO(U69) EXC. VOLTAGE 12V<TRQ> MAL 		8-98032-643-0 01 1 1402-
6 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 1401-
7 SCREW; RADIO
AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1401-1401
7 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1402-
33 COVER; RADIO
EXC. AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 1401-1401
33 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 1402-
36 SCREW; COVER
EXC. AM/FM RADIO(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1401-1401
36 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1402-
226 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 02 1 1401-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. VOLTAGE 12V<TRQ> MAL 		8-98017-752-0 01 1 1402-
268 KNOB; VOL
AM/FM RADIO(U69) CLARION MAL 		8-97375-820-0 01 1 1401-
272 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. VOLTAGE 12V<TRQ> CLARION MAL 		8-98048-329-0 01 1 1402-

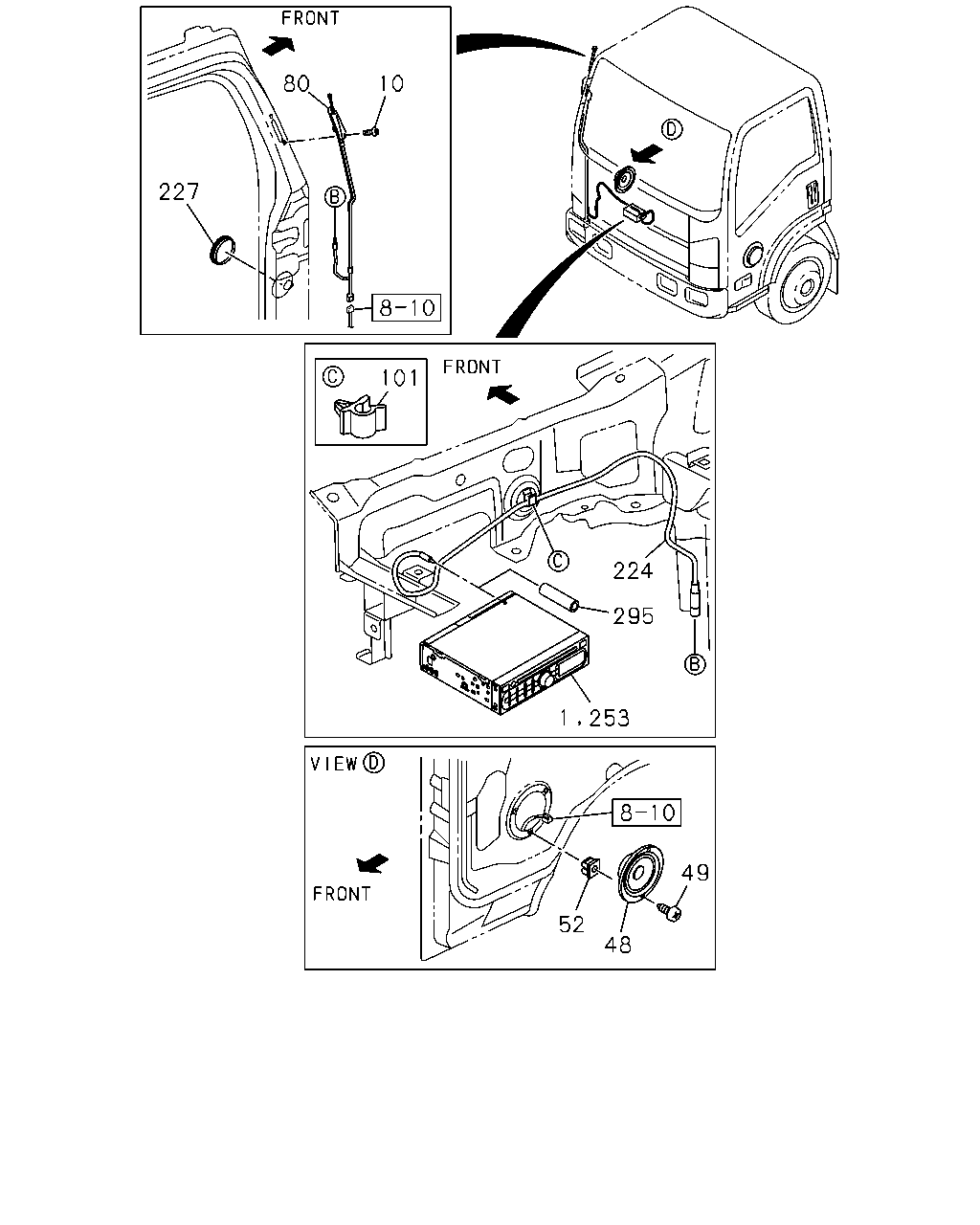

çizim 402650
80 227 10 101 224 295 1 253 52 48 49
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
AM/FM RADIO(U69) MAL 		8-98083-559-0 01 1 1401-1401
1 RADIO
VOLTAGE 12V<TRQ> AM/FM RADIO(U69) MAL 		8-98083-559-0 01 1 1402-
1 RADIO
AM/FM RADIO(U69) EXC. VOLTAGE 12V<TRQ> MAL 		8-98032-643-0 01 1 1402-
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 1401-
48 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> MAL 		8-97317-001-1 02 1 1401-
49 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES MAL 		8-98061-856-0 06 1 1401-
52 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 06 1 1401-
80 ANTENNA
MAL 		8-97387-265-3 01 1 1401-
101 CLIP; FEEDER TO BRKT
ID=4.8 MAL 		8-94128-483-0 01 1 1401-
224 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) MAL 		8-98029-970-1 01 1 1401-1401
224 CABLE; EXT,FEEDER
4JJ1-TCC ENG(RDU) MAL 		8-98029-970-1 01 1 1402-
224 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98029-970-1 01 1 1402-
227 PROTECTOR; EDGE 8-98053-117-0 01 1 1401-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. VOLTAGE 12V<TRQ> MAL 		8-98017-752-0 01 1 1402-
295 INSULATOR; ANTENNA
EXC. AM/FM RADIO(U69) 		8-98095-617-1 01 1 1401-1401
295 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3),AM/FM RADIO(U69) 		8-98095-617-1 01 1 1402-
