8-75 — CONDENSER (#132549) — 16 parça

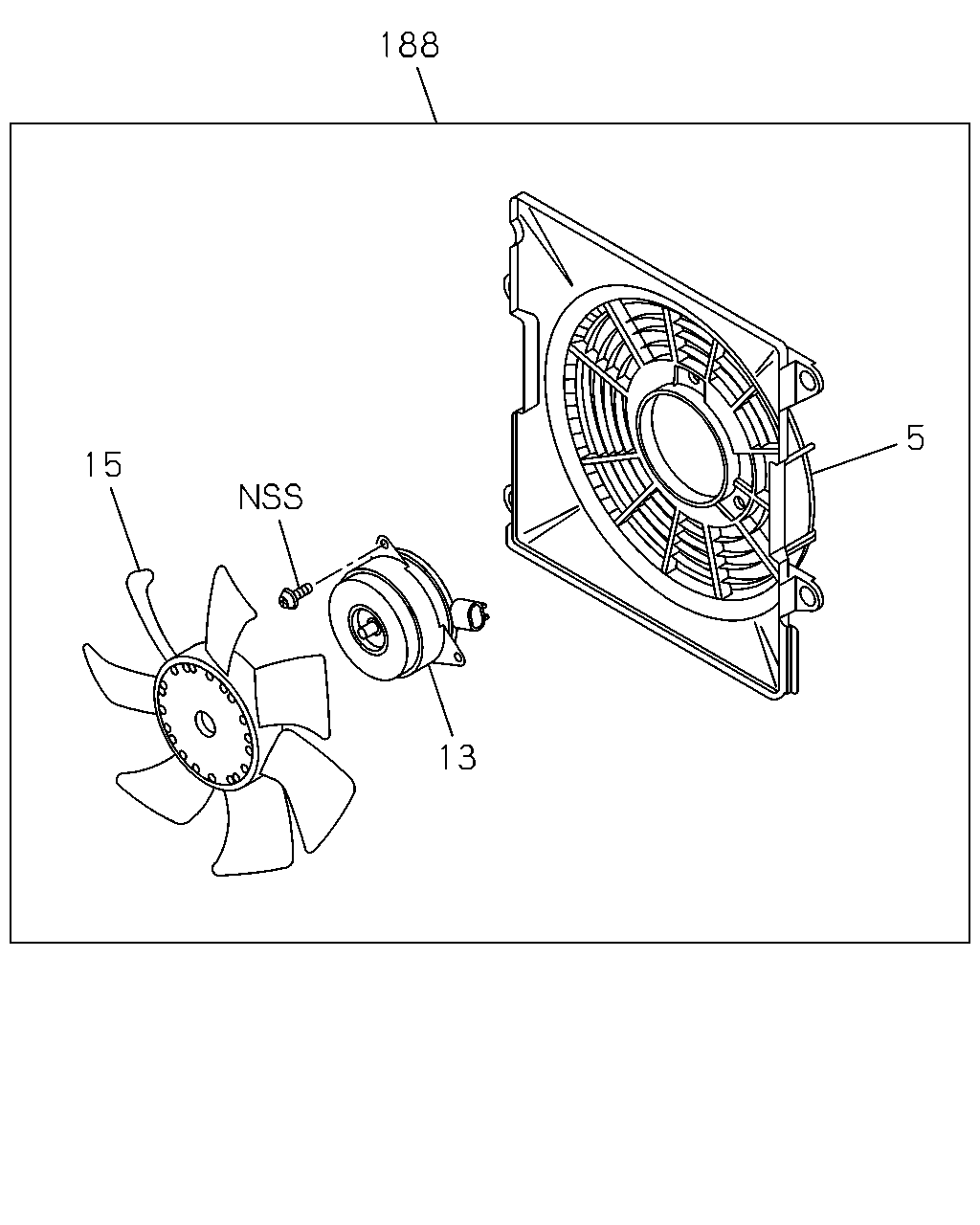

çizim 401713
188 5 15 13
BalonParca AdiParca NoAdetTipApplied Date
5 SHROUD; FAN MOTOR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98152-865-0 01 1 1402-
13 MOTOR; FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98157-044-0 01 1 1402-
15 FAN; MOTOR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98152-860-0 01 1 1402-
188 BLOWER ASM; SHROUD
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98041-889-0 01 1 1402-

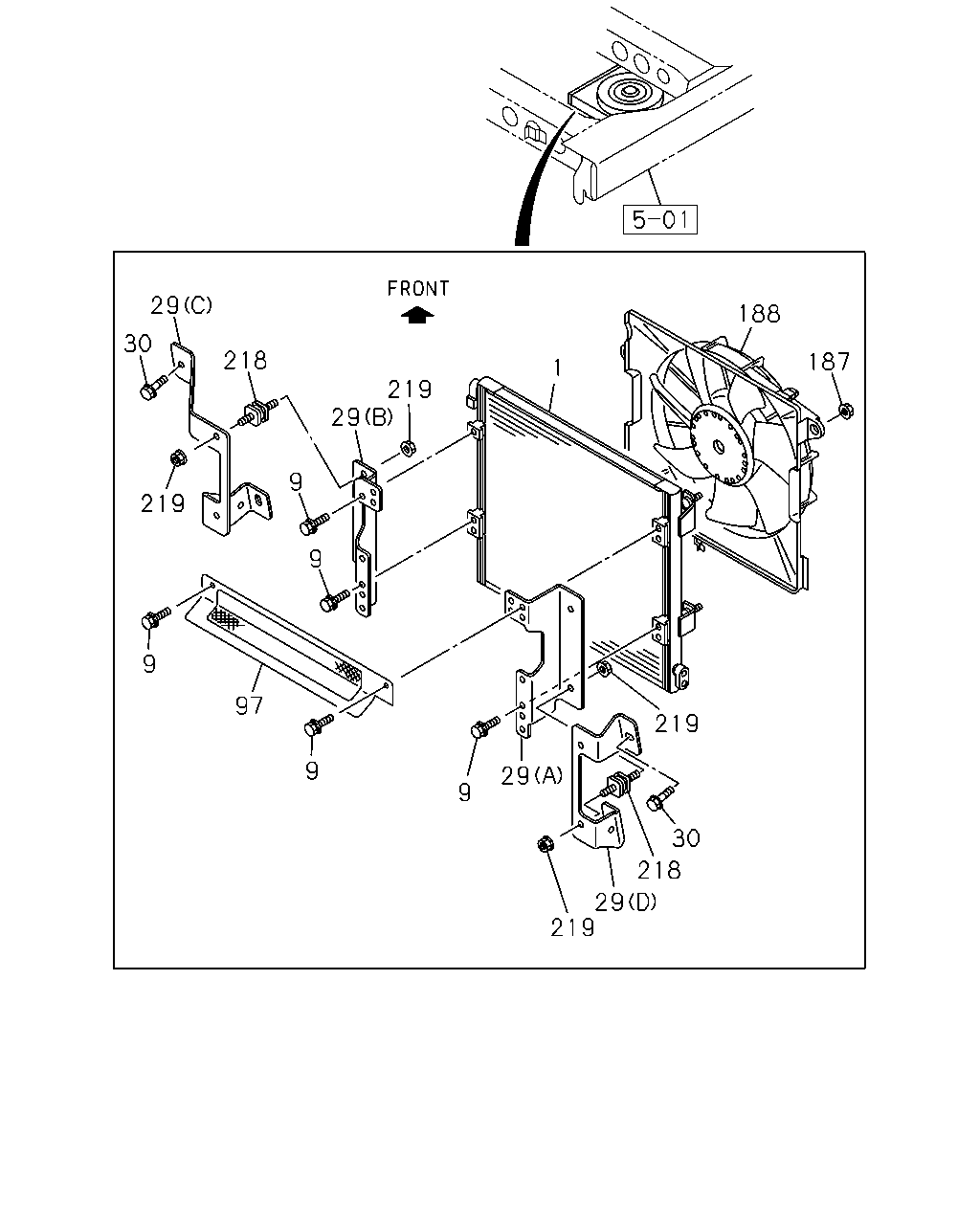

çizim 402534
29 30 218 219 9 97 9 9 29 9 9 29 219 1 188 187 219 30 218 29 219
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98041-884-0 01 1 1402-
9 BOLT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X14 		1-83539-382-0 08 1 1402-
29 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98041-893-0 01 1 1402-
29 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98041-895-0 01 1 1402-
29 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98041-896-1 01 1 1402-
29 BRACKET; SIDE
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) 		8-98041-897-1 01 1 1402-
30 BOLT; CONDENSER,A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X35 FLANGE 		0-28650-835-0 04 1 1402-
97 NET; CONDENSER UNIT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98041-900-0 01 1 1402-
187 NUT; SHROUD
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		1-83539-354-0 04 1 1402-
188 BLOWER ASM; SHROUD
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98041-889-0 01 1 1402-
218 CUSHION; CONDENSER
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98041-898-0 04 1 1402-
219 NUT; CUSHION
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 		1-83539-319-0 08 1 1402-
