8-73 — BLOWER UNIT (#132548) — 55 parça

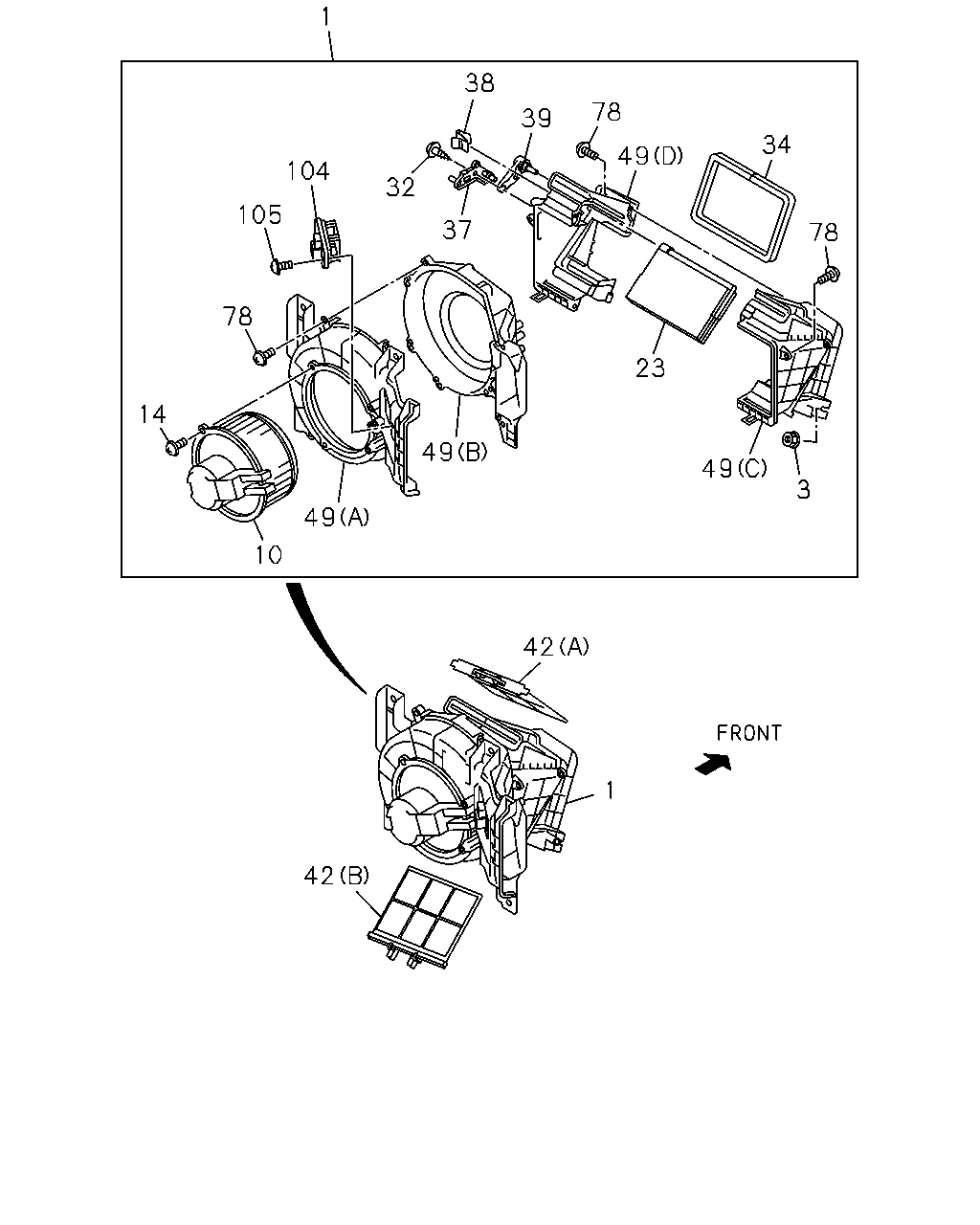

çizim 402457
42 1 42 10 49 49 49 3 23 78 34 49 78 39 38 37 32 1 104 105 78 14
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98183-590-0 01 1 1401-1401
1 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98183-590-0 01 1 1402-
1 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> 		8-98183-589-0 01 1 1402-
3 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 MAL 		1-83539-354-0 02 1 1401-1401
3 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> M6 MAL 		1-83539-354-0 02 1 1402-
3 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> M6 MAL 		1-83539-354-0 02 1 1402-
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98183-925-0 01 1 1401-1401
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98183-925-0 01 1 1402-
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> 		8-98183-924-0 01 1 1402-
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X16 MAL 		8-98047-448-0 03 1 1401-1401
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> M5X16 MAL 		8-98047-448-0 03 1 1402-
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> M5X16 MAL 		8-98047-448-0 03 1 1402-
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-437-0 01 1 1401-1401
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98047-437-0 01 1 1402-
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> MAL 		8-98047-437-0 01 1 1402-
32 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M4X16 MAL 		8-98047-416-0 01 1 1401-1401
32 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> M4X16 MAL 		8-98047-416-0 01 1 1402-
32 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> M4X16 MAL 		8-98047-416-0 01 1 1402-
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-430-0 01 1 1401-1401
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98047-430-0 01 1 1402-
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> MAL 		8-98047-430-0 01 1 1402-
37 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-436-0 01 1 1401-1401
37 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98047-436-0 01 1 1402-
37 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> MAL 		8-98047-436-0 01 1 1402-
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-417-0 01 1 1401-1401
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98047-417-0 01 1 1402-
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> MAL 		8-98047-417-0 01 1 1402-
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-435-0 01 1 1401-1401
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98047-435-0 01 1 1402-
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> MAL 		8-98047-435-0 01 1 1402-
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98025-006-1 01 1 1401-1401
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98025-006-1 01 1 1402-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41) (A) 		8-97387-096-1 01 1 1401-1401
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97387-096-1 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL 		8-98047-440-0 01 1 1401-1401
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> (A) MAL 		8-98047-440-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> (A) MAL 		8-98047-440-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98047-441-0 01 1 1401-1401
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> (B) MAL 		8-98047-441-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> (B) MAL 		8-98047-441-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) MAL 		8-98047-442-0 01 1 1401-1401
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> (C) MAL 		8-98047-442-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> (C) MAL 		8-98047-442-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (D) MAL 		8-98047-443-0 01 1 1401-1401
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> (D) MAL 		8-98047-443-0 01 1 1402-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> (D) MAL 		8-98047-443-0 01 1 1402-
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 15 1 1401-1401
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> M4X16 TAPPING MAL 		8-97957-708-0 15 1 1402-
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> M4X16 TAPPING MAL 		8-97957-708-0 15 1 1402-
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98077-417-0 01 1 1401-1401
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> MAL 		8-98077-417-0 01 1 1402-
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> 		8-98074-113-0 01 1 1402-
105 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 02 1 1401-1401
105 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> M4X16 TAPPING MAL 		8-97957-708-0 02 1 1402-
105 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> M4X16 TAPPING MAL 		8-97957-708-0 02 1 1402-
