◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#132546) — 32 parça

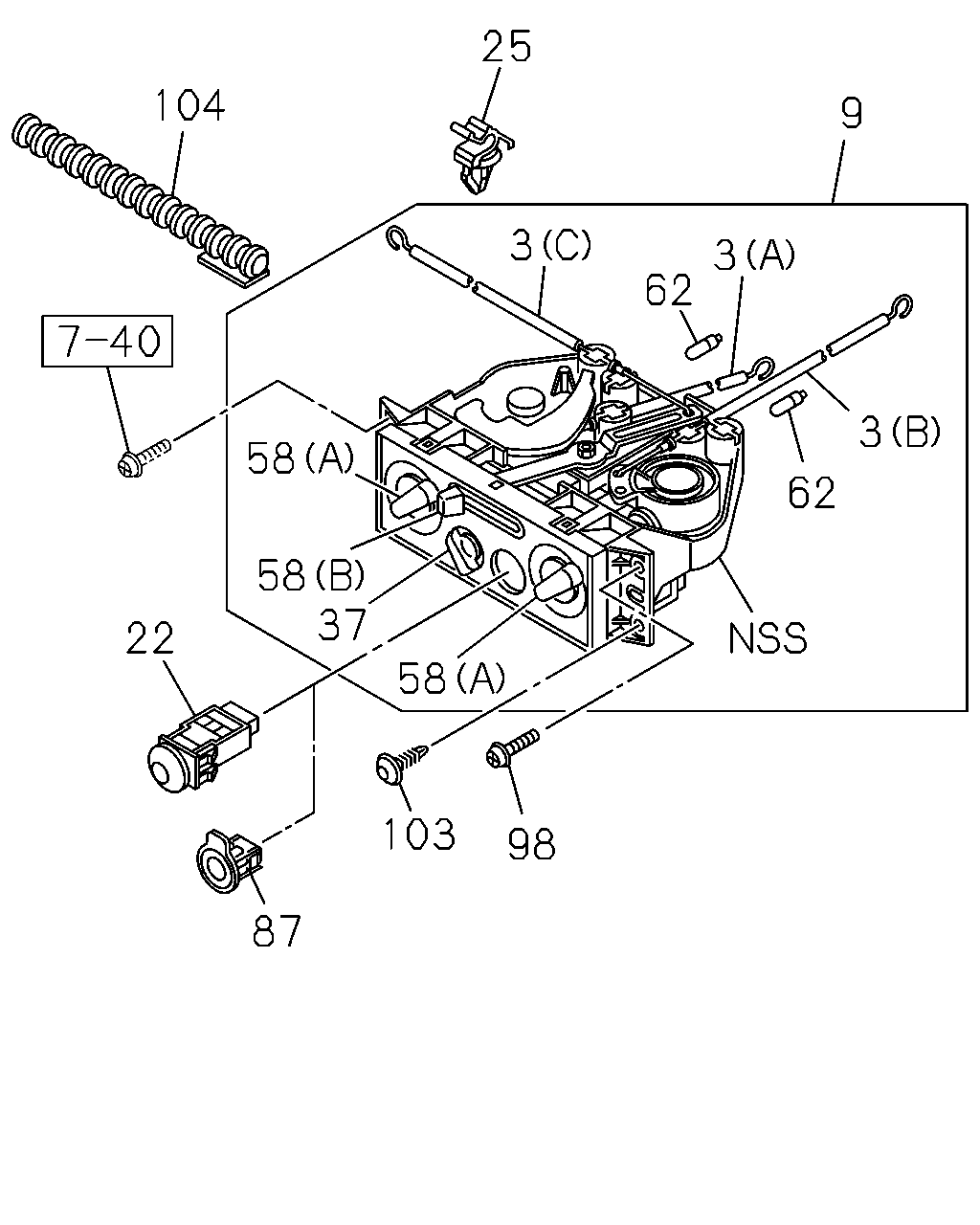

çizim 402588
104 22 87 103 98 58 37 58 58 3 25 9 3 62 62 3
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL 		8-98039-250-0 01 1 1401-1401
3 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98039-250-0 01 1 1402-
3 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) MAL 		8-98039-253-2 01 1 1401-1401
3 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) MAL 		8-98039-253-2 01 1 1402-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41) (B) 		8-98039-251-0 01 1 1401-1401
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98039-251-0 01 1 1402-
9 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) MAL 		8-98067-884-1 01 1 1401-1401
9 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) VOLTAGE 12V<TRQ> MAL 		8-98067-884-1 01 1 1402-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41) 		8-98067-882-1 01 1 1401-1401
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 12V<TRQ> 		8-98067-882-1 01 1 1402-
9 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) EXC. VOLTAGE 12V<TRQ> 		8-98066-001-1 01 1 1402-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 12V<TRQ> 		8-98037-363-2 01 1 1402-
9 LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER(C65) 		8-98066-000-1 01 1 1402-
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VOLTAGE 12V<TRQ> 		8-98021-982-0 01 1 1402-
25 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ID=4.8 MAL 		8-94128-483-0 01 1 1401-1401
25 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=4.8 MAL 		8-94128-483-0 01 1 1402-
37 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98037-368-0 01 1 1401-1401
37 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98037-368-0 01 1 1402-
58 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) MAL 		8-98037-369-0 01 1 1401-
58 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98037-370-0 01 1 1401-1401
58 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98037-370-0 01 1 1402-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41) (A) MAL 		8-98037-369-0 02 1 1401-1401
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98037-369-0 02 1 1402-
62 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 24V 1.1W MAL 		8-98037-371-0 02 1 1401-1401
62 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 1.1W MAL 		8-98037-371-0 02 1 1402-
87 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1401-
98 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1401-1401
98 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1402-
103 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) DARK GRAY MAL 		8-97098-326-0 01 1 1401-1401
103 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1402-
104 GUIDE; CABLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98048-216-0 01 1 1401-1401
104 GUIDE; CABLE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98048-216-0 01 1 1402-
