◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#132545) — 273 parça

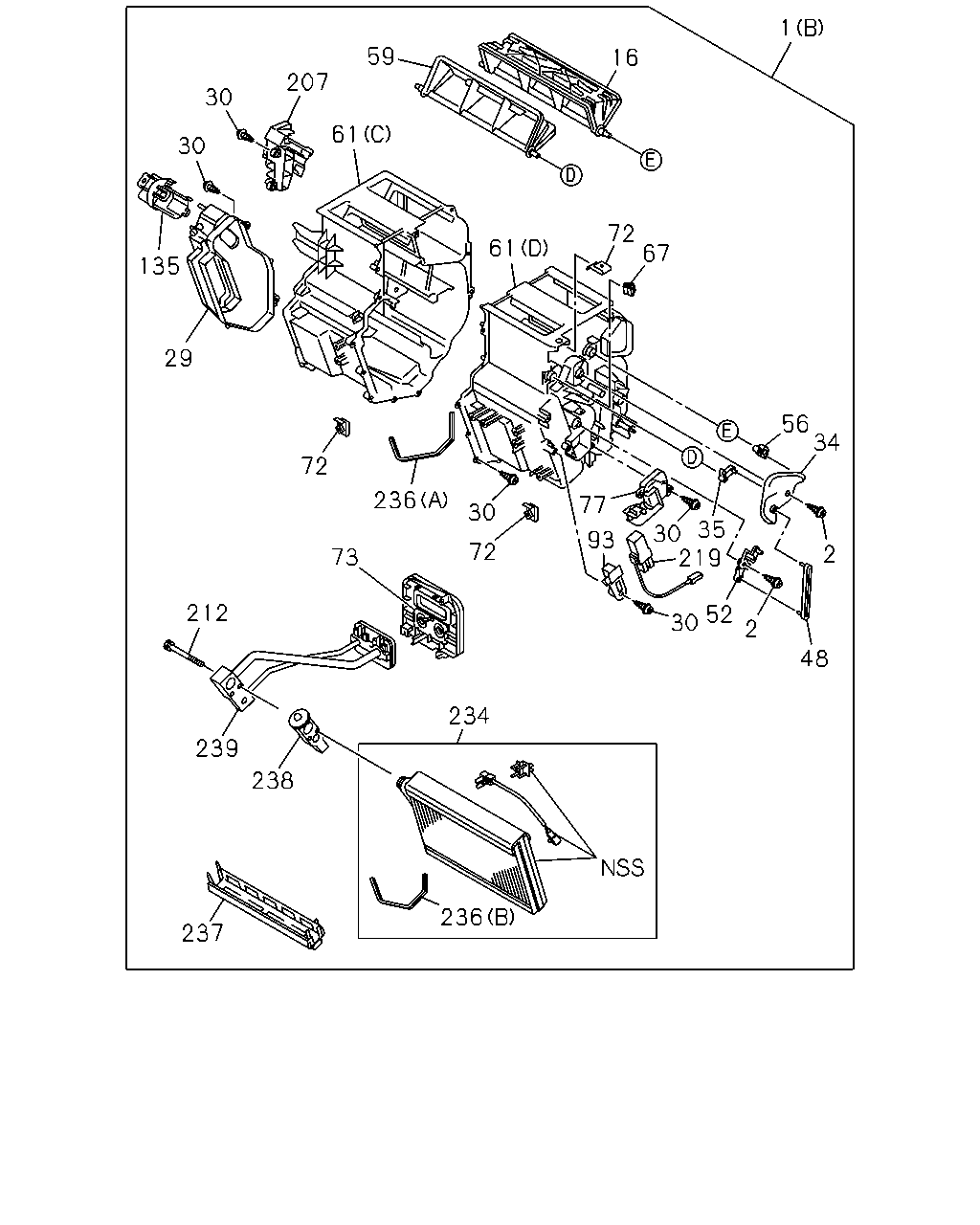

çizim 401982
1 16 59 207 30 30 135 29 72 73 212 239 238 237 236 234 72 236 30 77 93 30 219 30 52 2 48 35 2 34 56 61 61 72 67
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1401-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1401-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1402-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1402-
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL 		8-98047-416-0 03 1 1402-
2 SCREW; LEVER
COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 02 1 1402-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-387-0 01 1 1401-1401
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1402-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1401-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-119-0 01 1 1401-1401
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1402-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1401-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1401-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1402-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-389-0 01 1 1401-1401
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1402-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-392-0 01 1 1401-1401
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1402-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-391-0 01 1 1401-1401
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1402-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-390-0 01 1 1401-1401
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1402-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-393-0 01 1 1401-1401
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1402-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-386-0 01 1 1401-1401
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) MAL 		8-98077-422-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98077-423-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-375-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-376-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1402-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98047-417-0 01 1 1401-1401
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1402-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) MAL 		8-98047-417-0 02 1 1401-1401
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1402-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 MAL 		8-98047-428-0 03 1 1401-1401
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1402-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1401-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1402-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1402-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-414-0 01 1 1401-1401
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1402-
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-427-0 01 1 1402-
135 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-384-0 01 1 1402-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-379-0 01 1 1401-1401
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1402-
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 1402-
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1402-
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 1402-
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-116-1 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL 		8-98047-420-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98047-421-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1402-
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-382-0 01 1 1402-
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-383-0 01 1 1402-
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-115-0 01 1 1402-

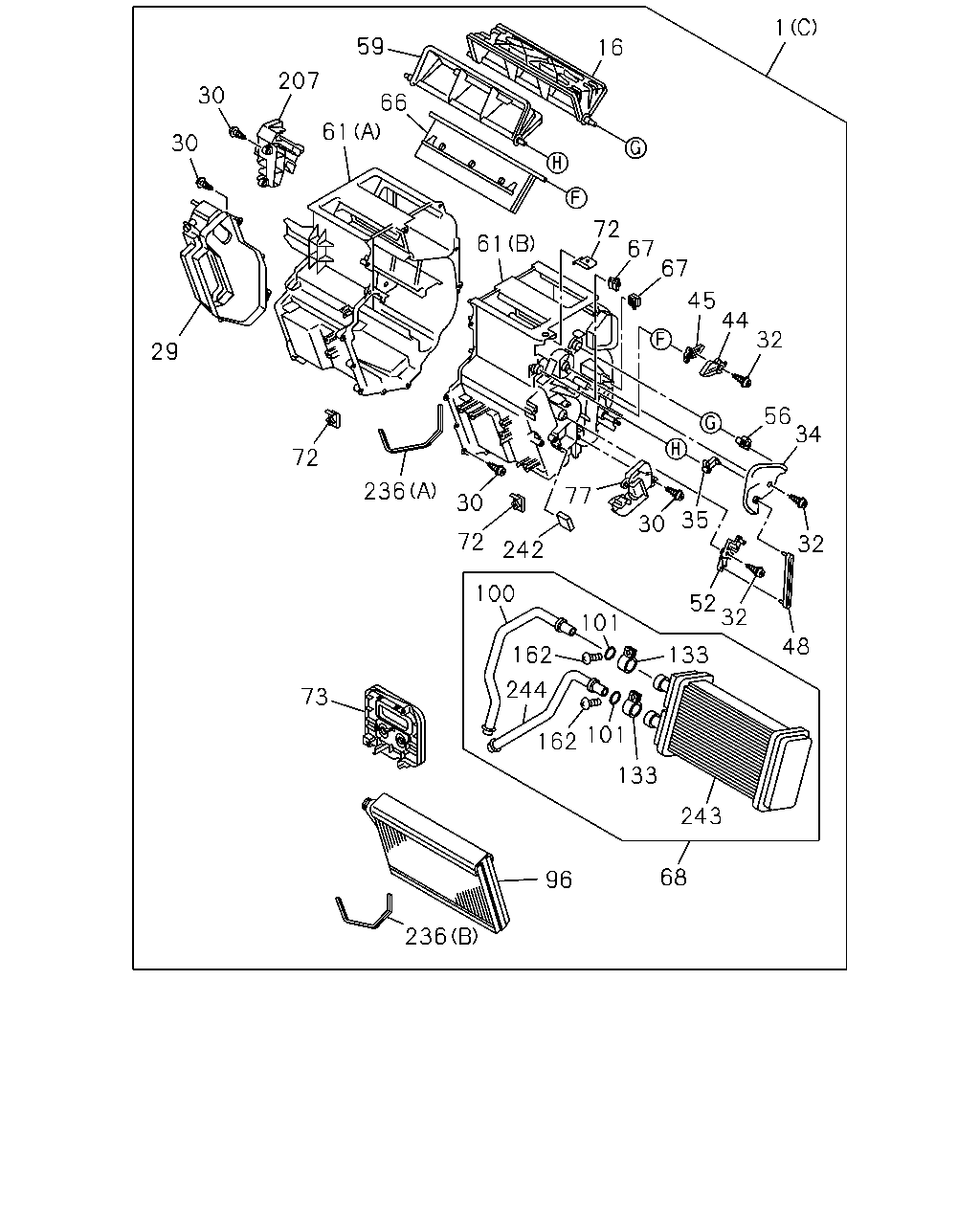

çizim 402126
1 16 59 66 61 207 30 30 29 72 236 30 72 242 30 77 35 52 32 48 32 34 56 32 44 45 67 67 72 61 73 236 96 68 243 133 101 162 244 162 100 101 133
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1401-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1401-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1402-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1402-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-387-0 01 1 1401-1401
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1402-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1401-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-119-0 01 1 1401-1401
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1402-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1401-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1401-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1402-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 MAL 		8-98047-416-0 02 1 1401-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 MAL 		8-98047-416-0 03 1 1401-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-389-0 01 1 1401-1401
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1402-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-392-0 01 1 1401-1401
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1402-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-394-0 01 1 1401-1401
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1402-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-395-0 01 1 1401-1401
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1402-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-391-0 01 1 1401-1401
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1402-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-390-0 01 1 1401-1401
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1402-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-393-0 01 1 1401-1401
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1402-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-386-0 01 1 1401-1401
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) MAL 		8-98077-422-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98077-423-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-375-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-376-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1402-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41) 		8-98047-385-0 01 1 1401-1401
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1402-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98047-417-0 01 1 1401-1401
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1402-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) MAL 		8-98047-417-0 02 1 1401-1401
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1402-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-380-0 01 1 1401-1401
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1402-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 MAL 		8-98047-428-0 03 1 1401-1401
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1402-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1401-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1402-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1402-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-414-0 01 1 1401-1401
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1402-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1401-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-528-0 01 1 1401-1401
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1402-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-531-0 02 1 1401-1401
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1402-
133 CLIP; PIPE
HEATER & DEFROSTER(C41) 		8-98072-530-0 02 1 1401-1401
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1402-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41) 		8-98072-529-0 02 1 1401-1401
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1402-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-379-0 01 1 1401-1401
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL 		8-98047-420-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98047-421-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1402-
242 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1401-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1412-
243 CORE
HEATER & DEFROSTER(C41) 		8-98048-508-0 01 1 1401-1401
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-508-0 01 1 1402-
244 PIPE; INLET
HEATER & DEFROSTER(C41) 		8-98048-510-0 01 1 1401-1401
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1402-

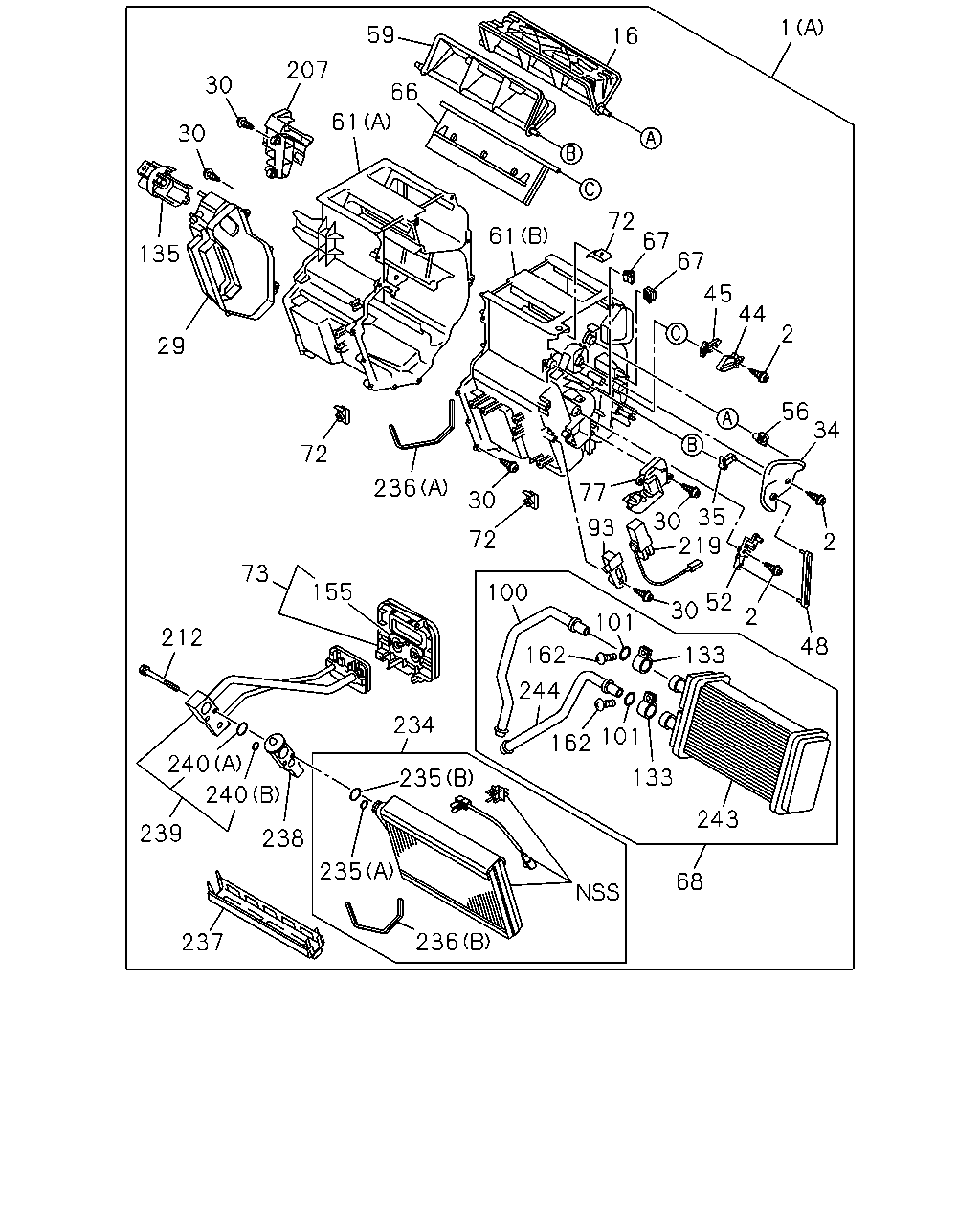

çizim 402141
59 16 1 72 67 67 45 2 44 56 2 34 2 48 52 30 133 101 93 77 30 72 100 162 244 162 133 243 101 68 235 234 212 73 72 155 236 240 240 239 237 238 235 236 29 135 30 30 207 61 66 61 30 219 35
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1401-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1401-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1402-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1402-
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL 		8-98047-416-0 03 1 1402-
2 SCREW; LEVER
COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 02 1 1402-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-387-0 01 1 1401-1401
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1402-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1401-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-119-0 01 1 1401-1401
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1402-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1401-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1401-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1402-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-389-0 01 1 1401-1401
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1402-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-392-0 01 1 1401-1401
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1402-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-394-0 01 1 1401-1401
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1402-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-395-0 01 1 1401-1401
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1402-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-391-0 01 1 1401-1401
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1402-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-390-0 01 1 1401-1401
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1402-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-393-0 01 1 1401-1401
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1402-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-386-0 01 1 1401-1401
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) MAL 		8-98077-422-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98077-423-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-375-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-376-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1402-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41) 		8-98047-385-0 01 1 1401-1401
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1402-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98047-417-0 01 1 1401-1401
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1402-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) MAL 		8-98047-417-0 02 1 1401-1401
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1402-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-380-0 01 1 1401-1401
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1402-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 MAL 		8-98047-428-0 03 1 1401-1401
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1402-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1401-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1402-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1402-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-414-0 01 1 1401-1401
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1402-
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-427-0 01 1 1402-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-528-0 01 1 1401-1401
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1402-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-531-0 02 1 1401-1401
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1402-
133 CLIP; PIPE
HEATER & DEFROSTER(C41) 		8-98072-530-0 02 1 1401-1401
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1402-
135 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-384-0 01 1 1402-
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 1402-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41) 		8-98072-529-0 02 1 1401-1401
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1402-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-379-0 01 1 1401-1401
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1402-
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 1402-
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1402-
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 1402-
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-116-1 01 1 1402-
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7 		8-97095-907-0 01 1 1402-
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5 		8-97095-908-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL 		8-98047-420-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98047-421-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1402-
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-382-0 01 1 1402-
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-383-0 01 1 1402-
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-115-0 01 1 1402-
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.4 		8-97095-906-0 01 1 1402-
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.5 		8-97095-908-0 01 1 1402-
243 CORE
HEATER & DEFROSTER(C41) 		8-98048-508-0 01 1 1401-1401
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-508-0 01 1 1402-
244 PIPE; INLET
HEATER & DEFROSTER(C41) 		8-98048-510-0 01 1 1401-1401
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1402-

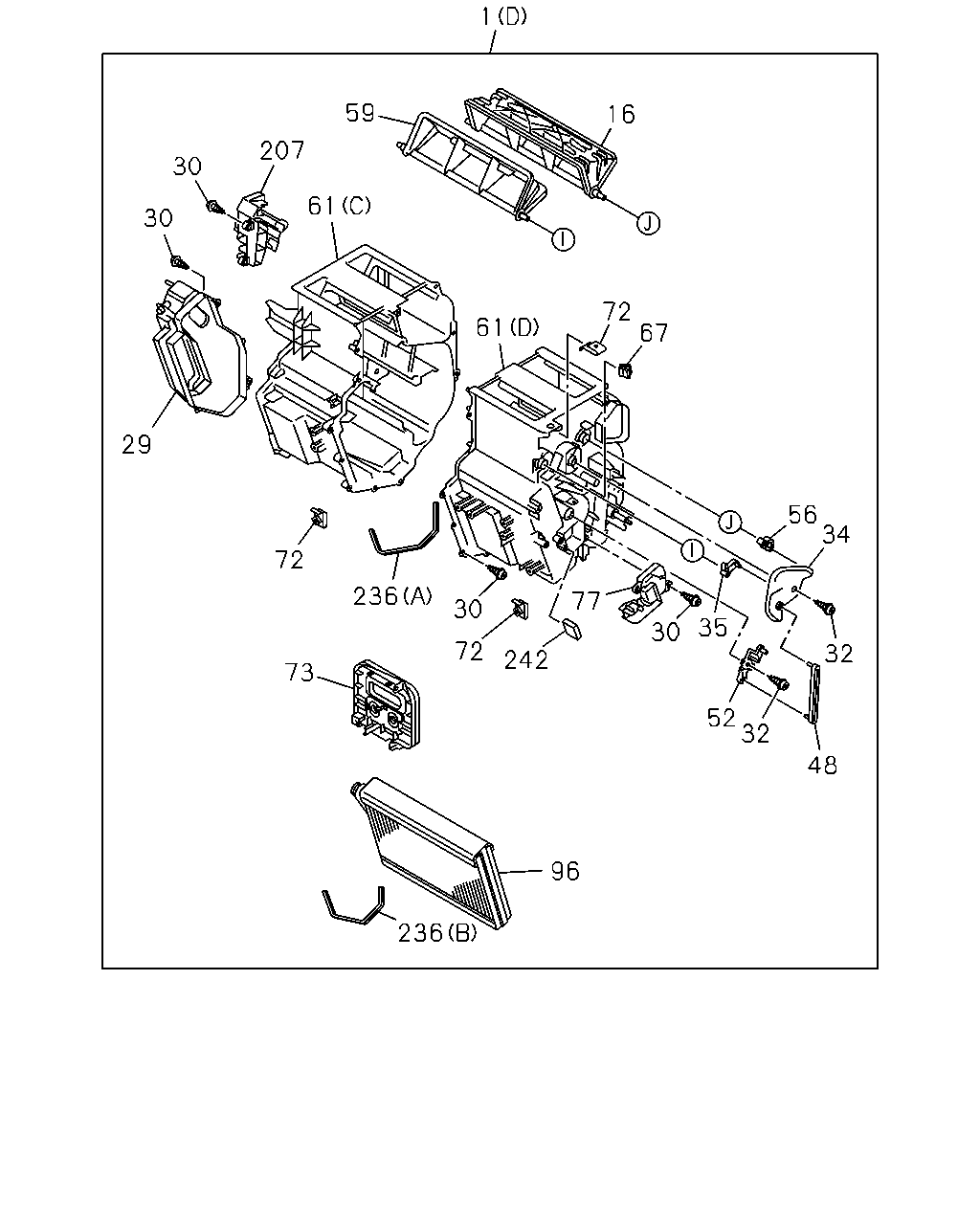

çizim 402533
1 16 59 207 30 30 29 61 61 72 67 56 34 32 48 32 52 35 30 77 242 72 30 236 72 73 96 236
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1401-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1401-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1402-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1402-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-387-0 01 1 1401-1401
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1402-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1401-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98074-119-0 01 1 1401-1401
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1402-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1401-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1401-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1402-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 MAL 		8-98047-416-0 02 1 1401-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 MAL 		8-98047-416-0 03 1 1401-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-389-0 01 1 1401-1401
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1402-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-392-0 01 1 1401-1401
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1402-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-391-0 01 1 1401-1401
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1402-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-390-0 01 1 1401-1401
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1402-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-393-0 01 1 1401-1401
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1402-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-386-0 01 1 1401-1401
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) MAL 		8-98077-422-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1402-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98077-423-0 01 1 1401-1401
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98047-375-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1402-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98047-376-0 01 1 1401-1401
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1402-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98047-417-0 01 1 1401-1401
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1402-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) MAL 		8-98047-417-0 02 1 1401-1401
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1402-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 MAL 		8-98047-428-0 03 1 1401-1401
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1402-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1401-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1402-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1402-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98047-414-0 01 1 1401-1401
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1402-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1401-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98047-379-0 01 1 1401-1401
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL 		8-98047-420-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1402-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL 		8-98047-421-0 01 1 1401-1401
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1402-
242 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1401-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
