◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#132543) — 18 parça
çizim 402491
25 17 387 32 47 46 47 14
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X100 FLANGE 		0-28050-800-0 04 1 1402-
17 NUT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 FLANGE 		0-91180-208-0 01 1 1402-
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-98114-437-0 01 1 1402-
32 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1402-
32 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS 		5-87610-103-0 01 1 1402-
46 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98037-322-0 01 1 1402-
47 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X45 FLANGE 		0-28050-845-0 01 1 1402-
47 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1402-
387 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1402-

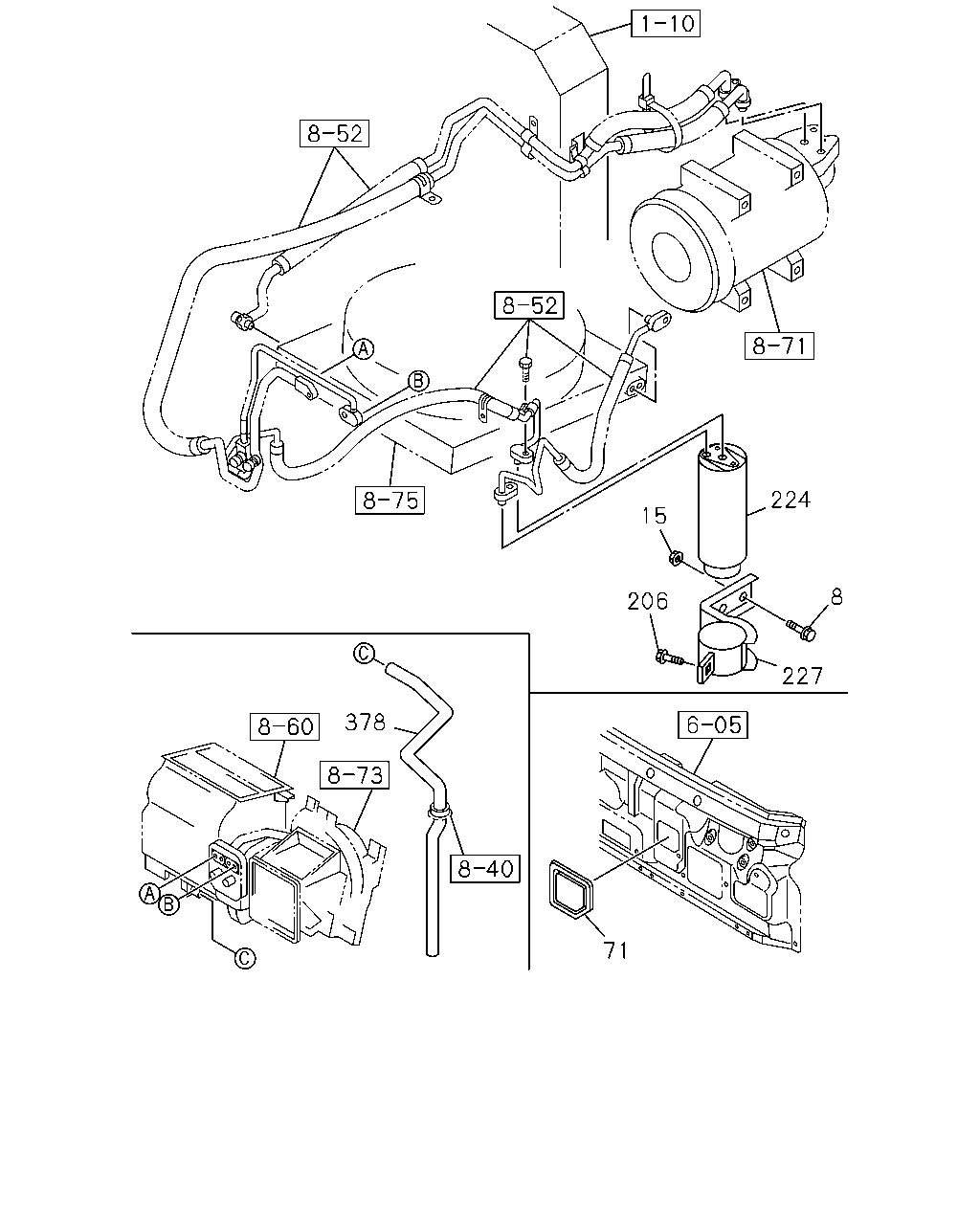

çizim 402520
15 224 8 227 206 71 378
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1402-
15 NUT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 FLANGE MAL 		0-91180-108-0 02 1 1402-
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41) 		8-98017-234-1 01 1 1401-1401
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) 		8-98017-234-1 01 1 1402-
206 BOLT; CLIP BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X16 		8-97096-525-0 01 1 1402-
224 TANK ASM; RECEIVER
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97096-593-0 01 1 1402-
227 BRACKET; RECEIVER TANK
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-566-0 01 1 1402-
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98001-241-2 01 1 1401-1401
378 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98001-241-2 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
