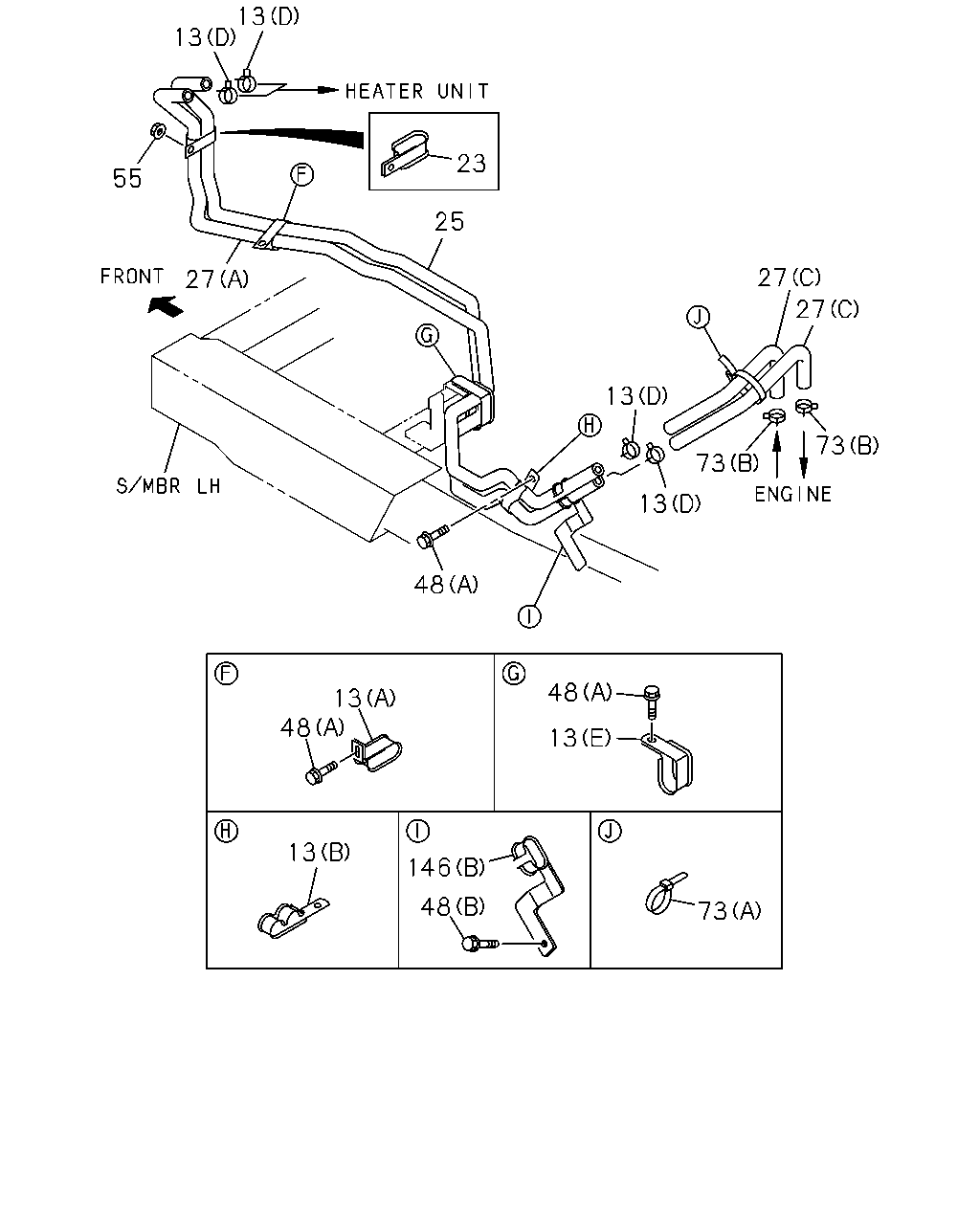

8-45 — HEATER PIPING (#132542) — 71 parça

73 27 27 73 13 13 48 48 13 73 146 48 13 48 13 25 23 27 55 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1401-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (D) ID=22	8-97359-141-0	04	1	1401-1401
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1402-
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1402-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) B=14	8-98029-678-0	01	1	1401-1401
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1402-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (B)	8-98040-023-0	01	1	1401-1401
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1402-
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) (C) ID=20.8	8-94125-862-1	06	1	1402-
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (C) ID=20.8	8-94125-862-1	02	1	1402-
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-98166-023-0	01	1	1401-1401
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1402-
25	HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1401-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1401-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98178-529-0	01	1	1401-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1402-
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1401-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-1401
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-1401
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-1401
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-
55	NUT; CLAMP HEATER & DEFROSTER(C41) M6 FLANGE MAL	0-91180-106-0	01	1	1401-1401
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE MAL	0-91180-106-0	01	1	1402-
73	CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) L=250	5-09707-030-1	01	1	1401-
73	CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B) ID=22	8-97359-141-0	02	1	1401-
146	BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1401-
146	BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98060-001-0	01	1	1402-

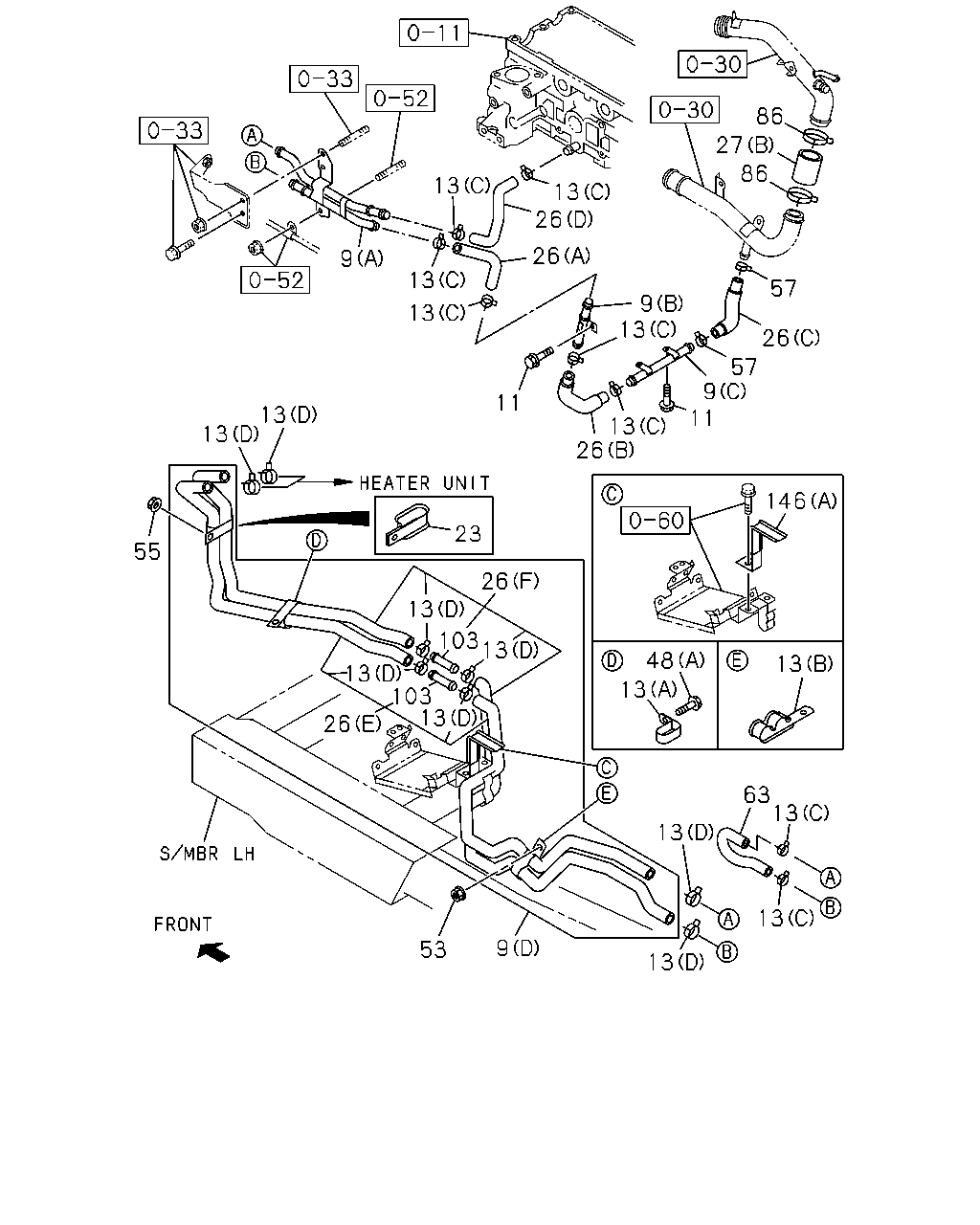

103 26 13 13 13 103 13 13 13 55 53 9 13 13 13 63 13 13 13 48 146 11 9 57 26 57 13 26 11 13 9 86 27 86 13 26 26 13 13 13 9 26 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1402-
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1402-
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	1402-
9	PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98180-418-2	01	1	1402-
11	BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) M8X16 FLANGE MAL	0-28050-816-0	03	1	1402-
13	CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1401-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (D) ID=22	8-97359-141-0	04	1	1401-1401
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1402-
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=22	8-97359-141-0	04	1	1402-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) B=14	8-98029-678-0	01	1	1401-1401
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1402-
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41) (B)	8-98040-023-0	01	1	1401-1401
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	1402-
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) (C) ID=20.8	8-94125-862-1	06	1	1402-
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (C) ID=20.8	8-94125-862-1	02	1	1402-
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-98166-023-0	01	1	1401-1401
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1402-
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	1402-
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	1402-
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	1402-
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	1402-
26	HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98085-567-2	01	1	1402-
26	HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98085-568-2	01	1	1402-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1401-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98178-529-0	01	1	1401-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1402-
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1401-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-1401
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-1401
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-1401
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-
48	BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A) M6X12 FLANGE MAL	0-28050-612-0	01	1	1402-
53	NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE MAL	0-91180-106-0	01	1	1402-
55	NUT; CLAMP HEATER & DEFROSTER(C41) M6 FLANGE MAL	0-91180-106-0	01	1	1401-1401
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE MAL	0-91180-106-0	01	1	1402-
57	CLIP; HOSE 4JJ1-TCC ENG(RDU) ID=20.8	8-94125-862-1	02	1	1402-
63	HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60)	8-98015-119-3	01	1	1402-
86	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) ID=40.5	8-97313-472-0	02	1	1402-
103	CONNECTOR; HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1402-
146	BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1401-
146	BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98060-001-0	01	1	1402-
