Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#132541) — 108 parça

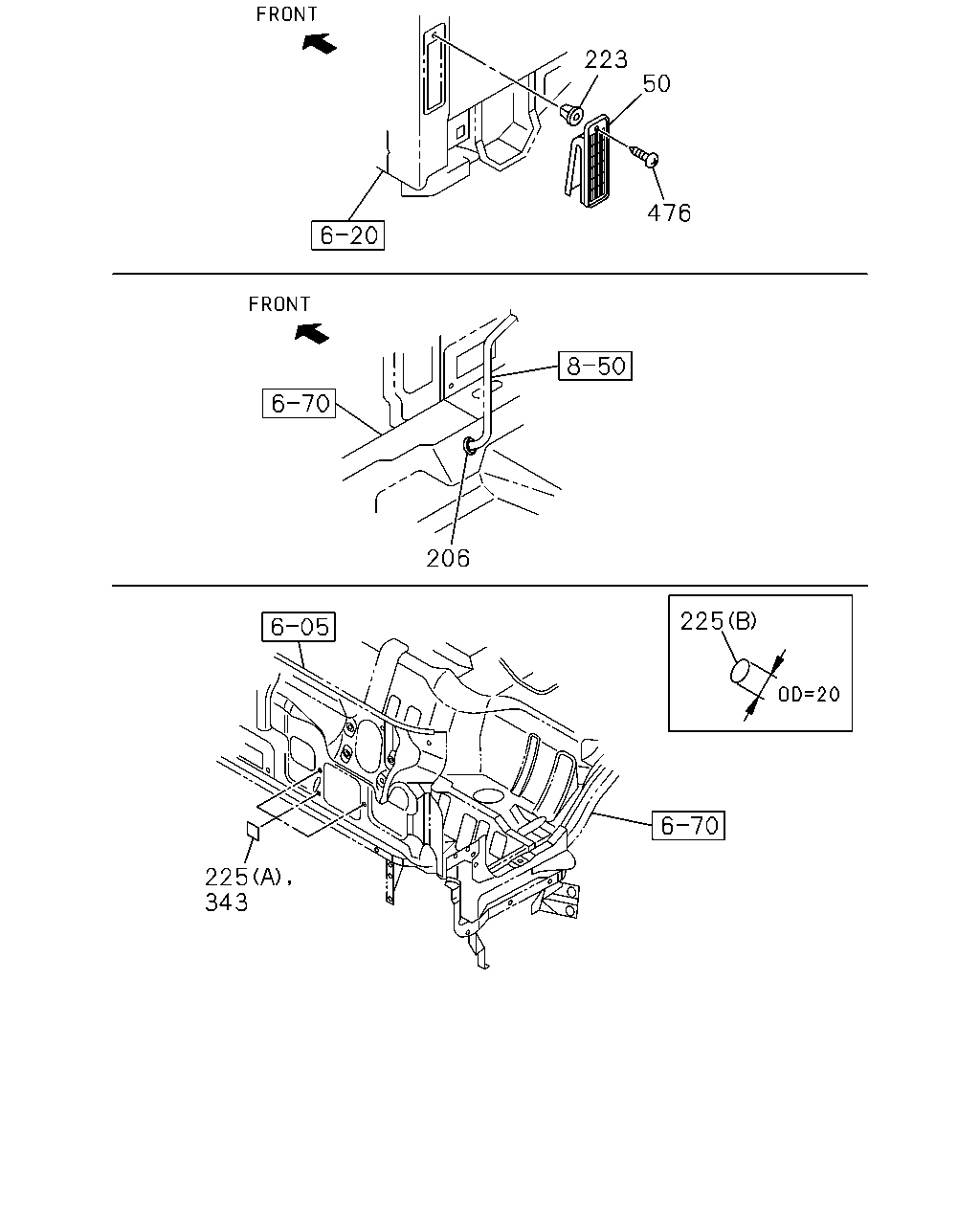

225 343 206 225 476 50 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	VALVE ASM; HTR	8-98080-998-1	01	1	1401-
206	GROMMET; A/C PIPE TO BLOWER UNIT MAL	8-98019-649-0	01	1	1401-
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1401-
225	SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL	8-97856-616-0	02	1	1401-1401
225	SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-97856-616-0	02	1	1402-
225	SEAL; WATER HEATER & DEFROSTER(C41) (A) MAL	8-97856-616-0	01	1	1401-1401
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-97856-616-0	01	1	1402-
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41) (B) OD=20 T=0.05 BLACK MAL	5-76777-036-0	01	1	1401-1401
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),COOLER WO/HEATER(C65) (B) OD=20 T=0.05 BLACK MAL	5-76777-036-0	01	1	1402-
343	SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL	8-97856-616-0	02	1	1401-1401
343	SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-97856-616-0	02	1	1402-
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1401-

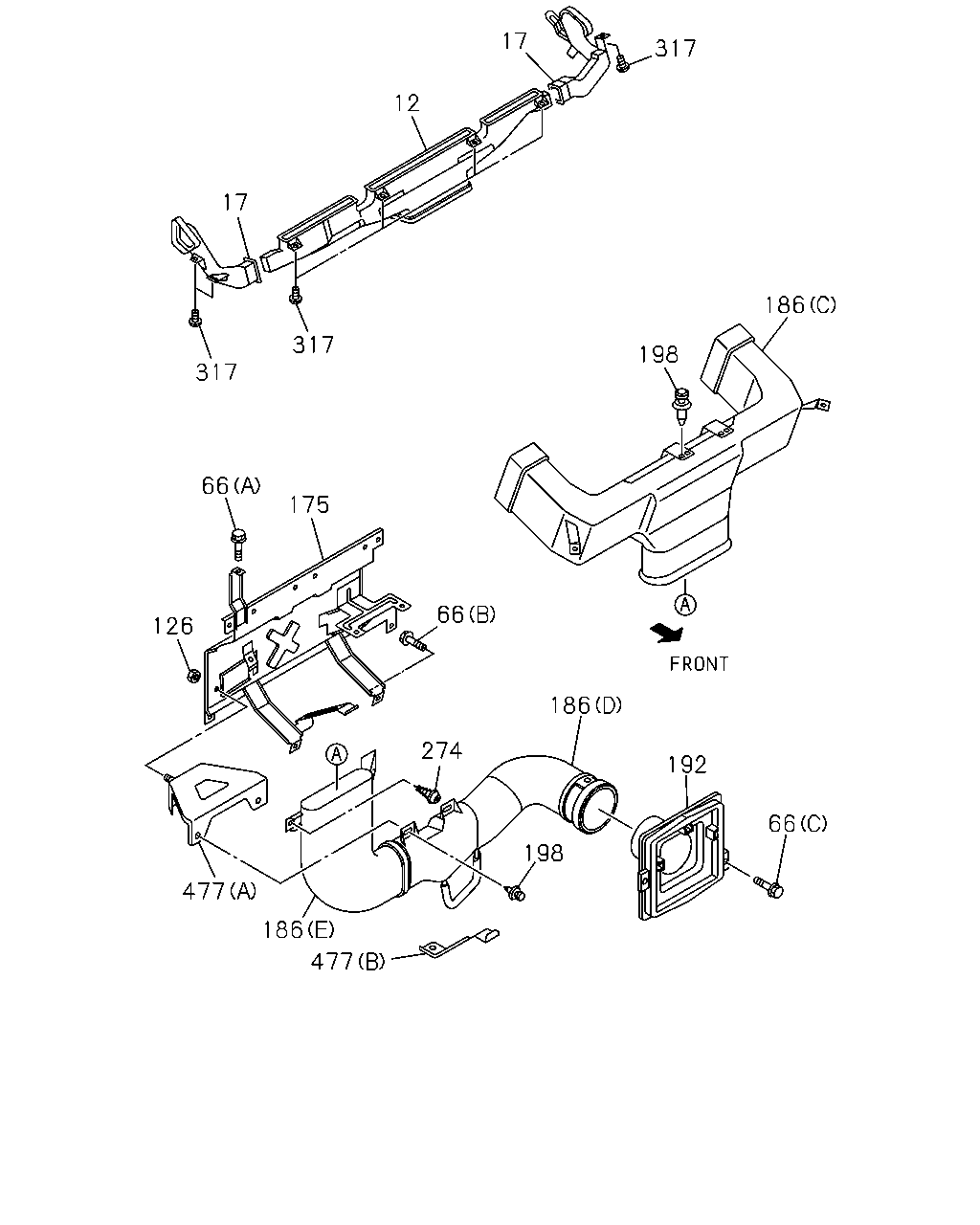

317 17 12 17 317 317 66 175 126 477 186 477 274 198 186 192 66 66 198 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	8-97585-478-3	01	1	1401-
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-469-1	01	1	1401-1401
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1402-
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-475-5	01	1	1401-1401
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1402-
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) M6X16 FLANGE MAL	0-28650-616-0	02	1	1401-1401
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X16 FLANGE MAL	0-28650-616-0	02	1	1402-
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	03	1	1401-1401
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	03	1	1402-
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER MAL	8-98081-175-0	01	1	1401-1401
66	BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL	8-98081-175-0	01	1	1402-
126	NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 FLANGE MAL	0-91180-106-0	01	1	1401-1401
126	NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE MAL	0-91180-106-0	01	1	1401-1401
126	NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	01	1	1402-
126	NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE MAL	0-91180-106-0	01	1	1402-
175	BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98184-163-0	01	1	1401-1401
175	BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98184-163-0	01	1	1402-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-97585-466-7	01	1	1401-1401
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	1402-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-97585-484-5	01	1	1401-1401
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-484-5	01	1	1402-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-589-0	01	1	1411-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C)	8-98054-361-0	01	1	1401-1401
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98054-361-0	01	1	1402-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (E)	8-98054-371-0	01	1	1401-1401
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1402-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (D)	8-98054-379-2	01	1	1401-1401
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1402-
192	DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98054-386-4	01	1	1401-1401
192	DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98054-386-4	01	1	1402-
198	CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL	1-09987-144-0	05	1	1401-1401
198	CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	1-09987-144-0	05	1	1402-
274	SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1401-1401
274	SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1402-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1401-
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1401-1401
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1402-
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98091-304-0	01	1	1401-1401
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98091-304-0	01	1	1402-
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1401-1401
477	BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1402-

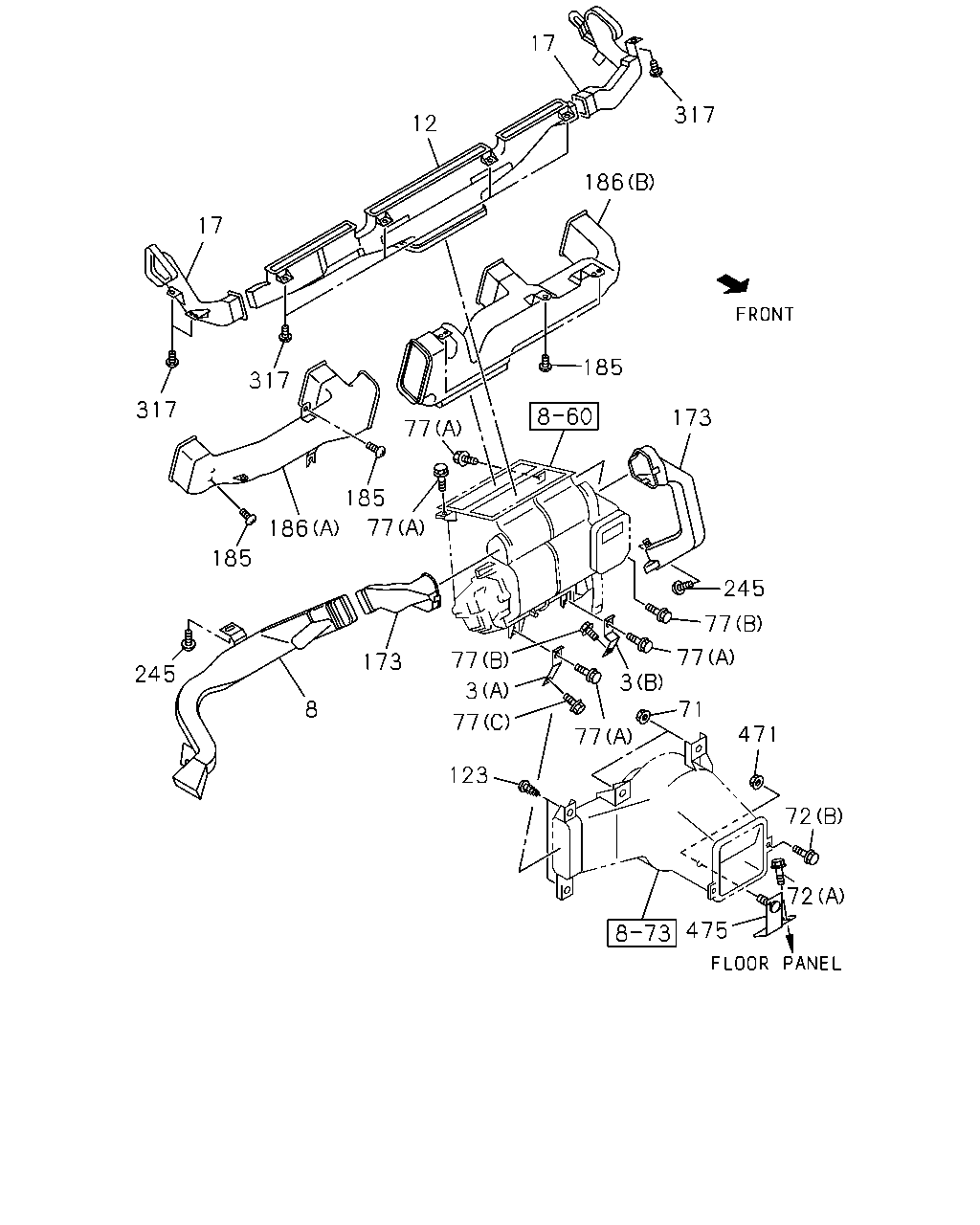

475 72 72 471 71 77 77 245 3 77 123 77 3 77 173 8 245 185 186 185 77 77 317 317 17 185 173 186 317 17 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) MAL	8-98082-473-1	01	1	1401-1401
3	BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98082-473-1	01	1	1402-
3	BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) MAL	8-98082-474-1	01	1	1401-1401
3	BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98082-474-1	01	1	1402-
8	DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98084-146-0	01	1	1401-1401
8	DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-146-0	01	1	1402-
12	NOZZLE; DEFROSTER	8-97585-478-3	01	1	1401-
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-469-1	01	1	1401-1401
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	1402-
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-475-5	01	1	1401-1401
17	NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	1402-
71	NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 FLANGE MAL	0-91180-106-0	02	1	1401-1401
71	NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	02	1	1402-
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) M8X20 W/LK&PL WASHER MAL	8-97359-709-0	01	1	1401-1401
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X20 W/LK&PL WASHER MAL	8-97359-709-0	01	1	1402-
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	02	1	1401-1401
72	BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	02	1	1402-
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	01	1	1401-
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) M6X16 FLANGE MAL	0-28650-616-0	04	1	1401-1401
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X16 FLANGE MAL	0-28650-616-0	04	1	1402-
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) M6X20 W/LK&PL WASHER MAL	8-98081-175-0	01	1	1401-1401
77	BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER MAL	8-98081-175-0	01	1	1402-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	02	1	1401-1401
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER MAL	8-98081-030-0	02	1	1402-
123	SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1401-1401
123	SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1402-
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-504-3	01	1	1401-1401
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-504-3	01	1	1402-
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98084-145-0	01	1	1401-1401
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-145-0	01	1	1402-1411
173	DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98246-555-0	01	1	1412-
185	SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1401-1401
185	SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1402-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-97585-466-7	01	1	1401-1401
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	1402-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-97585-484-5	01	1	1401-1401
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-484-5	01	1	1402-1410
186	DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-589-0	01	1	1411-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C)	8-98054-361-0	01	1	1401-1401
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98054-361-0	01	1	1402-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (E)	8-98054-371-0	01	1	1401-1401
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E)	8-98054-371-0	01	1	1402-
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (D)	8-98054-379-2	01	1	1401-1401
186	DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D)	8-98054-379-2	01	1	1402-
245	CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL	1-09987-144-0	02	1	1401-1401
245	CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	1-09987-144-0	02	1	1402-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	04	1	1401-
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1401-1401
317	SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	02	1	1402-
471	NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M6 FLANGE MAL	0-91180-106-0	01	1	1401-1401
471	NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	01	1	1402-
475	BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL	8-98001-196-2	01	1	1401-1401
475	BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98001-196-2	01	1	1402-
