Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#132540) — 33 parça
◀

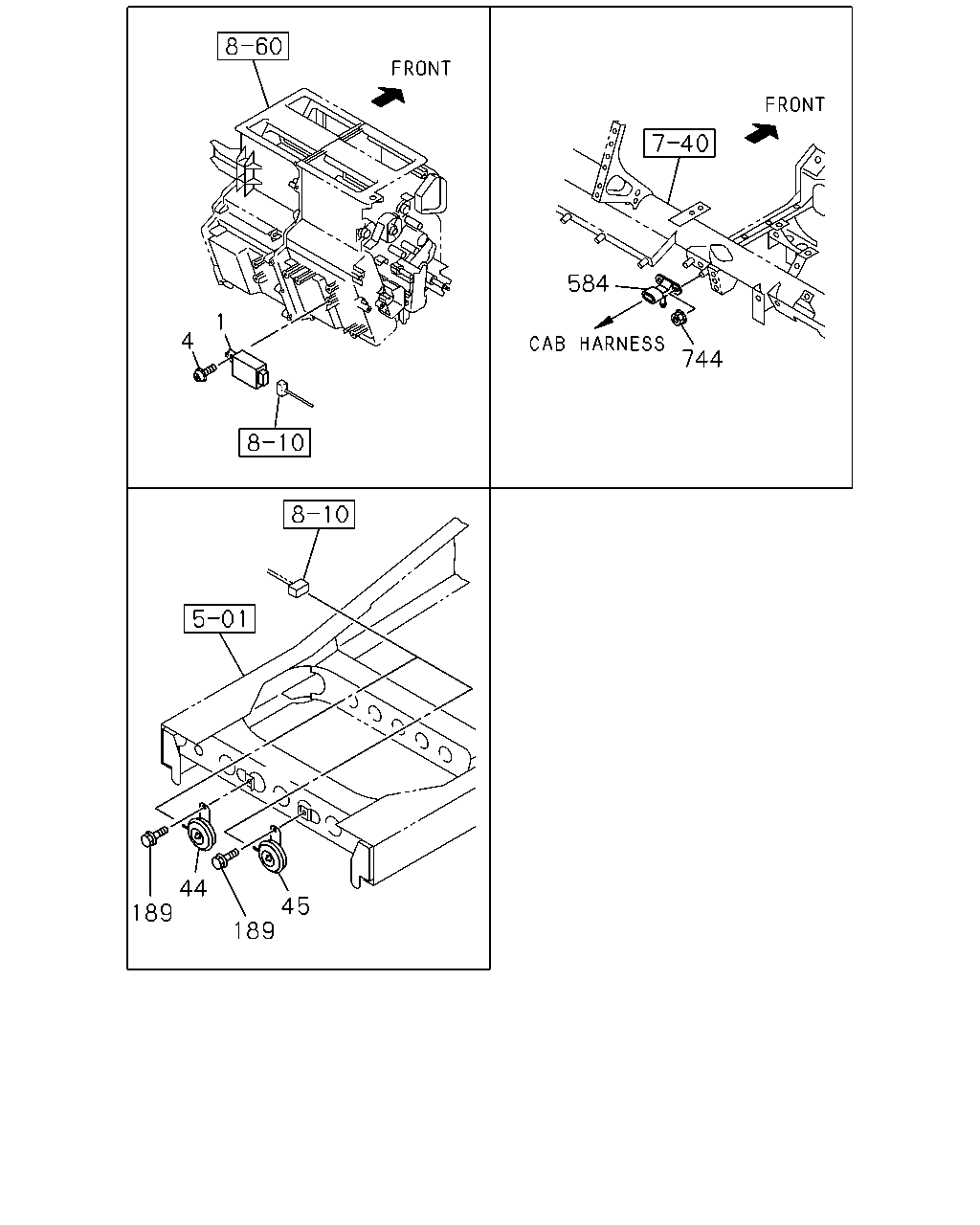

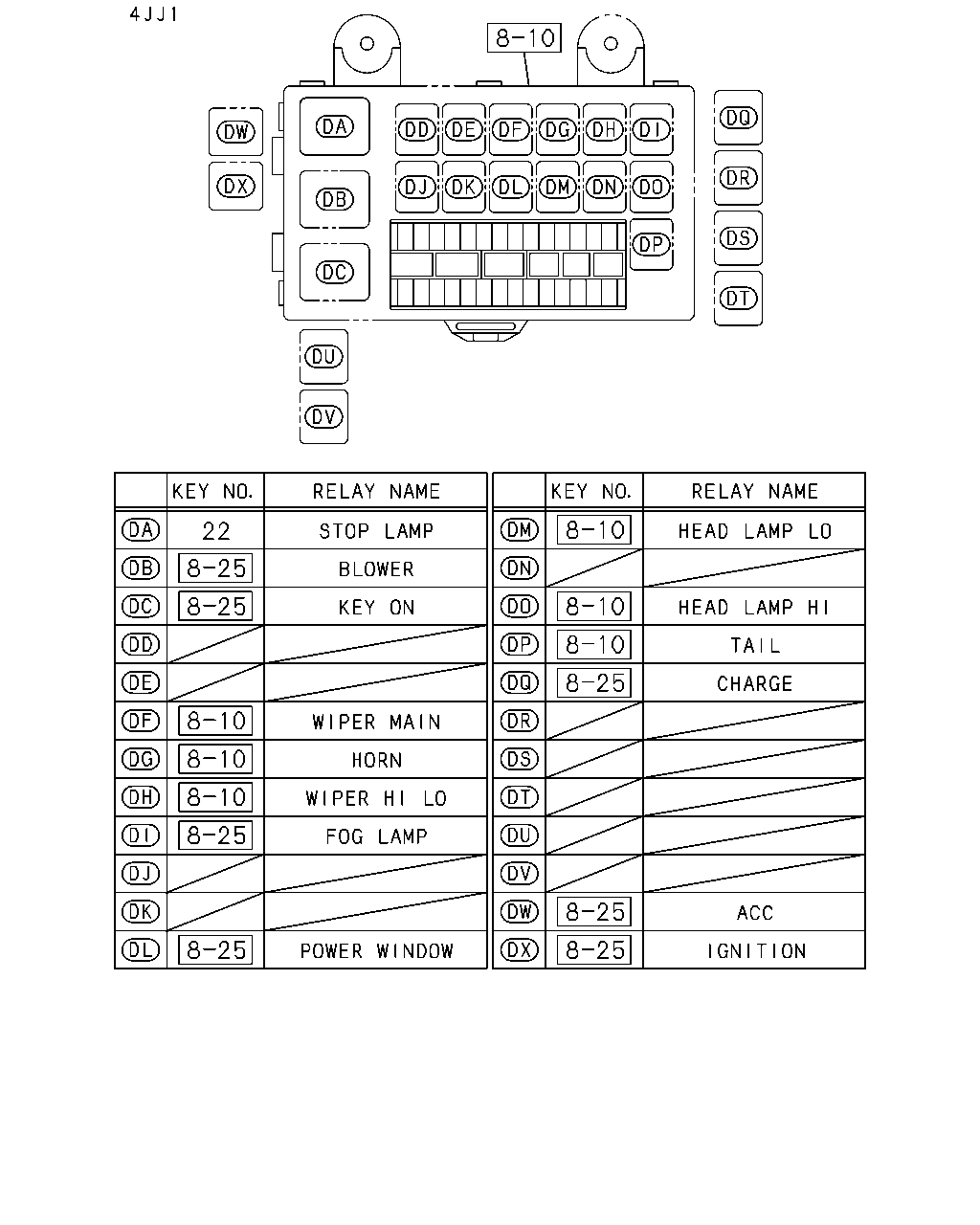

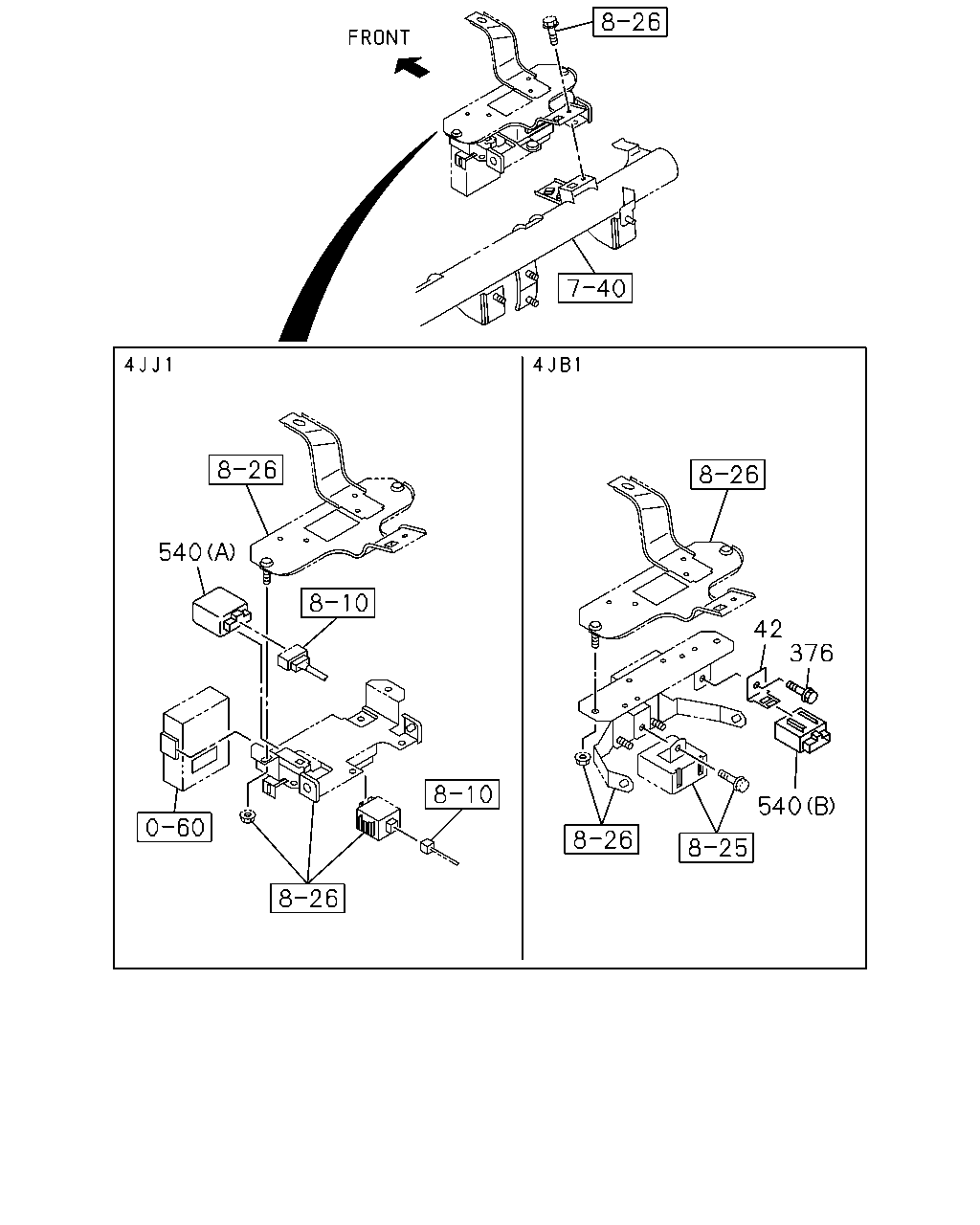

[828A] RELAY;FRAME SIDE (3 parça)
[828A] RELAY;CAB SIDE(NO.2) (2 parça)
[828A] NO.1 (6 parça)
[828A] NO.2 (14 parça)
[828A] RELAY;CAB SIDE(NO.1) (8 parça)
▶
531
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
4JJ1-TCC ENG(RDU) 24V 30A MITSUBA
8-97238-540-0
01
1
1402-1402
531
RELAY; MAIN
4JJ1-TCC ENG(RDU) 24V 30A MITSUBA
8-98259-779-0
01
1
1403-
666
RELAY; STARTER
4JJ1-TCC ENG(RDU) 24V 10A PANASONIC
8-98167-173-0
01
1
1402-
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
4JB1-TC ENG(RDT) 12V 30A
8-97210-972-1
01
1
1401-
22
RELAY; STOP LAMP
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
1402-
540
42
376
540
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
BRACKET; RELAY
4JB1-TC ENG(RDT) INTERMITTENT WIPER<C13>
8-98094-199-0
01
1
1401-
376
BOLT; RELAY
4JB1-TC ENG(RDT) INTERMITTENT WIPER<C13> M8X20 FLANGE MAL
0-28650-820-0
01
1
1401-
540
RELAY; WIPER INTERVAL
4JB1-TC ENG(RDT) (C) 12V 20A
8-97173-037-1
01
1
1401-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (B)
8-98032-320-1
01
1
1401-1401
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B)
8-98032-320-1
01
1
1402-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A)
8-98233-976-0
01
1
1402-
1
4
584
744
189
44
189
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98001-519-0
01
1
1401-1401
1
UNIT; FLASHER
VOLTAGE 12V<TRQ>
8-98001-519-0
01
1
1402-
1
UNIT; FLASHER
EXC. VOLTAGE 12V<TRQ>
8-98025-533-1
01
1
1402-
4
SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR MAL
0-72180-516-0
01
1
1401-
44
HORN; HIGH NOTE
8-98022-024-0
01
1
1401-1401
44
HORN; HIGH NOTE
VOLTAGE 12V<TRQ>
8-98022-024-0
01
1
1402-
44
HORN; HIGH NOTE
EXC. VOLTAGE 12V<TRQ>
8-98022-022-0
01
1
1402-
45
HORN; LOW NOTE
8-98022-025-0
01
1
1401-1401
45
HORN; LOW NOTE
VOLTAGE 12V<TRQ>
8-98022-025-0
01
1
1402-
45
HORN; LOW NOTE
EXC. VOLTAGE 12V<TRQ>
8-98022-023-0
01
1
1402-
189
BOLT; HORN
M8X18.5 W/PL WASHER MAL
8-98141-255-0
01
1
1401-
189
BOLT; HORN
M8X18.5 W/PL WASHER MAL
8-98141-255-0
01
1
1401-
584
SENSOR; PRESSURE
4JJ1-TCC ENG(RDU)
8-98020-514-0
01
1
1402-
744
NUT; SENSOR
4JJ1-TCC ENG(RDU) M6 FLANGE MAL
0-91180-106-0
02
1
1402-
22
770
8
540
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
RELAY; WIPER
4JB1-TC ENG(RDT) 12V 20A
8-97173-037-1
01
1
1401-
22
RELAY; STOP LAMP
4JB1-TC ENG(RDT) 12V 30A
8-97210-972-1
01
1
1401-
22
RELAY; STOP LAMP
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
1402-
540
RELAY; WIPER INTERVAL
4JB1-TC ENG(RDT) (C) 12V 20A
8-97173-037-1
01
1
1401-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (B)
8-98032-320-1
01
1
1401-1401
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B)
8-98032-320-1
01
1
1402-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A)
8-98233-976-0
01
1
1402-
770
RELAY; ENG BRK
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 12V 20A
8-97173-037-1
01
1
1401-
