8-15 — FIXING PARTS; WIRING HARNESS (#132536) — 151 parça

515 53 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS 4JB1-TC ENG(RDT) (B)	8-98171-458-0	01	1	1401-
53	BRACKET; HARNESS 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (I)	8-98171-457-0	01	1	1401-
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1401-
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1401-
53	BRACKET; HARNESS (D)	8-98039-984-2	01	1	1401-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1401-
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1401-
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (H)	8-98084-590-0	01	1	1401-1401
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (H)	8-98084-590-0	01	1	1402-
53	BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (G)	8-98074-502-0	01	1	1402-
480	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-
480	BOLT; BRKT 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-
480	BOLT; BRKT (A) M6X25 FLANGE MAL	0-28650-625-0	01	1	1401-
480	BOLT; BRKT (C) M8X20 FLANGE MAL	0-28650-820-0	01	1	1401-
515	NUT; BRKT 4JB1-TC ENG(RDT) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
515	NUT; BRKT 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	02	1	1401-
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1401-

22 22 22 16 16 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS COOLER WO/HEATER(C65) (I) L=140 MAL	5-09707-031-1	01	1	1402-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1401-
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (E) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1401-
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1401-
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1401-1401
16	CLIP; HARNESS 4JJ1-TCC ENG(RDU) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10	8-94154-844-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (D) L=119.5	1-09707-197-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (B) L=100	5-09707-036-1	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (E) ID=6 & 8.3	8-94167-742-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (G) ID=12 & 6.8	8-97125-842-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (A) L=140 MAL	5-09707-031-1	01	1	1402-
48	CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) ID=11 H=20 L=25	1-09700-848-0	01	1	1401-
48	CLIP; FRAME HARNESS (B) ID=14 L=47 MAL	5-09700-319-0	06	1	1401-

16 16 22 513 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS COOLER WO/HEATER(C65) (I) L=140 MAL	5-09707-031-1	01	1	1402-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1401-
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (E) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1401-
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1401-
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1401-1401
16	CLIP; HARNESS 4JJ1-TCC ENG(RDU) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10	8-94154-844-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (D) L=119.5	1-09707-197-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (B) L=100	5-09707-036-1	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (E) ID=6 & 8.3	8-94167-742-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (G) ID=12 & 6.8	8-97125-842-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (A) L=140 MAL	5-09707-031-1	01	1	1402-
513	TAPE; SOFT,HARNESS 4JJ1-TCC ENG(RDU) EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 130X80 MAL	8-97304-373-0	01	1	1402-

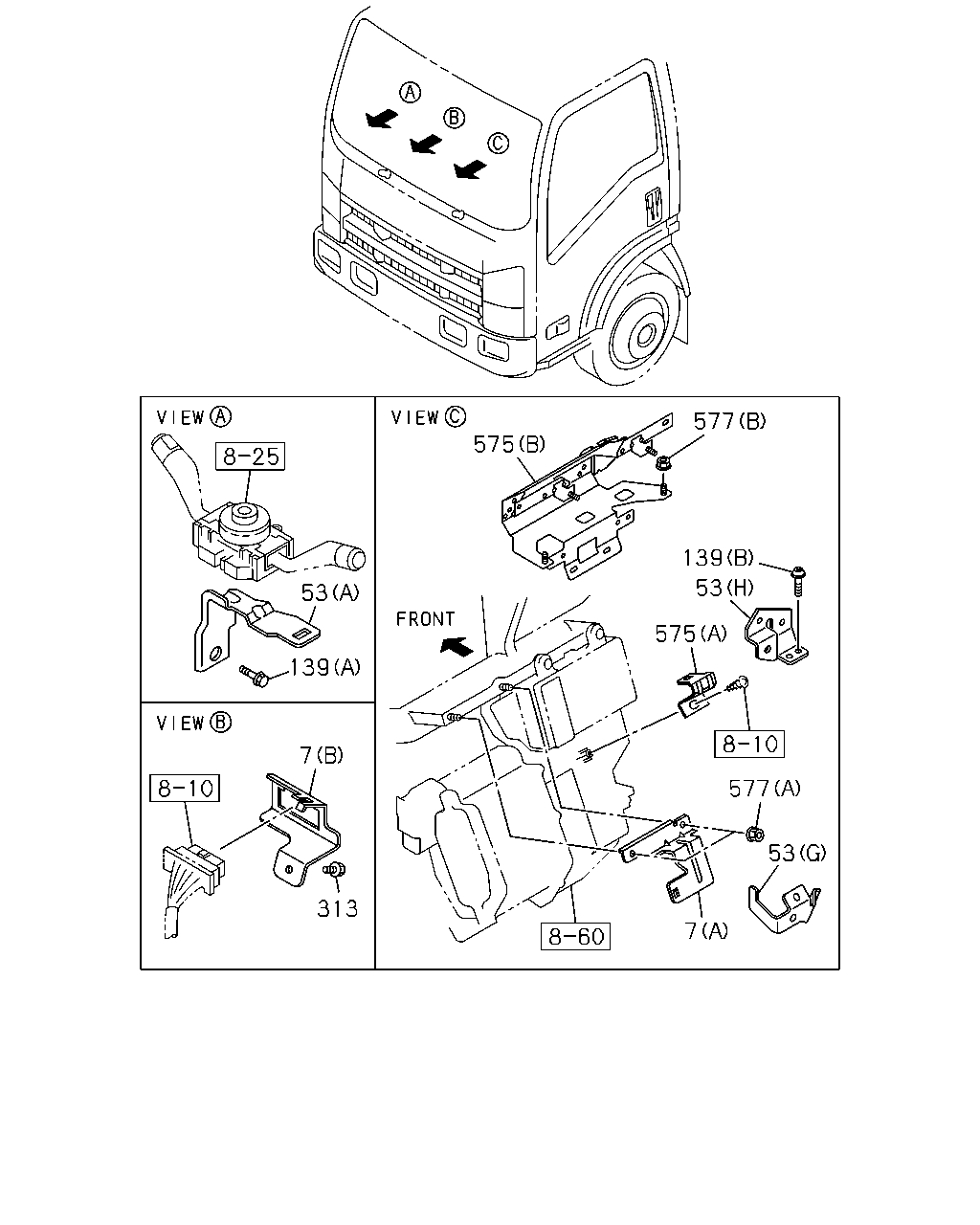

53 139 7 313 575 577 139 53 575 577 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR 4JJ1-TCC ENG(RDU) (B)	8-98029-762-4	01	1	1402-
7	BRACKET; CONNECTOR 4JJ1-TCC ENG(RDU) (A)	8-98043-070-1	01	1	1402-
53	BRACKET; HARNESS 4JB1-TC ENG(RDT) (B)	8-98171-458-0	01	1	1401-
53	BRACKET; HARNESS 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (I)	8-98171-457-0	01	1	1401-
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1401-
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1401-
53	BRACKET; HARNESS (D)	8-98039-984-2	01	1	1401-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1401-
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1401-
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (H)	8-98084-590-0	01	1	1401-1401
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (H)	8-98084-590-0	01	1	1402-
53	BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (G)	8-98074-502-0	01	1	1402-
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1401-
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1401-1401
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1402-
313	BOLT; BRKT 4JJ1-TCC ENG(RDU) M6X16 FLANGE	0-28450-616-0	01	1	1402-
575	BRACKET; FUSE BOX 4JB1-TC ENG(RDT) (B)	8-98173-144-3	01	1	1401-
575	BRACKET; FUSE BOX 4JJ1-TCC ENG(RDU) (A)	8-98042-656-2	01	1	1402-
577	NUT; FUSE BOX 4JB1-TC ENG(RDT) (A) M6 FLANGE MAL	0-91180-106-0	02	1	1401-
577	NUT; FUSE BOX 4JB1-TC ENG(RDT) (B) M5 FLANGE	5-09440-003-0	04	1	1401-
577	NUT; FUSE BOX 4JJ1-TCC ENG(RDU) (A) M6 FLANGE MAL	0-91180-106-0	04	1	1402-

516 313 480 38 139 529 480 529 480 377 386 386 377 139 519 515 552 552 515 294 219 24 515 577 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M6 FLANGE MAL	0-91180-106-0	01	1	1401-1409
24	NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) M8X12 FLANGE	0-28050-812-0	01	1	1402-
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1401-
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1401-1401
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1402-
219	NUT 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	02	1	1402-
294	NUT 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	01	1	1402-
313	BOLT; BRKT 4JJ1-TCC ENG(RDU) M6X16 FLANGE	0-28450-616-0	01	1	1402-
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1401-
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER MAL	8-98141-255-0	02	1	1401-
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1401-
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1401-
386	BOLT; GRAND HARNESS 4JB1-TC ENG(RDT) (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1401-1401
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1402-
480	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-
480	BOLT; BRKT 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-
480	BOLT; BRKT (A) M6X25 FLANGE MAL	0-28650-625-0	01	1	1401-
480	BOLT; BRKT (C) M8X20 FLANGE MAL	0-28650-820-0	01	1	1401-
515	NUT; BRKT 4JB1-TC ENG(RDT) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
515	NUT; BRKT 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	02	1	1401-
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1401-
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1401-
519	NUT; EARTH CABLE 4JB1-TC ENG(RDT) M12	0-91111-512-0	01	1	1401-
529	BOLT; RELAY BOX 4JB1-TC ENG(RDT) (B) M8X25 FLANGE MAL	0-28650-825-0	03	1	1401-
529	BOLT; RELAY BOX 4JJ1-TCC ENG(RDU) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1402-
552	NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1402-
552	NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1402-
577	NUT; FUSE BOX 4JB1-TC ENG(RDT) (A) M6 FLANGE MAL	0-91180-106-0	02	1	1401-
577	NUT; FUSE BOX 4JB1-TC ENG(RDT) (B) M5 FLANGE	5-09440-003-0	04	1	1401-
577	NUT; FUSE BOX 4JJ1-TCC ENG(RDU) (A) M6 FLANGE MAL	0-91180-106-0	04	1	1402-

515 53 53 480 480 480 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS 4JB1-TC ENG(RDT) (B)	8-98171-458-0	01	1	1401-
53	BRACKET; HARNESS 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (I)	8-98171-457-0	01	1	1401-
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1401-
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1401-
53	BRACKET; HARNESS (D)	8-98039-984-2	01	1	1401-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1401-
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1401-
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (H)	8-98084-590-0	01	1	1401-1401
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (H)	8-98084-590-0	01	1	1402-
53	BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (G)	8-98074-502-0	01	1	1402-
480	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-
480	BOLT; BRKT 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (B) M10X30 FLANGE	0-28651-030-0	01	1	1401-
480	BOLT; BRKT (A) M6X25 FLANGE MAL	0-28650-625-0	01	1	1401-
480	BOLT; BRKT (C) M8X20 FLANGE MAL	0-28650-820-0	01	1	1401-
515	NUT; BRKT 4JB1-TC ENG(RDT) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
515	NUT; BRKT 4JB1-TC ENG(RDT) EXC. MANUAL TILT CAB<RWZ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1401-
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	02	1	1401-
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1401-

22 16 483 16 16 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS COOLER WO/HEATER(C65) (I) L=140 MAL	5-09707-031-1	01	1	1402-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1401-
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1401-
16	CLIP; HARNESS (E) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1401-
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1401-
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1401-
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1401-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1401-1401
16	CLIP; HARNESS 4JJ1-TCC ENG(RDU) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS 4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10	8-94154-844-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (D) L=119.5	1-09707-197-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (B) L=100	5-09707-036-1	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (E) ID=6 & 8.3	8-94167-742-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (G) ID=12 & 6.8	8-97125-842-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	1402-
22	CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (A) L=140 MAL	5-09707-031-1	01	1	1402-
483	CLIP; ENG HARNESS 4JB1-TC ENG(RDT) L=197	1-83574-032-0	01	1	1401-

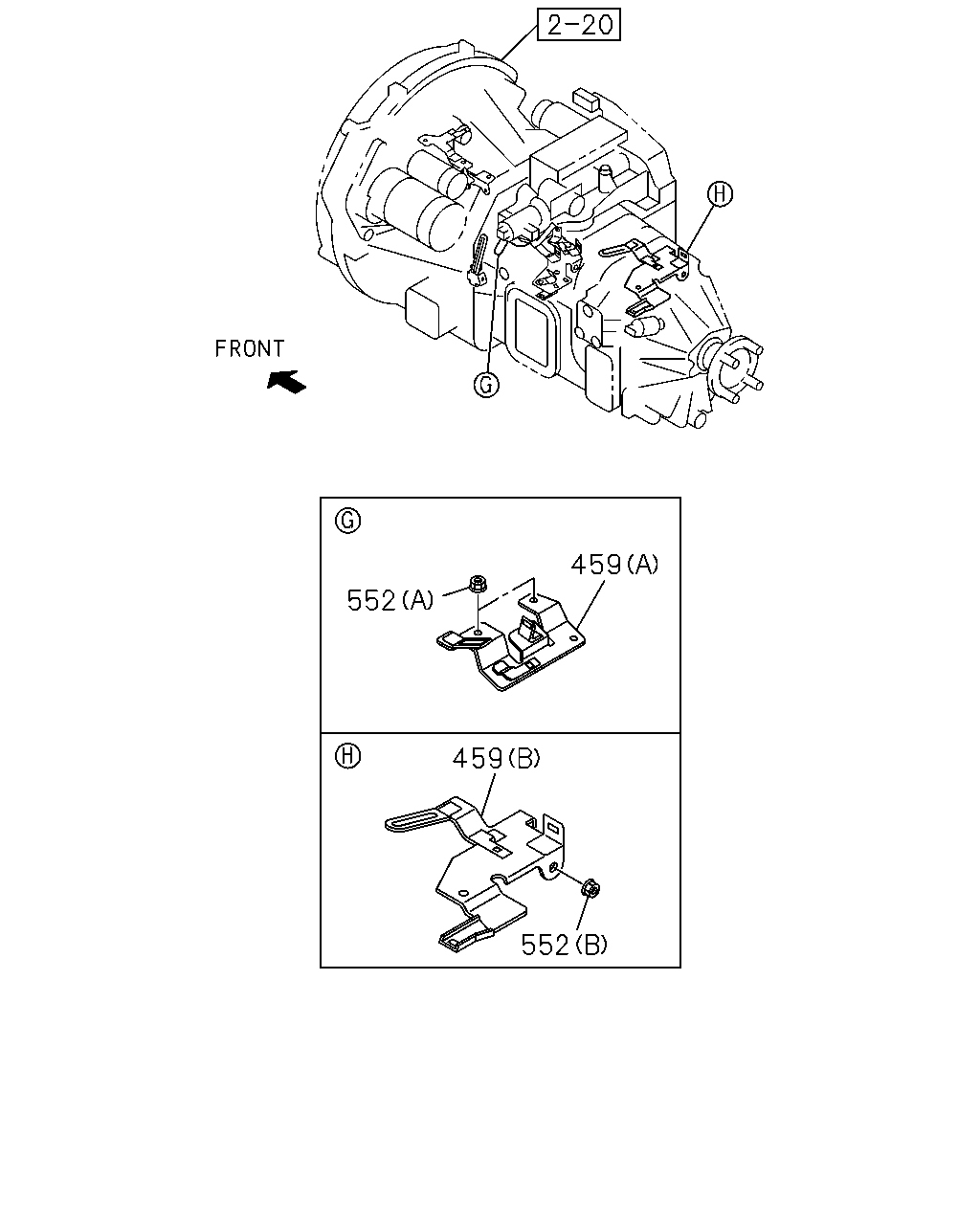

459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
459	BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (A)	8-98020-227-3	01	1	1402-
459	BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (B)	8-98196-974-0	01	1	1402-
552	NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1402-
552	NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1402-
