8-10 — WIRING HARNESS AND FUSE (#132535) — 213 parça

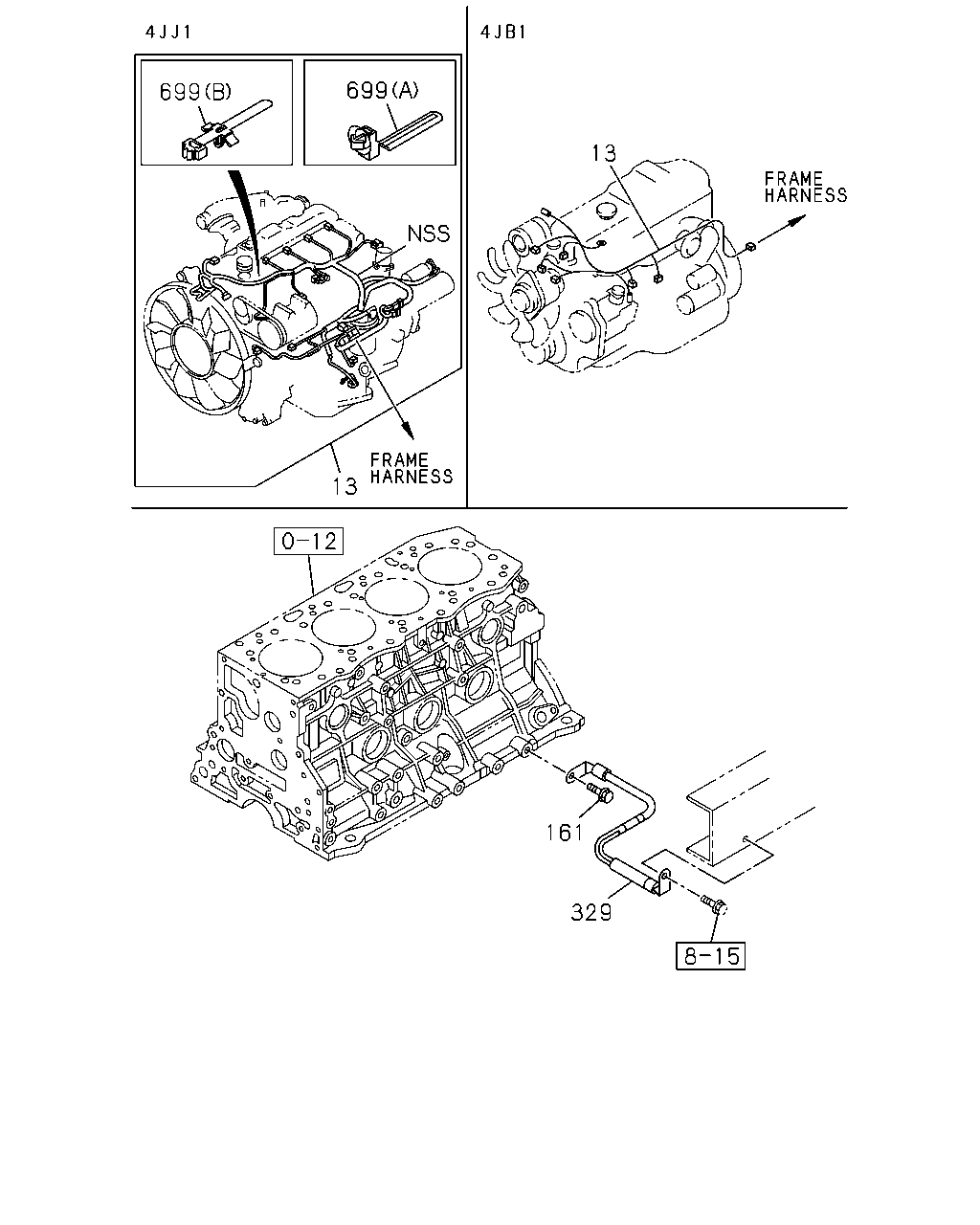

çizim 402013
699 699 13 13 161 329
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-98182-442-0 01 1 1401-1404
13 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-98259-658-0 01 1 1405-
13 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98172-159-1 01 1 1402-
161 BOLT; GROUND,HARNESS
4JJ1-TCC ENG(RDU) M10X16 FLANGE 		0-28051-016-0 01 1 1402-
329 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT) 		8-97260-486-1 01 1 1401-
329 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98039-854-1 01 1 1402-
699 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (A) L=140 		8-97122-360-0 03 1 1402-
699 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98088-438-0 01 1 1402-

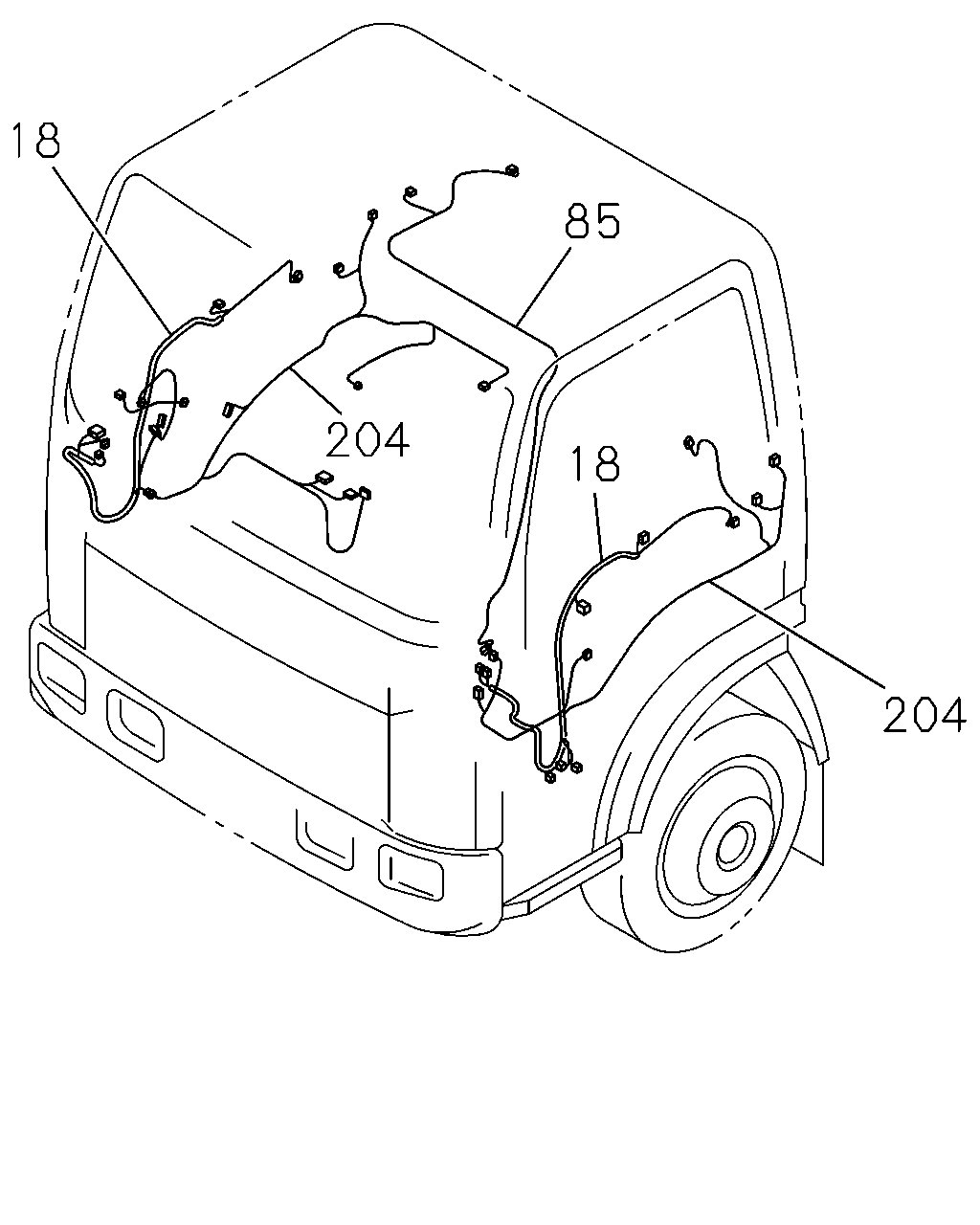

çizim 402038
204 18 85 18 204
BalonParca AdiParca NoAdetTipApplied Date
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> MAL 		8-98071-076-2 01 1 1401-
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> MAL 		8-98071-084-3 01 1 1401-
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> MAL 		8-98071-075-2 01 1 1401-
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> MAL 		8-98071-083-2 01 1 1401-
85 HARNESS; ROOM LAMP
MAL 		8-98049-963-3 01 1 1401-
204 HARNESS; CABLE,FLOOR
4JB1-TC ENG(RDT) MAL 		8-98070-787-4 01 1 1401-1401
204 HARNESS; CABLE,FLOOR
MAL 		8-98070-787-4 01 1 1402-

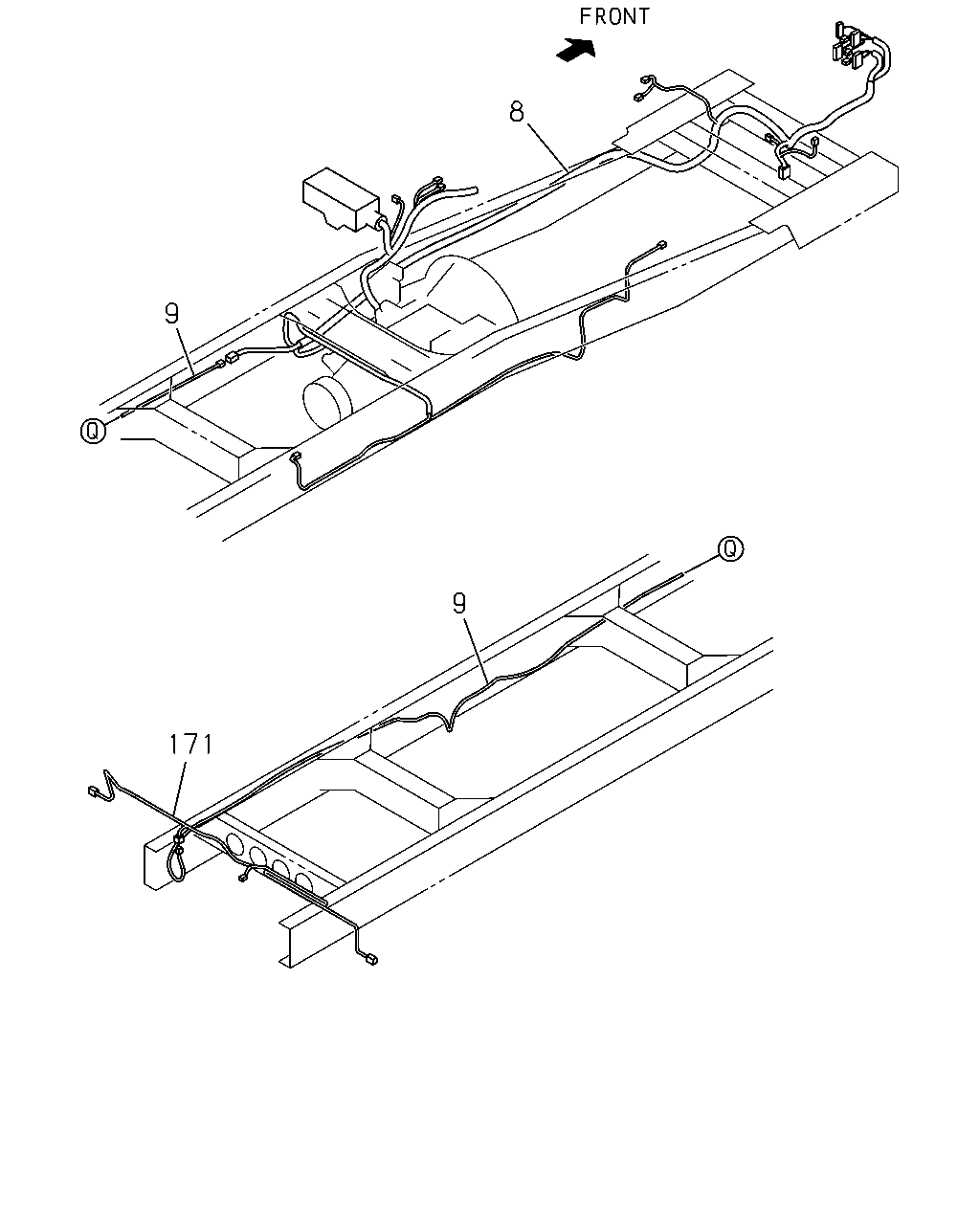

çizim 402441
9 171 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98248-094-0 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98294-086-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98172-332-1 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98294-082-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) MANUAL TILT CAB<RWZ> EXC. EXHAUST BRAKE<NF8> 		8-98248-095-0 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) MANUAL TILT CAB<RWZ> EXC. EXHAUST BRAKE<NF8> 		8-98294-087-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 		8-98172-333-1 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 		8-98294-083-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98117-969-2 01 1 1402-1409
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98293-846-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98117-968-2 01 1 1402-1409
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98293-845-0 01 1 1410-
9 HARNESS; FRAME,RR
4JB1-TC ENG(RDT) MAL 		8-98164-943-1 01 1 1401-
9 HARNESS; FRAME,RR
4JJ1-TCC ENG(RDU) 		8-98048-413-4 01 1 1402-
171 HARNESS; CABLE,TAIL LAMP
MAL 		8-98156-027-0 01 1 1401-

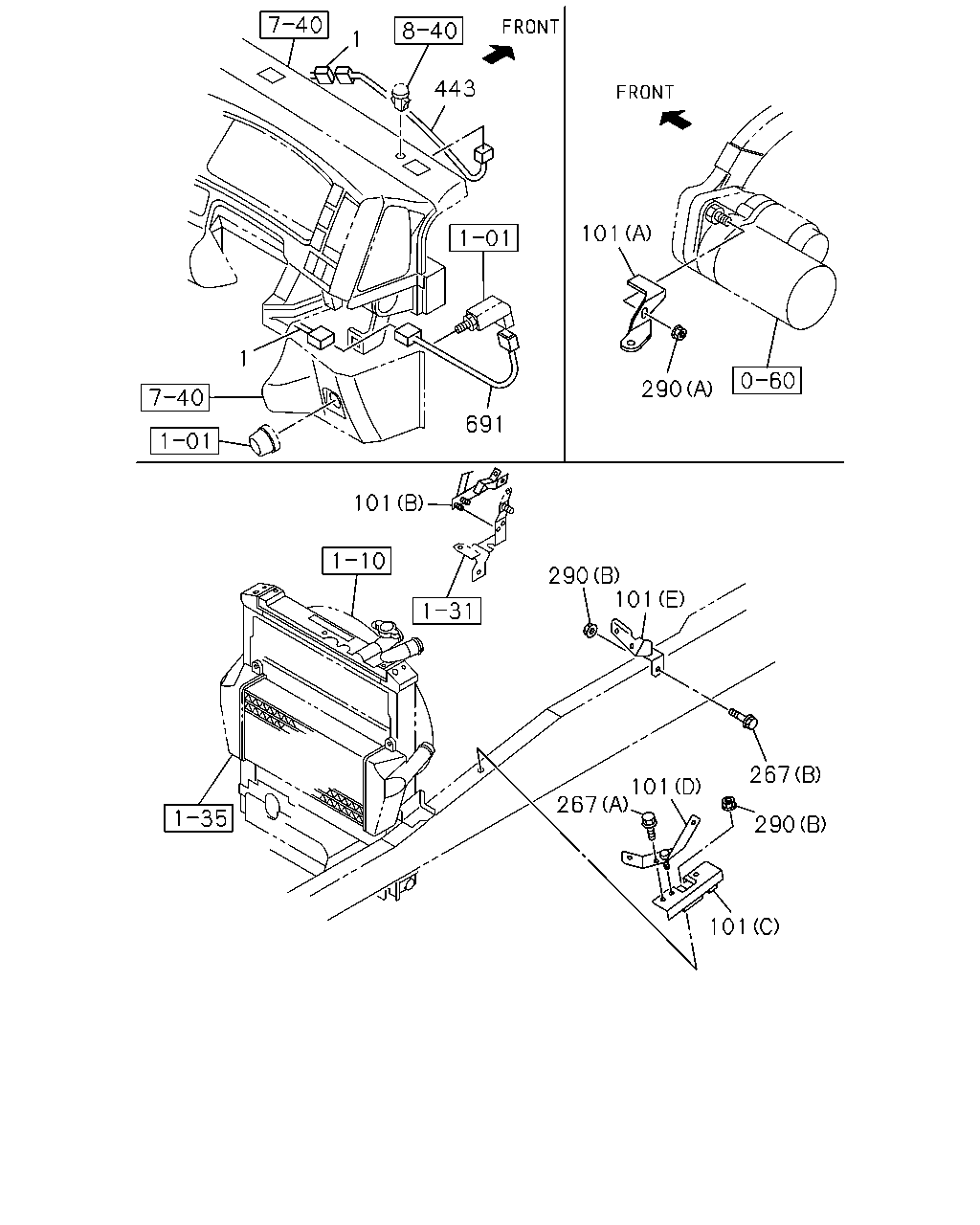

çizim 402481
101 290 101 267 290 101 267 101 691 290 101 443 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98246-359-0 01 1 1401-1401
1 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98246-359-0 01 1 1402-
1 HARNESS; CAB
4JJ1-TCC ENG(RDU) 		8-98207-642-0 01 1 1402-
101 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (A) 		8-98030-725-1 01 1 1402-
101 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (C) 		8-98078-070-1 01 1 1402-
101 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (D) 		8-98078-071-1 01 1 1402-
101 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (B) 		8-98093-465-1 01 1 1402-
101 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (E) 		8-98217-757-0 01 1 1402-
267 BOLT; BRKT
4JJ1-TCC ENG(RDU) (A) M6X25 FLANGE MAL 		0-28650-625-0 01 1 1402-
267 BOLT; BRKT
4JJ1-TCC ENG(RDU) (B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1402-
290 NUT; BRKT
4JJ1-TCC ENG(RDU) (B) M8 FLANGE MAL 		0-91180-108-0 02 1 1402-
290 NUT; BRKT
4JJ1-TCC ENG(RDU) (A) M10 FLANGE MAL 		0-91180-110-0 01 1 1402-
443 HARNESS; EXT,A/C
COOLER WO/HEATER(C65) MAL 		8-98103-712-0 01 1 1402-
691 HARNESS; IDLE CONT
4JJ1-TCC ENG(RDU) MAL 		8-98049-014-2 01 1 1402-

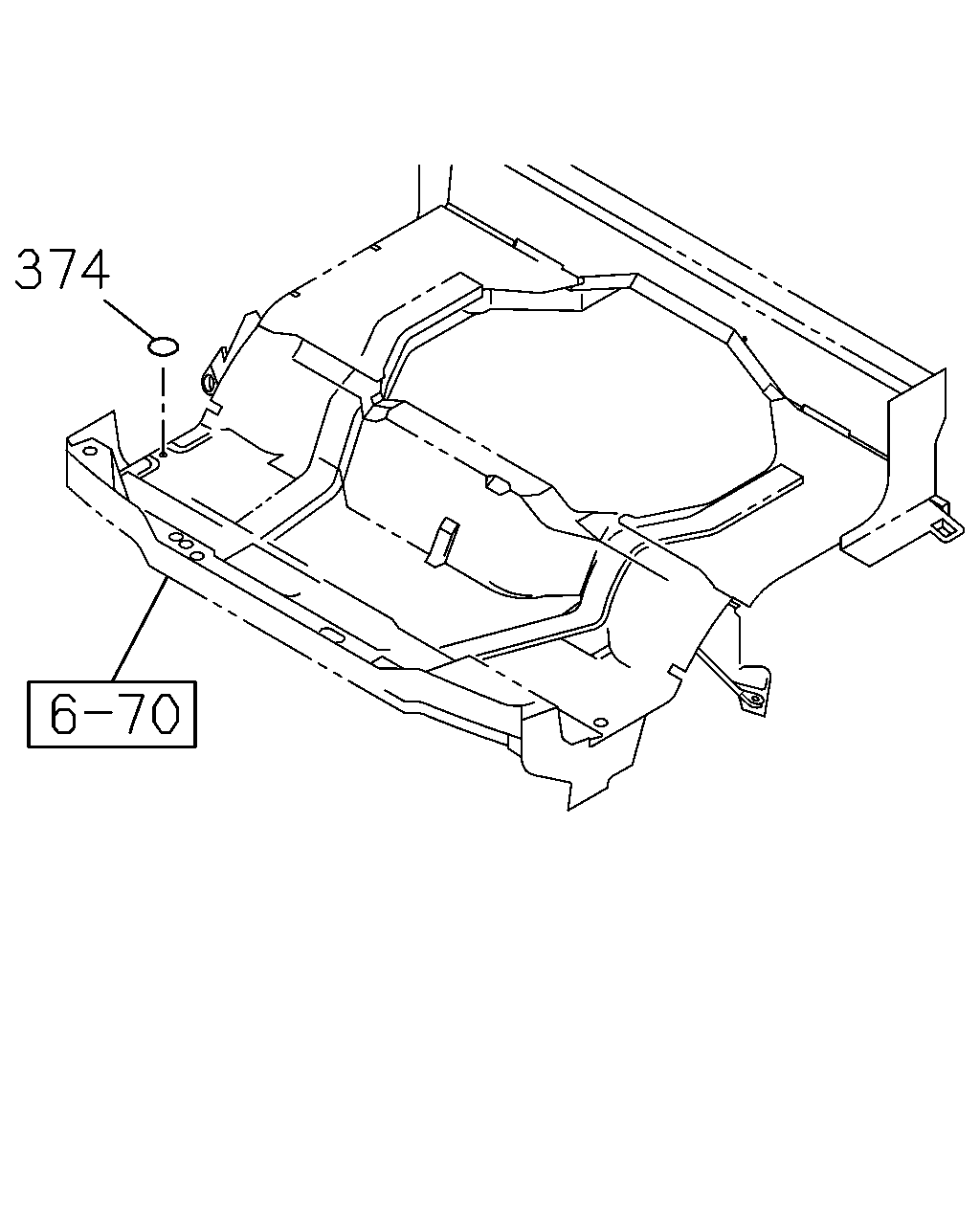

çizim 402496
374
BalonParca AdiParca NoAdetTipApplied Date
374 PLUG; HARNESS CONNECTOR
OD=32 BLACK MAL 		8-98031-126-0 01 1 1401-

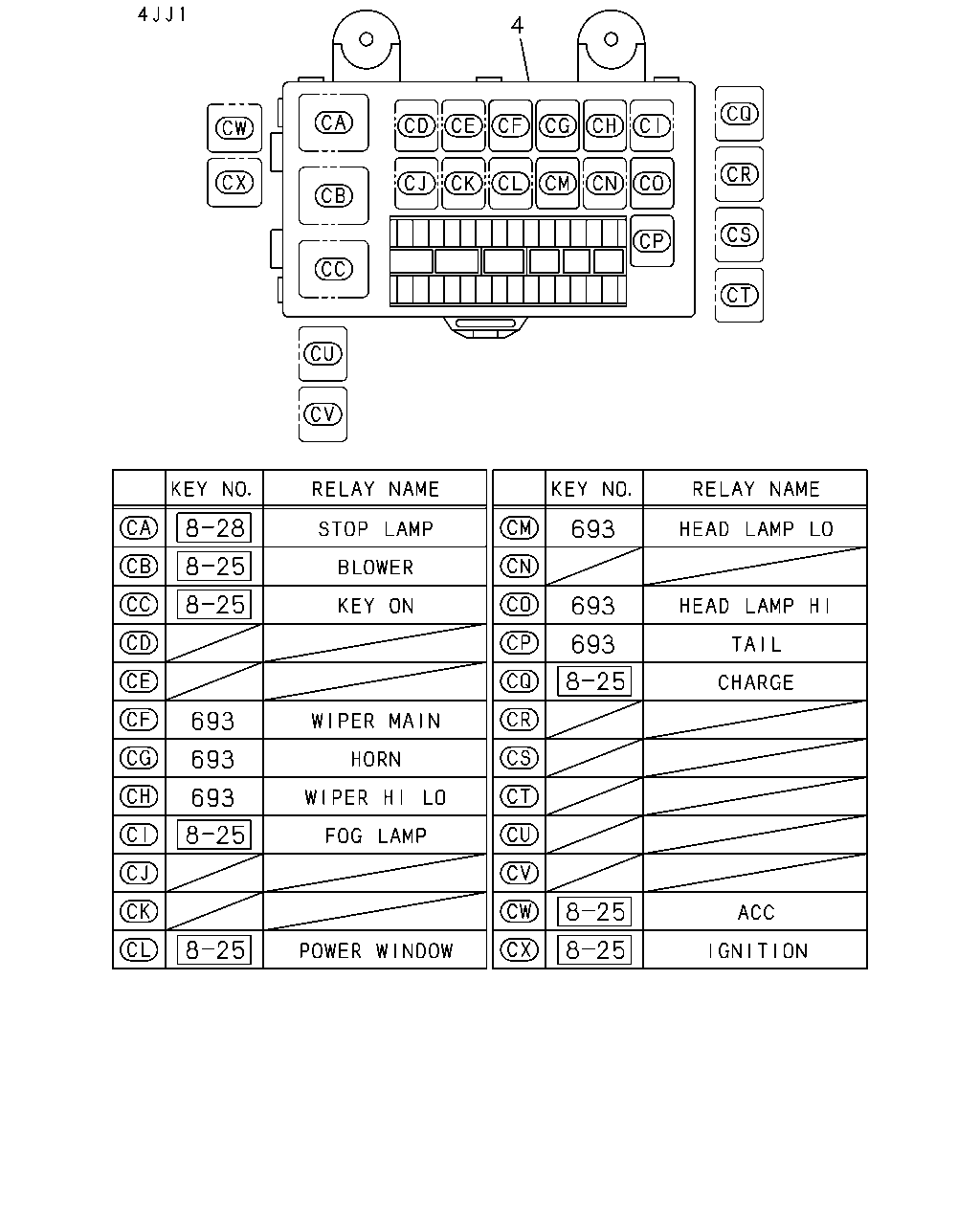

çizim 402515
693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) MAL 		8-97187-921-1 01 1 1401-1401
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97187-921-1 01 1 1402-
4 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) MAL 		8-98067-619-1 01 1 1402-
693 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) 24V 10A PANASONIC MAL 		8-97173-035-1 AR 1 1402-

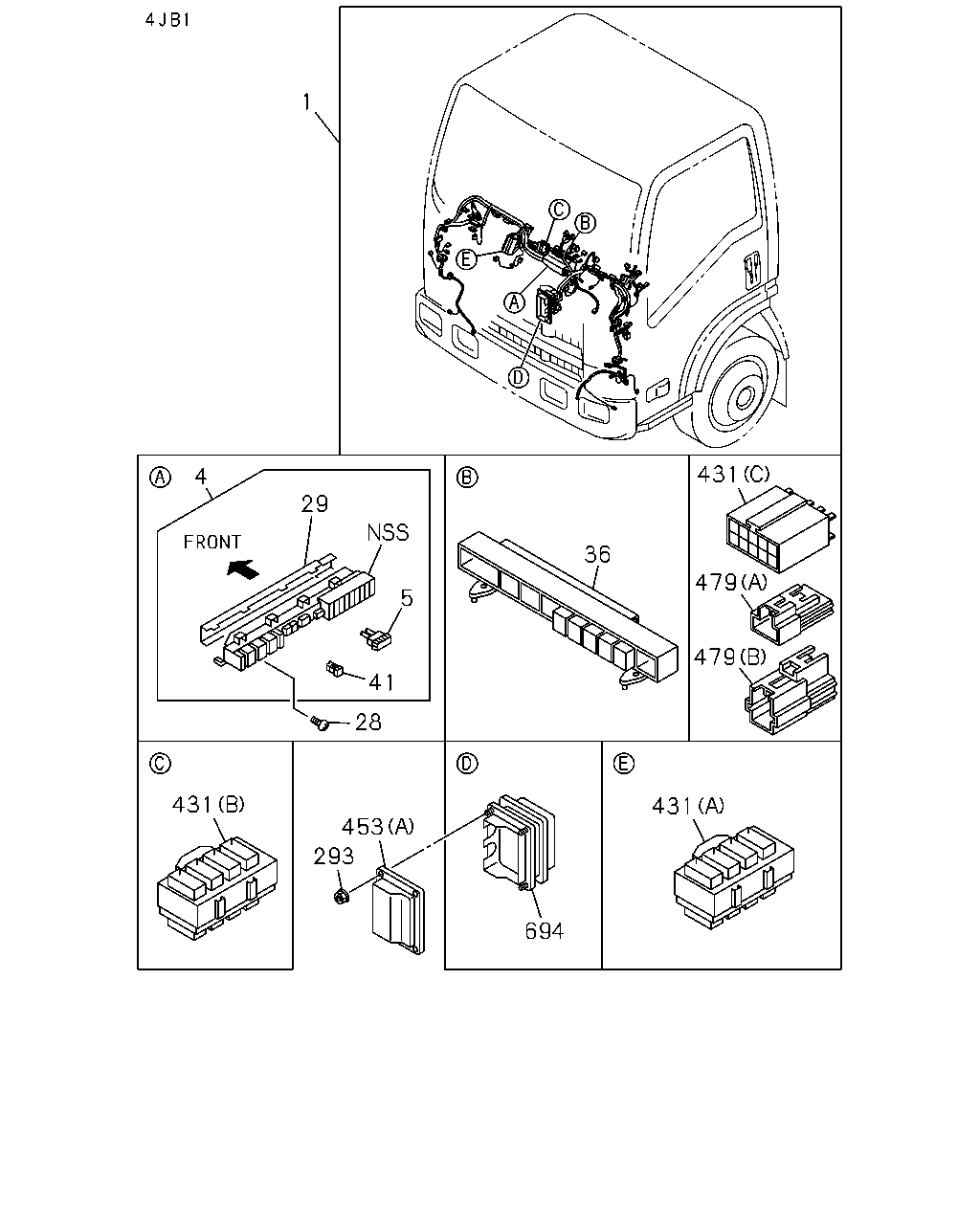

çizim 402528
1 4 29 5 41 28 36 431 479 479 431 694 453 293 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98246-359-0 01 1 1401-1401
1 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98246-359-0 01 1 1402-
1 HARNESS; CAB
4JJ1-TCC ENG(RDU) 		8-98207-642-0 01 1 1402-
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) MAL 		8-97187-921-1 01 1 1401-1401
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97187-921-1 01 1 1402-
4 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) MAL 		8-98067-619-1 01 1 1402-
5 FUSE; FACIA HARNESS
10A MINI RED MAL 		8-97062-022-0 AR 1 1401-
5 FUSE; FACIA HARNESS
15A MINI BLUE MAL 		8-97062-023-0 AR 1 1401-
5 FUSE; FACIA HARNESS
25A MINI CLEAR MAL 		8-97062-025-0 AR 1 1401-
5 FUSE; FACIA HARNESS
10A RED MAL 		8-98054-257-0 AR 1 1402-
5 FUSE; FACIA HARNESS
15A BLUE MAL 		8-98054-258-0 AR 1 1402-
5 FUSE; FACIA HARNESS
20A YELLOW MAL 		8-98054-259-0 AR 1 1402-
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1401-
29 COVER; FUSE BOX
4JB1-TC ENG(RDT) MAL 		8-97074-955-0 01 1 1401-1401
29 COVER; FUSE BOX
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97074-955-0 01 1 1402-
29 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) MAL 		8-98056-968-0 01 1 1402-
36 BOX; RELAY
4JB1-TC ENG(RDT) MAL 		8-97187-918-1 01 1 1401-1401
36 BOX; RELAY
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97187-918-1 01 1 1402-
41 PULLER; FUSE
4JB1-TC ENG(RDT) MAL 		8-97103-388-0 01 1 1401-1401
41 PULLER; FUSE
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97103-388-0 01 1 1402-
41 PULLER; FUSE
4JJ1-TCC ENG(RDU) MAL 		8-98054-260-0 01 1 1402-
293 NUT
M6 FLANGE MAL 		0-91180-106-0 04 1 1401-
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P MAL 		8-97077-943-0 02 1 1401-1401
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 10P MAL 		8-97077-943-0 02 1 1402-
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) MAL 		8-98046-206-0 01 1 1401-1401
431 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (B) MAL 		8-98046-206-0 01 1 1402-
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98046-206-0 01 1 1402-
431 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (A) MAL 		8-98046-205-0 01 1 1402-
453 PROTECTOR; HARNESS
(A) 		8-98034-039-1 01 1 1401-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B) 		8-98031-850-1 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98031-851-2 01 1 1402-
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-98108-678-0 01 1 1401-1401
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98108-678-0 01 1 1402-
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-98108-679-0 01 1 1401-1401
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98108-679-0 01 1 1402-
694 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) MAL 		8-98057-772-0 01 1 1401-1401
694 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) MAL 		8-98057-772-0 01 1 1402-
694 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98057-772-0 01 1 1402-

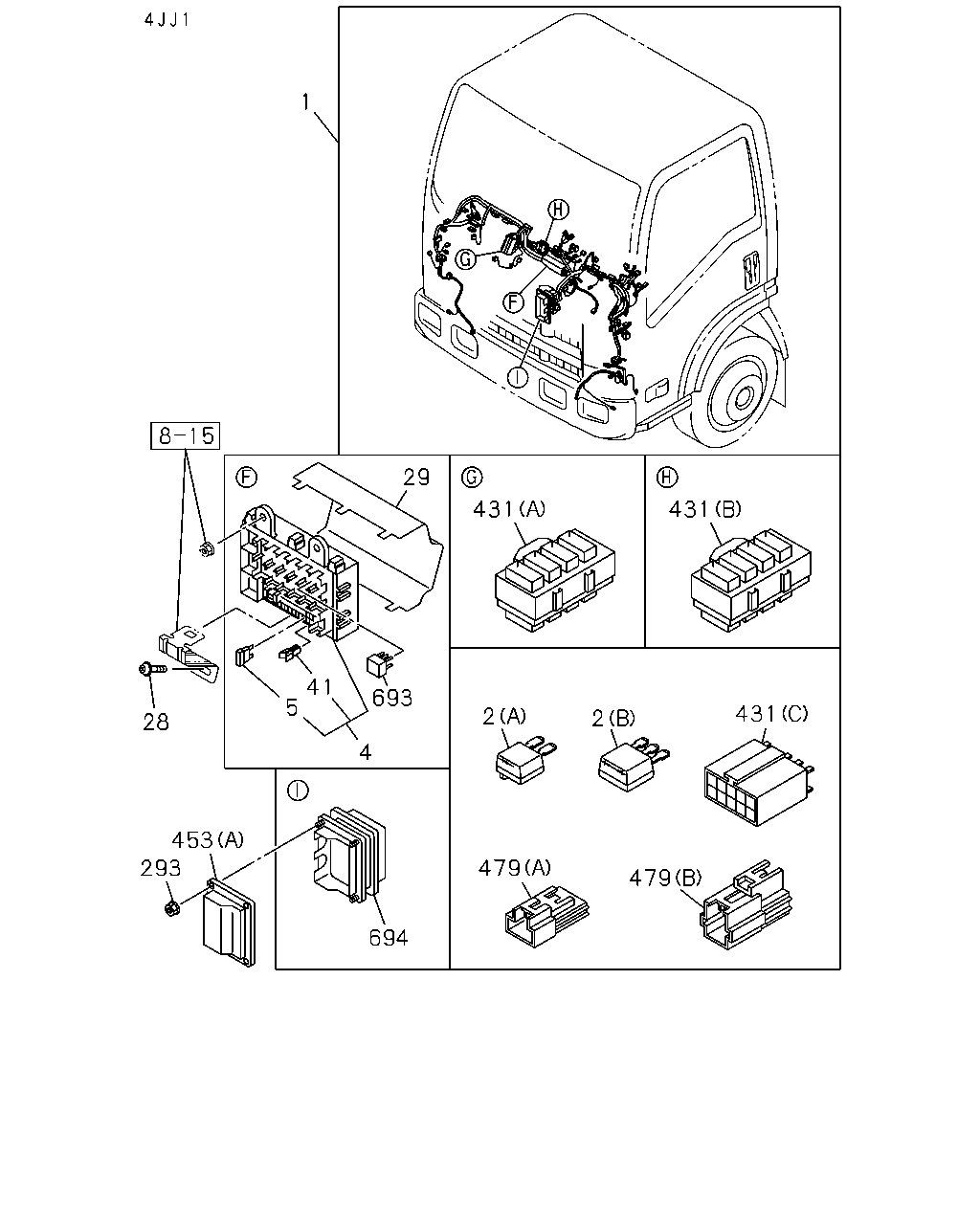

çizim 402544
1 28 5 4 693 41 29 431 431 431 2 2 479 479 694 453 293
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98246-359-0 01 1 1401-1401
1 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98246-359-0 01 1 1402-
1 HARNESS; CAB
4JJ1-TCC ENG(RDU) 		8-98207-642-0 01 1 1402-
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A MAL 		8-94422-639-1 AR 1 1402-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A MAL 		8-94422-640-1 AR 1 1402-
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) MAL 		8-97187-921-1 01 1 1401-1401
4 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97187-921-1 01 1 1402-
4 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) MAL 		8-98067-619-1 01 1 1402-
5 FUSE; FACIA HARNESS
10A MINI RED MAL 		8-97062-022-0 AR 1 1401-
5 FUSE; FACIA HARNESS
15A MINI BLUE MAL 		8-97062-023-0 AR 1 1401-
5 FUSE; FACIA HARNESS
25A MINI CLEAR MAL 		8-97062-025-0 AR 1 1401-
5 FUSE; FACIA HARNESS
10A RED MAL 		8-98054-257-0 AR 1 1402-
5 FUSE; FACIA HARNESS
15A BLUE MAL 		8-98054-258-0 AR 1 1402-
5 FUSE; FACIA HARNESS
20A YELLOW MAL 		8-98054-259-0 AR 1 1402-
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1401-
29 COVER; FUSE BOX
4JB1-TC ENG(RDT) MAL 		8-97074-955-0 01 1 1401-1401
29 COVER; FUSE BOX
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97074-955-0 01 1 1402-
29 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) MAL 		8-98056-968-0 01 1 1402-
41 PULLER; FUSE
4JB1-TC ENG(RDT) MAL 		8-97103-388-0 01 1 1401-1401
41 PULLER; FUSE
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-97103-388-0 01 1 1402-
41 PULLER; FUSE
4JJ1-TCC ENG(RDU) MAL 		8-98054-260-0 01 1 1402-
293 NUT
M6 FLANGE MAL 		0-91180-106-0 04 1 1401-
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P MAL 		8-97077-943-0 02 1 1401-1401
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 10P MAL 		8-97077-943-0 02 1 1402-
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) MAL 		8-98046-206-0 01 1 1401-1401
431 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (B) MAL 		8-98046-206-0 01 1 1402-
431 CONNECTOR; JOINT
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98046-206-0 01 1 1402-
431 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) (A) MAL 		8-98046-205-0 01 1 1402-
453 PROTECTOR; HARNESS
(A) 		8-98034-039-1 01 1 1401-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B) 		8-98031-850-1 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98031-851-2 01 1 1402-
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-98108-678-0 01 1 1401-1401
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98108-678-0 01 1 1402-
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-98108-679-0 01 1 1401-1401
479 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-98108-679-0 01 1 1402-
693 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) 24V 10A PANASONIC MAL 		8-97173-035-1 AR 1 1402-
694 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) MAL 		8-98057-772-0 01 1 1401-1401
694 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) MAL 		8-98057-772-0 01 1 1402-
694 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98057-772-0 01 1 1402-

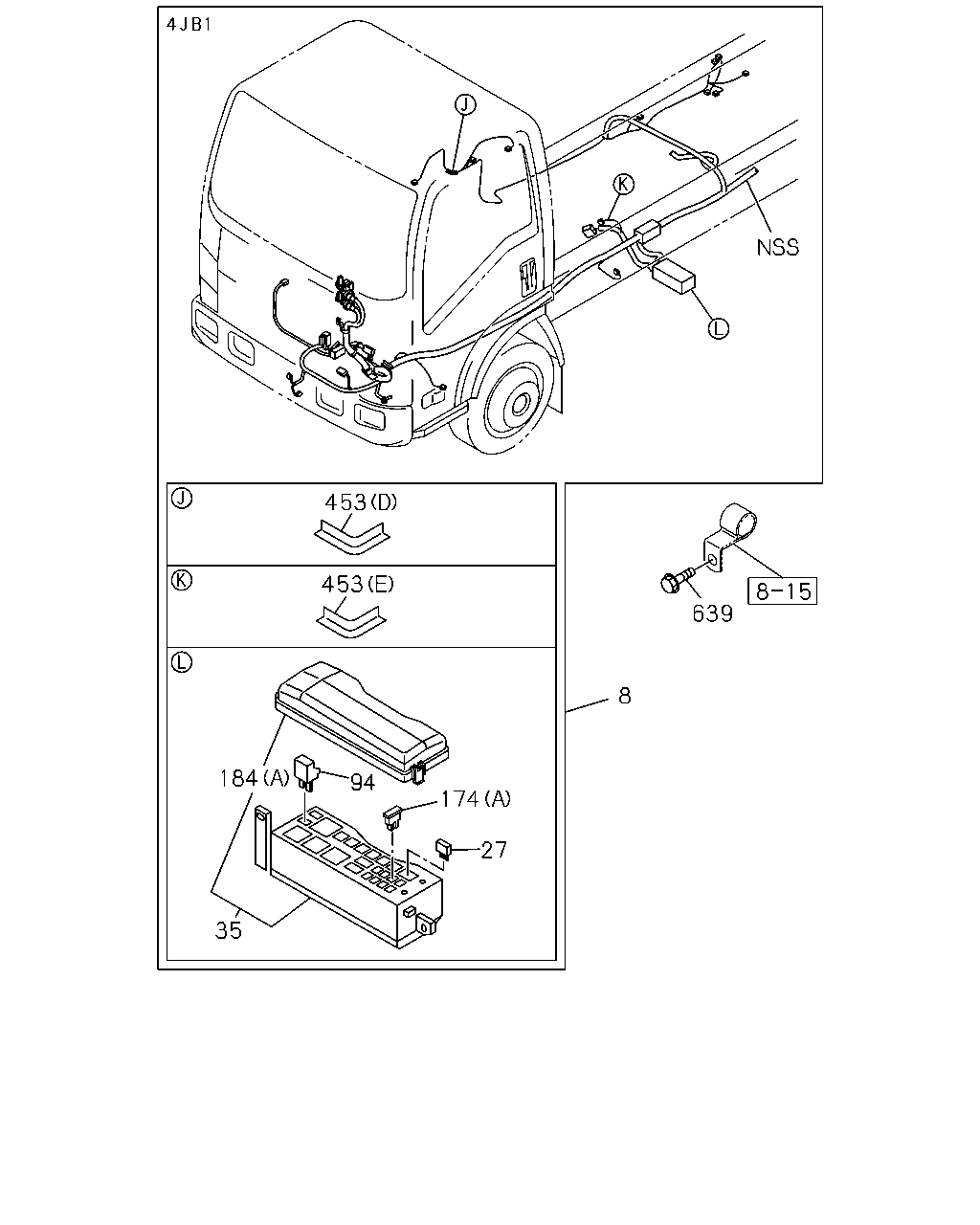

çizim 402570
453 453 184 94 174 27 35 8 639
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98248-094-0 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98294-086-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98172-332-1 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98294-082-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) MANUAL TILT CAB<RWZ> EXC. EXHAUST BRAKE<NF8> 		8-98248-095-0 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) MANUAL TILT CAB<RWZ> EXC. EXHAUST BRAKE<NF8> 		8-98294-087-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 		8-98172-333-1 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 		8-98294-083-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98117-969-2 01 1 1402-1409
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98293-846-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98117-968-2 01 1 1402-1409
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98293-845-0 01 1 1410-
27 FUSE UNIT
15A MINI BLUE MAL 		8-97062-023-0 AR 1 1401-
27 FUSE UNIT
20A MINI YELLOW MAL 		8-97062-024-0 AR 1 1401-
27 FUSE UNIT
10A RED MAL 		8-98054-257-0 AR 1 1402-
35 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) MAL 		8-98173-937-0 01 1 1401-
35 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MAL 		8-98030-763-0 01 1 1402-
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A MAL 		8-94422-639-1 AR 1 1401-
174 FUSE; SLOW BLOW
(A) 30A PINK MAL 		8-97183-643-0 AR 1 1401-
174 FUSE; SLOW BLOW
(A) 50A RED 		8-97183-645-0 AR 1 1401-
174 FUSE; SLOW BLOW
(A) 60A YELLOW MAL 		8-97219-407-0 AR 1 1401-
174 FUSE; SLOW BLOW
(B) 30A PINK MAL 		8-98079-191-0 AR 1 1402-
174 FUSE; SLOW BLOW
(B) 40A GREEN MAL 		8-98079-192-0 AR 1 1402-
174 FUSE; SLOW BLOW
(B) 50A RED MAL 		8-98079-193-0 AR 1 1402-
174 FUSE; SLOW BLOW
(B) 60A YELLOW MAL 		8-97219-407-0 AR 1 1402-
184 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) (A) MAL 		8-98179-321-0 01 1 1401-
184 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B) MAL 		8-98030-766-0 01 1 1402-
453 PROTECTOR; HARNESS
(A) 		8-98034-039-1 01 1 1401-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B) 		8-98031-850-1 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98031-851-2 01 1 1402-
639 BOLT; CLIP
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1401-

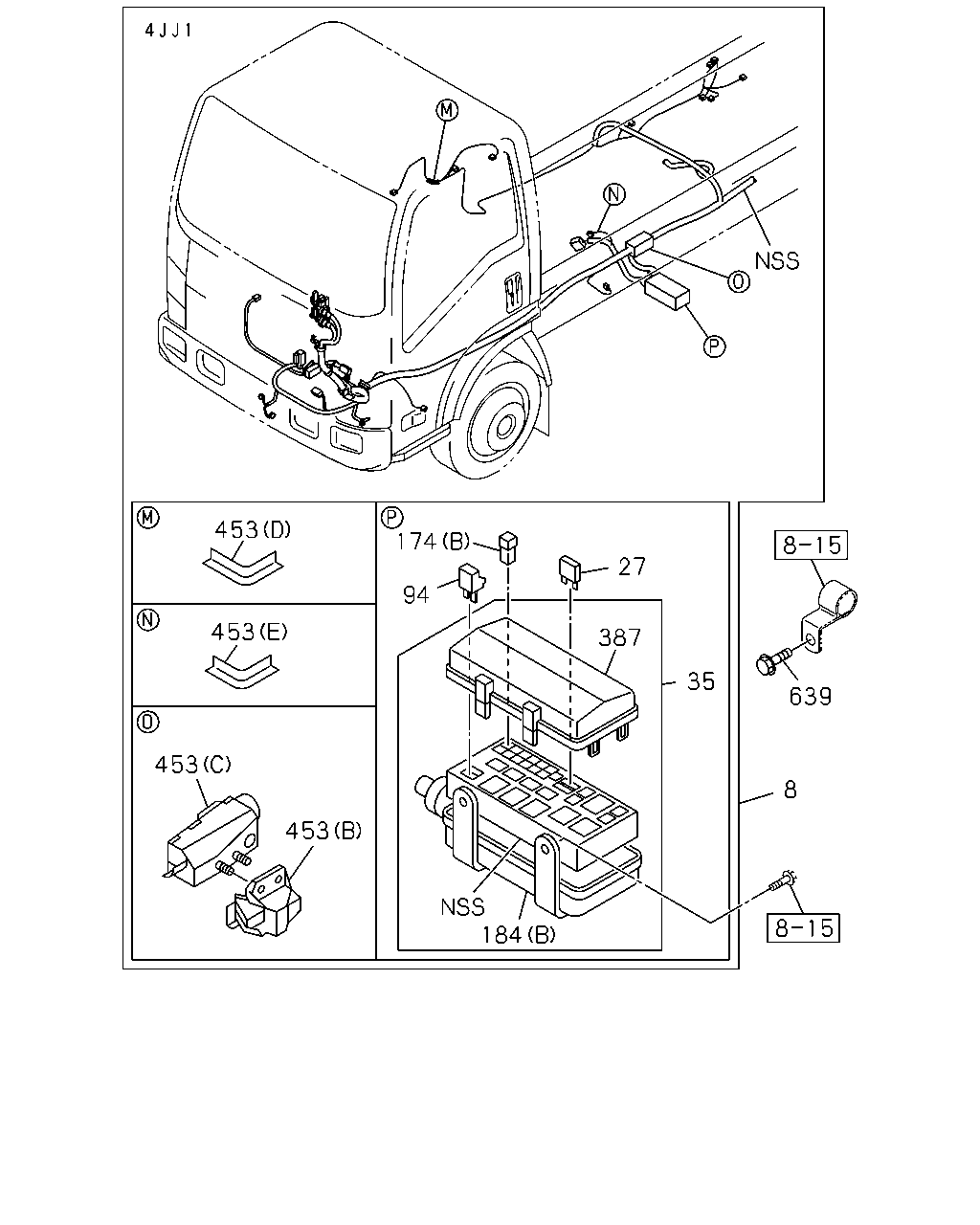

çizim 402597
184 8 639 35 387 27 94 174 453 453 453 453
BalonParca AdiParca NoAdetTipApplied Date
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98248-094-0 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98294-086-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98172-332-1 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98294-082-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) MANUAL TILT CAB<RWZ> EXC. EXHAUST BRAKE<NF8> 		8-98248-095-0 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) MANUAL TILT CAB<RWZ> EXC. EXHAUST BRAKE<NF8> 		8-98294-087-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 		8-98172-333-1 01 1 1401-1409
8 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 		8-98294-083-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98117-969-2 01 1 1402-1409
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MANUAL TILT CAB<RWZ> 		8-98293-846-0 01 1 1410-
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98117-968-2 01 1 1402-1409
8 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 		8-98293-845-0 01 1 1410-
27 FUSE UNIT
15A MINI BLUE MAL 		8-97062-023-0 AR 1 1401-
27 FUSE UNIT
20A MINI YELLOW MAL 		8-97062-024-0 AR 1 1401-
27 FUSE UNIT
10A RED MAL 		8-98054-257-0 AR 1 1402-
35 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) MAL 		8-98173-937-0 01 1 1401-
35 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> MAL 		8-98030-763-0 01 1 1402-
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A MAL 		8-94422-639-1 AR 1 1401-
174 FUSE; SLOW BLOW
(A) 30A PINK MAL 		8-97183-643-0 AR 1 1401-
174 FUSE; SLOW BLOW
(A) 50A RED 		8-97183-645-0 AR 1 1401-
174 FUSE; SLOW BLOW
(A) 60A YELLOW MAL 		8-97219-407-0 AR 1 1401-
174 FUSE; SLOW BLOW
(B) 30A PINK MAL 		8-98079-191-0 AR 1 1402-
174 FUSE; SLOW BLOW
(B) 40A GREEN MAL 		8-98079-192-0 AR 1 1402-
174 FUSE; SLOW BLOW
(B) 50A RED MAL 		8-98079-193-0 AR 1 1402-
174 FUSE; SLOW BLOW
(B) 60A YELLOW MAL 		8-97219-407-0 AR 1 1402-
184 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) (A) MAL 		8-98179-321-0 01 1 1401-
184 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B) MAL 		8-98030-766-0 01 1 1402-
387 COVER; RELAY BOX
4JJ1-TCC ENG(RDU) 		8-98081-367-0 01 1 1402-
453 PROTECTOR; HARNESS
(A) 		8-98034-039-1 01 1 1401-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (D) MAL 		8-94417-716-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1401-1401
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) MAL 		8-94452-553-0 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B) 		8-98031-850-1 01 1 1402-
453 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98031-851-2 01 1 1402-
639 BOLT; CLIP
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
