7-50 — FRONT SEAT (#132530) — 69 parça

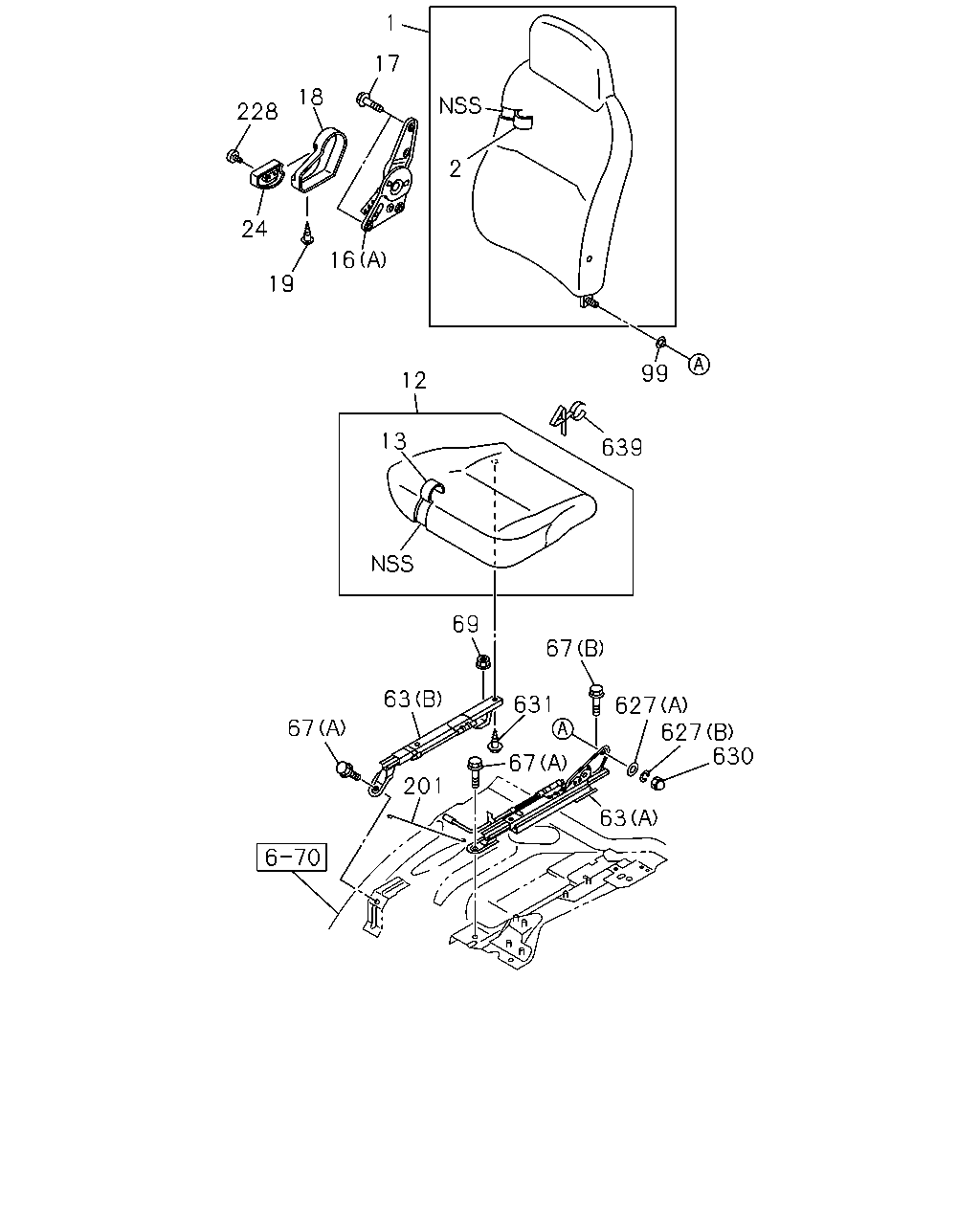

67 63 69 67 631 67 201 627 627 630 63 639 99 12 13 16 19 24 228 18 17 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-142-7	01	1	1401-
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL	8-97409-312-7	01	1	1401-
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1401-
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL	8-97421-234-1	01	1	1401-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97411-910-2	01	1	1401-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL	8-97409-318-2	01	1	1401-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1401-
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL	8-97421-253-0	01	1	1401-
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-149-0	01	1	1401-
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1401-
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1401-
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97409-322-4	01	1	1401-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-1	01	1	1401-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1401-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL	8-97421-247-1	01	1	1401-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-240-1	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-860-0	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97409-328-2	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-1	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL	8-97421-267-1	01	1	1401-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-259-1	01	1	1401-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB MAL	8-97859-273-3	01	1	1401-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL	8-98003-087-1	01	1	1401-
17	BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20 MAL	8-98062-661-0	04	1	1401-
18	COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY MAL	8-97409-332-0	01	1	1401-
19	SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5 MAL	8-98062-663-0	01	1	1401-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY MAL	8-97409-333-0	01	1	1401-
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) INNER MAL	8-97382-800-2	01	1	1401-
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) OUTER MAL	8-97382-801-1	01	1	1401-
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1401-
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1401-
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1401-
99	BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MAL	8-98112-751-0	01	1	1401-
201	CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MAL	8-98003-086-1	01	1	1401-
228	SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4 MAL	8-98062-662-0	01	1	1401-
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL	8-98063-223-0	01	1	1401-
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) MAL	8-98063-224-0	01	1	1401-
630	NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8 MAL	8-98063-225-0	01	1	1401-
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X25 W/LK WASHER MAL	8-98062-658-0	02	1	1401-
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X32 W/LK WASHER MAL	8-98062-659-0	02	1	1401-
639	CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> MAL	8-98097-693-0	01	1	1401-

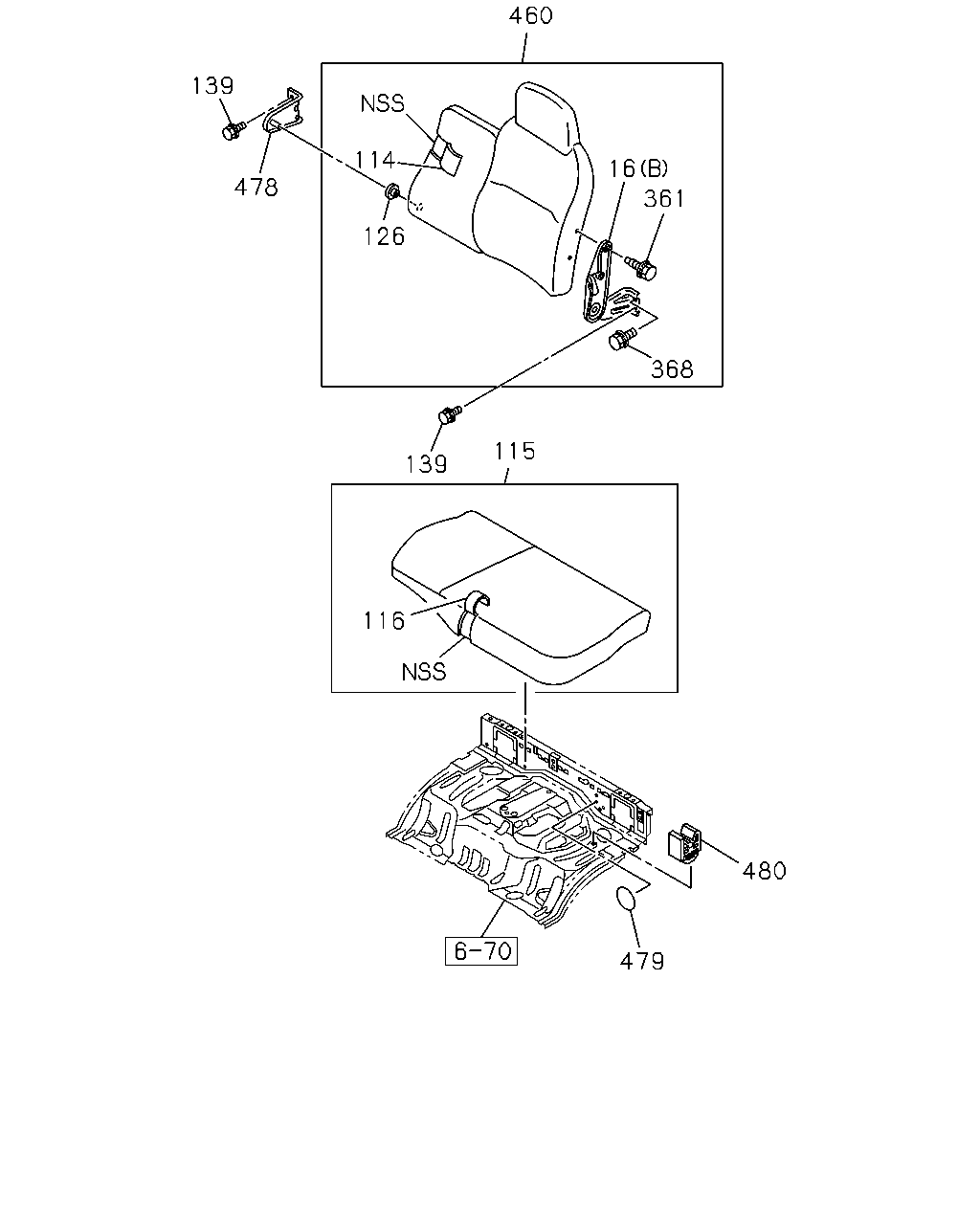

460 16 361 368 115 139 116 126 114 478 139 479 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB MAL	8-97859-273-3	01	1	1401-
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL	8-98003-087-1	01	1	1401-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-279-1	01	1	1401-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-718-0	01	1	1401-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-288-1	01	1	1401-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-289-1	01	1	1401-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97406-358-6	01	1	1401-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-703-1	01	1	1401-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-317-2	01	1	1401-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-316-1	01	1	1401-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-307-3	01	1	1401-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-732-1	01	1	1401-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-337-1	01	1	1401-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-336-1	01	1	1401-
126	BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MAL	8-98069-558-0	01	1	1401-
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	1401-
361	BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18 MAL	8-94279-109-1	02	1	1401-
368	BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER MAL	8-94279-217-0	01	1	1401-
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97406-334-6	01	1	1401-
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97418-689-1	01	1	1401-
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-275-2	01	1	1401-
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL	8-97421-276-2	01	1	1401-
478	BRACKET ASM; HINGE,PASSENGER SEAT MAL	8-97868-186-0	01	1	1401-
479	PLUG; HINGE OD=25 BLACK MAL	1-76798-019-0	02	1	1401-
480	CLIP; CUSHION MAL	8-94279-977-0	05	1	1401-
