◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#132527) — 118 parça
çizim 401797
564
BalonParca AdiParca NoAdetTipApplied Date
564 COVER; SW 8-98025-954-1 03 1 1401-

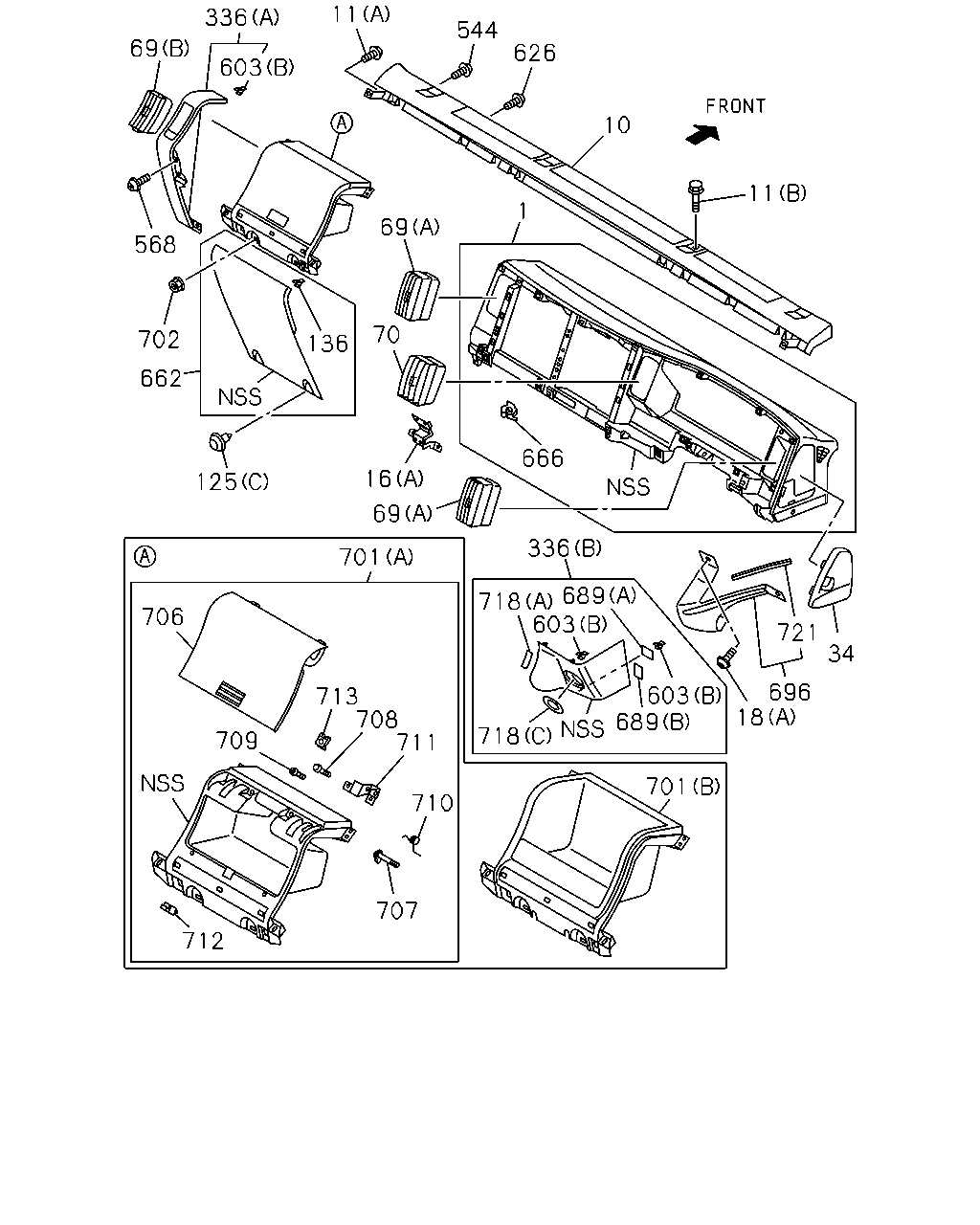

çizim 401874
336 69 603 11 544 626 10 11 1 69 568 702 662 125 136 70 16 69 701 666 336 718 689 603 718 689 603 721 34 696 18 701 710 707 712 709 713 708 711 706
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1401-
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1401-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 08 1 1401-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1401-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1401-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97585-532-0 01 1 1401-1401
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1402-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97585-612-2 01 1 1401-1401
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1402-
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1401-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1401-
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1401-
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1401-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1401-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1401-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1401-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1401-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1401-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1401-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1401-
136 CLIP; INST COVER 8-98021-271-0 05 1 1401-
336 COVER; INST PANEL SIDE
4JB1-TC ENG(RDT) (B) GRAY 		8-97414-961-4 01 1 1401-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1401-
336 COVER; INST PANEL SIDE
4JJ1-TCC ENG(RDU) (B) GRAY 		8-97414-688-1 01 1 1402-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1401-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1401-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1401-
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1401-
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1401-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1401-
662 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 1401-
666 INSERT; INST PANEL 8-98037-629-0 15 1 1401-
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1401-
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1401-
696 BRACKET; KNEE 8-98199-366-0 01 1 1401-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97406-268-4 01 1 1401-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-090-1 01 1 1401-
702 NUT; TRAY
M6 FLANGE MAL 		0-91180-106-0 02 1 1401-
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97409-510-0 01 1 1401-
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1401-
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1401-
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1401-
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-398-0 01 1 1401-
710 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-399-0 01 1 1401-
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1401-
711 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1401-
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1401-
713 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1401-
718 SEAL; COVER
4JB1-TC ENG(RDT) (C) 		8-98218-319-0 01 1 1401-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1401-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1401-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1401-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1401-
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1401-

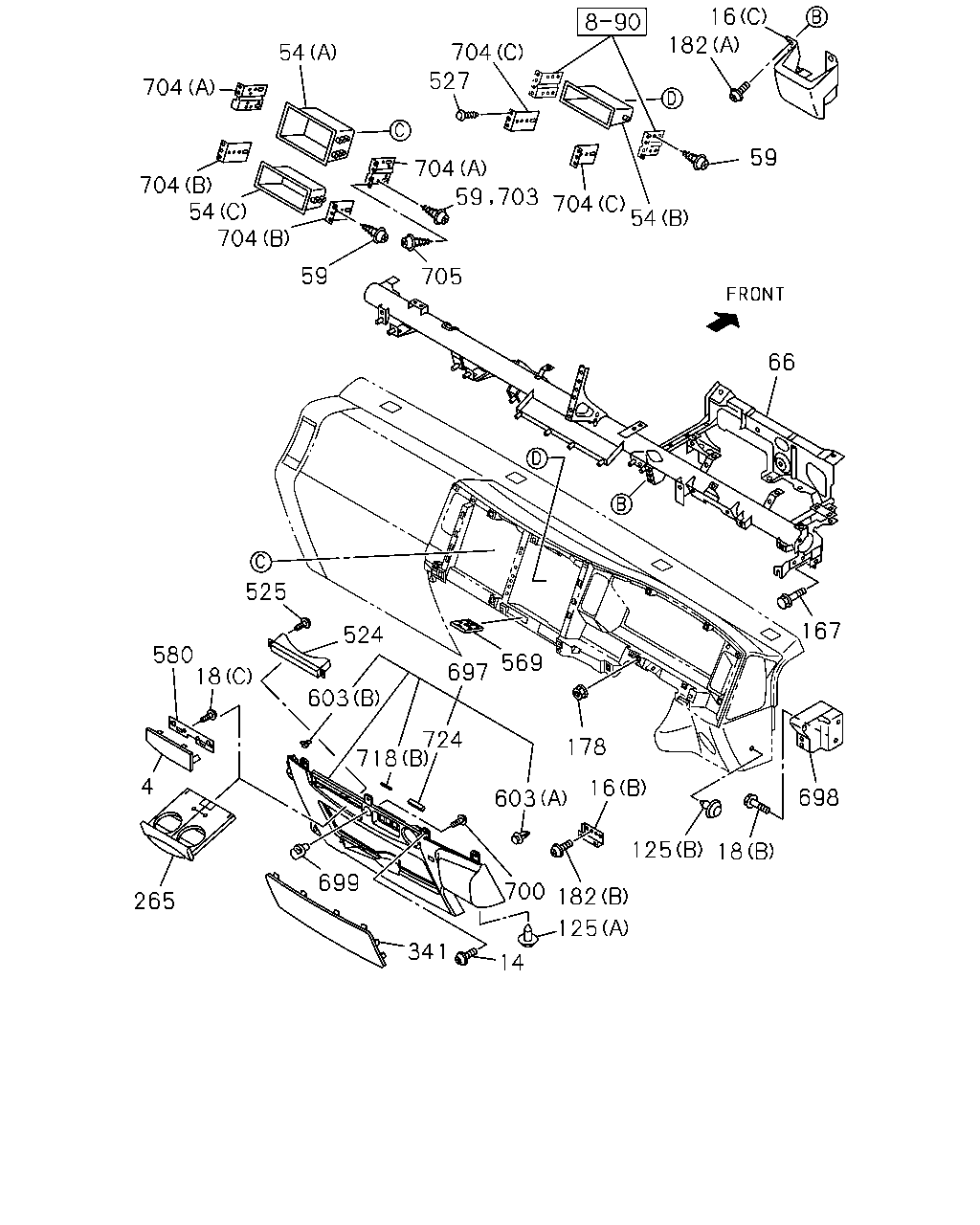

çizim 402103
704 54 704 54 704 59 705 704 59 703 527 704 16 182 59 54 704 66 167 698 125 18 16 178 569 697 603 524 525 580 18 4 265 699 341 14 125 700 182 603 718 724
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1401-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1401-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1401-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) 		8-97585-532-0 01 1 1401-1401
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1402-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) 		8-97585-612-2 01 1 1401-1401
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1402-
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1401-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1401-
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1401-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1401-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1401-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1401-1401
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1401-1401
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1402-
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1402-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1401-1401
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1401-1401
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1401-1401
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1402-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1402-
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1402-
66 REINFORCEMENT; INST PANEL 8-98199-364-1 01 1 1401-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1401-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1401-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1401-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 01 1 1401-
167 BOLT; REINF TO INST
M8X23 FLANGE MAL 		8-97264-766-0 04 1 1401-
178 NUT; INST PANEL
M6 FLANGE MAL 		0-91180-106-0 01 1 1401-
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1401-
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1401-1401
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1402-
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1401-
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1401-
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1401-
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1401-
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) DARK GRAY MAL 		8-97098-326-0 01 1 1401-1401
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1402-
569 HOLDER; CARD 8-97410-276-1 01 1 1401-
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1401-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1401-
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1401-
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1401-
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1401-
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1401-
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1401-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1401-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1401-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1401-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1401-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1401-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) 		8-98107-549-0 02 1 1401-1401
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98107-549-0 02 1 1402-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1401-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1401-
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1401-1401
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1402-
718 SEAL; COVER
4JB1-TC ENG(RDT) (C) 		8-98218-319-0 01 1 1401-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1401-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1401-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1401-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1401-
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1401-
