7-10 — CAUTION PLATE AND LABEL (#132524) — 19 parça

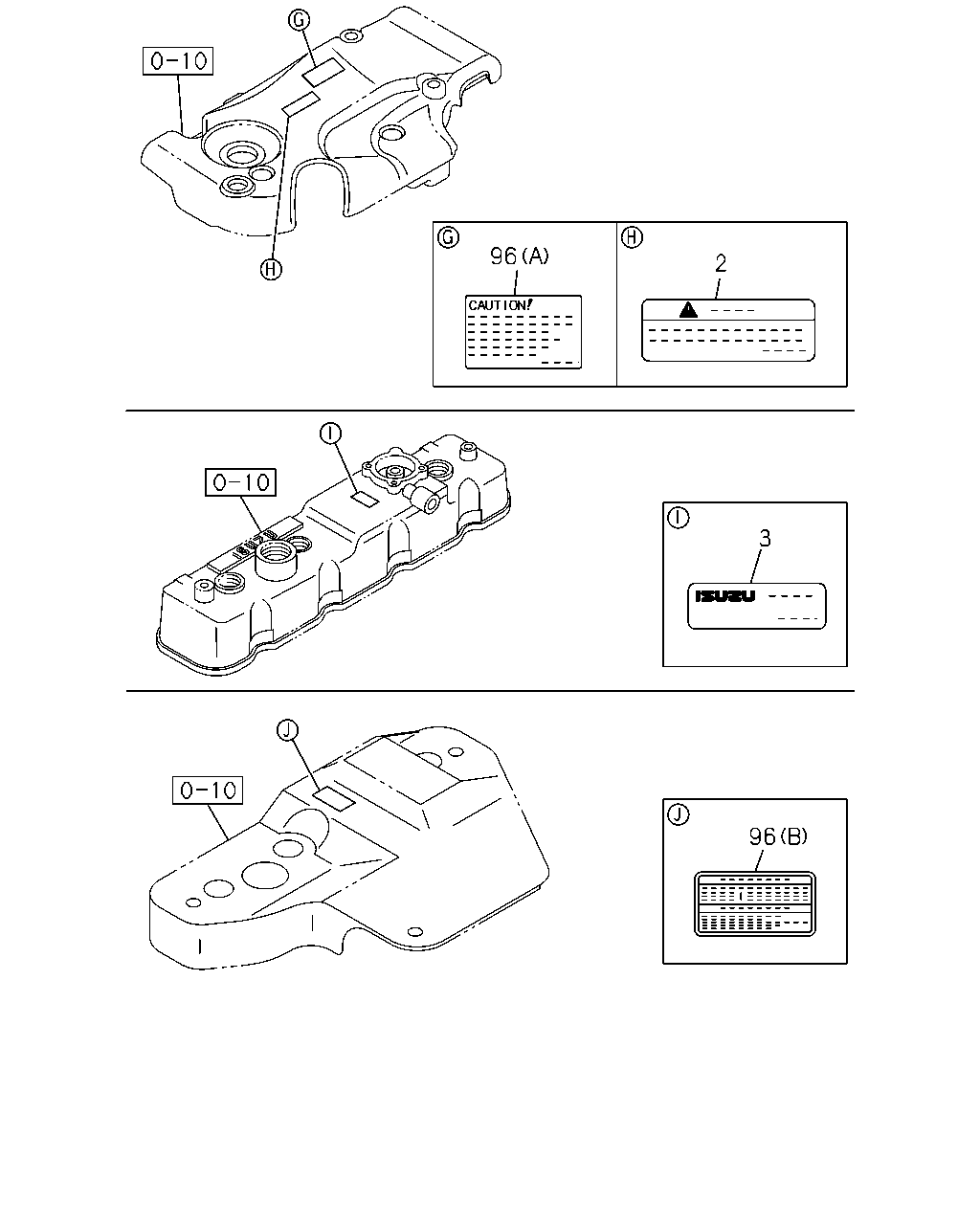

çizim 401641

2 3 96 96

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	2	LABEL; FUEL CAUTION 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1>	8-98083-876-0	01	1	1402-
	2	LABEL; FUEL CAUTION 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1>	8-98036-252-0	01	1	1402-
	3	LABEL; VAC PIPING 4JB1-TC ENG(RDT)	8-98123-350-0	01	1	1401-1404
	96	PLATE; CAUTION,ENGINE OIL 4JB1-TC ENG(RDT) (B)	8-97066-479-1	01	1	1405-
	96	PLATE; CAUTION,ENGINE OIL 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A)	8-98036-112-0	01	1	1402-
	96	PLATE; CAUTION,ENGINE OIL 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A)	8-98036-111-1	01	1	1402-

çizim 402124

48 49 234

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	48	PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC)	8-94313-054-0	01	1	1401-
	48	PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1401-
	49	PLATE; CAUTION,FUSE BOX 4JB1-TC ENG(RDT)	8-98173-141-0	01	1	1401-
	49	PLATE; CAUTION,FUSE BOX 4JJ1-TCC ENG(RDU)	8-98090-175-0	01	1	1402-
	234	PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA>	8-98071-067-0	01	1	1401-
	234	PLATE; CAUTION,ENG COVER INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	1401-

çizim 402262

306 4 4 35

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	LABEL; ENG MAINTENANCE 4JB1-TC ENG(RDT) CAUTION SPANISH<YN1> (B)	8-97218-381-0	01	1	1401-
	4	LABEL; ENG MAINTENANCE 4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> (A)	8-97205-917-0	01	1	1401-
	4	LABEL; ENG MAINTENANCE 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B)	8-98030-803-1	01	1	1402-
	4	LABEL; ENG MAINTENANCE 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A)	8-98030-757-0	01	1	1402-
	35	PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1>	8-98070-512-0	01	1	1401-
	35	PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> MAL	8-98067-809-0	01	1	1401-
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1401-
