Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶

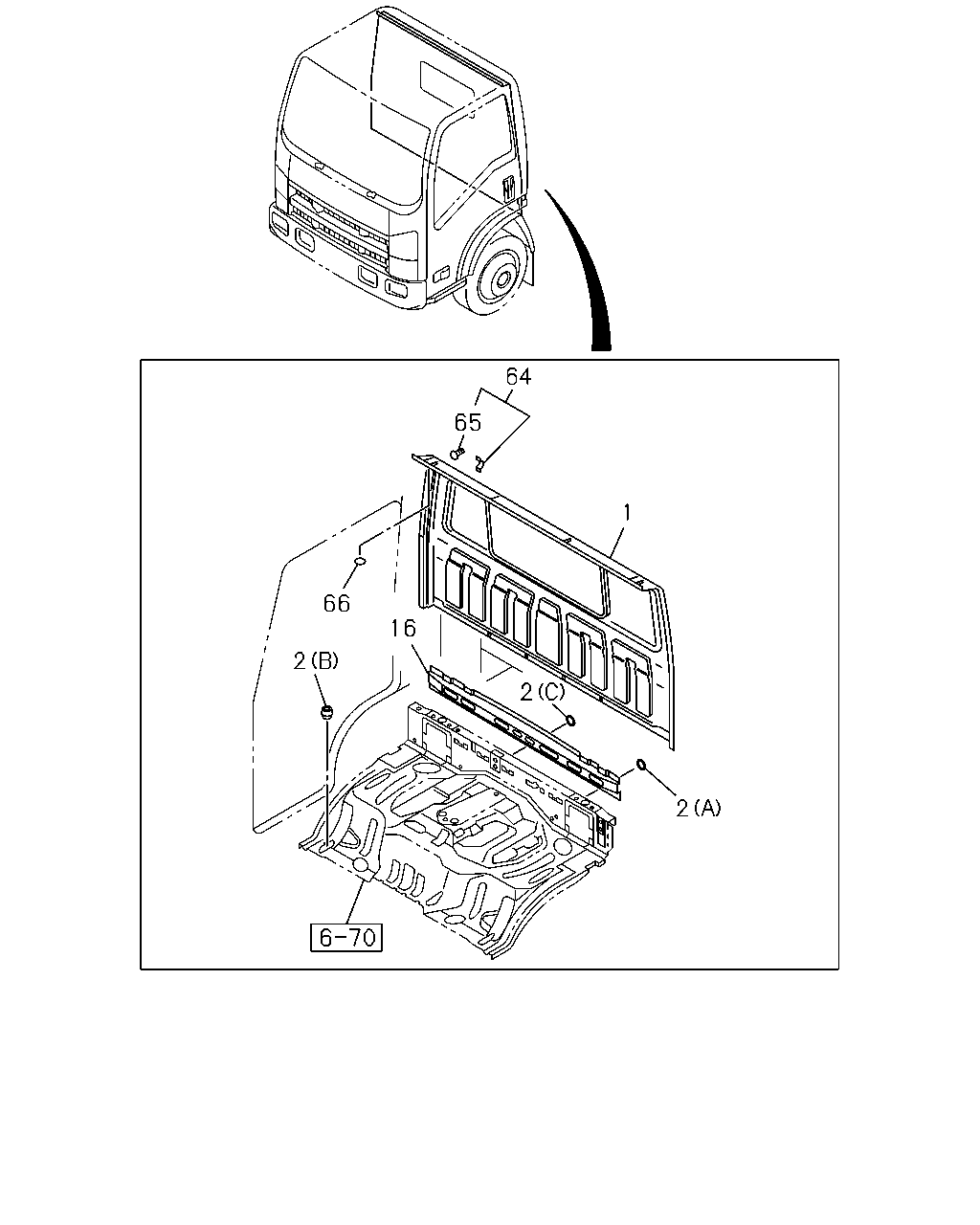

6-80 — BACK PANEL
(#132519) — 16 parça
64
65
66
2
16
1
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; BACK OUTER
WINDOW RR<8LF>
8-97584-300-3
01
1
1401-
1
PANEL; BACK OUTER
EXC. WINDOW RR<8LF>
8-97584-303-4
01
1
1401-
2
GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK MAL
8-98031-126-0
09
1
1401-
2
GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL
1-76798-019-0
02
1
1401-
2
GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=12.1 MAL
8-97898-423-0
04
1
1401-
2
GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK MAL
8-98031-126-0
02
1
1401-
2
GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (C) OD=32 BLACK MAL
8-98031-126-0
06
1
1401-
16
REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF>
8-98313-204-0
01
1
1505-
16
REINFORCEMENT; BACK OUTER PNL
8-97584-607-3
01
1
1401-1504
16
REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF>
8-97584-607-3
01
1
1505-
64
BRACKET; AIR INTAKE DUCT
8-97584-611-1
01
1
1401-
65
STUD; BACK PANEL
MAL
8-94389-701-0
01
1
1401-
66
SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL
8-98059-421-0
03
1
1401-
66
SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL
8-98059-421-0
04
1
1401-
66
SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL
5-76777-036-0
03
1
1401-
66
SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL
5-76777-036-0
04
1
1401-
