◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#132515) — 47 parça

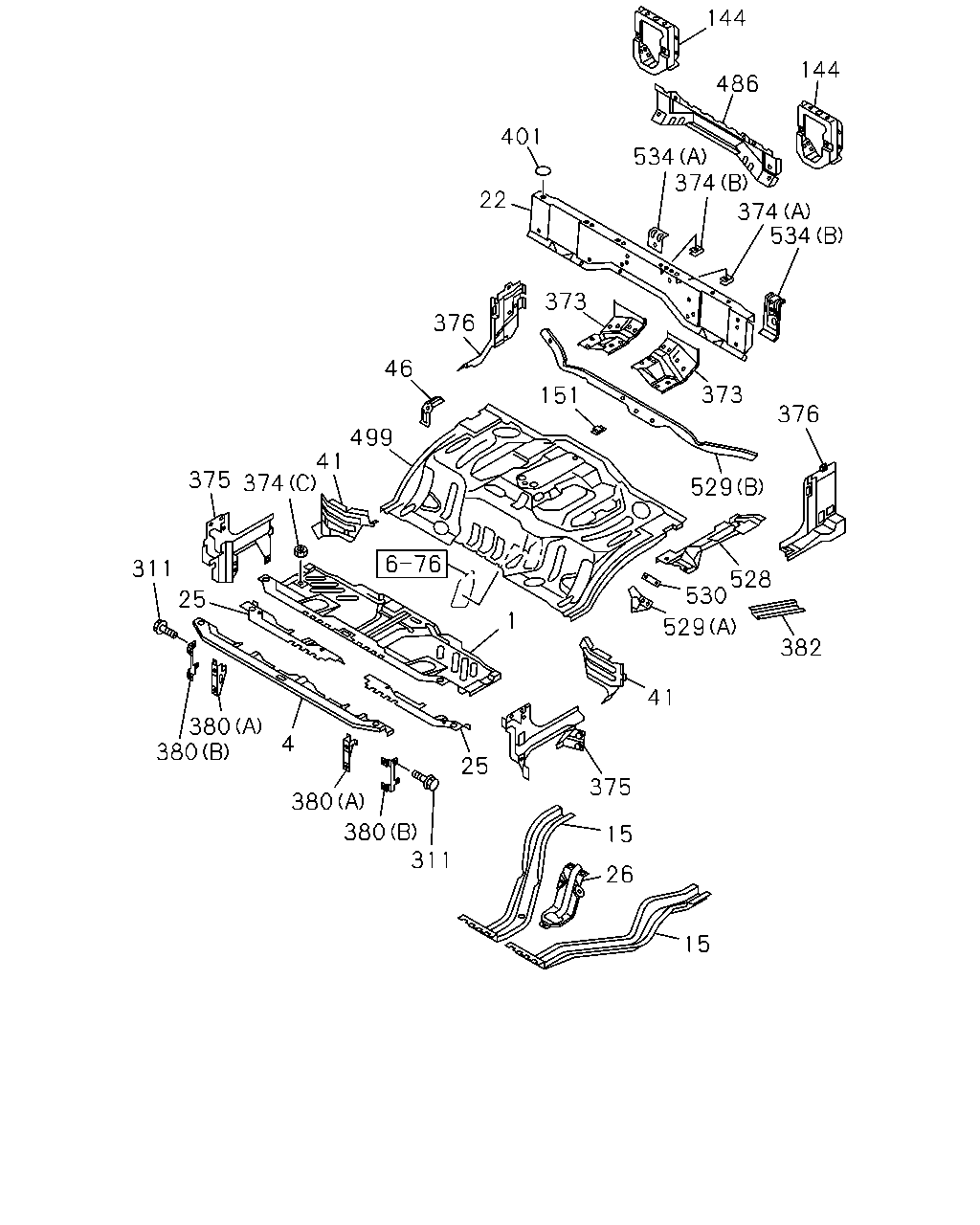

çizim 402051
15 26 15 375 41 25 311 380 380 380 380 4 25 311 1 375 374 41 529 382 530 528 529 151 499 46 376 373 373 376 22 401 534 374 374 534 144 486 144
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 8-97583-910-5 01 1 1401-
4 FRAME; FLOOR,FRT
MAL 		8-98059-496-0 01 1 1401-
15 FRAME; UNDER
MAL 		8-98061-277-1 01 1 1401-
15 FRAME; UNDER
MAL 		8-98061-278-1 01 1 1401-
22 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-306-4 01 1 1401-
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-925-3 01 1 1401-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-030-1 01 1 1401-
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97588-031-1 01 1 1401-
26 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1401-
41 SUPPORT; STEP,RR 8-97583-935-2 01 1 1401-
41 SUPPORT; STEP,RR 8-97583-936-2 01 1 1401-
46 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1401-
144 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98112-244-2 02 1 1401-
144 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 1401-
151 BRACKET; SEAT CUSHION STOPPER
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-833-0 01 1 1401-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1401-
373 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-521-2 01 1 1401-
373 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-522-2 01 1 1401-
374 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 04 1 1401-
374 NUT; FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 1401-
374 NUT; FLOOR
(B) M6 MAL 		1-09984-110-0 02 1 1401-
374 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 1401-
375 CLOSING; PILLAR 8-97583-882-3 01 1 1401-
375 CLOSING; PILLAR 8-97583-883-2 01 1 1401-
376 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1401-
376 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1401-
380 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1401-
380 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1401-
380 BRACKET; HEAD LAMP
(A) MAL 		8-97589-384-4 01 1 1401-
380 BRACKET; HEAD LAMP
(A) MAL 		8-97589-385-3 01 1 1401-
382 STIFFENER; RR FLOOR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98041-232-0 01 1 1401-
401 GROMMET; HOLE
OD=24.5 T=7.5 MAL 		8-97224-683-0 01 1 1401-
486 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-98030-611-2 01 1 1401-
486 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-610-2 01 1 1401-
499 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97584-630-1 01 1 1401-
499 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-912-4 01 1 1401-
528 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-829-4 01 1 1401-
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B) 		8-97589-307-1 01 1 1401-
529 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) 		8-98030-358-0 01 1 1401-
530 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> 		8-97589-255-0 01 1 1401-
534 REINFORCEMENT; SEAT BACK
(B) 		8-98007-678-2 01 1 1401-
534 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1401-

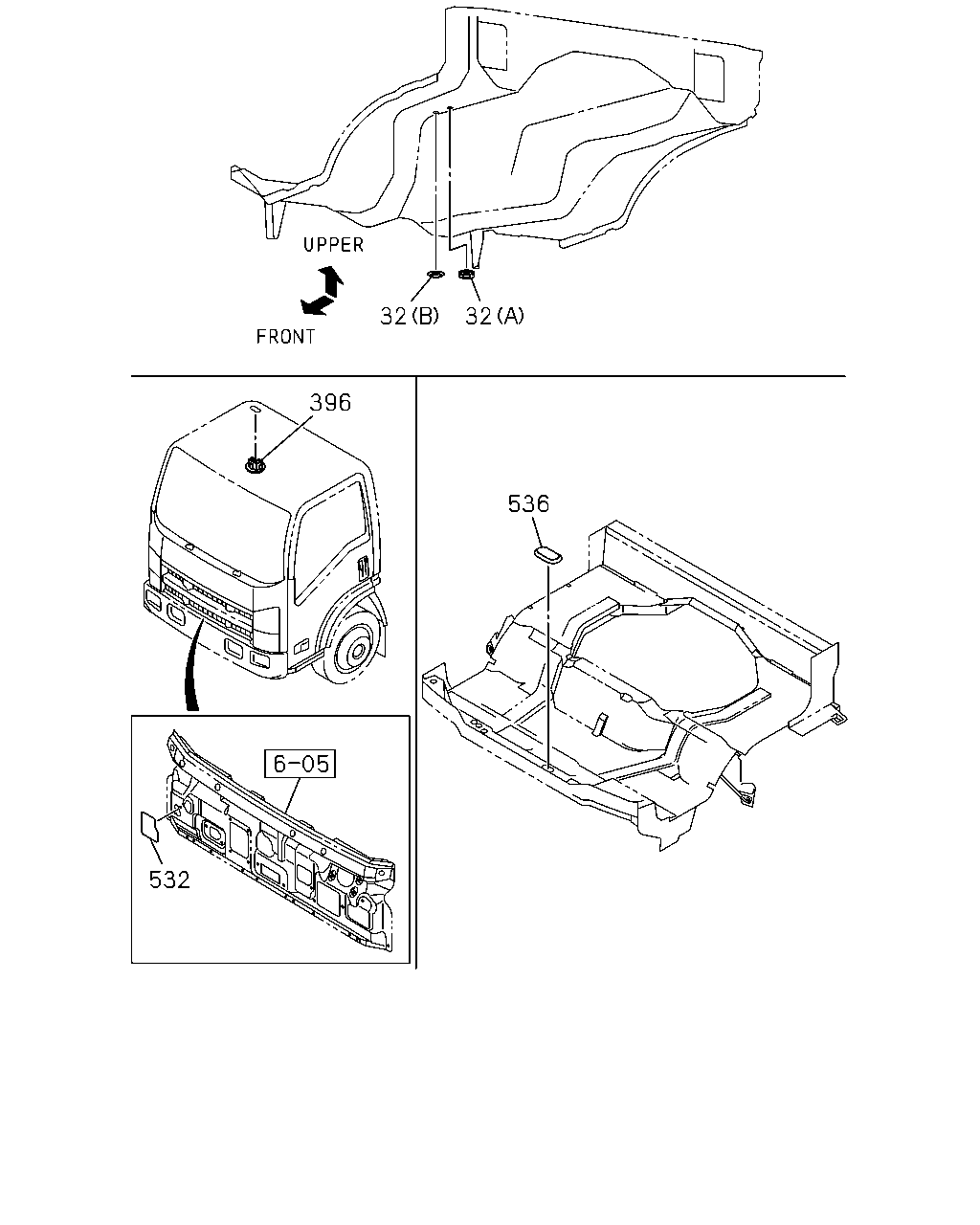

çizim 402170
532 396 32 32 536
BalonParca AdiParca NoAdetTipApplied Date
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(A) OD=15.0 MAL 		8-94279-040-0 02 1 1401-
32 GROMMET; FLOOR PANEL,LOCATION HOLE
(B) OD=12.1 MAL 		8-97898-423-0 02 1 1401-
396 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1401-
532 SEAL; CABLE
EXC. PTO MANUAL CONTROL(6WC) 		8-98042-432-1 01 1 1401-
536 PLUG; CABLE,PTO 8-98029-219-1 01 1 1401-
