6-47 — MUD GUARD AND INSULATOR (#132512) — 47 parça

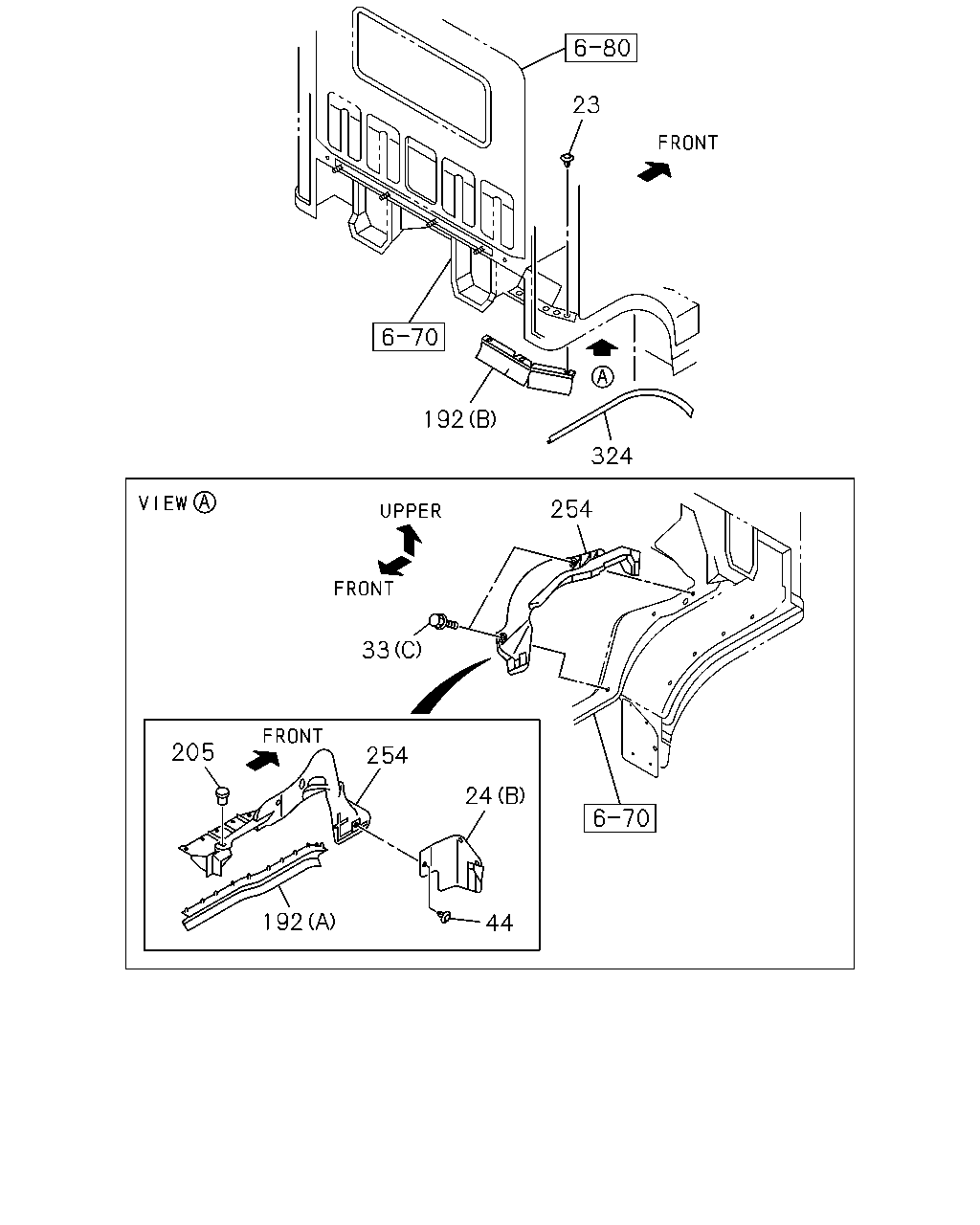

33 23 192 324 254 205 254 24 44 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	FASTENER; MUD COVER OD=8.3 MAL	8-97997-832-0	06	1	1401-
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	1401-
24	PLATE; MUD COVER (B)	8-98154-261-0	02	1	1401-
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1401-
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1401-
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1401-
44	CLIP; ANCHOR OD=16 L=11	1-76378-155-0	06	1	1401-
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	1401-
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	1401-
192	SEAL; MUD COVER (B)	8-98192-388-0	02	1	1401-
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON MAL	8-94242-150-0	02	1	1401-
254	COVER; MUD,VALANCE	8-98115-263-0	01	1	1401-
254	COVER; MUD,VALANCE	8-98115-264-0	01	1	1401-
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1401-

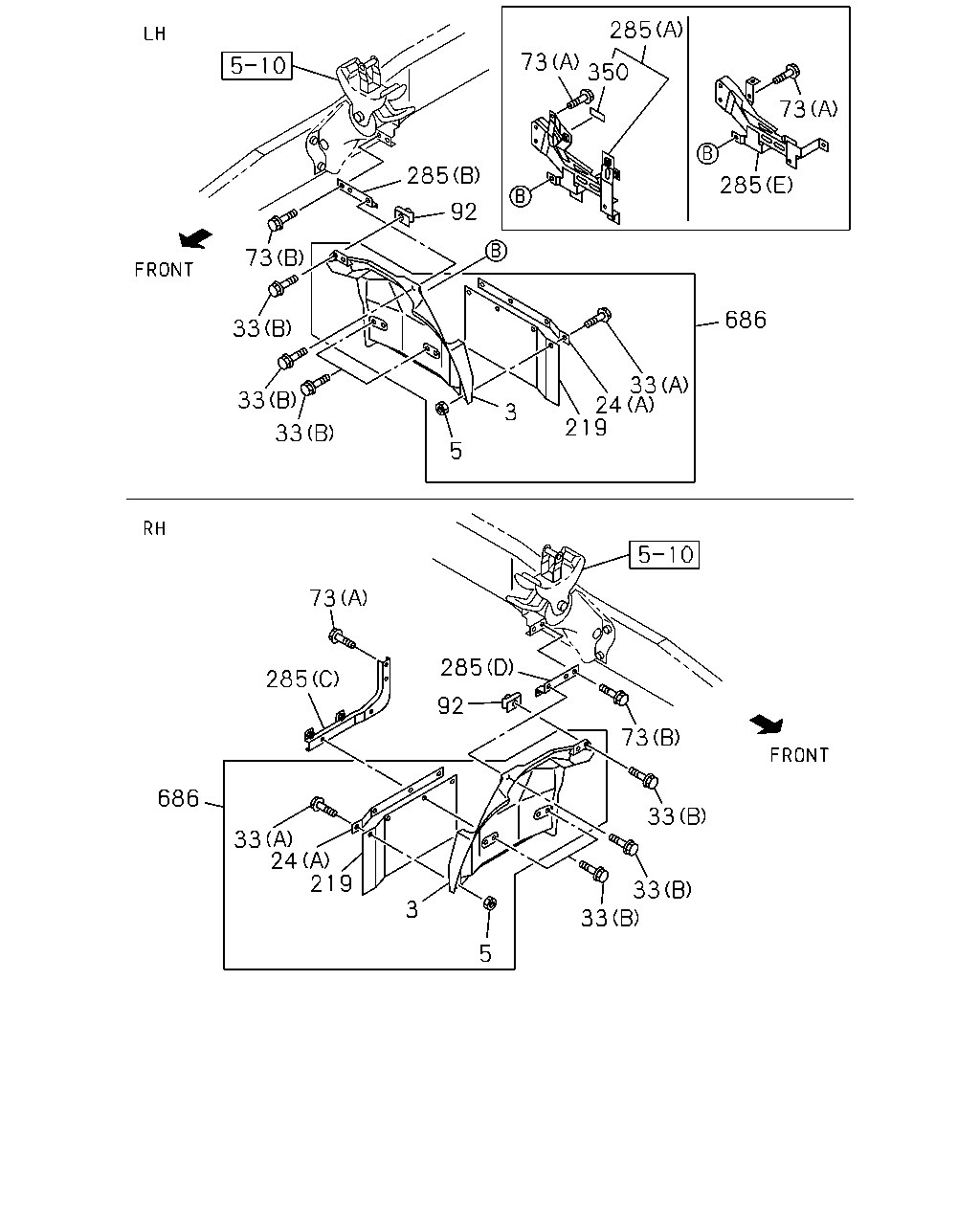

73 33 33 33 285 92 350 73 285 73 285 686 33 24 219 3 5 73 285 686 33 24 219 3 5 92 285 73 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GUARD; MUD,RR	8-98004-030-4	01	1	1401-
3	GUARD; MUD,RR	8-98055-620-2	01	1	1401-
5	NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1401-
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	1401-
24	PLATE; MUD COVER (B)	8-98154-261-0	02	1	1401-
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1401-
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1401-
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1401-
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	04	1	1401-
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE MAL	0-28651-025-0	04	1	1401-
92	NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1401-
219	FLAP; MUD GUARD	8-98010-741-1	02	1	1401-
285	BRACKET; MUD COVER 4JB1-TC ENG(RDT) (E)	8-98169-721-0	01	1	1401-
285	BRACKET; MUD COVER (B)	8-98038-865-1	01	1	1401-
285	BRACKET; MUD COVER (D)	8-98059-689-0	01	1	1401-
285	BRACKET; MUD COVER (C)	8-98131-079-0	01	1	1401-
285	BRACKET; MUD COVER 4JJ1-TCC ENG(RDU) (A)	8-98082-272-0	01	1	1402-
350	PROTECTOR; EDGE,MUD COVER 4JJ1-TCC ENG(RDU) L=80	5-22439-006-0	01	1	1402-
686	FLAP ASM; MUD	8-98001-302-6	01	1	1401-
686	FLAP ASM; MUD	8-98055-455-4	01	1	1401-

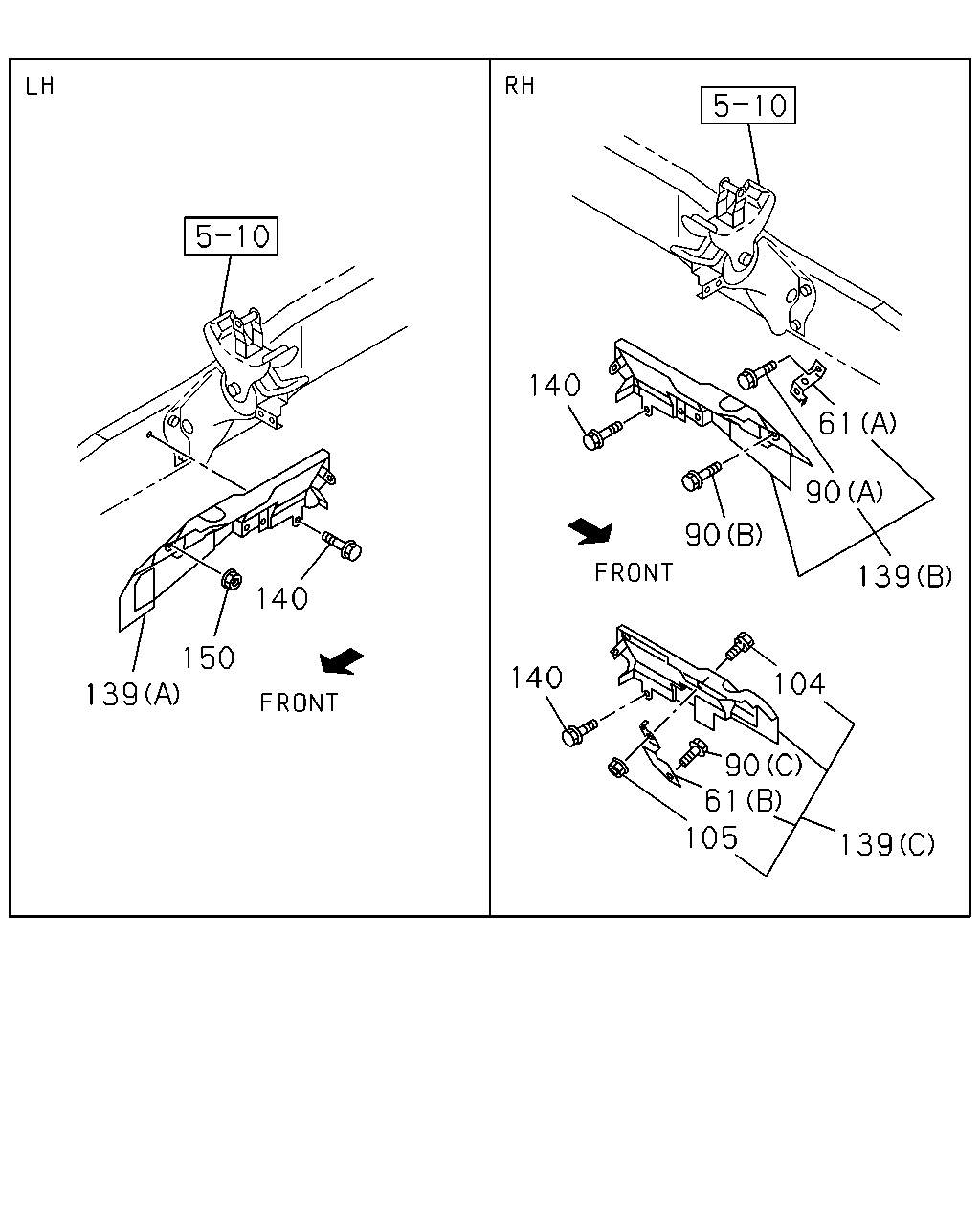

150 140 139 140 140 90 61 90 139 90 104 61 105 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BRACKET; COVER 4JB1-TC ENG(RDT) (B)	8-98106-611-0	01	1	1401-
61	BRACKET; COVER 4JJ1-TCC ENG(RDU) (A)	8-98033-140-0	01	1	1402-
90	BOLT; COVER 4JB1-TC ENG(RDT) (C) M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-
90	BOLT; COVER 4JJ1-TCC ENG(RDU) (B) M8X16 FLANGE MAL	0-28050-816-0	01	1	1402-
90	BOLT; COVER 4JJ1-TCC ENG(RDU) (A) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1402-
104	BOLT; BRKT 4JB1-TC ENG(RDT) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1401-
105	NUT; BRKT 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	01	1	1401-
139	PANEL; SIDE 4JB1-TC ENG(RDT) (A)	8-98171-049-0	01	1	1401-
139	PANEL; SIDE 4JB1-TC ENG(RDT) (C)	8-98173-018-0	01	1	1401-
139	PANEL; SIDE 4JJ1-TCC ENG(RDU) (A)	8-97385-590-3	01	1	1402-
139	PANEL; SIDE 4JJ1-TCC ENG(RDU) (B)	8-98053-670-1	01	1	1402-
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	02	1	1401-
150	NUT; SIDE PANEL M8 W/DISHED WASHER MAL	8-97329-625-0	01	1	1401-
