Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10877 - EXZ LHD FUEL TANK 200L+200L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#13251) — 19 parça
◀

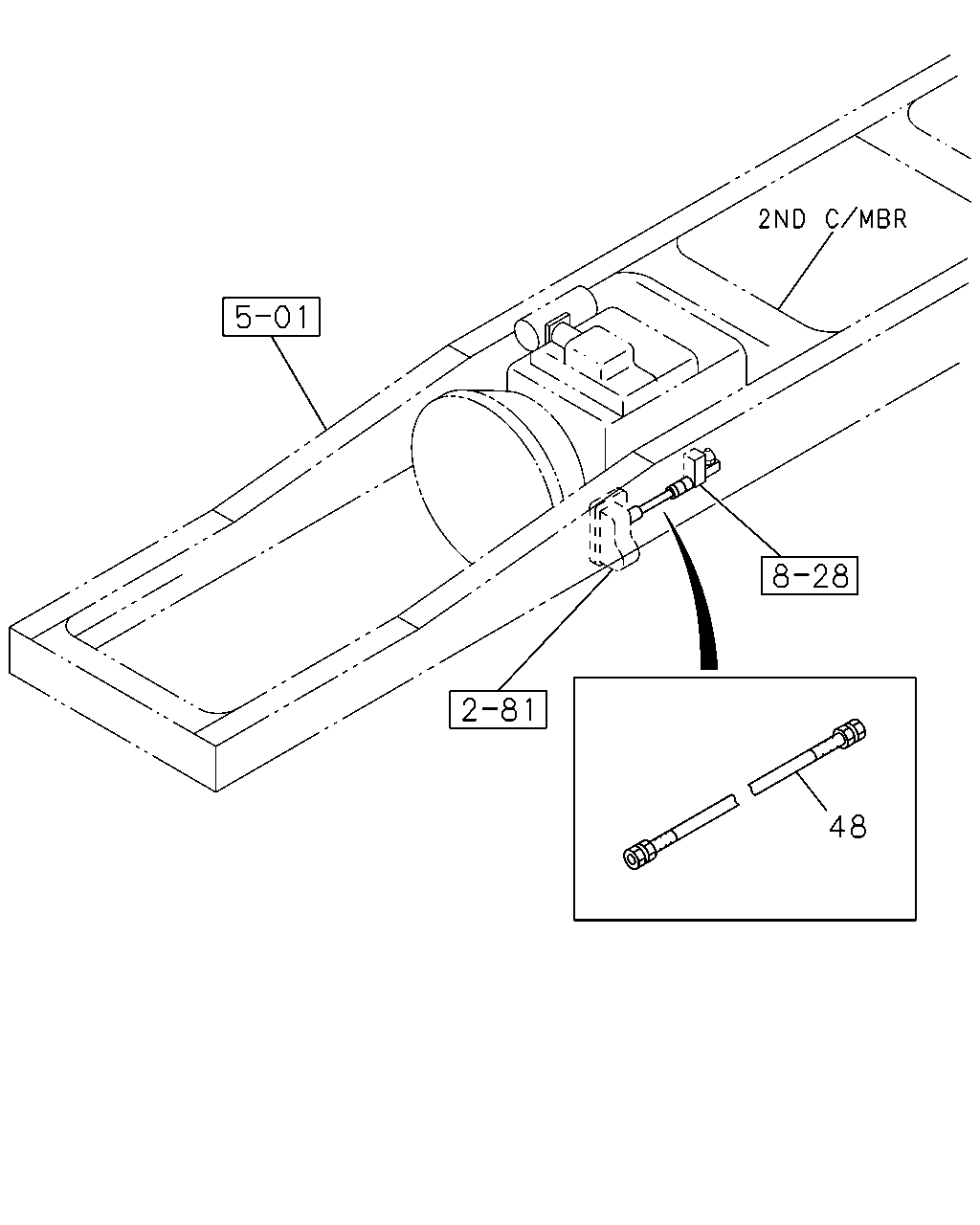

[285A] HOSE (1 parça)
[285A] TUBE AND CONNECTOR;ZF M/T (12 parça)
[285A] LEVER AND GROMMET (6 parça)
▶
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> L=430
1-09363-677-0
01
1
0105-
250
305
204
180
319
204
240
204
320
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
180
BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M16X25 FLANGE
0-28881-625-0
01
1
0105-
204
CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (A)
1-09654-396-0
01
1
0105-
204
CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (B)
1-09660-788-0
01
1
0105-
204
CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0105-
240
GASKET; CONNECTOR,PTO
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
0105-
250
TUBE; NYLON
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0105-0212
250
TUBE; NYLON
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0301-
293
CLIP; HOSE
TRANSMISSION OIL COOLER<C2C> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=175
1-09707-178-0
01
1
0105-
293
CLIP; HOSE
TRANSMISSION OIL COOLER<C2C> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=250
1-09707-126-0
01
1
0109-
305
TUBE; CORRUGATE
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) L=150 SERVICED BY L=800
1-83129-031-1
01
1
0105-
319
BOLT; CONNECTOR
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) M8X16 FLANGE
0-28080-816-0
01
1
0105-
320
BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM)
1-47478-250-0
01
1
0105-
246
132
217
55
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4>
1-79996-244-0
01
1
0105-
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0105-
55
GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>
1-09983-068-0
01
1
0105-
132
COVER; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79997-376-0
01
1
0105-
217
WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3
9-09160-504-0
02
1
0105-
246
SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING
0-71180-408-0
02
1
0105-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
