Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶

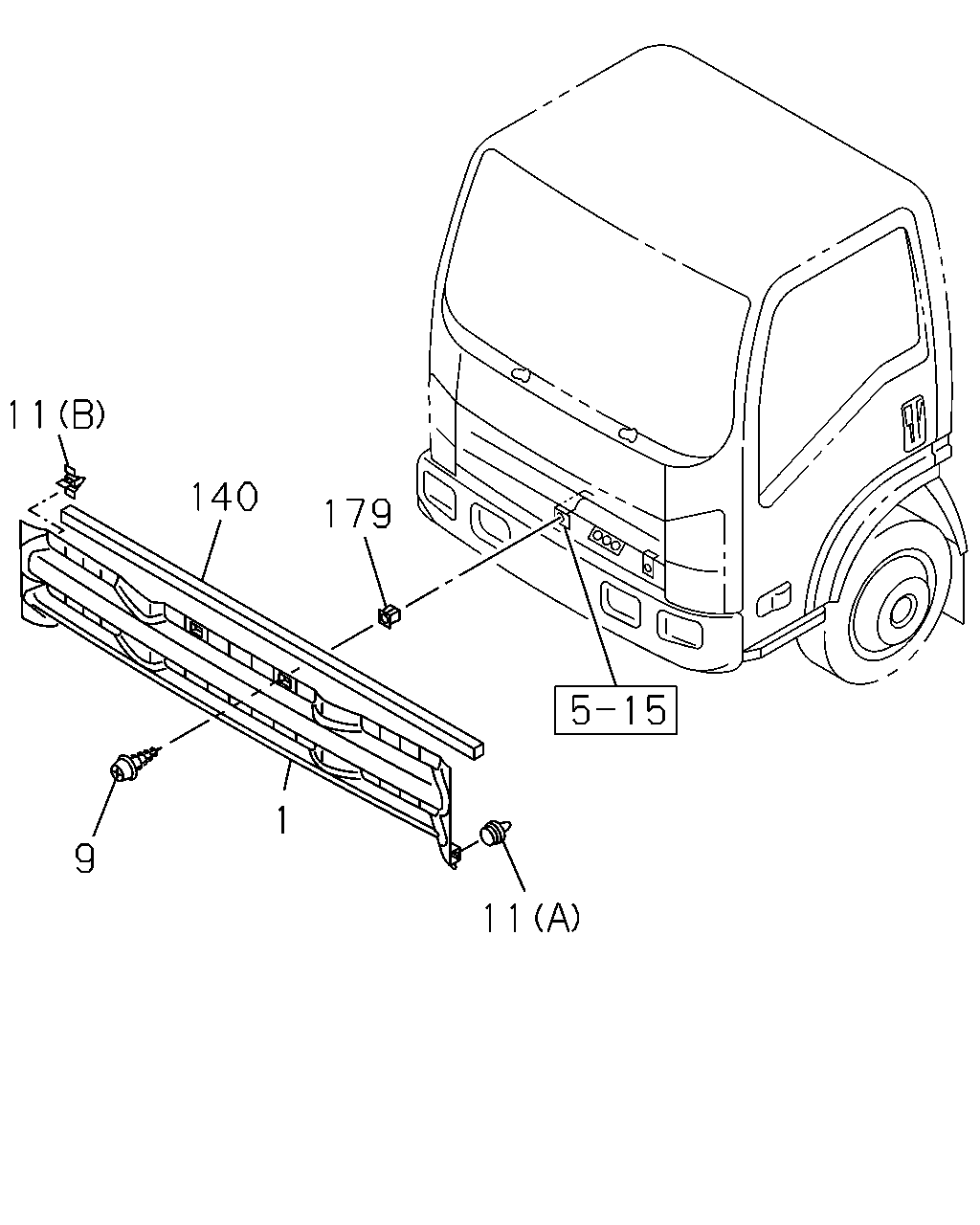

6-03 — RADIATOR GRILLE
(#132503) — 13 parça
11
140
11
9
179
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB>
8-98025-465-3
01
1
1401-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE
8-97407-291-3
01
1
1401-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE
8-97412-264-3
01
1
1401-
1
GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY
8-97407-290-3
01
1
1401-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE
8-97407-289-3
01
1
1401-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74165-516-0
01
1
1401-
11
CLIP; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> (A) MAL
8-97581-651-2
02
1
1401-
11
CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) MAL
8-97581-651-2
02
1
1401-
11
CLIP; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB> (B)
8-98025-698-0
05
1
1401-
11
CLIP; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B)
8-98025-698-0
05
1
1401-
140
SEAL; RAD GRILLE
RADIATOR GRILLE NON PAINT<7LB>
8-98054-279-0
01
1
1401-
140
SEAL; RAD GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB>
8-98054-279-0
01
1
1401-
179
RETAINER; GRILLE,RAD
D=7X7 L=7.5
8-94291-927-0
01
1
1401-
