5-20 — BATTERY CARRIER (#132500) — 50 parça

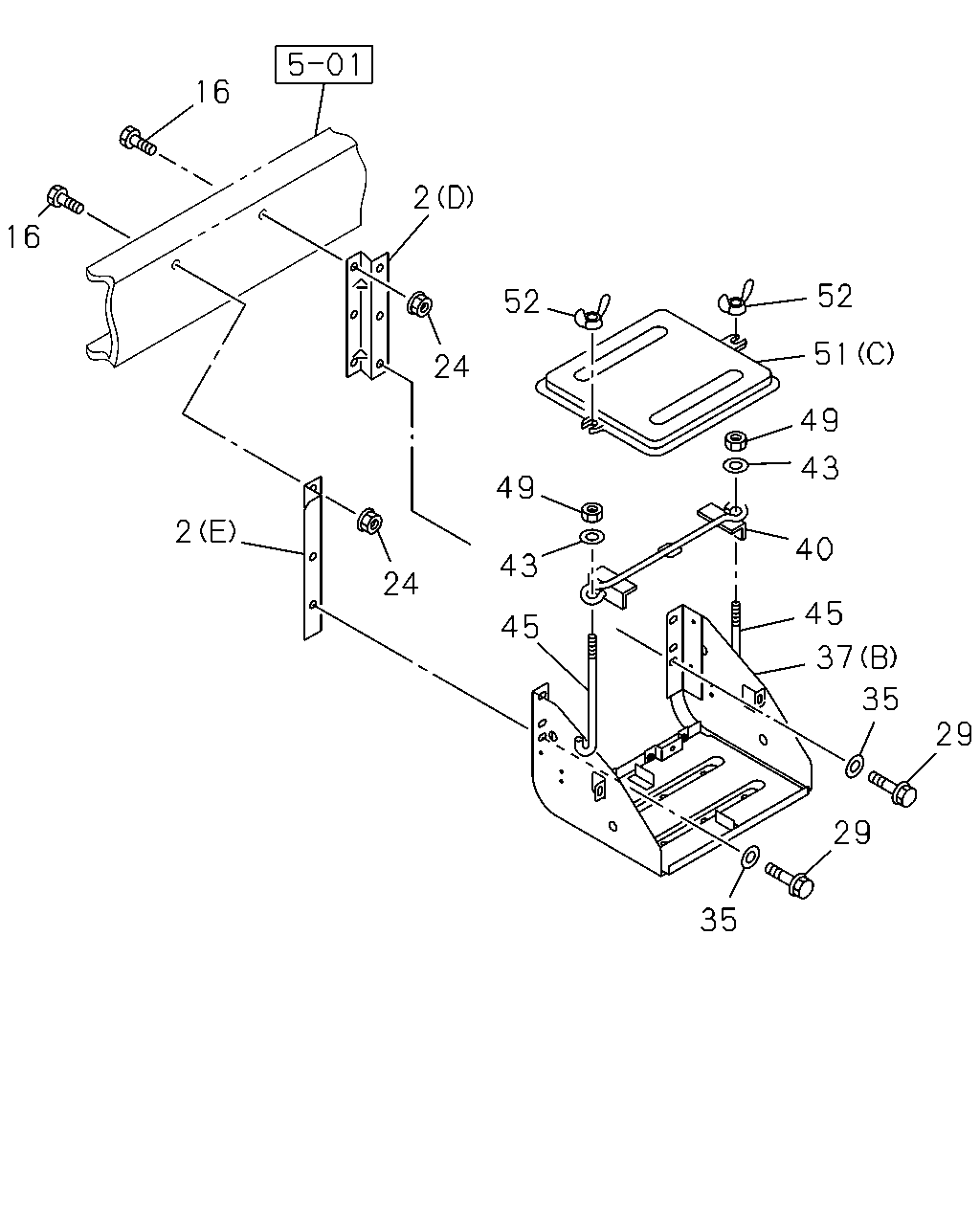

16 16 2 52 49 43 45 24 2 52 51 49 40 43 45 37 35 29 29 35 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BRACKET; BATTERY BATTERY 95D31L<TQ8> (C)	8-98095-029-0	01	1	1401-
2	BRACKET; BATTERY BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (A)	8-98095-027-0	01	1	1401-
2	BRACKET; BATTERY BATTERY 130E41L<8MC> (B)	8-98095-028-0	01	1	1401-
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (D)	8-97384-069-1	01	1	1402-
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (E)	8-97384-070-1	01	1	1402-
16	BOLT; BRKT TO FRAME BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> M10X35 FLANGE MAL	0-28651-035-0	04	1	1401-1401
16	BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>,BATTERY 130E41L<8MC> M10X35 FLANGE MAL	0-28651-035-0	04	1	1402-
24	NUT; BRKT TO FRAME BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> M10 FLANGE MAL	0-91180-110-0	01	1	1401-1401
24	NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>,BATTERY 130E41L<8MC> M10 FLANGE MAL	0-91180-110-0	01	1	1402-
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1401-
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1401-
37	BRACKET; BATTERY BATTERY 95D31L<TQ8> (A)	8-97384-065-0	01	1	1401-
37	BRACKET; BATTERY BATTERY 130E41L<8MC> (A)	8-97384-064-0	01	1	1401-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B) MAL	8-97384-067-2	01	1	1401-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B) MAL	8-97384-068-2	01	1	1401-
40	CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> MAL	5-53615-004-1	01	1	1402-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> ID=8.4 OD=22	0-91614-708-0	02	1	1402-
45	ROD; TENSION,BATTERY L=120 MAL	9-53616-615-0	02	1	1401-
49	NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 FLANGE MAL	0-91180-108-0	02	1	1402-
51	COVER; BATTERY BATTERY 95D31L<TQ8> (B) MAL	8-97313-780-0	01	1	1401-
51	COVER; BATTERY BATTERY 130E41L<8MC> (A)	9-53612-046-2	01	1	1401-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (C) MAL	8-97120-747-0	01	1	1402-
52	NUT; WING,COVER FIX BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	1401-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1402-

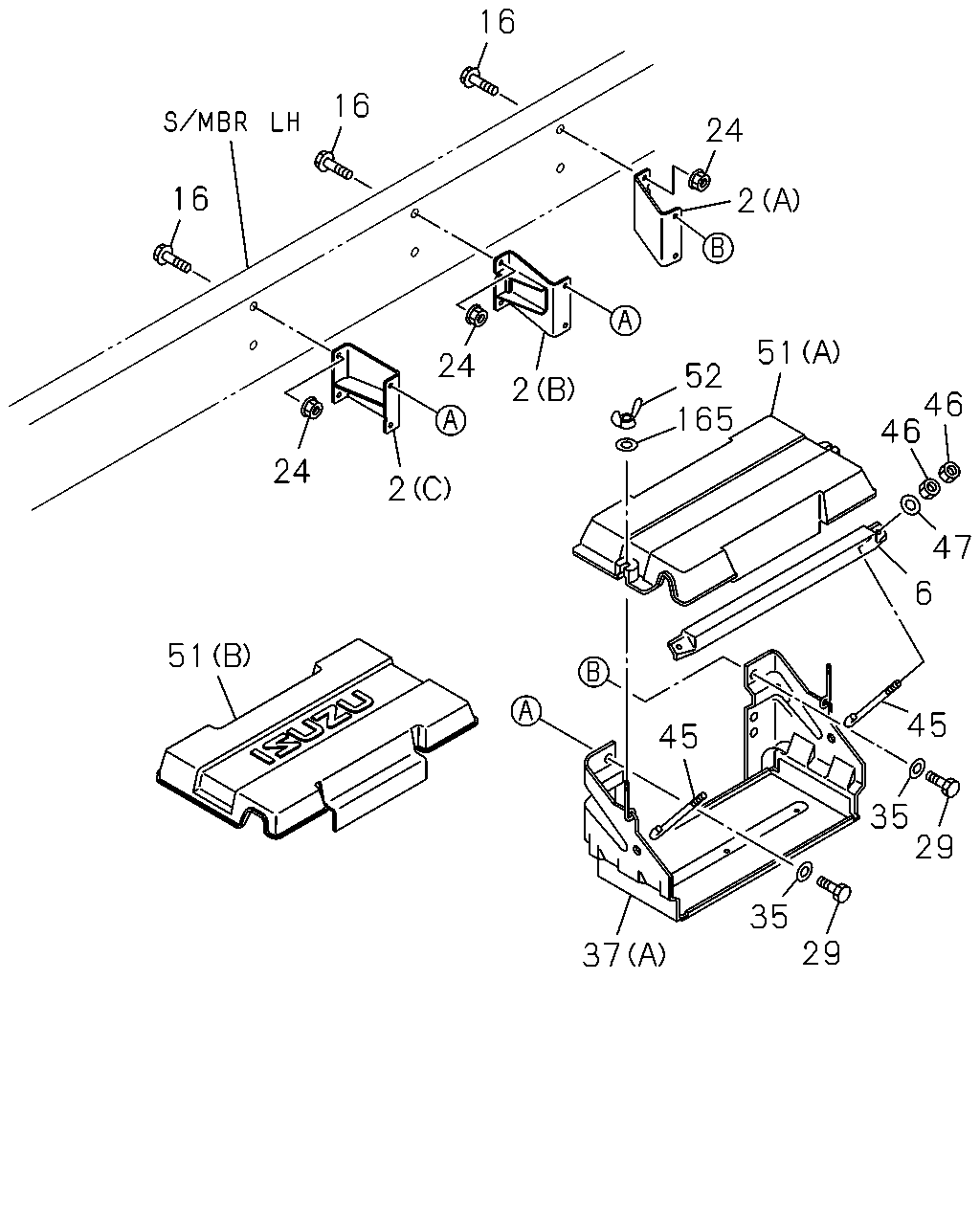

16 16 16 24 52 51 46 46 47 6 45 35 29 29 35 37 45 51 2 24 24 2 2 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BRACKET; BATTERY BATTERY 95D31L<TQ8> (C)	8-98095-029-0	01	1	1401-
2	BRACKET; BATTERY BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (A)	8-98095-027-0	01	1	1401-
2	BRACKET; BATTERY BATTERY 130E41L<8MC> (B)	8-98095-028-0	01	1	1401-
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (D)	8-97384-069-1	01	1	1402-
2	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (E)	8-97384-070-1	01	1	1402-
6	BRACKET; BATTERY CARRIER BATTERY 95D31L<TQ8> MAL	8-94108-314-0	01	1	1401-
6	BRACKET; BATTERY CARRIER BATTERY 130E41L<8MC>	9-53616-153-0	01	1	1401-
16	BOLT; BRKT TO FRAME BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> M10X35 FLANGE MAL	0-28651-035-0	04	1	1401-1401
16	BOLT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>,BATTERY 130E41L<8MC> M10X35 FLANGE MAL	0-28651-035-0	04	1	1402-
24	NUT; BRKT TO FRAME BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> M10 FLANGE MAL	0-91180-110-0	01	1	1401-1401
24	NUT; BRKT TO FRAME BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>,BATTERY 130E41L<8MC> M10 FLANGE MAL	0-91180-110-0	01	1	1402-
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1401-
35	WASHER; PL,BATTERY CARRIER ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1401-
37	BRACKET; BATTERY BATTERY 95D31L<TQ8> (A)	8-97384-065-0	01	1	1401-
37	BRACKET; BATTERY BATTERY 130E41L<8MC> (A)	8-97384-064-0	01	1	1401-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B) MAL	8-97384-067-2	01	1	1401-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (B) MAL	8-97384-068-2	01	1	1401-
45	ROD; TENSION,BATTERY L=120 MAL	9-53616-615-0	02	1	1401-
46	WASHER; PL,BATTERY TO CARRIER BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> ID=8.4 OD=16 MAL	0-91610-508-0	02	1	1401-
47	NUT; BRKT BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> M8	0-91110-508-0	02	1	1401-
51	COVER; BATTERY BATTERY 95D31L<TQ8> (B) MAL	8-97313-780-0	01	1	1401-
51	COVER; BATTERY BATTERY 130E41L<8MC> (A)	9-53612-046-2	01	1	1401-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (C) MAL	8-97120-747-0	01	1	1402-
52	NUT; WING,COVER FIX BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	1401-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1402-
165	WASHER; COVER BATTERY 130E41L<8MC> ID=5.3 OD=16	0-91614-705-0	02	1	1401-
