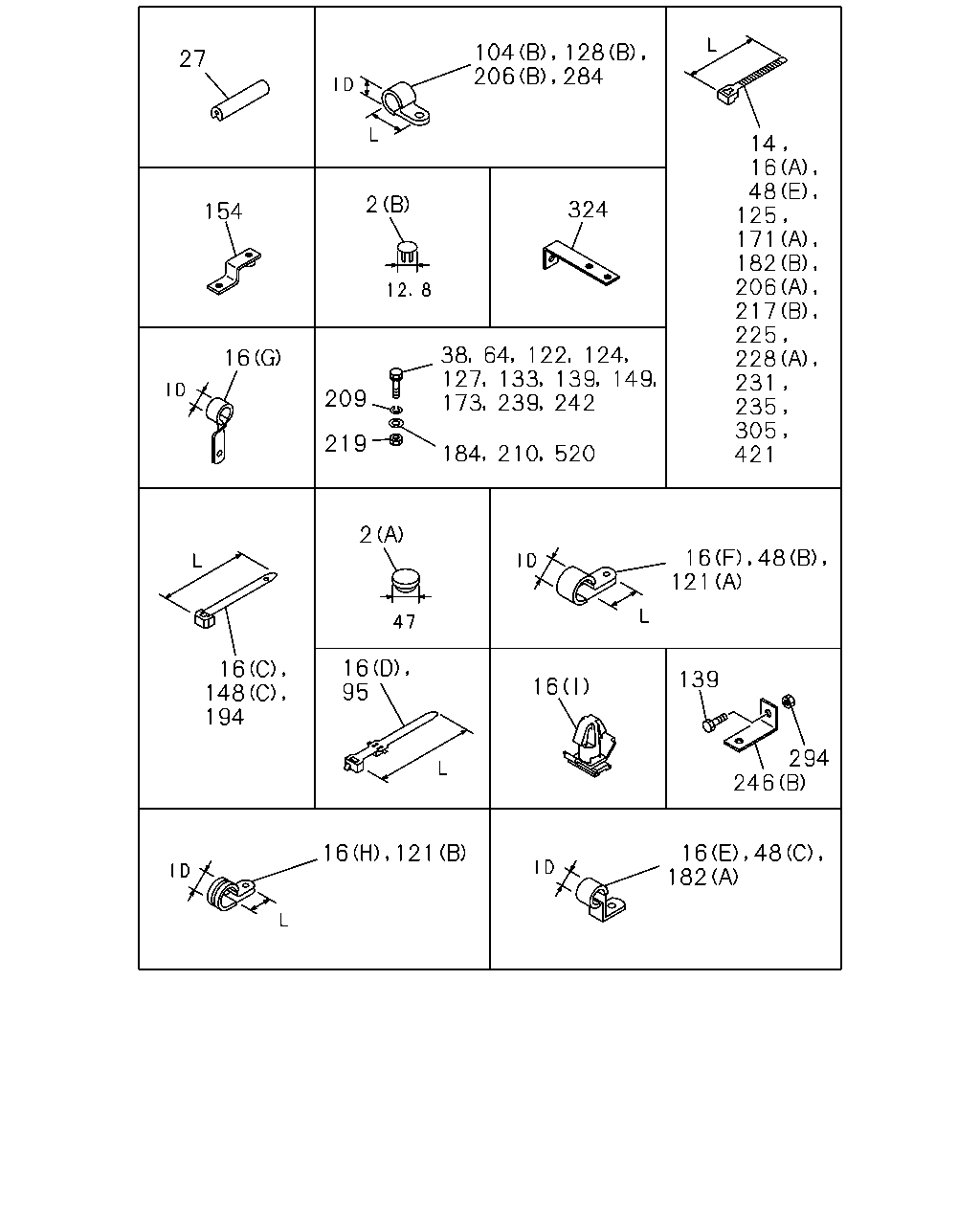

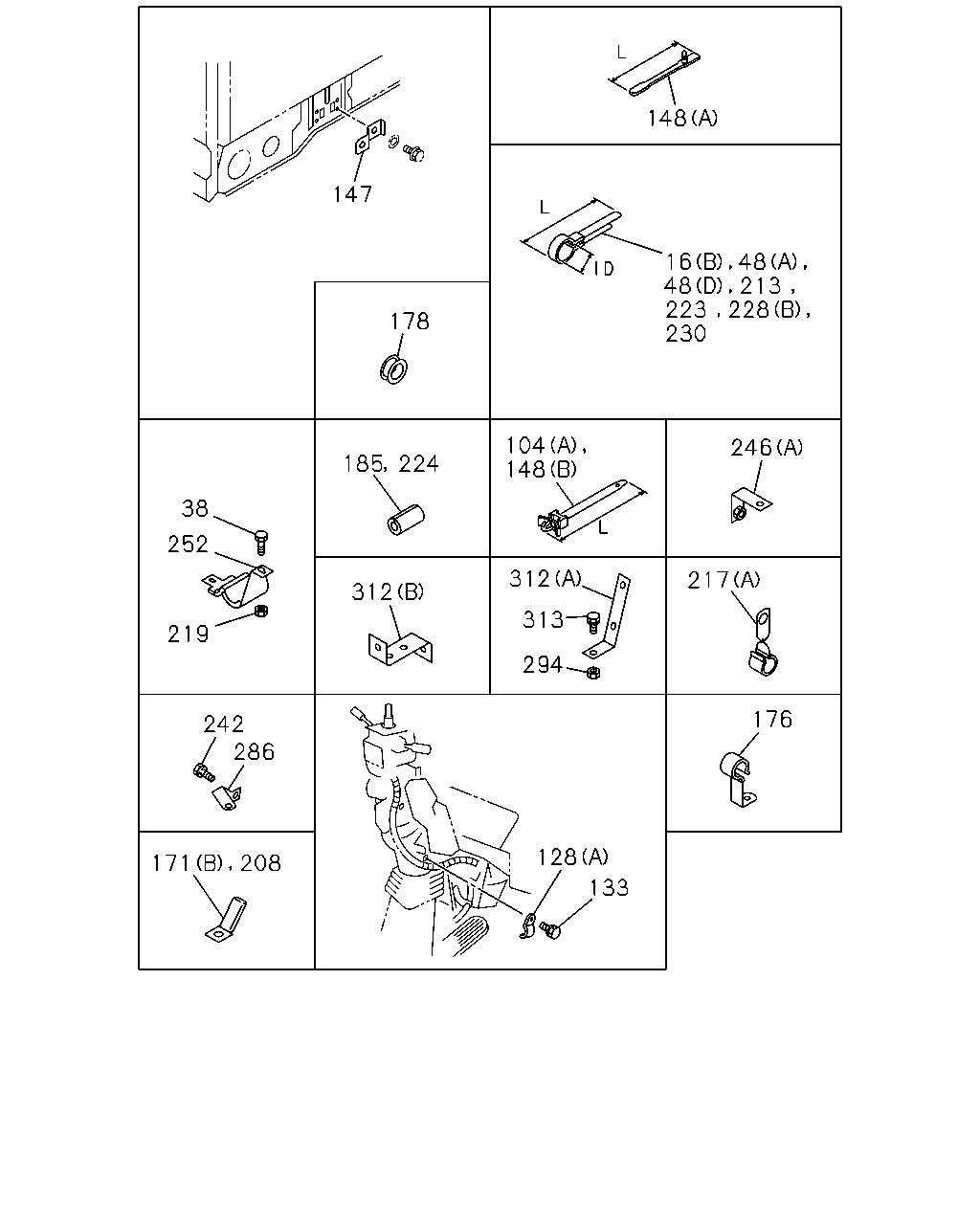

8-15 — FIXING PARTS; WIRING HARNESS (#1325) — 408 parça

104 128 27 14 16 48 125 171 182 206 217 225 228 231 235 305 421 2 324 154 16 209 219 184 210 520 2 121 16 95 16 148 194 139 16 294 246 16 121 182 206 284 38 64 122 124 149 139 133 127 242 239 173 16 48 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GROMMET; CLIP HOLE,HARNESS (A) OD=47	1-09983-039-1	02	1	9202-	●	●
2	GROMMET; CLIP HOLE,HARNESS (B) OD=12.8	1-09983-065-0	04	1	9202-	●	●
14	CLIP; BAND,HARNESS ZF 9S75 DD M/T(Y1H) L=140	5-09707-031-0	01	1	9305-9310	●	●
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206	●	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	02	1	9207-	●	●
16	CLIP; HARNESS (G) ID=28 L=60	1-09700-585-0	01	1	9202-9203	●	●
16	CLIP; HARNESS (B) ID=28 L=58	1-09700-400-0	01	1	9204-	●	●
16	CLIP; HARNESS (A) L=300	1-09707-001-0	01	1	9202-	●	●
16	CLIP; HARNESS (C) L=219.5	1-09987-136-0	04	1	9202-9406	●	●
16	CLIP; HARNESS (C) L=219.5	1-09987-136-0	03	1	9407-	●	●
16	CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	9202-	●	●
16	CLIP; HARNESS (H) ID=29 L=35	5-09700-293-0	01	1	9202-9211	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-0	02	1	9202-9202	●	●
16	CLIP; HARNESS (A) L=300	1-09707-001-0	02	1	9203-9206	●	●
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-0	01	1	9303-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●	●
16	CLIP; HARNESS WHEEL BASE 3800MM(38W) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206		●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206		●
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9207-	●	●
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	03	1	9207-	●	●
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	03	1	9207-		●
16	CLIP; HARNESS ZF 9S75 DD M/T(Y1H) (I) OD=9 H=6	1-09709-178-0	03	1	9305-9310	●	●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (E) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (F) ID=19 L=32	9-09525-866-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (B) ID=20 L=50	9-09917-430-0	01	1	9202-		●
27	PROTECTOR; EDGE L=120 SERVICED BY L=2040	1-71997-513-1	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X16 FLANGE	0-28080-816-0	01	1	9202-9202	●
38	BOLT; CLIP,HARNESS EXHAUST BRAKE<NF8> M8X16 FLANGE	0-28080-816-0	01	1	9202-9202		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	01	1	9202-9204	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	01	1	9202-9204		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9205-9208	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9205-9208	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L) M8X25 FLANGE	0-28080-825-0	02	1	9205-9208		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	01	1	9209-	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	01	1	9209-		●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	01	1	9202-9211		●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	01	1	9202-9211		●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9202-9211		●
38	BOLT; CLIP,HARNESS 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9212-		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	02	1	9212-9406	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	01	1	9407-	●	●
38	BOLT; CLIP,HARNESS 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9202-9202		●
38	BOLT; CLIP,HARNESS 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	04	1	9203-9211		●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	01	1	9212-9406	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	02	1	9407-	●	●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	9202-9206	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) (A) ID=11 L=41	1-09700-403-0	02	1	9202-9206		●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	05	1	9207-	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	05	1	9207-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) ID=11 L=41	1-09700-403-0	05	1	9207-		●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	07	1	9202-9205	●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	10	1	9206-9206	●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	04	1	9207-	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 L=41	1-09700-403-0	04	1	9207-		●
48	CLIP; FRAME HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	9202-	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=11 L=20	9-09525-035-0	01	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) (A) ID=20 L=50	9-09917-430-0	11	1	9202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	13	1	9202-	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (A) ID=28 L=58	1-09700-400-0	03	1	9202-9202	●	●
48	CLIP; FRAME HARNESS (A) ID=28 L=58	1-09700-400-0	02	1	9203-	●	●
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	06	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	05	1	9207-9301	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	05	1	9302-	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	05	1	9302-		●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	02	1	9202-9406	●	●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	9407-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	19	1	9202-9301		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	18	1	9302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	19	1	9302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=50	9-09917-430-0	21	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (C) ID=12 H=24 L=20	1-09700-605-0	01	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (E) L=250	5-09707-030-0	02	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=14 L=44	9-09917-427-0	02	1	9202-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (D) ID=22 L=52	9-09917-431-0	01	1	9205-9208		●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	9209-9406	●	●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	02	1	9407-	●	●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=11 L=41	1-09700-403-0	06	1	9206-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=20 L=50	9-09917-430-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9202-9202		●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9203-	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=20 L=50	9-09917-430-0	03	1	9203-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	16	1	9202-9301		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	16	1	9302-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	16	1	9302-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 L=41	1-09700-403-0	10	1	9202-9205		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=11 L=41	1-09700-403-0	10	1	9202-9205		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 L=41	1-09700-403-0	03	1	9206-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=11 L=41	1-09700-403-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=11 L=41	1-09700-403-0	01	1	9207-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	13	1	9202-9205		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	08	1	9206-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) EXC. EXHAUST BRAKE<NF8> (A) ID=14 L=44	9-09917-427-0	01	1	9202-9205		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) EXC. EXHAUST BRAKE<NF8> (A) ID=14 L=44	9-09917-427-0	01	1	9206-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14 L=44	9-09917-427-0	01	1	9206-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=14 L=44	9-09917-427-0	02	1	9207-9306		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14 L=44	9-09917-427-0	02	1	9207-9306		●
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14 L=44	9-09917-427-0	02	1	9307-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=14 L=44	9-09917-427-0	02	1	9307-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	17	1	9302-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) (A) ID=20 L=50	9-09917-430-0	14	1	9202-9202		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	14	1	9203-9211		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	14	1	9212-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	17	1	9202-9301		●
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	06	1	9302-		●
64	SCREW; CLIP M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9202-	●	●
95	CLIP; CABLE L=145	1-09987-143-1	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (A) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
121	CLIP; FACIA HARNESS (A) ID=41 L=40	1-09700-596-0	02	1	9202-	●	●
121	CLIP; FACIA HARNESS (B) ID=27 L=32	1-09700-712-0	04	1	9202-9208	●	●
121	CLIP; FACIA HARNESS (B) ID=35 L=35	1-09700-726-0	03	1	9209-	●	●
121	CLIP; FACIA HARNESS (B) ID=31 L=33.5	1-09987-165-0	01	1	9202-	●	●
122	BOLT; FACIA HARNESS CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9202-	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9202-9204	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	9-01960-620-0	01	1	9202-9204	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-	●	●
122	BOLT; FACIA HARNESS CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9205-	●	●
124	BOLT; GRAND,FACIA M6X22 W/LK&PL WASHER	1-09980-584-0	01	1	9202-9303	●	●
124	BOLT; GRAND,FACIA M6X20 W/LK&PL WASHER	8-97086-824-0	01	1	9304-	●	●
125	CLIP; BAND,STOP LAMP SW HARNESS L=140	5-09707-031-0	01	1	9202-	●	●
127	SCREW; FACIA HARNESS CLIP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A)	1-09987-193-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9202-	●	●
139	BOLT; BRKT ZF 9S75 DD M/T(Y1H) M6X20 FLANGE	0-28080-620-0	01	1	9305-9310		●
139	BOLT; BRKT 6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	01	1	9410-		●
148	CLIP; BAND,HEADLAMP HARNESS (C) L=219.5	1-09987-136-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	03	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (B) L=142	8-94232-619-0	07	1	9202-	●	●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-430-0	01	1	9202-9303	●	●
149	BOLT; HEADLAMP HARNESS EARTH M6X20 W/LK&PL WASHER	8-97086-824-0	02	1	9304-	●	●
149	BOLT; HEADLAMP HARNESS EARTH M6X22 W/LK&PL WASHER	1-09980-537-0	01	1	9202-9303	●	●
154	BRACKET; STARTER EARTH CABLE 6HE1 STD ENG(46L)	1-47465-518-0	01	1	9202-		●
171	CLIP; STARTER HARNESS (B) L=63	1-09700-418-1	01	1	9202-9204	●	●
171	CLIP; STARTER HARNESS (B) L=63	1-09700-418-1	01	1	9205-	●
171	CLIP; STARTER HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=63	1-09700-418-1	01	1	9205-		●
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-0	01	1	9207-	●	●
171	CLIP; STARTER HARNESS 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-9206		●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-0	01	1	9207-	●	●
173	BOLT; STARTER EARTH M10X16 FLANGE	0-28081-016-0	01	1	9202-9212	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9301-	●	●
182	CLIP; HARNESS,OIL FILTER (A) ID=11 H=45 L=25	1-09700-866-0	01	1	9202-	●
182	CLIP; HARNESS,OIL FILTER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=11 H=45 L=25	1-09700-866-0	01	1	9202-		●
182	CLIP; HARNESS,OIL FILTER 6HE1 STD ENG(46L) (B) L=140	5-09707-031-0	01	1	9202-		●
184	WASHER; PL,STARTER EARTH ID=10.5	1-09503-265-0	01	1	9301-	●	●
194	CLIP; BAND L=180	1-09707-162-0	03	1	9202-	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180	1-09707-162-0	02	1	9202-9306	●	●
194	CLIP; BAND REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180	1-09707-162-0	01	1	9307-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-0	02	1	9202-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=11 L=16	9-09525-022-0	01	1	9202-	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9202-	●	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9301-	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	03	1	9202-	●
219	NUT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	03	1	9202-		●
219	NUT M8	9-09110-408-0	02	1	9202-9206	●	●
219	NUT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-9206		●
219	NUT M8	9-09110-408-0	02	1	9207-	●	●
219	NUT M8	9-09110-408-0	01	1	9202-9204	●	●
219	NUT M8	9-09110-408-0	01	1	9205-9206	●	●
219	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9205-9206		●
219	NUT M8	9-09110-408-0	01	1	9207-9211	●	●
219	NUT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9207-9211		●
219	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9207-9211		●
219	NUT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9212-		●
219	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9212-		●
225	CLIP; AIR TANK HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR DRYER<PS7> L=140	5-09707-031-0	01	1	9206-		●
228	CLIP; COOLER HARNESS 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9202	●	●
228	CLIP; COOLER HARNESS 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	04	1	9202-	●	●
231	CLIP; BAND,OIL PRESS 6HE1 STD ENG(46L) L=140	5-09707-031-0	01	1	9202-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS L=250	5-09707-030-0	01	1	9202-	●	●
239	BOLT; GRAND M8X20	0-28410-820-0	01	1	9202-9204	●	●
239	BOLT; GRAND M8X20 FLANGE	0-28480-820-0	01	1	9205-9212	●	●
239	BOLT; GRAND M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9301-	●	●
239	BOLT; GRAND M5X8	9-92040-508-0	01	1	9202-9204	●	●
239	BOLT; GRAND M5X8	0-20800-508-0	01	1	9205-	●	●
242	BOLT; BRKT,HARNESS M10X20 FLANGE	0-28181-020-0	01	1	9202-	●
242	BOLT; BRKT,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X20 FLANGE	0-28181-020-0	01	1	9202-		●
242	BOLT; BRKT,HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
246	BRACKET; CLIP,SPD SENSOR ZF 9S75 DD M/T(Y1H) (A)	1-14119-175-0	01	1	9305-9310		●
246	BRACKET; CLIP,SPD SENSOR 6SA1TC ENG(28L) (B) L=95	1-82699-085-0	01	1	9410-		●
284	CLIP; HARNESS,GLOW PLUG ID=11 L=16	9-09525-025-0	01	1	9202-	●
284	CLIP; HARNESS,GLOW PLUG 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=11 L=16	9-09525-025-0	01	1	9202-		●
294	NUT M6	9-09110-406-0	01	1	9202-	●
294	NUT ZF 9S75 DD M/T(Y1H) M8 FLANGE	5-09440-005-0	01	1	9305-9310	●	●
294	NUT 6SA1TC ENG(28L) M8	9-09110-408-0	01	1	9410-		●
305	CLIP; ENG HARNESS 6HE1 STD ENG(46L) L=250	5-09707-030-0	01	1	9202-		●
324	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-730-0	01	1	9205-		●
421	CLIP; FLOOR HARNESS SAUDI ARABIA EQUIPMENT(WH1) L=100	5-09707-036-0	01	1	9202-	●	●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9301-	●	●

148 147 230 178 104 148 246 185 224 38 252 312 217 312 313 219 294 176 242 286 128 133 16 48 213 48 223 228 171 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206	●	●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (B) ID=11 L=41	1-09700-403-0	03	1	9202-9206		●
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	02	1	9207-	●	●
16	CLIP; HARNESS (G) ID=28 L=60	1-09700-585-0	01	1	9202-9203	●	●
16	CLIP; HARNESS (B) ID=28 L=58	1-09700-400-0	01	1	9204-	●	●
16	CLIP; HARNESS (A) L=300	1-09707-001-0	01	1	9202-	●	●
16	CLIP; HARNESS (C) L=219.5	1-09987-136-0	04	1	9202-9406	●	●
16	CLIP; HARNESS (C) L=219.5	1-09987-136-0	03	1	9407-	●	●
16	CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	9202-	●	●
16	CLIP; HARNESS (H) ID=29 L=35	5-09700-293-0	01	1	9202-9211	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-0	02	1	9202-9202	●	●
16	CLIP; HARNESS (A) L=300	1-09707-001-0	02	1	9203-9206	●	●
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
16	CLIP; HARNESS (A) L=250	5-09707-030-0	01	1	9303-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) L=140	5-09707-031-0	01	1	9202-	●	●
16	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=100	5-09707-036-0	02	1	9202-	●	●
16	CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=140	5-09707-031-0	03	1	9202-	●	●
16	CLIP; HARNESS MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●	●
16	CLIP; HARNESS WHEEL BASE 3800MM(38W) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206	●
16	CLIP; HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206		●
16	CLIP; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9206		●
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9207-	●	●
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	03	1	9207-	●	●
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	03	1	9207-		●
16	CLIP; HARNESS ZF 9S75 DD M/T(Y1H) (I) OD=9 H=6	1-09709-178-0	03	1	9305-9310	●	●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (E) ID=19 H=33 L=45	1-09701-045-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (F) ID=19 L=32	9-09525-866-0	01	1	9202-		●
16	CLIP; HARNESS 6HE1 STD ENG(46L) (B) ID=20 L=50	9-09917-430-0	01	1	9202-		●
38	BOLT; CLIP,HARNESS M8X16 FLANGE	0-28080-816-0	01	1	9202-9202	●
38	BOLT; CLIP,HARNESS EXHAUST BRAKE<NF8> M8X16 FLANGE	0-28080-816-0	01	1	9202-9202		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	01	1	9202-9204	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	01	1	9202-9204		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9205-9208	●	●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9205-9208	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L) M8X25 FLANGE	0-28080-825-0	02	1	9205-9208		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	01	1	9209-	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X25 FLANGE	0-28080-825-0	01	1	9209-		●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●
38	BOLT; CLIP,HARNESS M8X20 FLANGE	0-28080-820-0	01	1	9202-9211	●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	01	1	9202-9211		●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L) M8X20 FLANGE	0-28080-820-0	01	1	9202-9211		●
38	BOLT; CLIP,HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9202-9211		●
38	BOLT; CLIP,HARNESS 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9212-		●
38	BOLT; CLIP,HARNESS M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	02	1	9212-9406	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	01	1	9407-	●	●
38	BOLT; CLIP,HARNESS 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9202-9202		●
38	BOLT; CLIP,HARNESS 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	04	1	9203-9211		●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	01	1	9212-9406	●	●
38	BOLT; CLIP,HARNESS M8X14 FLANGE	0-28080-814-0	02	1	9407-	●	●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	9202-9206	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) (A) ID=11 L=41	1-09700-403-0	02	1	9202-9206		●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	05	1	9207-	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	05	1	9207-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> (A) ID=11 L=41	1-09700-403-0	05	1	9207-		●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	07	1	9202-9205	●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	10	1	9206-9206	●
48	CLIP; FRAME HARNESS (A) ID=11 L=41	1-09700-403-0	04	1	9207-	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 L=41	1-09700-403-0	04	1	9207-		●
48	CLIP; FRAME HARNESS (B) ID=11 L=20	9-09525-035-0	01	1	9202-	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) ID=11 L=20	9-09525-035-0	01	1	9202-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) (A) ID=20 L=50	9-09917-430-0	11	1	9202-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	13	1	9202-	●
48	CLIP; FRAME HARNESS (B) ID=19 L=28	9-09525-856-0	02	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS (A) ID=28 L=58	1-09700-400-0	03	1	9202-9202	●	●
48	CLIP; FRAME HARNESS (A) ID=28 L=58	1-09700-400-0	02	1	9203-	●	●
48	CLIP; FRAME HARNESS (B) ID=24 L=32	1-09700-766-1	01	1	9202-	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	06	1	9202-9206	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	05	1	9207-9301	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	05	1	9302-	●
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	05	1	9302-		●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	02	1	9202-9406	●	●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	9407-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	19	1	9202-9301		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	18	1	9302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	19	1	9302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (A) ID=20 L=50	9-09917-430-0	21	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (C) ID=12 H=24 L=20	1-09700-605-0	01	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (E) L=250	5-09707-030-0	02	1	9202-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=14 L=44	9-09917-427-0	02	1	9202-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (D) ID=22 L=52	9-09917-431-0	01	1	9205-9208		●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	9209-9406	●	●
48	CLIP; FRAME HARNESS (D) ID=22 L=52	9-09917-431-0	02	1	9407-	●	●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=11 L=41	1-09700-403-0	06	1	9206-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=20 L=50	9-09917-430-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9202-9202		●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9203-	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=20 L=50	9-09917-430-0	03	1	9203-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	16	1	9202-9301		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	16	1	9302-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	16	1	9302-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 L=41	1-09700-403-0	10	1	9202-9205		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=11 L=41	1-09700-403-0	10	1	9202-9205		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 L=41	1-09700-403-0	03	1	9206-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) ID=11 L=41	1-09700-403-0	01	1	9207-	●	●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=11 L=41	1-09700-403-0	01	1	9207-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	13	1	9202-9205		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	08	1	9206-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 L=41	1-09700-403-0	02	1	9207-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) EXC. EXHAUST BRAKE<NF8> (A) ID=14 L=44	9-09917-427-0	01	1	9202-9205		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) EXC. EXHAUST BRAKE<NF8> (A) ID=14 L=44	9-09917-427-0	01	1	9206-9206		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14 L=44	9-09917-427-0	01	1	9206-9206		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=14 L=44	9-09917-427-0	02	1	9207-9306		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14 L=44	9-09917-427-0	02	1	9207-9306		●
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14 L=44	9-09917-427-0	02	1	9307-		●
48	CLIP; FRAME HARNESS 6HE1 STD ENG(46L) (A) ID=14 L=44	9-09917-427-0	02	1	9307-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=20 L=50	9-09917-430-0	17	1	9302-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) (A) ID=20 L=50	9-09917-430-0	14	1	9202-9202		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	14	1	9203-9211		●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	14	1	9212-		●
48	CLIP; FRAME HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	17	1	9202-9301		●
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=50	9-09917-430-0	06	1	9302-		●
104	CLIP; HEADLAMP HARNESS (A) L=142	8-94232-619-0	02	1	9202-	●	●
104	CLIP; HEADLAMP HARNESS (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A)	1-09987-193-0	01	1	9202-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=20	9-09525-832-0	01	1	9202-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/LK&PL WASHER	9-03920-612-0	02	1	9202-	●	●
147	BRACKET; HARNESS,HEADLAMP	1-71998-471-0	02	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (C) L=219.5	1-09987-136-0	01	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	03	1	9202-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (B) L=142	8-94232-619-0	07	1	9202-	●	●
171	CLIP; STARTER HARNESS (B) L=63	1-09700-418-1	01	1	9202-9204	●	●
171	CLIP; STARTER HARNESS (B) L=63	1-09700-418-1	01	1	9205-	●
171	CLIP; STARTER HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) L=63	1-09700-418-1	01	1	9205-		●
171	CLIP; STARTER HARNESS (A) L=300	1-09707-001-0	01	1	9207-	●	●
171	CLIP; STARTER HARNESS 6HE1 STD ENG(46L) (A) L=140	5-09707-031-0	01	1	9202-9206		●
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-0	01	1	9207-	●	●
176	CLIP; BACK SW HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) ID=11	1-09700-415-0	01	1	9202-	●	●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	01	1	9202-9205	●	●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	01	1	9202-9205		●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	01	1	9206-9406	●	●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	02	1	9407-	●	●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	02	1	9202-9406	●	●
178	GROMMET; HARNESS ID=15 OD=20 T=22	9-09956-181-0	01	1	9407-	●	●
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=44 T=25	1-09332-011-1	01	1	9202-9204		●
178	GROMMET; HARNESS ID=28 OD=44 T=25	1-09332-011-1	01	1	9205-	●
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=28 OD=44 T=25	1-09332-011-1	01	1	9205-		●
178	GROMMET; HARNESS 6SA1 STD ENG(06L),6HE1 STD ENG(46L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=19 OD=29 T=24	1-09332-103-0	01	1	9206-9206		●
178	GROMMET; HARNESS AIR DRYER<PS7> ID=19 OD=29 T=24	1-09332-103-0	01	1	9207-		●
185	SLEEVE; RUBBER 6HE1 STD ENG(46L) ID=9 OD=14 L=35	8-94127-043-0	01	1	9202-		●
208	CLIP; HARNESS,MAG VLV 6SA1 STD ENG(06L),6SA1TC ENG(28L) L=63	1-09700-418-1	01	1	9202-	●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9202-	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9202-	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-0	02	1	9202-	●	●
219	NUT M8	9-09110-408-0	03	1	9202-	●
219	NUT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8	9-09110-408-0	03	1	9202-		●
219	NUT M8	9-09110-408-0	02	1	9202-9206	●	●
219	NUT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9202-9206		●
219	NUT M8	9-09110-408-0	02	1	9207-	●	●
219	NUT M8	9-09110-408-0	01	1	9202-9204	●	●
219	NUT M8	9-09110-408-0	01	1	9205-9206	●	●
219	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9205-9206		●
219	NUT M8	9-09110-408-0	01	1	9207-9211	●	●
219	NUT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9207-9211		●
219	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9207-9211		●
219	NUT 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9212-		●
219	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9212-		●
223	CLIP; AIR TANK HARNESS ID=11 L=41	1-09700-403-0	04	1	9202-9205	●
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> ID=11 L=41	1-09700-403-0	01	1	9206-	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 L=41	1-09700-403-0	01	1	9206-		●
223	CLIP; AIR TANK HARNESS ID=11 L=41	1-09700-403-0	04	1	9206-9206	●
223	CLIP; AIR TANK HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=11 L=41	1-09700-403-0	04	1	9206-9206		●
223	CLIP; AIR TANK HARNESS ID=11 L=41	1-09700-403-0	04	1	9207-	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 L=41	1-09700-403-0	02	1	9202-9205		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14 L=44	9-09917-427-0	01	1	9206-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=20 L=50	9-09917-430-0	05	1	9202-9205		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=20 L=50	9-09917-430-0	04	1	9206-		●
223	CLIP; AIR TANK HARNESS 6SA1 STD ENG(06L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=11 L=41	1-09700-403-0	03	1	9206-9206		●
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 OD=14 L=30	9-09956-682-0	01	1	9206-		●
224	SLEEVE; RUBBER,HARNESS 6SA1 STD ENG(06L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=17 OD=21 L=40	1-09337-012-0	01	1	9206-		●
228	CLIP; COOLER HARNESS 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) (B) ID=11 L=41	1-09700-403-0	01	1	9202-9202	●	●
228	CLIP; COOLER HARNESS 6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) (A) L=140	5-09707-031-0	04	1	9202-	●	●
230	CLIP; C/MBR HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) ID=20 L=50	9-09917-430-0	02	1	9202-	●	●
230	CLIP; C/MBR HARNESS 6HE1 STD ENG(46L) ID=11 L=41	1-09700-403-0	02	1	9202-9206		●
230	CLIP; C/MBR HARNESS 6HE1 STD ENG(46L) AIR DRYER<PS7> ID=11 L=41	1-09700-403-0	02	1	9207-		●
242	BOLT; BRKT,HARNESS M10X20 FLANGE	0-28181-020-0	01	1	9202-	●
242	BOLT; BRKT,HARNESS 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X20 FLANGE	0-28181-020-0	01	1	9202-		●
242	BOLT; BRKT,HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9205-		●
246	BRACKET; CLIP,SPD SENSOR ZF 9S75 DD M/T(Y1H) (A)	1-14119-175-0	01	1	9305-9310		●
246	BRACKET; CLIP,SPD SENSOR 6SA1TC ENG(28L) (B) L=95	1-82699-085-0	01	1	9410-		●
252	CLIP; CONNECTOR FIX W/SPONGE RUBBER	1-09709-150-0	01	1	9202-	●	●
286	BRACKET; HARNESS,SELECTOR	1-82699-167-0	01	1	9202-	●
286	BRACKET; HARNESS,SELECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-82699-167-0	01	1	9202-		●
294	NUT M6	9-09110-406-0	01	1	9202-	●
294	NUT ZF 9S75 DD M/T(Y1H) M8 FLANGE	5-09440-005-0	01	1	9305-9310	●	●
294	NUT 6SA1TC ENG(28L) M8	9-09110-408-0	01	1	9410-		●
312	BRACKET; CLIP HARNESS (A)	1-82699-109-0	01	1	9202-	●
312	BRACKET; CLIP HARNESS ZF 9S75 DD M/T(Y1H) (B)	1-47476-812-1	01	1	9305-9310	●	●
313	BOLT; BRKT M6X20 FLANGE	0-28080-620-0	01	1	9202-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
