Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#132496) — 40 parça
◀

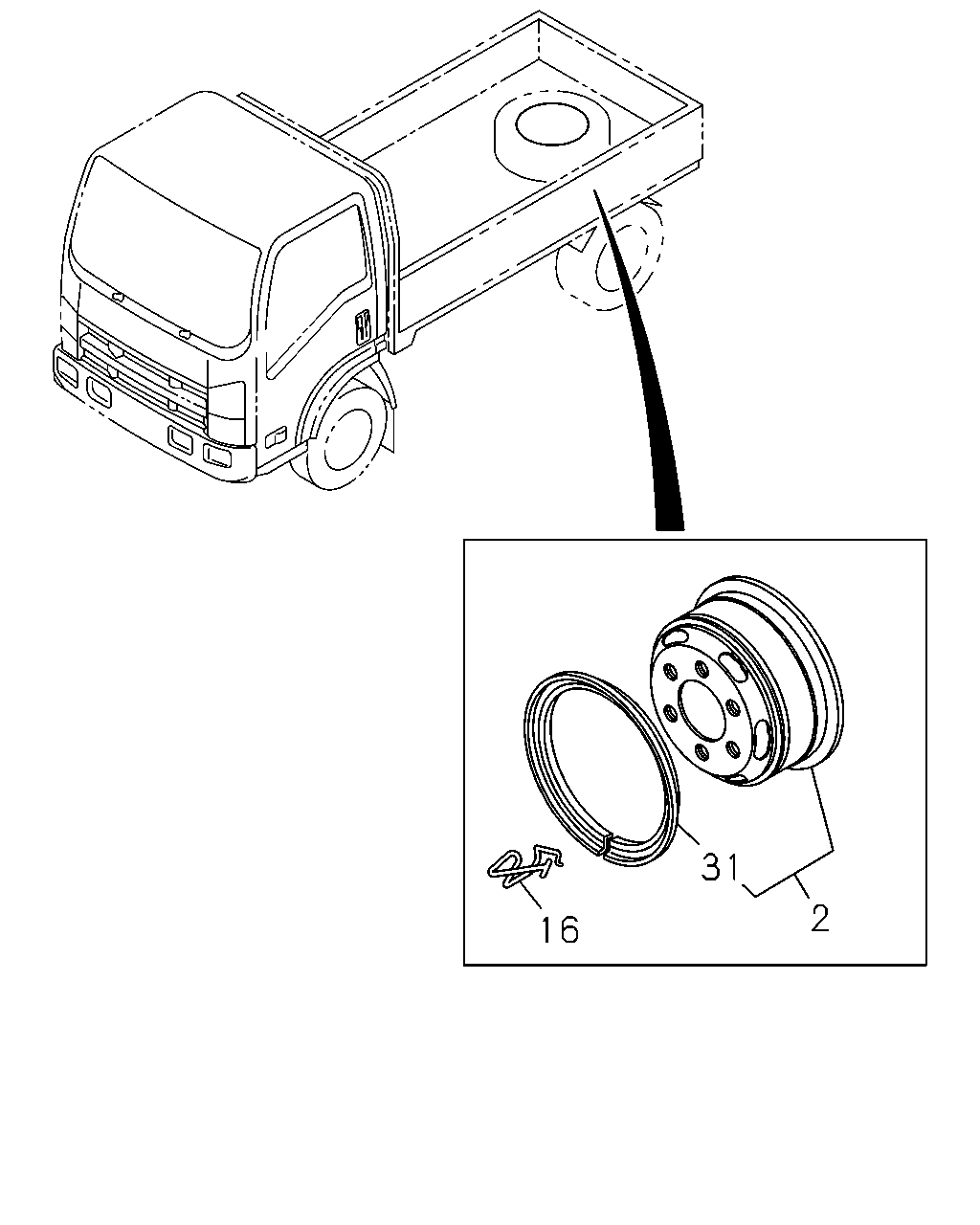

[480A] SPARE (12 parça)

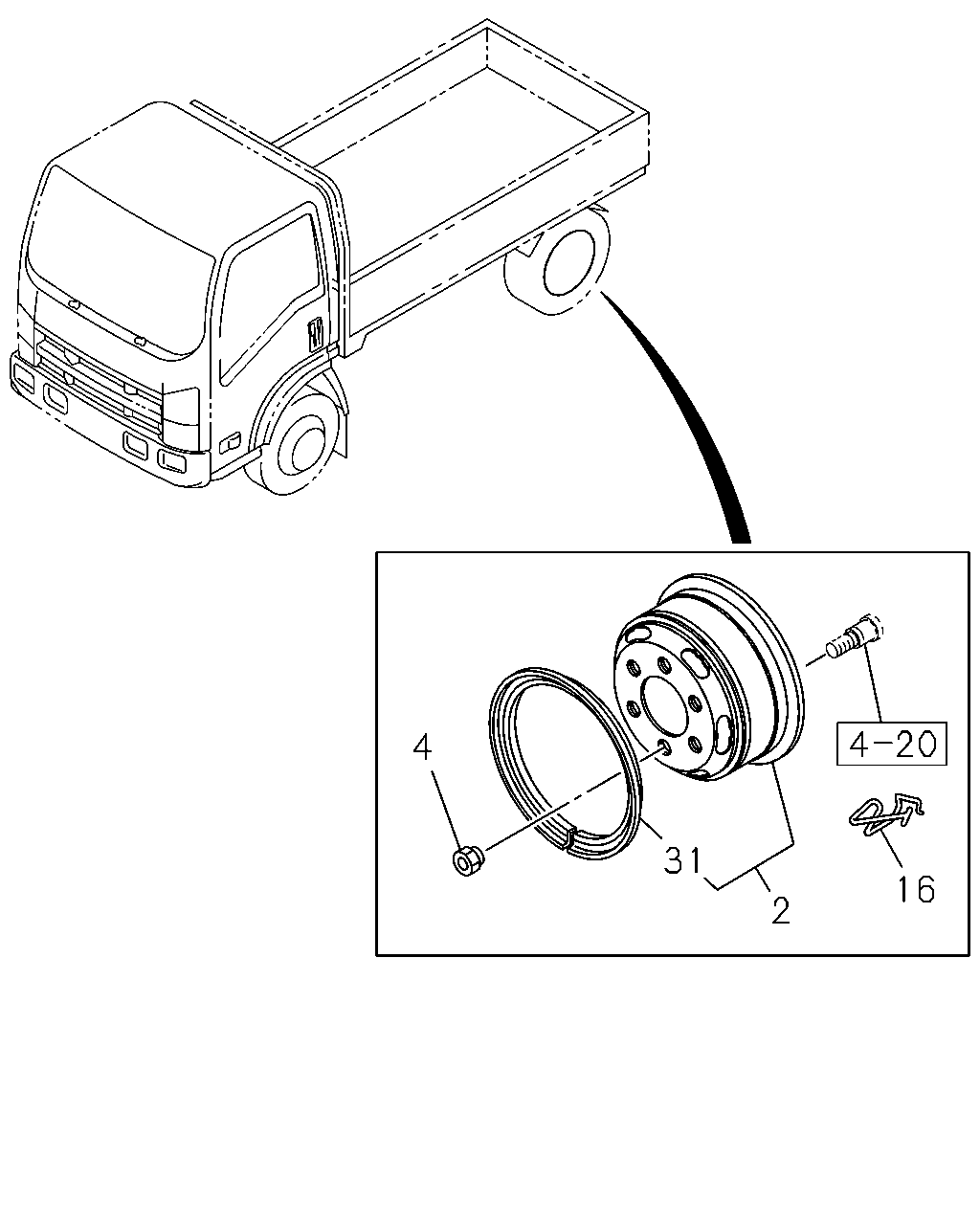

[480A] REAR (14 parça)

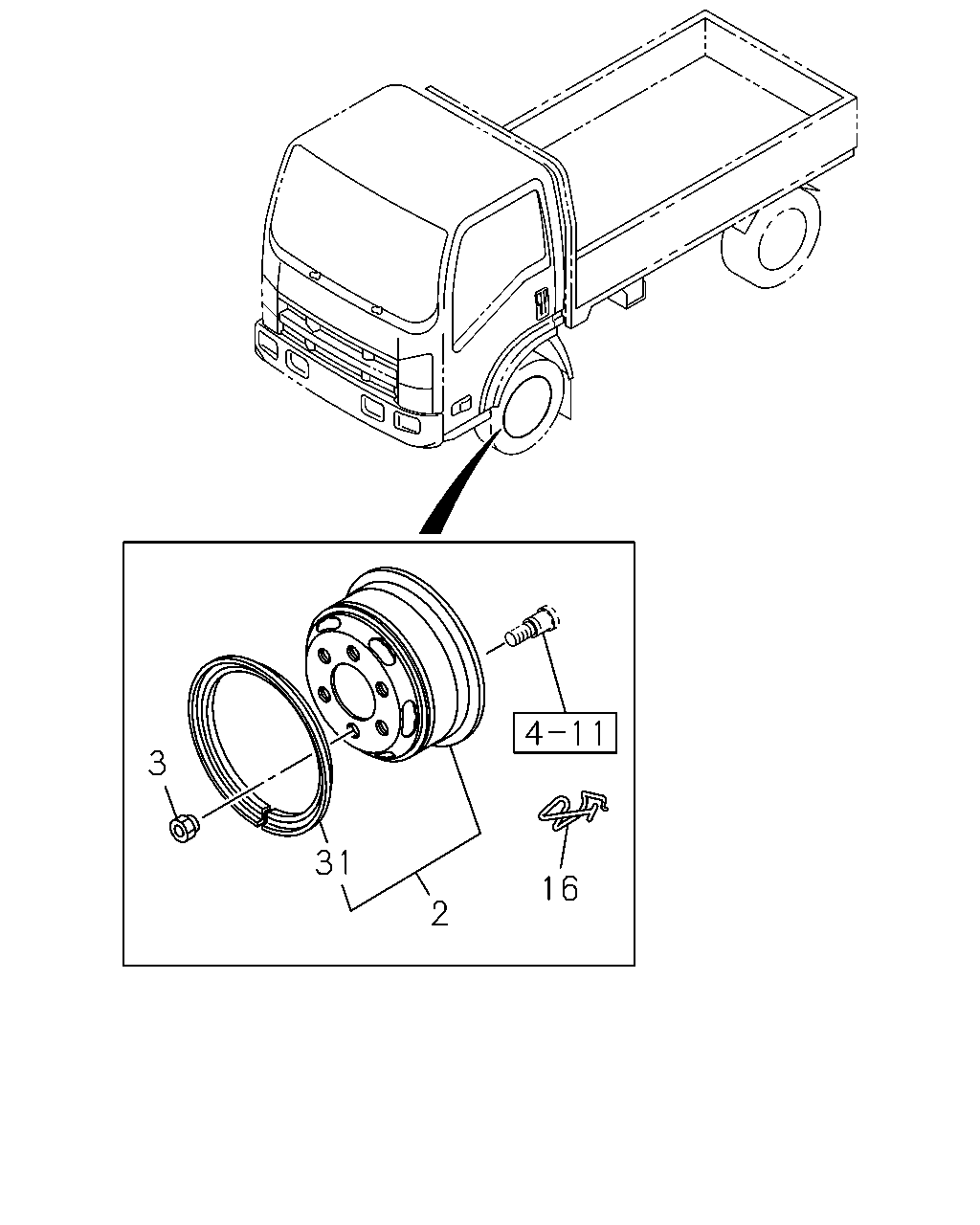

[480A] FRONT (14 parça)
▶
31
2
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE
8-94336-432-1
02
1
1401-
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE
8-97013-515-1
01
1
1401-
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE
8-97013-515-1
02
1
1401-
2
WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE MAL
8-94372-212-2
01
1
1401-
2
WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE MAL
8-94372-212-2
04
1
1401-
16
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE
8-97017-494-1
01
1
1401-
16
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT,REAR
8-97017-494-1
04
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 15X5.50F STAMP, BLACK MAL
8-94135-599-0
02
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE 15X6.00GS STAMP, BLACK
8-94135-600-0
01
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 15X6.00GS STAMP, BLACK
8-94135-600-0
02
1
1401-
31
RING; SIDE,DISC WHEEL
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 16X5.50F STAMP, BLACK MAL
8-94135-601-0
01
1
1401-
31
RING; SIDE,DISC WHEEL
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 16X5.50F STAMP, BLACK MAL
8-94135-601-0
04
1
1401-
16
2
31
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE
8-94336-432-1
02
1
1401-
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE
8-97013-515-1
01
1
1401-
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE
8-97013-515-1
02
1
1401-
2
WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE MAL
8-94372-212-2
01
1
1401-
2
WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE MAL
8-94372-212-2
04
1
1401-
4
NUT; WHEEL,RR AXLE
M14 RH THREAD MAL
8-98007-905-0
06
1
1401-
4
NUT; WHEEL,RR AXLE
M14 LH THREAD MAL
8-98007-906-0
06
1
1401-
16
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE
8-97017-494-1
01
1
1401-
16
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT,REAR
8-97017-494-1
04
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 15X5.50F STAMP, BLACK MAL
8-94135-599-0
02
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE 15X6.00GS STAMP, BLACK
8-94135-600-0
01
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 15X6.00GS STAMP, BLACK
8-94135-600-0
02
1
1401-
31
RING; SIDE,DISC WHEEL
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 16X5.50F STAMP, BLACK MAL
8-94135-601-0
01
1
1401-
31
RING; SIDE,DISC WHEEL
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 16X5.50F STAMP, BLACK MAL
8-94135-601-0
04
1
1401-
2
31
3
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE
8-94336-432-1
02
1
1401-
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE
8-97013-515-1
01
1
1401-
2
WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE
8-97013-515-1
02
1
1401-
2
WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE MAL
8-94372-212-2
01
1
1401-
2
WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE MAL
8-94372-212-2
04
1
1401-
3
NUT; WHEEL,FRT AXLE
M14 RH THREAD MAL
8-98007-905-0
06
1
1401-
3
NUT; WHEEL,FRT AXLE
M14 LH THREAD MAL
8-98007-906-0
06
1
1401-
16
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE
8-97017-494-1
01
1
1401-
16
HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT,REAR
8-97017-494-1
04
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 15X5.50F STAMP, BLACK MAL
8-94135-599-0
02
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE 15X6.00GS STAMP, BLACK
8-94135-600-0
01
1
1401-
31
RING; SIDE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 15X6.00GS STAMP, BLACK
8-94135-600-0
02
1
1401-
31
RING; SIDE,DISC WHEEL
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 16X5.50F STAMP, BLACK MAL
8-94135-601-0
01
1
1401-
31
RING; SIDE,DISC WHEEL
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 16X5.50F STAMP, BLACK MAL
8-94135-601-0
04
1
1401-
