◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#132495) — 14 parça

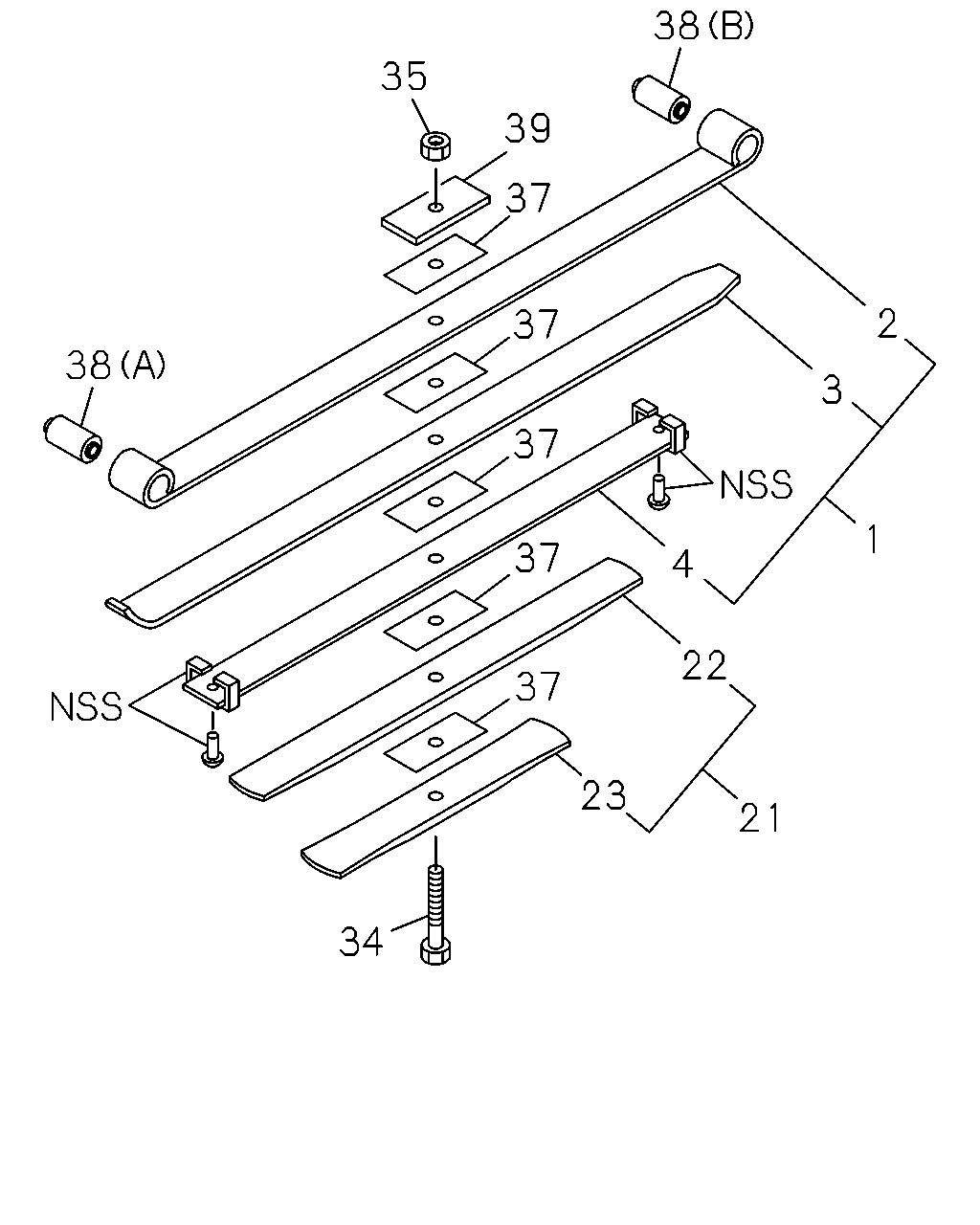

çizim 401619
38 34 23 21 22 4 1 3 2 38 39 35 37 37 37 37 37
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
MAL ASM PART: A = 8-98001-551-1 		8-98040-838-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
MAL ASM PART: A = 8-98001-551-1 		8-98040-839-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
MAL ASM PART: A = 8-98001-551-1 		8-98040-840-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
MAL ASM PART: A = 8-98001-551-1 		8-98040-841-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
MAL ASM PART: A = 8-98001-551-1 		8-98040-842-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
MAL ASM PART: A = 8-98001-551-1 		8-98040-843-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
MAL ASM PART: A = 8-98001-551-1 		8-98040-844-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=100, MAL ASM PART: A = 8-98001-551-1 		8-98037-586-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98001-551-1 		9-99110-512-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1, MAL ASM PART: A = 8-98001-551-1 		8-94448-734-0 05 1 -
38 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98001-551-1 		5-87610-162-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98001-551-1 		8-94130-354-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=85.2 ASM PART: A = 8-98001-551-1 		8-97034-380-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=12, MAL ASM PART: A = 8-98001-551-1 		8-94407-146-0 01 1 -
