Isuzu WW
▶
TRUCKS
▶
NLR
▶
51502 - NLR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

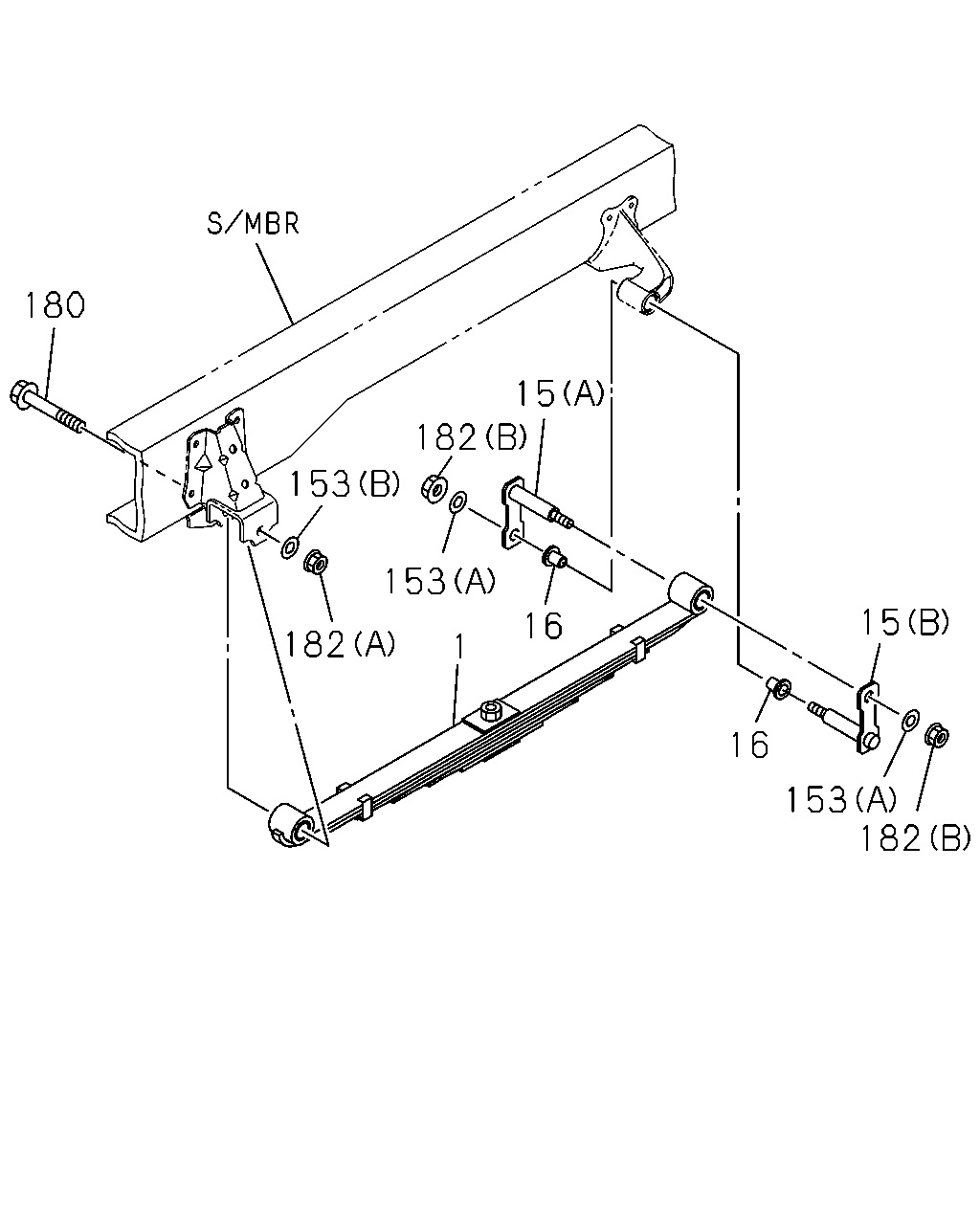

4-60 — REAR SUSPENSION
(#132493) — 23 parça
◀
[460A] NO.1 (13 parça)
[460A] NO.2 (10 parça)
▶
180
153
182
15
153
182
16
16
153
182
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF MAL
8-98001-551-1
02
1
1401-
15
SHACKLE; RR SPR
(B) MAL
8-94113-322-3
02
1
1401-
15
SHACKLE; RR SPR
(A)
8-97033-966-1
02
1
1401-
16
BUSHING; SHACKLE,RR SPR
MAL
8-94113-323-2
04
1
1401-
16
BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS MAL
5-87610-160-0
04
1
1401-
153
WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5
8-98011-489-0
02
1
1401-
153
WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (A) ID=16.5
8-98011-489-0
04
1
1401-
180
PIN; RR SPR
KD PREPARATORY PACK<6HF> M16X122 MAL
8-98011-487-0
02
1
1401-
180
PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE
8-97360-110-0
02
1
1401-
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (A) M16
0-91110-516-0
02
1
1401-
182
NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (B) M16
0-91110-516-0
04
1
1401-
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE
8-97360-125-0
02
1
1401-
182
NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE
8-97360-125-0
04
1
1401-
227
230
225
4
502
1
155
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF MAL
8-98001-551-1
02
1
1401-
4
U-BOLT; RR SPR
L=245 MAL
8-94127-921-3
04
1
1401-
5
NUT; U-BOLT,RR SPR
M16
8-97360-121-0
08
1
1401-
6
WASHER; PL,U-BOLT
ID=16.4
8-97360-118-0
08
1
1401-
155
BRACKET; S/ABS
8-94128-360-4
01
1
1401-
155
BRACKET; S/ABS
8-94128-361-4
01
1
1401-
225
RUBBER; CUSHION,RR SPR
8-98002-085-1
02
1
1401-
227
NUT; CUSHION RUBBER
M12 FLANGE MAL
0-91180-112-0
02
1
1401-
230
SPACER; CUSHION RUBBER
8-97136-853-0
02
1
1401-
502
CLAMP; RR LEAF SPR
L=130 T=4.5
8-94119-069-2
02
1
1401-
