◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#132492) — 17 parça

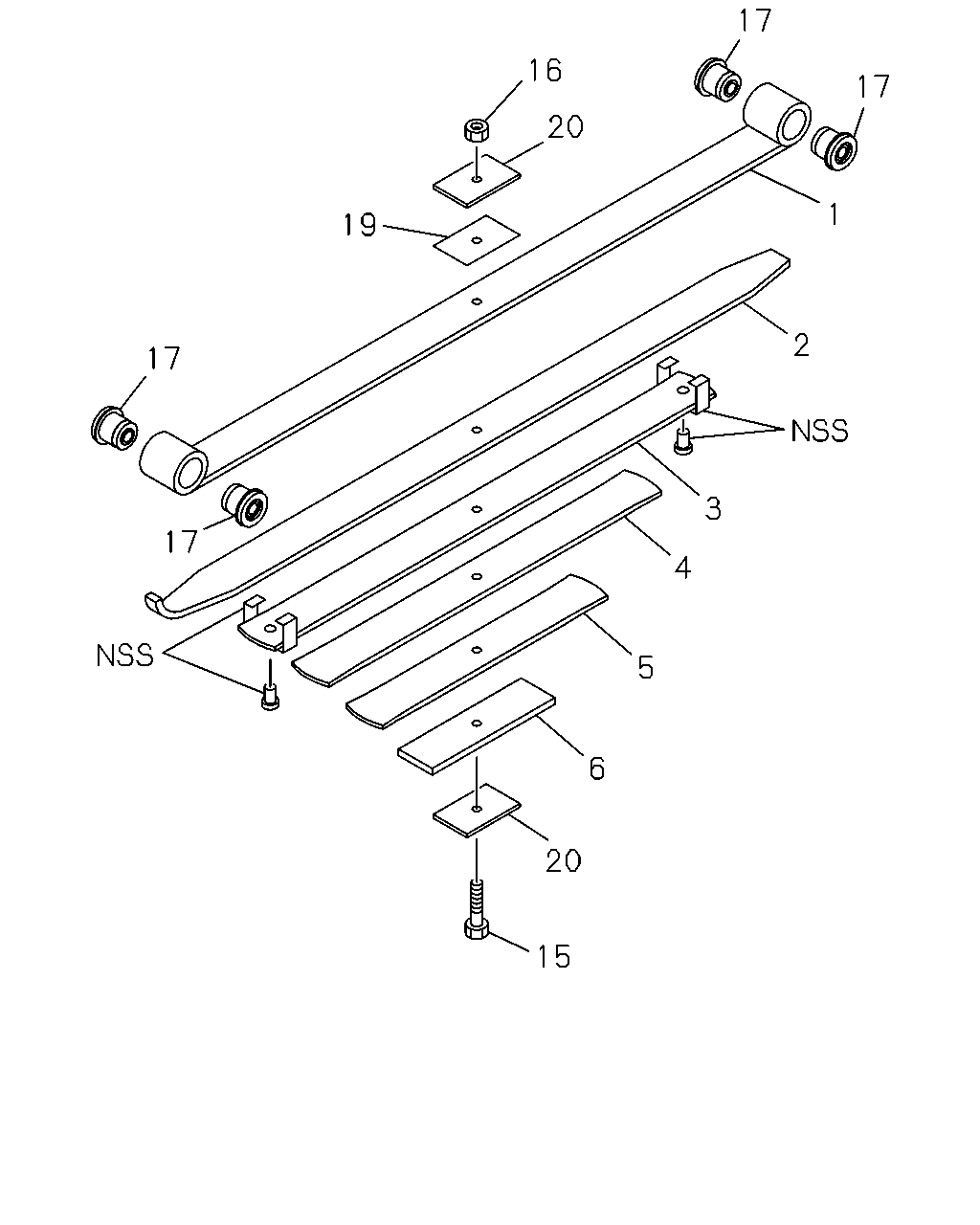

çizim 401594
15 20 6 5 4 3 2 1 17 17 16 20 19 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
MAL ASM PART: A = 8-98079-885-0 		8-98094-367-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
MAL ASM PART: B = 8-98079-887-0 		8-98094-369-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
MAL ASM PART: A = 8-98079-885-0 		8-98094-368-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
MAL ASM PART: B = 8-98079-887-0 		8-98094-370-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
MAL ASM PART: A = 8-98079-885-0 		8-98063-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
MAL ASM PART: B = 8-98079-887-0 		8-98063-914-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
MAL ASM PART: A = 8-98079-885-0 		8-98063-909-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
MAL ASM PART: B = 8-98079-887-0 		8-98063-915-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
MAL ASM PART: A = 8-98079-885-0 		8-98063-910-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
MAL ASM PART: B = 8-98079-887-0 		8-98063-916-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
MAL ASM PART: A = 8-98079-885-0 		8-98063-911-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
MAL ASM PART: B = 8-98079-887-0 		8-98063-917-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=80, MAL ASM PART: A = 8-98079-885-0, B = 8-98079-887-0 		8-98063-131-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10, MAL ASM PART: A = 8-98079-885-0, B = 8-98079-887-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=43.25, MAL ASM PART: A = 8-98079-885-0, B = 8-98079-887-0 		8-98040-327-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1, MAL ASM PART: A = 8-98079-885-0, B = 8-98079-887-0 		8-94478-008-1 01 1 -
20 SEAT; LEAF SPR,FRT
MAL ASM PART: A = 8-98079-885-0, B = 8-98079-887-0 		8-98040-316-0 02 1 -
