Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#132490) — 50 parça

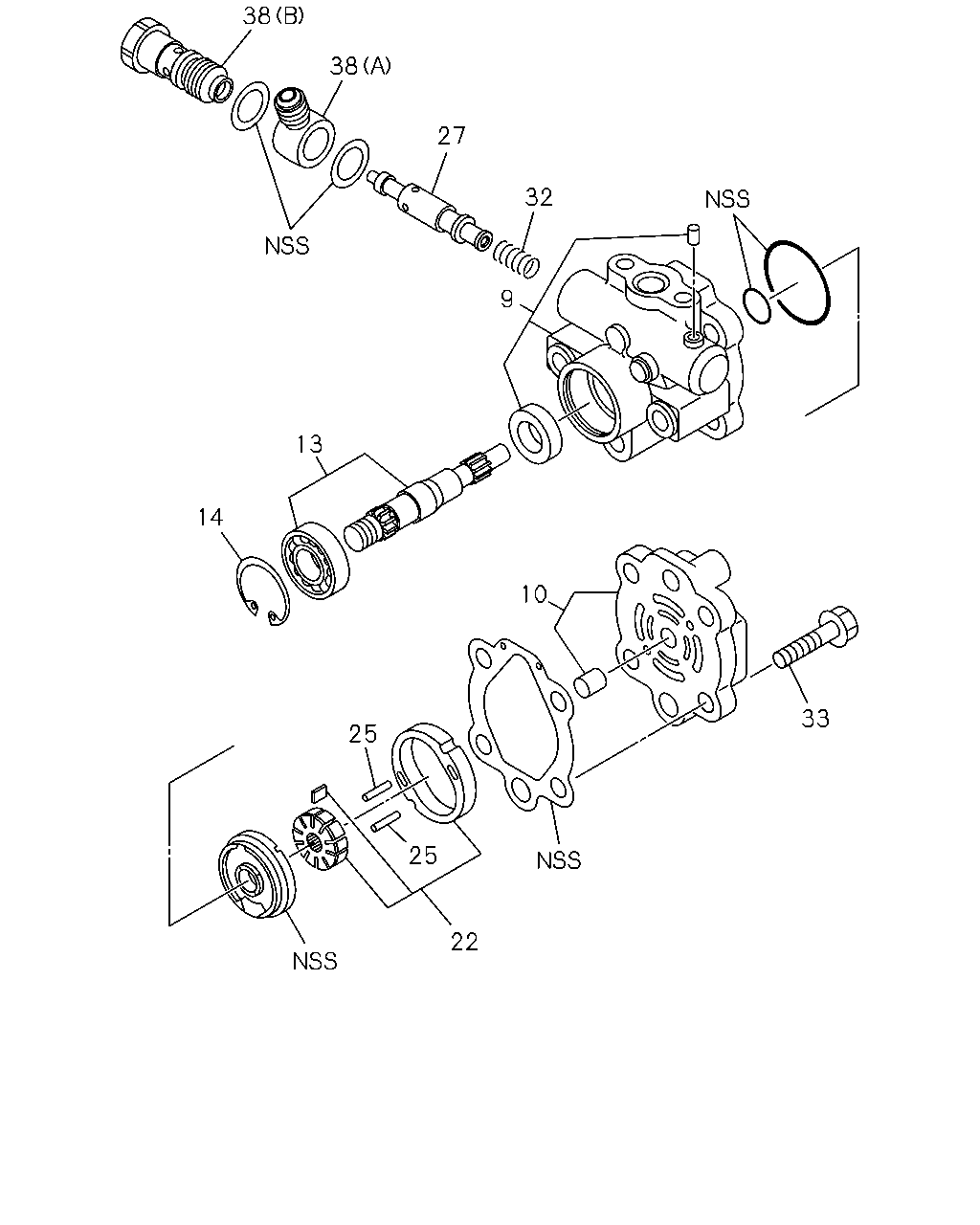

38 27 32 9 13 14 10 25 25 22 33 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-428-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-140-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-98043-205-4	8-98159-587-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-142-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-98217-772-0	8-98219-139-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-98217-772-0	8-97064-620-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98217-772-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-406-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 8-98217-772-0	8-97081-859-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-98043-205-4	8-98061-412-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-409-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-136-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-98217-772-0	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-411-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-98217-772-0	8-97081-847-0	04	1	-
33	BOLT; COVER ASM PART: A = 8-98043-205-4	8-98061-385-0	04	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98043-205-4	8-98061-407-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 8-98217-772-0	8-98219-135-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-98217-772-0	8-98219-137-0	01	1	-

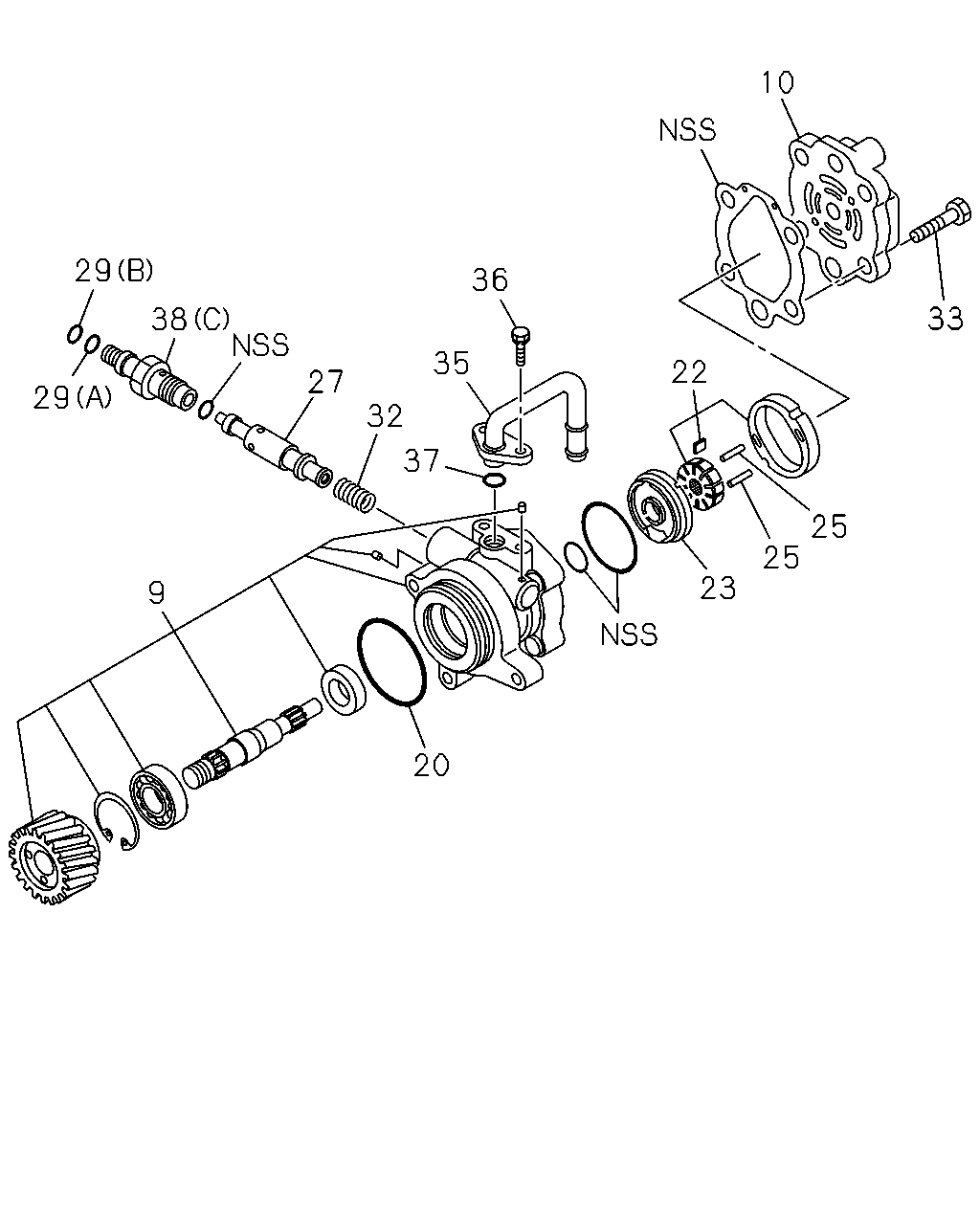

9 29 29 36 35 37 32 27 38 20 23 25 25 22 33 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-428-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-140-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-98043-205-4	8-98159-587-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-142-0	01	1	-
20	GASKET; FRT,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-424-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98217-772-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-406-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-404-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 8-98217-772-0	8-97081-859-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-98043-205-4	8-98061-412-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-409-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-136-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-98043-205-4	8-98061-421-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-98043-205-4	8-98061-422-0	01	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-98217-772-0	8-97064-987-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-411-0	01	1	-
33	BOLT; COVER ASM PART: B = 8-98217-772-0	8-97081-847-0	04	1	-
33	BOLT; COVER ASM PART: A = 8-98043-205-4	8-98061-385-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-419-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-98043-205-4	8-98061-418-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-417-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98043-205-4	8-98061-407-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 8-98217-772-0	8-98219-135-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-98217-772-0	8-98219-137-0	01	1	-

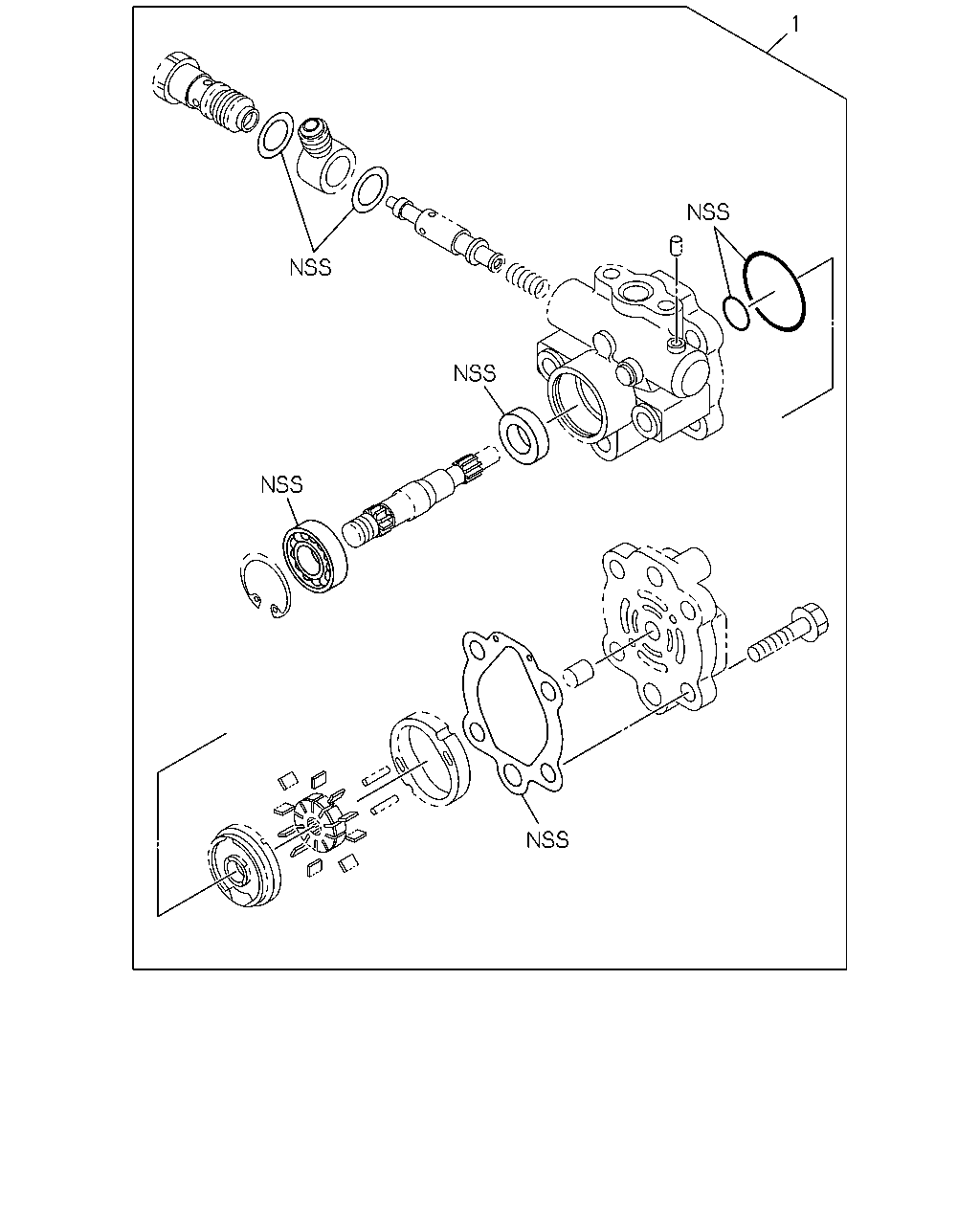

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	REPAIR KIT; OIL PUMP ASM PART: A = 8-98043-205-4	8-98159-585-0	01	1	-
	1	REPAIR KIT; OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-134-0	01	1	-

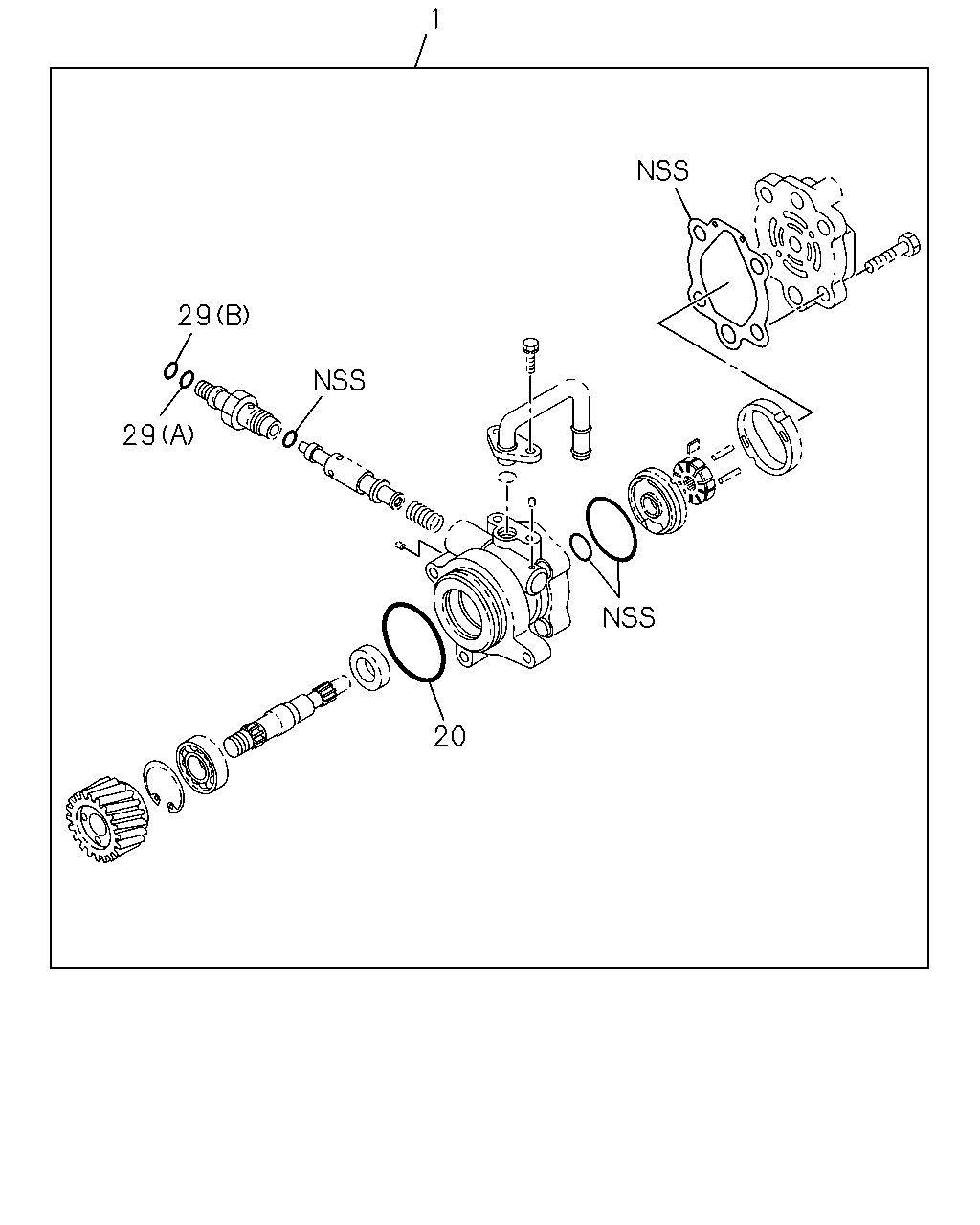

1 29 29 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-98043-205-4	8-98159-585-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: B = 8-98217-772-0	8-98219-134-0	01	1	-
20	GASKET; FRT,OIL PUMP ASM PART: A = 8-98043-205-4	8-98061-424-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-98043-205-4	8-98061-421-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-98043-205-4	8-98061-422-0	01	1	-
