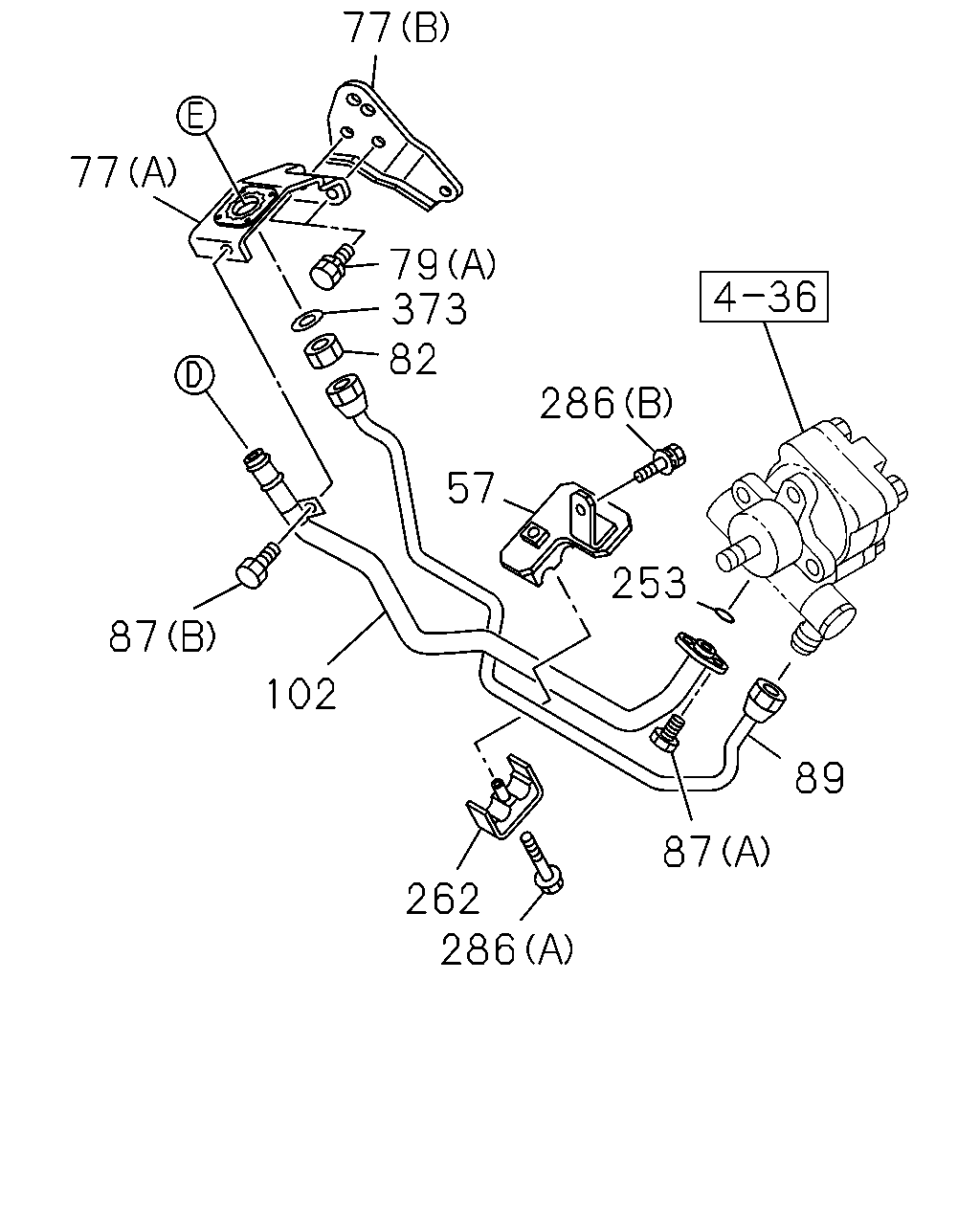

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#132487) — 133 parça

77 77 87 102 262 86 87 286 253 57 79 82 373 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	BRACKET; POWER STRG PIPE 4JB1-TC ENG(RDT)	8-97312-558-3	01	1	1401-
77	BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	1401-
77	BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	1401-
77	BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (C)	8-98090-755-1	01	1	1401-
79	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-
79	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1401-
79	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M12X30 FLANGE	0-28651-230-0	02	1	1402-
82	NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) M16	8-94370-339-0	01	1	1401-
82	NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) M12 SELF LOCK	8-97028-390-1	01	1	1402-
87	BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) (B) M6X20	8-94279-112-0	01	1	1401-
87	BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) (A) M8X14 FLANGE	8-98219-171-0	02	1	1401-
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 4JB1-TC ENG(RDT) MAL	8-98218-675-0	01	1	1401-
102	PIPE; SUCTION,P/S 4JB1-TC ENG(RDT)	8-98218-669-0	01	1	1401-
253	GASKET; OIL PIPE 4JB1-TC ENG(RDT) ID=11.0	9-09561-111-0	01	1	1401-
262	CLIP; P/S PIPE 4JB1-TC ENG(RDT)	8-97300-961-1	01	1	1401-
286	BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) (A) M8X40 FLANGE	0-28650-840-0	01	1	1401-
286	BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1401-
286	BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) (C) M8X30 FLANGE	0-28650-830-0	01	1	1402-
373	WASHER; HOSE,P/S 4JB1-TC ENG(RDT) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1401-
373	WASHER; HOSE,P/S 4JB1-TC ENG(RDT) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1401-

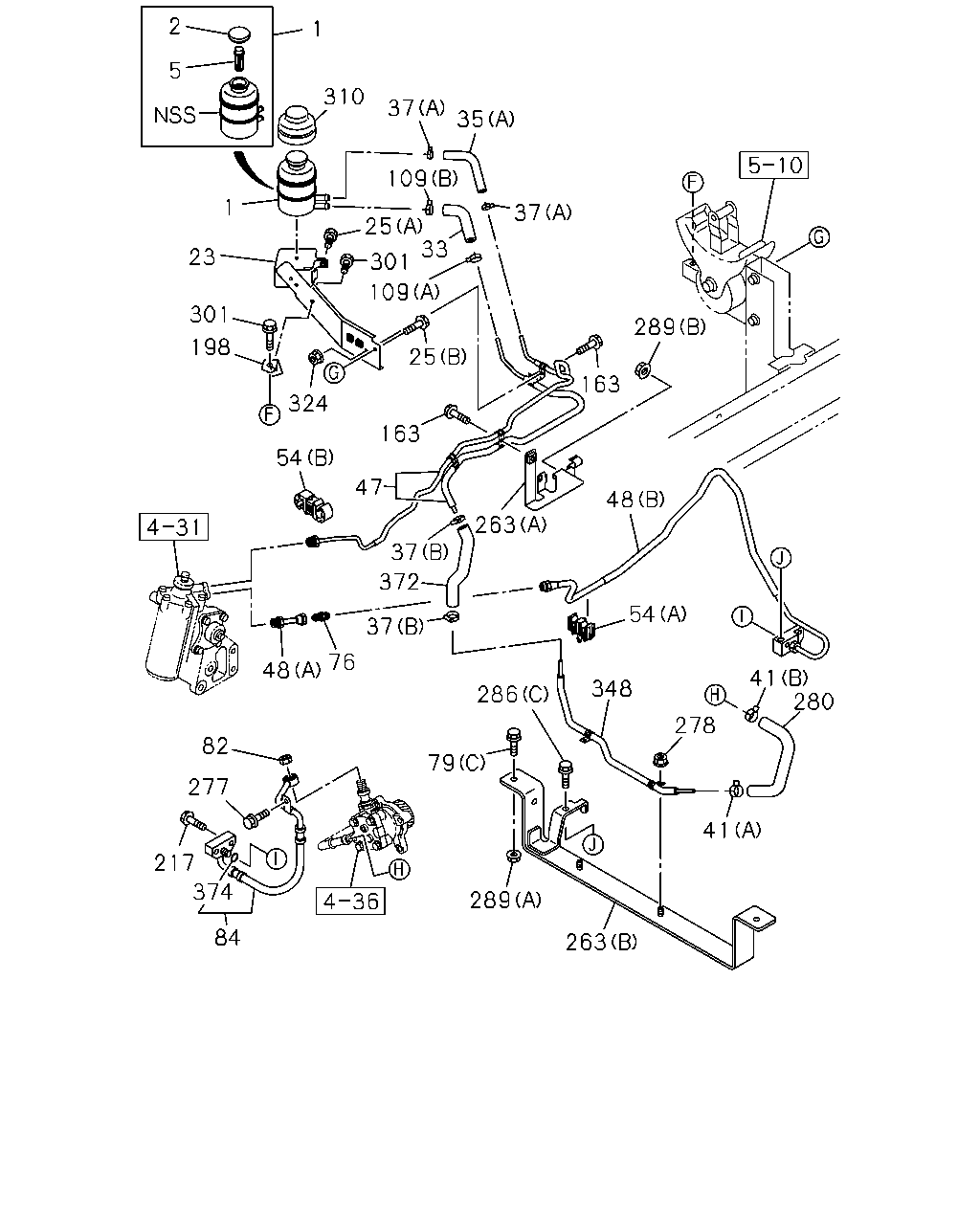

289 163 263 48 41 280 41 278 348 54 286 79 289 263 374 84 217 277 82 48 372 37 37 76 163 47 25 109 301 25 109 37 310 35 37 33 1 1 2 23 5 301 324 198 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1401-
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1401-
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1401-
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1401-
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE MAL	0-28450-620-0	01	1	1401-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1401-
35	HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-98090-804-2	01	1	1401-
35	HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1401-
37	CLIP; HOSE,P/S 4JB1-TC ENG(RDT) (D) ID=24X2 L=25	1-09700-710-0	01	1	1401-
37	CLIP; HOSE,P/S 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1401-
37	CLIP; HOSE,P/S 4JB1-TC ENG(RDT) (A) ID=16	8-98008-098-0	02	1	1401-
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1401-
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1401-
41	CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) (A) ID=21.7	8-97203-074-0	01	1	1402-
41	CLIP; HOSE,P/S 4JJ1-TCC ENG(RDU) (B) ID=21	8-98150-355-0	01	1	1402-
47	PIPE; RETURN 4JB1-TC ENG(RDT) MAL	8-98174-014-0	01	1	1401-
47	PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98173-325-0	01	1	1402-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-105-0	01	1	1402-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A) MAL	8-98063-796-1	01	1	1401-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A)	8-98041-027-0	01	1	1402-
54	CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 12	1-09709-280-1	01	1	1402-
54	CLIP; OIL PIPE 4JJ1-TCC ENG(RDU) (A) ID=10X2 H=37.5	8-97018-546-0	01	1	1402-
76	UNION; OIL PIPE 4JJ1-TCC ENG(RDU) M16 STRAIGHT L=42	0-92123-010-0	01	1	1402-
79	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-
79	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1401-
79	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M12X30 FLANGE	0-28651-230-0	02	1	1402-
82	NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) M16	8-94370-339-0	01	1	1401-
82	NUT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) M12 SELF LOCK	8-97028-390-1	01	1	1402-
84	HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1402-
84	HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	1401-
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1401-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1401-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401
163	BOLT; OIL PIPE 4JB1-TC ENG(RDT) M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1401-
217	BOLT; FLEX HOSE,P/S 4JJ1-TCC ENG(RDU) M6X35 FLANGE	0-28650-635-0	02	1	1402-
263	BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (B)	8-98250-108-0	01	1	1402-
263	BRACKET; P/S PIPE 4JJ1-TCC ENG(RDU) (A)	8-98008-078-0	01	1	1402-
277	BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) M8X12 FLANGE	0-28050-812-0	01	1	1402-
278	NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	02	1	1402-
280	HOSE; P/S OIL PUMP,INL 4JJ1-TCC ENG(RDU)	8-98041-245-2	01	1	1402-
286	BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) (A) M8X40 FLANGE	0-28650-840-0	01	1	1401-
286	BOLT; CLIP,P/S HOSE 4JB1-TC ENG(RDT) (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1401-
286	BOLT; CLIP,P/S HOSE 4JJ1-TCC ENG(RDU) (C) M8X30 FLANGE	0-28650-830-0	01	1	1402-
289	NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) (B) M8 FLANGE MAL	0-91180-108-0	01	1	1402-
289	NUT; BRKT,POWER STRG 4JJ1-TCC ENG(RDU) (A) M12 FLANGE MAL	0-91180-112-0	01	1	1402-
301	BOLT; STAY,OIL TANK M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
310	COVER; OIL TANK	8-97103-394-0	01	1	1401-
324	NUT; OIL PIPE 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	02	1	1401-
324	NUT; OIL PIPE 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	01	1	1402-
348	PIPE; OIL,P/S PRESS 4JJ1-TCC ENG(RDU)	8-98250-107-0	01	1	1402-
372	HOSE; RUBBER 4JJ1-TCC ENG(RDU) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1402-
372	HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1401-
374	GASKET; HOSE,P/S 4JJ1-TCC ENG(RDU)	8-98139-036-0	01	1	1402-

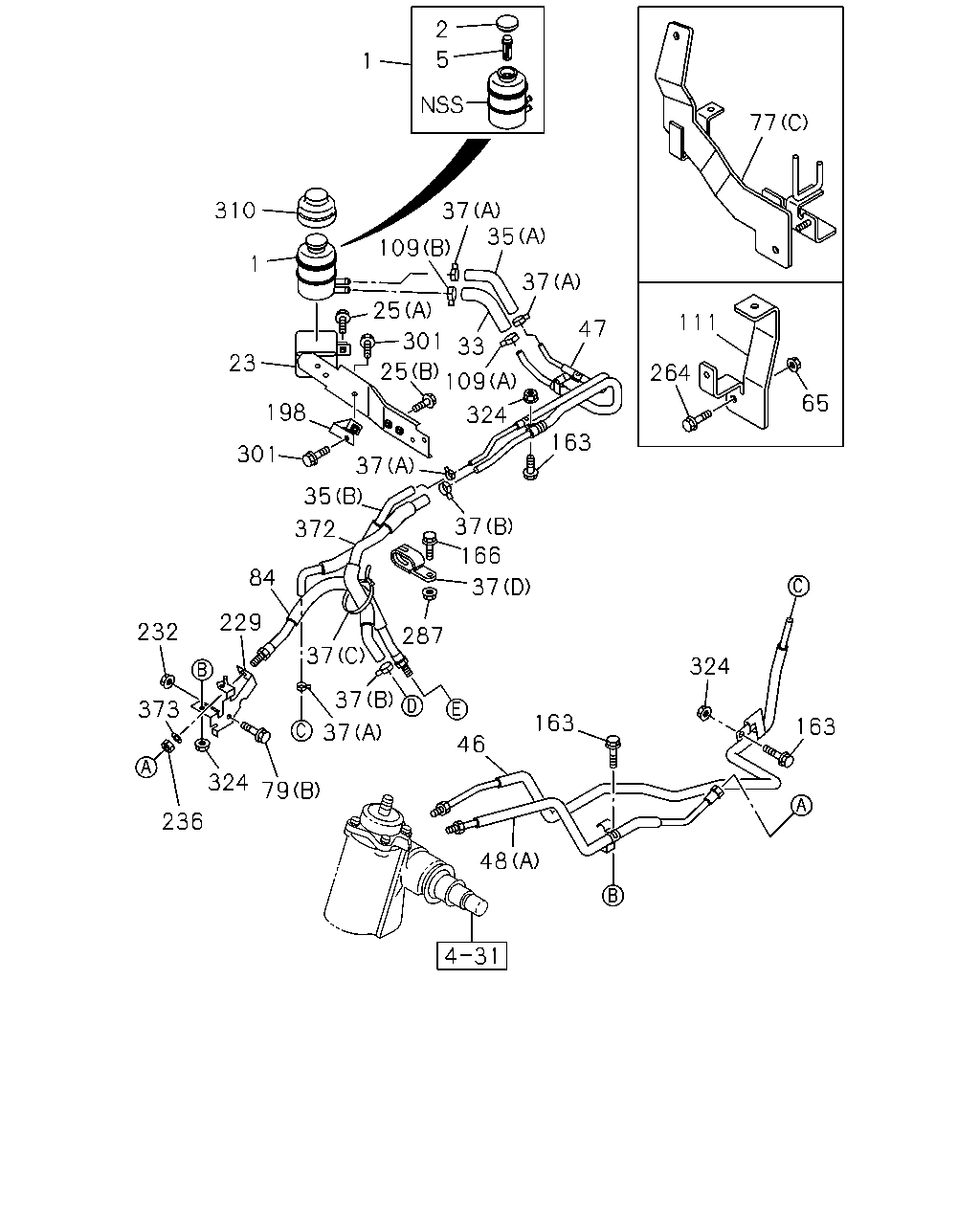

1 2 5 77 111 264 65 37 163 166 47 37 163 324 163 48 46 287 37 37 79 37 324 236 373 232 84 229 372 301 198 35 37 25 25 324 109 33 301 23 1 310 109 37 37 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1401-
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1401-
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1401-
23	BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1401-
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE MAL	0-28450-620-0	01	1	1401-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
33	HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1401-
35	HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-98090-804-2	01	1	1401-
35	HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1401-
37	CLIP; HOSE,P/S 4JB1-TC ENG(RDT) (D) ID=24X2 L=25	1-09700-710-0	01	1	1401-
37	CLIP; HOSE,P/S 4JB1-TC ENG(RDT) (C) L=250	5-09707-030-1	01	1	1401-
37	CLIP; HOSE,P/S 4JB1-TC ENG(RDT) (A) ID=16	8-98008-098-0	02	1	1401-
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	02	1	1401-
37	CLIP; HOSE,P/S (B) ID=21	8-98150-355-0	02	1	1401-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT) MAL	8-98063-797-2	01	1	1401-
47	PIPE; RETURN 4JB1-TC ENG(RDT) MAL	8-98174-014-0	01	1	1401-
47	PIPE; RETURN 4JJ1-TCC ENG(RDU)	8-98173-325-0	01	1	1402-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (B)	8-98250-105-0	01	1	1402-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) (A) MAL	8-98063-796-1	01	1	1401-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCC ENG(RDU) (A)	8-98041-027-0	01	1	1402-
65	NUT; BRKT 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	01	1	1401-
77	BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	1401-
77	BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	1401-
77	BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (C)	8-98090-755-1	01	1	1401-
79	BOLT; BRKT 4JB1-TC ENG(RDT) (B) M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-
79	BOLT; BRKT 4JB1-TC ENG(RDT) (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1401-
79	BOLT; BRKT 4JJ1-TCC ENG(RDU) (C) M12X30 FLANGE	0-28651-230-0	02	1	1402-
84	HOSE; FLEX,P/S 4JJ1-TCC ENG(RDU)	8-98250-111-0	01	1	1402-
84	HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-341-0	01	1	1401-
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1401-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1401-
111	BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-98252-357-0	01	1	1401-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1401-1401
163	BOLT; OIL PIPE 4JB1-TC ENG(RDT) M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1402-
166	BOLT; CLIP 4JB1-TC ENG(RDT) M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
198	STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1401-
229	BRACKET; HOSE,POWER STRG 4JB1-TC ENG(RDT)	8-98063-795-1	01	1	1401-
232	NUT; BRKT 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	01	1	1401-
236	NUT; FLEX HOSE,P/S PIPING 4JB1-TC ENG(RDT) M16	8-94370-339-0	01	1	1401-
264	BOLT; PIPE BRKT 4JB1-TC ENG(RDT) M8X30 FLANGE	0-28650-830-0	01	1	1401-1402
264	BOLT; PIPE BRKT 4JB1-TC ENG(RDT) M8X25 FLANGE MAL	0-28650-825-0	01	1	1403-
287	NUT; CLIP 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	01	1	1401-
301	BOLT; STAY,OIL TANK M8X25 FLANGE MAL	0-28650-825-0	02	1	1401-
310	COVER; OIL TANK	8-97103-394-0	01	1	1401-
324	NUT; OIL PIPE 4JB1-TC ENG(RDT) M8 FLANGE MAL	0-91180-108-0	02	1	1401-
324	NUT; OIL PIPE 4JJ1-TCC ENG(RDU) M8 FLANGE MAL	0-91180-108-0	01	1	1402-
372	HOSE; RUBBER 4JJ1-TCC ENG(RDU) L=180 SERVICED BY L=300	0-09814-300-0	01	1	1402-
372	HOSE; RUBBER 4JB1-TC ENG(RDT)	8-98186-364-0	01	1	1401-
373	WASHER; HOSE,P/S 4JB1-TC ENG(RDT) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1401-
373	WASHER; HOSE,P/S 4JB1-TC ENG(RDT) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1401-
