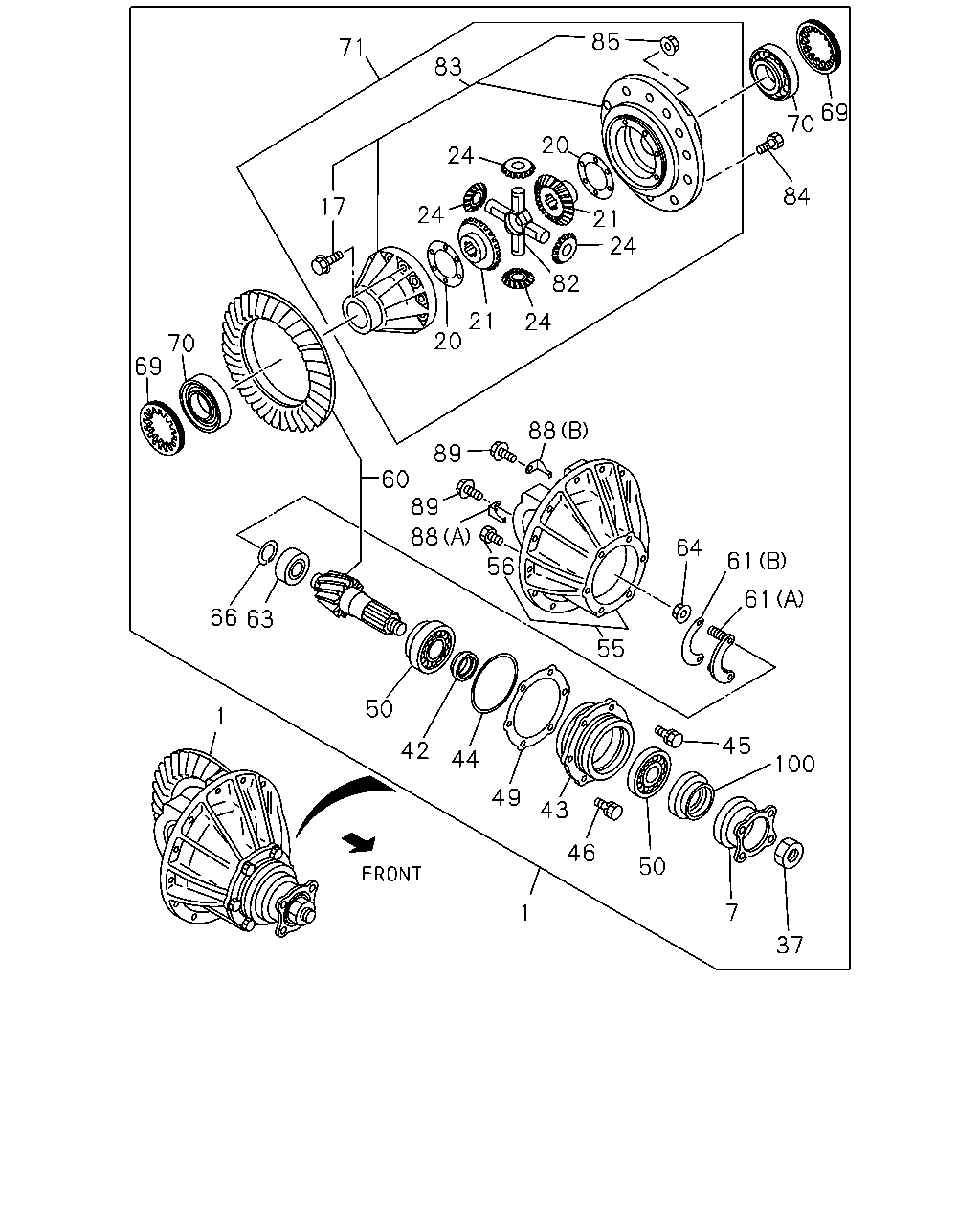

4-25 — REAR FINAL DRIVE (#132483) — 53 parça

69 70 60 89 88 89 88 56 55 64 61 61 45 100 50 42 44 49 43 46 1 50 17 71 24 66 63 1 20 21 24 24 82 24 21 20 83 85 84 70 69 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-98015-145-0	01	1	1401-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98015-146-0	01	1	1401-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-98015-147-0	01	1	1401-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98015-135-0	01	1	1402-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98015-137-0	01	1	1402-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98015-136-0	01	1	1402-
7	FLANGE; FINAL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-94426-787-4	01	1	1401-
7	FLANGE; FINAL FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) MAL	8-94477-723-4	01	1	1402-
17	BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1401-
20	WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1401-
21	GEAR; SIDE,DIFF Z=20	8-97362-599-1	02	1	1401-
24	GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1401-
37	NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1401-
42	COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1401-
43	CAGE; FINAL PINION	8-94400-890-0	01	1	1401-
44	GASKET; PINION CAGE	9-09720-505-0	01	1	1401-
45	BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1401-
46	BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1401-
49	SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1401-
49	SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1401-
49	SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1401-
49	SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1401-
49	SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1401-
49	SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1401-
50	BEARING; FINAL PINION JTEKT	5-09812-062-1	02	1	1401-
50	BEARING; FINAL PINION NSK	5-09812-063-0	02	1	1401-
55	CARRIER; DIFF MAL	8-97307-760-0	01	1	1401-
56	BOLT; BRG CAP M14X80	8-94365-377-3	04	1	1401-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1401-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1401-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7 MAL	8-97320-103-0	01	1	1401-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1402-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1402-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1402-
61	RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1401-
61	RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1401-
63	BEARING; PINION PILOT NSK MAL	5-09810-008-1	01	1	1401-
63	BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1401-
64	NUT; RET M6 FLANGE MAL	0-91180-106-0	02	1	1401-
66	RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1401-
69	NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1401-
70	BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1401-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42)	8-98015-182-1	01	1	1401-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)	8-98015-181-1	01	1	1402-
82	SPIDER; DIFF PINION	5-41521-008-0	01	1	1401-
83	CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42) MAL	8-97319-396-1	01	1	1401-
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C)	8-97319-398-1	01	1	1402-
84	BOLT; FINAL DRIVE GEAR M14X25 MAL	8-97318-938-1	12	1	1401-
85	NUT; DIFF CAGE SETTING M10 FLANGE MAL	0-91180-210-0	12	1	1401-
88	PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1401-
88	PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1401-
89	BOLT; LK PLATE M8X16 FLANGE MAL	0-28050-816-0	02	1	1401-
100	SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1401-
