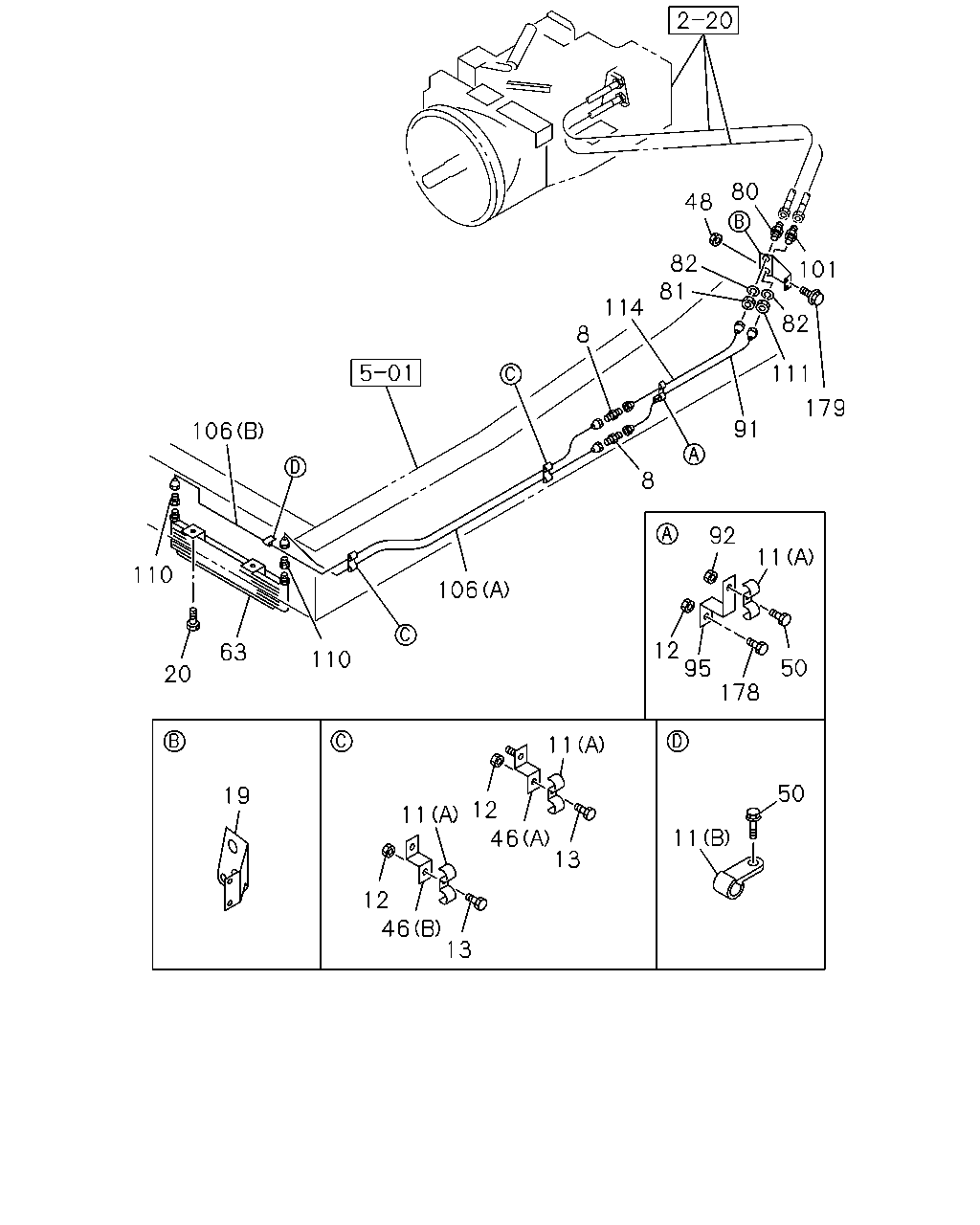

2-53B — TRANSMISSION OIL COOLER SYSTEM (#13248) — 36 parça

80 48 82 81 101 114 82 8 111 179 91 106 8 92 11 110 106 12 95 63 110 50 20 178 11 50 19 12 11 11 46 13 12 46 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	01	1	0105-
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	01	1	0105-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0105-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 L=20	9-09525-535-0	01	1	0105-
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0105-
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	0105-
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C>	1-47478-648-0	01	1	0105-
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0105-
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-47475-881-0	01	1	0105-0110
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-669-1	01	1	0111-
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (A)	1-47477-235-0	01	1	0105-
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0105-
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	03	1	0105-0110
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	02	1	0111-
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0110
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	0105-
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	0105-
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	0105-
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	0105-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C>	1-49164-672-0	01	1	0105-0110
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C>	1-49166-438-0	01	1	0111-
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	01	1	0105-0110
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47477-669-1	01	1	0111-
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	0105-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B)	1-47429-504-0	01	1	0105-0110
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B)	1-49166-439-0	01	1	0111-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A)	1-49164-613-0	01	1	0105-0110
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A)	1-49166-440-0	01	1	0111-
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	0105-
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	0105-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=1324	1-49164-673-0	01	1	0105-0110
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C>	1-49166-441-0	01	1	0111-
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	0105-
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
