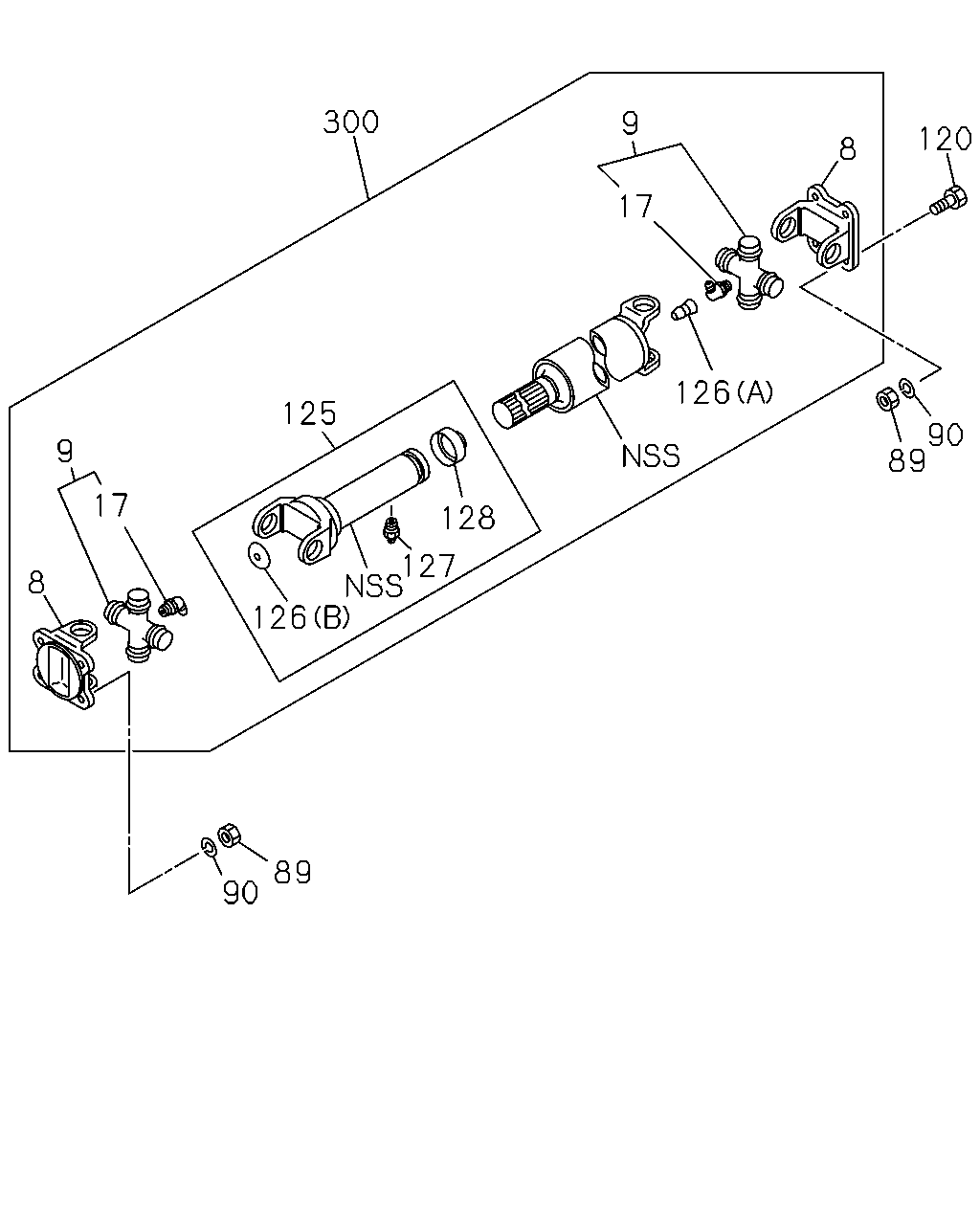

4-01 — PROPELLER SHAFT (#132479) — 21 parça

8 9 90 17 89 300 9 17 8 120 90 89 126 125 128 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT)	8-97211-116-0	02	1	1401-
8	YOKE; FLANGE,PROP SHAFT 4JJ1-TCC ENG(RDU) D=80	8-97322-663-0	02	1	1402-
9	JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT)	8-97211-135-0	02	1	1401-
9	JOURNAL ASM; PROP SHAFT 4JJ1-TCC ENG(RDU)	8-98033-605-1	02	1	1402-
17	NIPPLE; GREASE,PROP SHAFT 4JB1-TC ENG(RDT) M6 STRAIGHT	0-90301-406-0	02	1	1401-
17	NIPPLE; GREASE,PROP SHAFT 4JJ1-TCC ENG(RDU) PT1/8 ELBOW	0-90301-610-0	02	1	1402-
89	NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10	8-98056-949-0	08	1	1401-
89	NUT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12	8-97365-450-1	08	1	1402-
90	WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT) ID=10.2 MAL	0-91510-610-0	08	1	1401-
90	WASHER; LK,YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) ID=12.2 MAL	0-91510-812-0	08	1	1402-
120	BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT) M10X29	8-98056-948-0	04	1	1401-
120	BOLT; YOKE TO RR AXLE 4JJ1-TCC ENG(RDU) M12X35	8-97365-451-1	04	1	1402-
125	YOKE ASM; SPLINED,PROP SHAFT 4JB1-TC ENG(RDT) L=177	8-97211-131-0	01	1	1401-
125	YOKE ASM; SPLINED,PROP SHAFT 4JJ1-TCC ENG(RDU) L=246	8-98034-338-1	01	1	1402-
126	PLUG; SPLINED YOKE 4JJ1-TCC ENG(RDU) (A) MAL	1-09600-023-0	01	1	1402-
126	PLUG; SPLINED YOKE 4JJ1-TCC ENG(RDU) (B)	8-94366-900-0	01	1	1402-
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	1401-
128	SEAL; SLEEVE 4JB1-TC ENG(RDT)	8-97020-597-1	01	1	1401-
128	SEAL; SLEEVE 4JJ1-TCC ENG(RDU)	8-97145-746-0	01	1	1402-
300	SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT) L=1094	8-98023-318-0	01	1	1401-
300	SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) L=969	8-98001-994-2	01	1	1402-
