Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#132478) — 310 parça

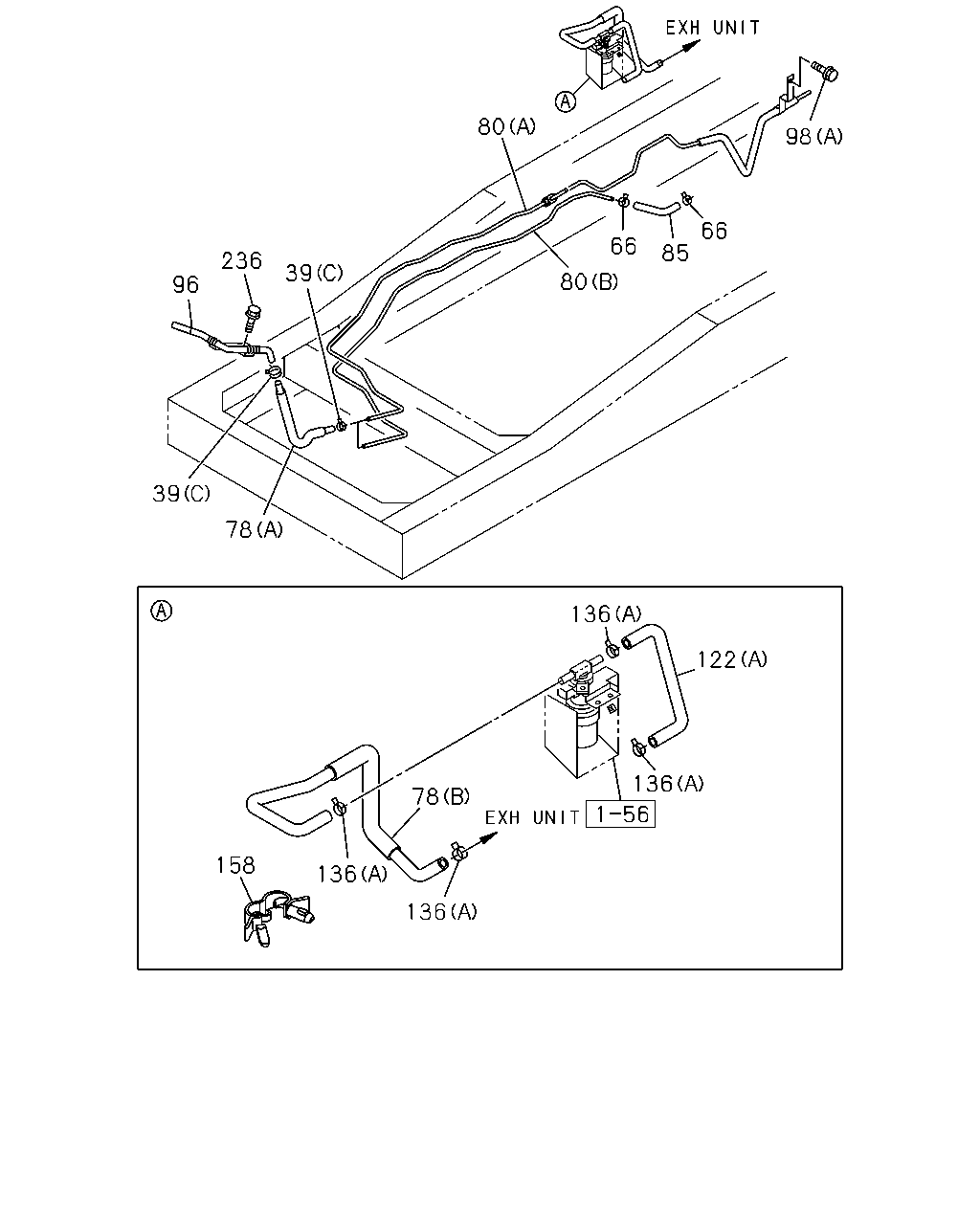

96 39 236 78 39 116 66 80 98 85 98 66 80 136 78 136 136 122 78 136 136 44 136 136 136 136 228 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
44	PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98042-654-0	01	1	1402-
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-98076-069-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E)	8-98098-174-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98255-707-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-98289-413-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98255-706-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98271-927-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (D)	8-98075-014-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (E)	8-98056-001-1	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98056-002-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (D)	8-98064-345-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),EXHAUST BRAKE<NF8> (E)	8-98061-466-1	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1401-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60)	8-98135-573-0	01	1	1402-
96	PIPE; VAC,M/VAC TO VAC PUMP MAL	8-98039-736-1	01	1	1401-
98	BOLT; VAC PIPE FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-1401
98	BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1402-
98	BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (B) M8X20 FLANGE MAL	0-28650-820-0	01	1	1402-
116	HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1402-
116	HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1402-
116	HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1401-1401
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1402-
136	CLIP; VAC HOSE EXHAUST BRAKE<NF8> (A) ID=16	8-98008-098-0	04	1	1401-
136	CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=140 MAL	5-09707-031-1	01	1	1402-
136	CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1402-
228	NUT; PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) M6 FLANGE MAL	0-91180-106-0	01	1	1402-
236	BOLT; PIPE M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-

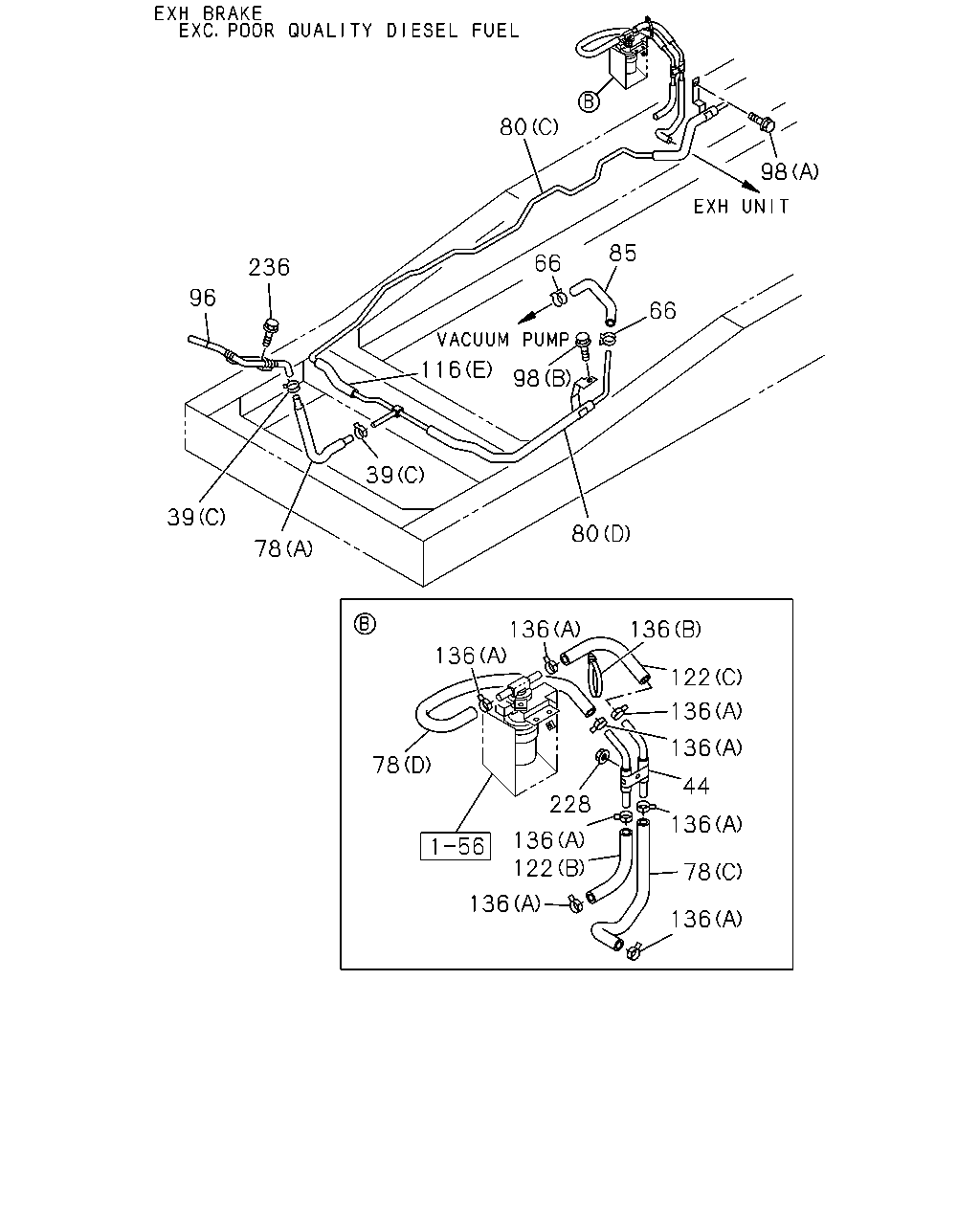

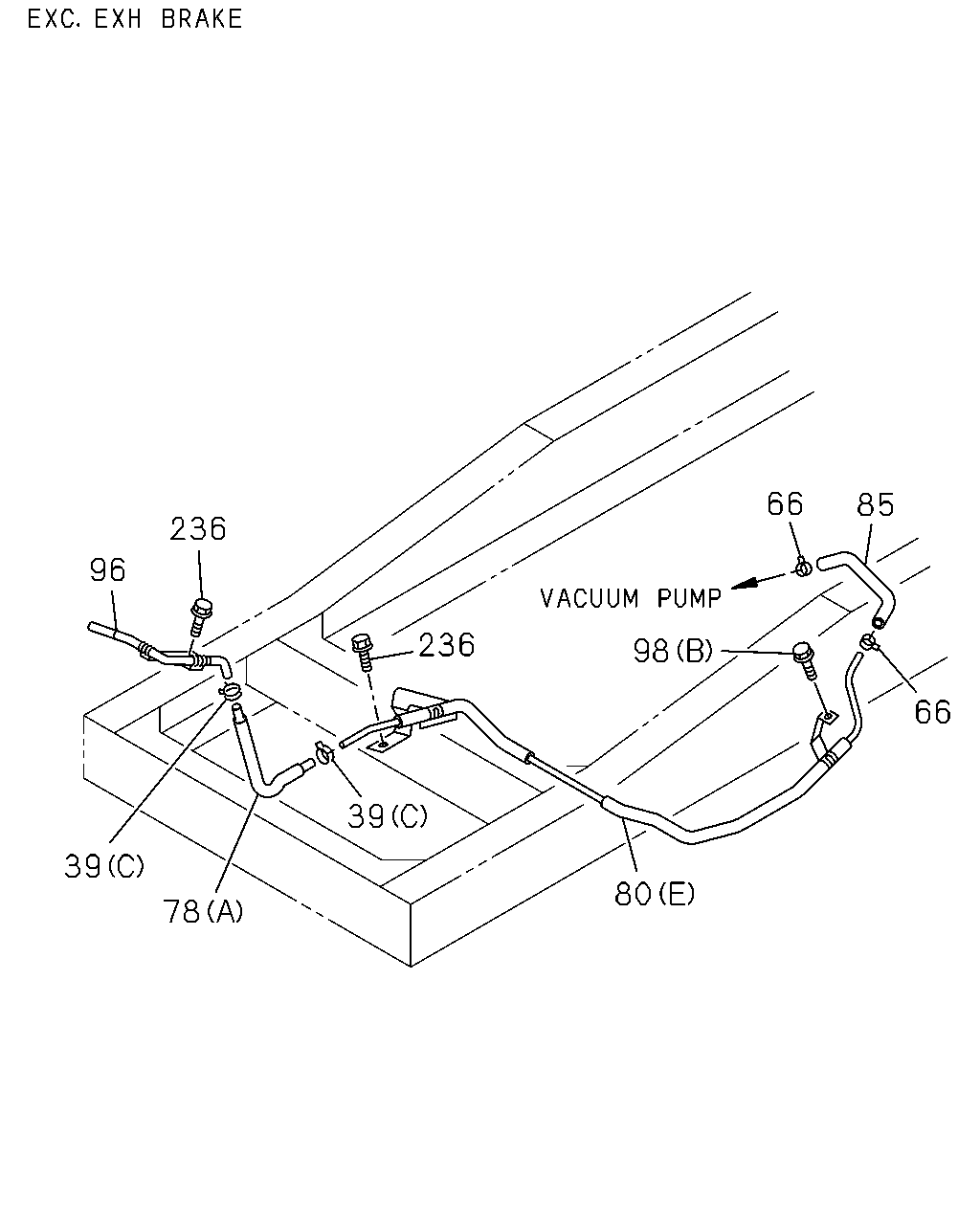

236 96 39 78 39 80 66 85 66 98 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-98076-069-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E)	8-98098-174-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98255-707-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-98289-413-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98255-706-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98271-927-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (D)	8-98075-014-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (E)	8-98056-001-1	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98056-002-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (D)	8-98064-345-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),EXHAUST BRAKE<NF8> (E)	8-98061-466-1	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1401-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60)	8-98135-573-0	01	1	1402-
96	PIPE; VAC,M/VAC TO VAC PUMP MAL	8-98039-736-1	01	1	1401-
98	BOLT; VAC PIPE FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-1401
98	BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1402-
98	BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (B) M8X20 FLANGE MAL	0-28650-820-0	01	1	1402-
236	BOLT; PIPE M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-

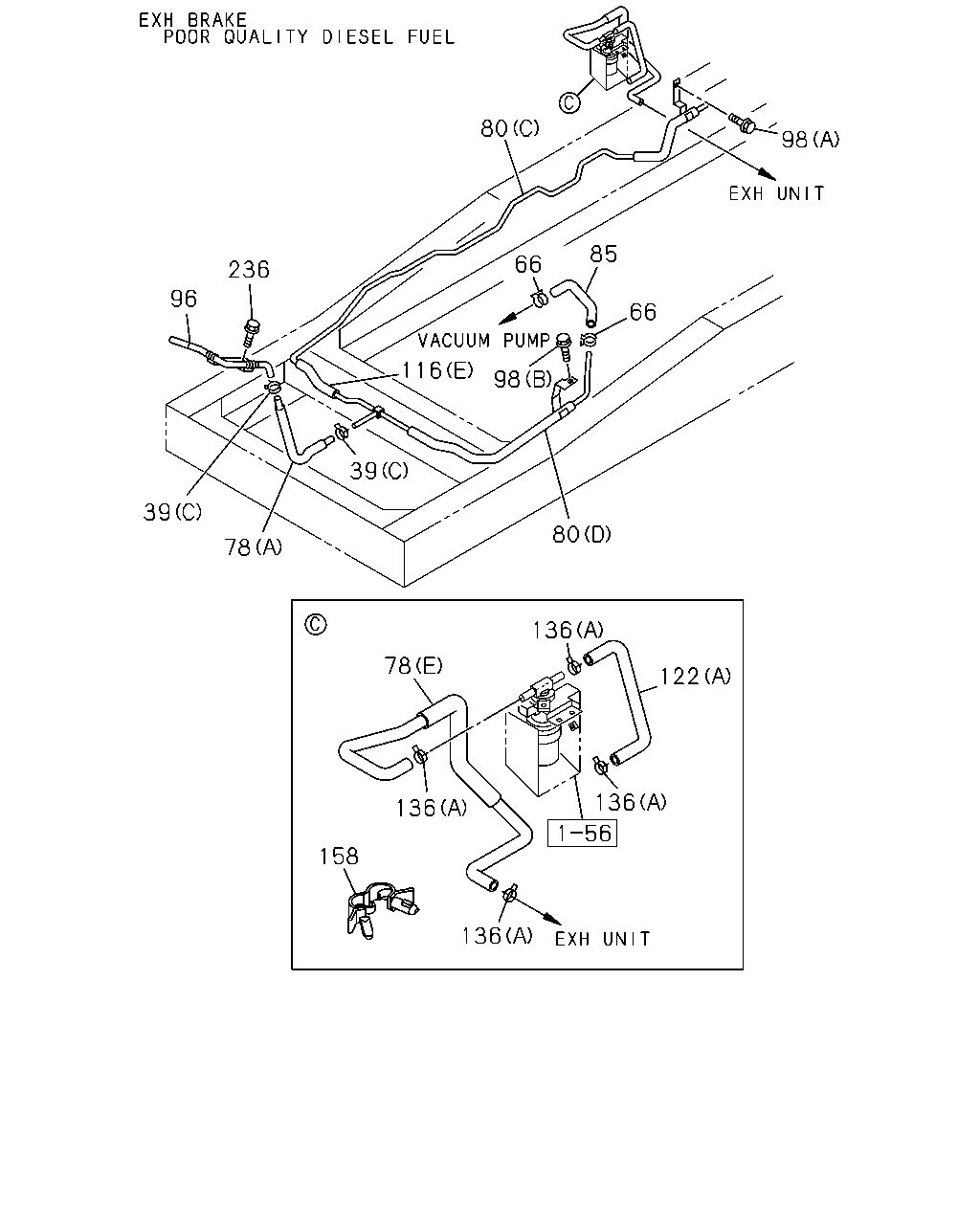

96 39 78 39 116 98 80 66 85 66 80 98 78 136 136 158 136 122 136 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-98076-069-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E)	8-98098-174-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98255-707-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-98289-413-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98255-706-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98271-927-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (D)	8-98075-014-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (E)	8-98056-001-1	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98056-002-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (D)	8-98064-345-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),EXHAUST BRAKE<NF8> (E)	8-98061-466-1	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1401-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60)	8-98135-573-0	01	1	1402-
96	PIPE; VAC,M/VAC TO VAC PUMP MAL	8-98039-736-1	01	1	1401-
98	BOLT; VAC PIPE FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-1401
98	BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1402-
98	BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (B) M8X20 FLANGE MAL	0-28650-820-0	01	1	1402-
116	HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1402-
116	HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1402-
116	HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1401-1401
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1402-
136	CLIP; VAC HOSE EXHAUST BRAKE<NF8> (A) ID=16	8-98008-098-0	04	1	1401-
136	CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=140 MAL	5-09707-031-1	01	1	1402-
136	CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1402-
158	CLIP; HOSE EXHAUST BRAKE<NF8> ID=18-24 L=14.5	1-09709-298-0	01	1	1401-1401
158	CLIP; HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> ID=18-24 L=14.5	1-09709-298-0	01	1	1402-
158	CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=18-24 L=14.5	1-09709-298-0	01	1	1402-
236	BOLT; PIPE M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-

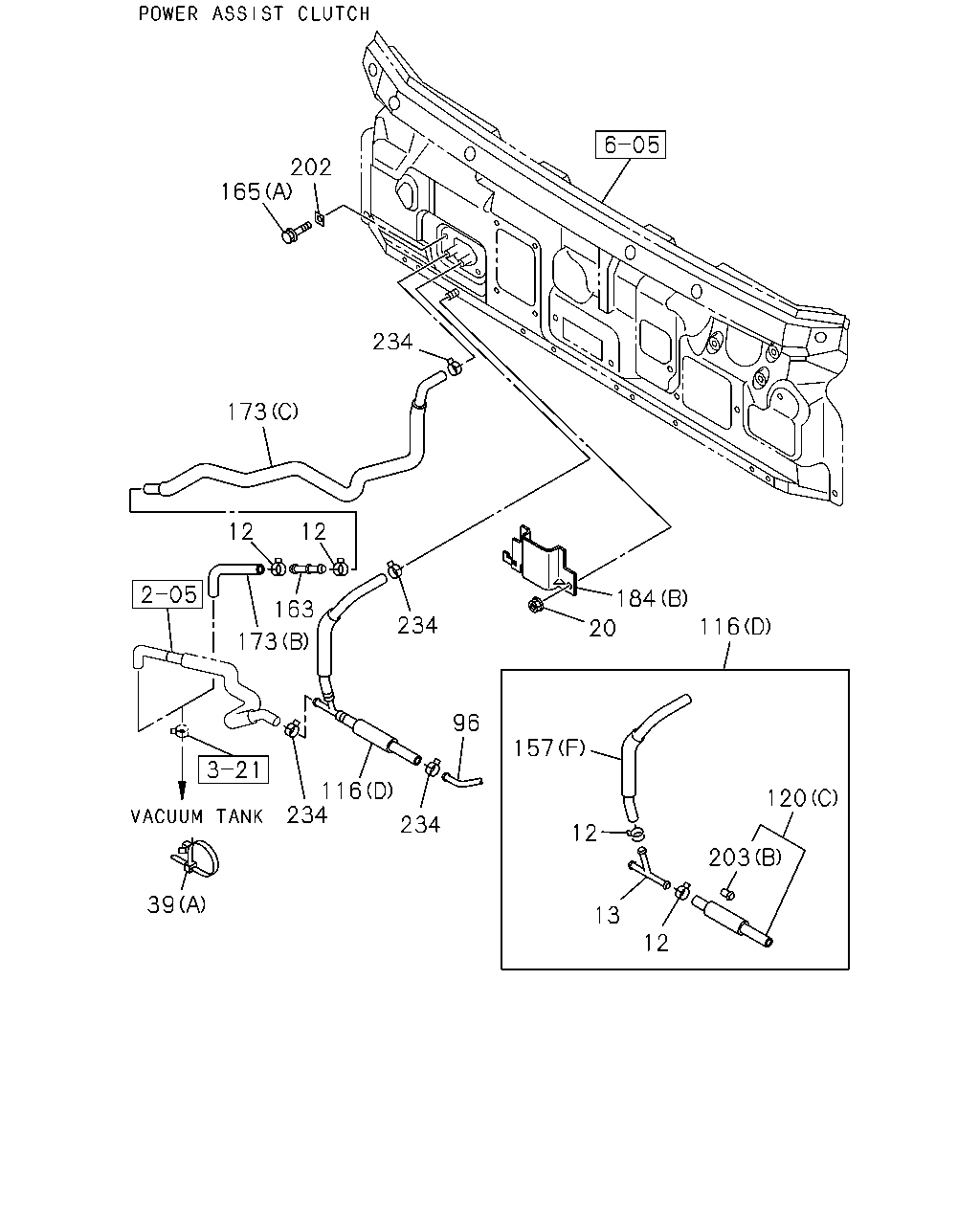

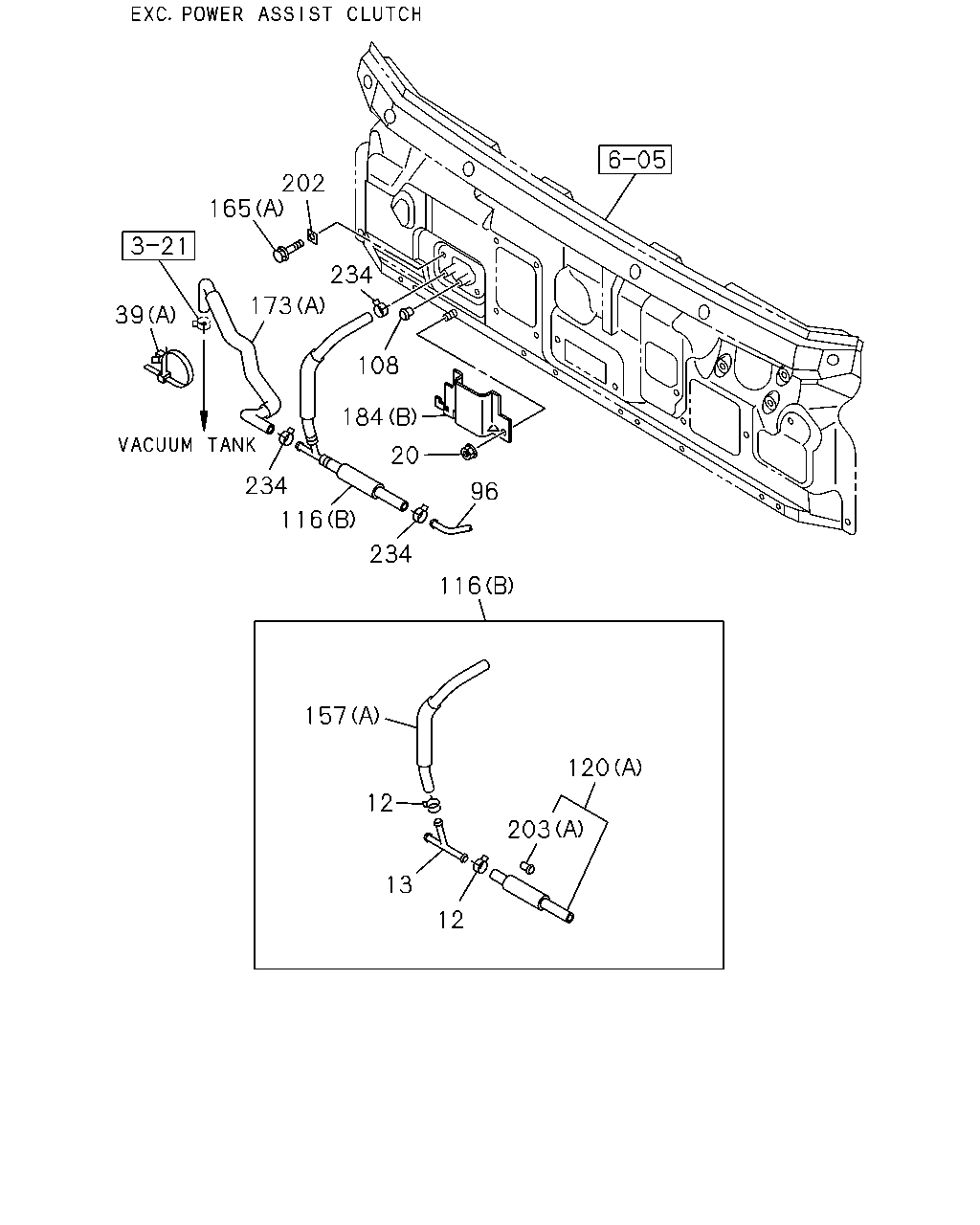

116 39 165 184 116 39 39 39 184 165 184 120 203 12 12 13 12 157 12 157 157 157 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE ID=15.5	8-98008-097-0	02	1	1401-1401
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1402-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1402-
13	JOINT; HOSE,VAC	8-98035-106-0	01	1	1401-1401
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1402-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1402-
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
116	HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1402-
116	HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1402-
116	HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-696-2	01	1	1401-1401
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1402-
157	HOSE; JOINT (A)	8-98022-868-3	01	1	1401-1401
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98022-868-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-354-2	01	1	1402-
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1401-
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE MAL	0-28650-616-0	01	1	1401-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1401-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-548-0	01	1	1401-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1401-
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1401-
203	VALVE; CHECK (A)	8-94386-540-0	01	1	1401-
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1402-

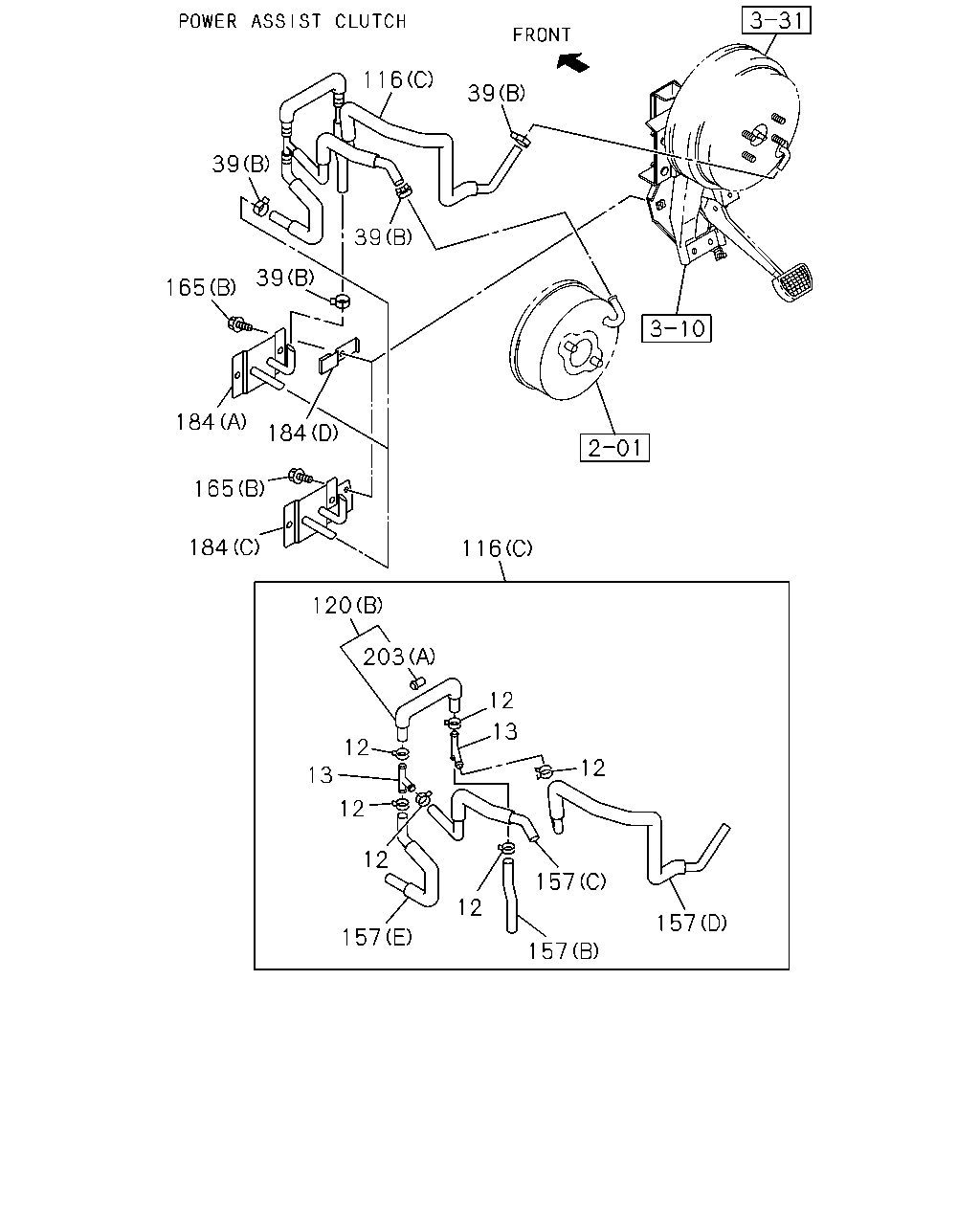

165 184 165 184 184 39 116 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
116	HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1402-
116	HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1402-
116	HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1402-
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1401-
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE MAL	0-28650-616-0	01	1	1401-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1401-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-548-0	01	1	1401-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1401-
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1401-

165 202 234 108 20 96 234 116 157 12 13 12 203 120 39 234 184 173 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE ID=15.5	8-98008-097-0	02	1	1401-1401
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1402-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1402-
13	JOINT; HOSE,VAC	8-98035-106-0	01	1	1401-1401
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1402-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1402-
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL	0-91180-106-0	01	1	1401-
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
96	PIPE; VAC,M/VAC TO VAC PUMP MAL	8-98039-736-1	01	1	1401-
108	GROMMET; PIPE	9-09956-353-0	01	1	1401-1401
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	1402-
116	HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1402-
116	HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1402-
116	HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-696-2	01	1	1401-1401
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1402-
157	HOSE; JOINT (A)	8-98022-868-3	01	1	1401-1401
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98022-868-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-354-2	01	1	1402-
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1401-
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE MAL	0-28650-616-0	01	1	1401-
173	HOSE; VAC,VAC TANK SIDE (A)	8-98107-558-0	01	1	1401-1401
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98107-558-0	01	1	1402-
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98121-940-0	01	1	1402-
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1402-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1401-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-548-0	01	1	1401-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1401-
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1401-
202	SEAL MAL	8-97856-616-0	02	1	1401-
203	VALVE; CHECK (A)	8-94386-540-0	01	1	1401-
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1402-
234	CLAMP; PIPE ID=16	8-94238-568-0	03	1	1401-1401
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1402-
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	04	1	1402-

202 165 234 173 12 12 234 163 173 234 96 116 234 39 20 184 116 120 157 12 13 12 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE ID=15.5	8-98008-097-0	02	1	1401-1401
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1402-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1402-
13	JOINT; HOSE,VAC	8-98035-106-0	01	1	1401-1401
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1402-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1402-
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL	0-91180-106-0	01	1	1401-
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
96	PIPE; VAC,M/VAC TO VAC PUMP MAL	8-98039-736-1	01	1	1401-
116	HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1402-
116	HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	1401-1401
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1402-
116	HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1402-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-696-2	01	1	1401-1401
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1402-
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1402-
157	HOSE; JOINT (A)	8-98022-868-3	01	1	1401-1401
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98022-868-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1402-
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (E)	8-98027-354-2	01	1	1402-
163	JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T)	8-97353-668-0	01	1	1402-
165	BOLT; BRKT (B) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1401-
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M6X16 FLANGE MAL	0-28650-616-0	01	1	1401-
173	HOSE; VAC,VAC TANK SIDE (A)	8-98107-558-0	01	1	1401-1401
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98107-558-0	01	1	1402-
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98121-940-0	01	1	1402-
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1402-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1401-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-548-0	01	1	1401-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1401-
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	1401-
202	SEAL MAL	8-97856-616-0	02	1	1401-
203	VALVE; CHECK (A)	8-94386-540-0	01	1	1401-
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1402-
234	CLAMP; PIPE ID=16	8-94238-568-0	03	1	1401-1401
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1402-
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	04	1	1402-

96 236 39 39 78 158 136 136 78 136 136 122 80 66 85 66 98 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1401-
39	CLIP; HOSE,VAC (C) ID=16	8-98008-098-0	02	1	1401-
39	CLIP; HOSE,VAC (B) ID=16	8-94238-568-0	02	1	1401-1401
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1402-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	04	1	1402-
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	02	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (B)	8-98076-069-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	1401-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (E)	8-98098-174-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1402-
78	HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (D)	8-98189-224-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98255-707-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-98289-413-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98255-706-0	01	1	1401-1408
80	PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (B)	8-98271-927-0	01	1	1409-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (D)	8-98075-014-0	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (E)	8-98056-001-1	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98056-002-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (D)	8-98064-345-2	01	1	1402-
80	PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60),EXHAUST BRAKE<NF8> (E)	8-98061-466-1	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1401-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1402-
85	HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60)	8-98135-573-0	01	1	1402-
96	PIPE; VAC,M/VAC TO VAC PUMP MAL	8-98039-736-1	01	1	1401-
98	BOLT; VAC PIPE FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-1401
98	BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> (A) M10X30 FLANGE	0-28651-030-0	01	1	1402-
98	BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (B) M8X20 FLANGE MAL	0-28650-820-0	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1401-1401
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98076-068-1	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-222-0	01	1	1402-
122	HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1402-
136	CLIP; VAC HOSE EXHAUST BRAKE<NF8> (A) ID=16	8-98008-098-0	04	1	1401-
136	CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=140 MAL	5-09707-031-1	01	1	1402-
136	CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	02	1	1402-
158	CLIP; HOSE EXHAUST BRAKE<NF8> ID=18-24 L=14.5	1-09709-298-0	01	1	1401-1401
158	CLIP; HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> ID=18-24 L=14.5	1-09709-298-0	01	1	1402-
158	CLIP; HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=18-24 L=14.5	1-09709-298-0	01	1	1402-
236	BOLT; PIPE M6X12 FLANGE MAL	0-28050-612-0	01	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
