3-52 — BRAKE PIPING; OIL,FRONT (#132475) — 12 parça

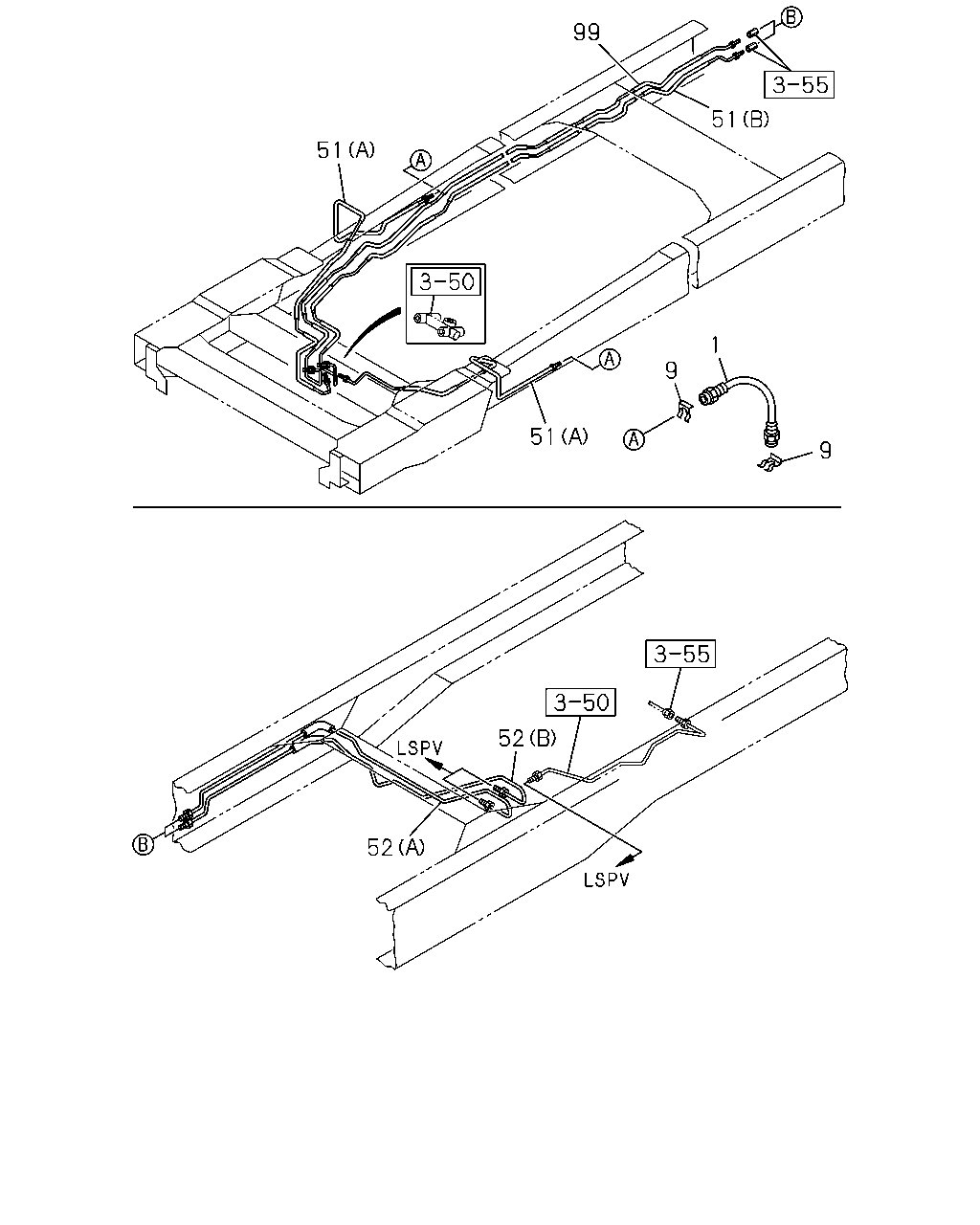

çizim 401838
99 51 51 51 9 1 9 52 52
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 1401-
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1401-
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1401-
51 PIPE; BRK
(A) 6WAY TO FRONT MAL 		8-98054-530-0 01 1 1401-
51 PIPE; BRK
(A) 6WAY TO FRONT MAL 		8-98054-531-1 01 1 1401-
51 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT MAL 		8-98139-683-0 01 1 1401-
52 PIPE; BRK
(B) 2WAY TO LSPV,FRONT MAL 		8-98039-554-0 01 1 1401-
52 PIPE; BRK
(A) 2WAY TO LSPV,REAR MAL 		8-98113-417-0 01 1 1401-
99 PIPE ASM; 4/5/6 WAY
MAL 		8-98051-512-1 01 1 1401-

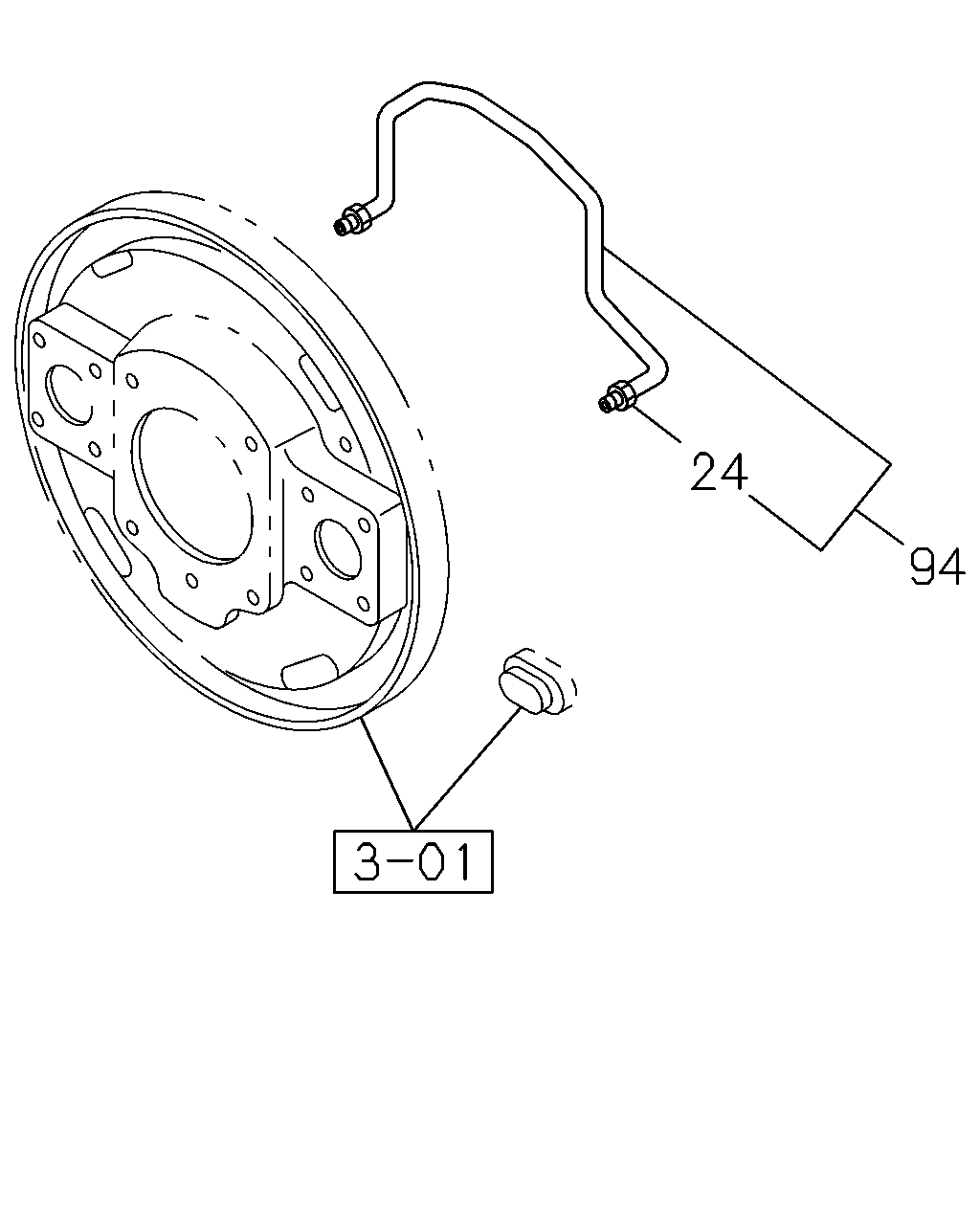

çizim 401978
94 24
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 1401-
94 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1401-
94 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1401-
