◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51502 - NLR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#132467) — 74 parça

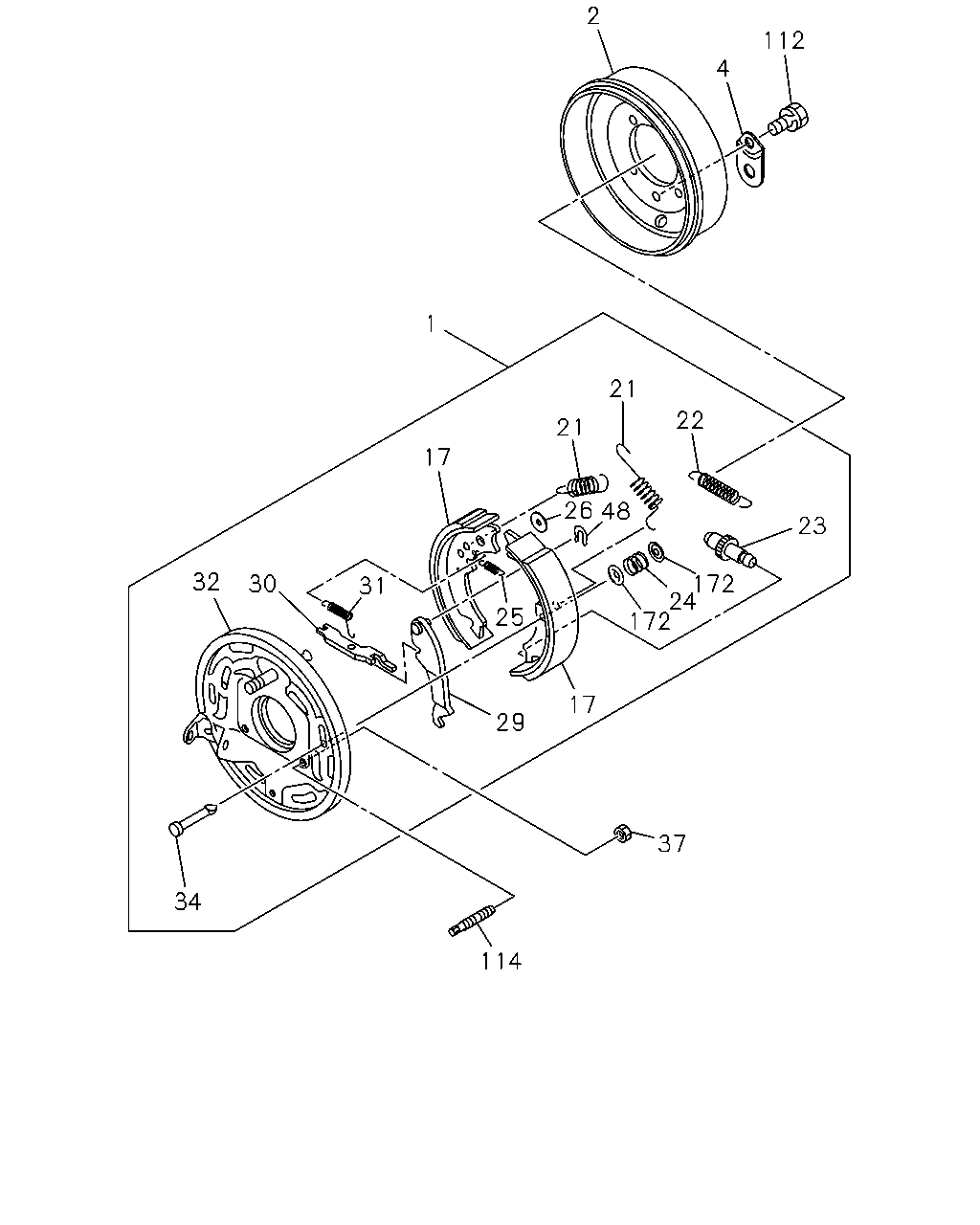

çizim 401433
112 4 2 1 17 21 21 22 48 26 172 24 172 23 17 29 25 31 30 32 34 114 37
BalonParca AdiParca NoAdetTipApplied Date
1 BRAKE ASM; CENTER,PARKING
M/T MSB5S(R45) 		8-97034-553-2 01 1 1401-
1 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-98029-922-0 01 1 1402-
2 DRUM; PARKING BRK
M/T MSB5S(R45) MAL 		5-46210-005-3 01 1 1401-
2 DRUM; PARKING BRK
M/T MYY5T(RSM) MAL 		8-97033-989-1 01 1 1402-
4 COVER; ADJ HOLE
M/T MSB5S(R45) 		5-42319-003-0 01 1 1401-
4 COVER; ADJ HOLE
M/T MYY5T(RSM) 		8-98029-820-0 01 1 1402-
17 SHOE; PARKING BRK
M/T MSB5S(R45) 		8-97042-933-1 02 1 1401-
17 SHOE; PARKING BRK
M/T MYY5T(RSM) 		8-97020-250-2 02 1 1402-
21 SPRING; RETURN,PARKING BRK SHOE
M/T MSB5S(R45) 		9-09942-552-1 01 1 1401-
21 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-94132-157-0 02 1 1402-
22 SPRING; ADJ SCREW,PARKING BRK
M/T MSB5S(R45) 		9-09942-340-1 01 1 1401-
22 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM) 		8-94107-618-0 01 1 1402-
23 SCREW; ADJ,PARKING BRK SHOE
M/T MSB5S(R45) 		5-47165-025-0 01 1 1401-
23 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-98043-954-0 01 1 1402-
24 SPRING; BRK SHOE
M/T MSB5S(R45) 		9-09941-062-1 02 1 1401-
24 SPRING; BRK SHOE
M/T MYY5T(RSM) 		8-94132-155-1 02 1 1402-
25 SPRING; SHOE ALIGNMENT
M/T MYY5T(RSM) 		8-94132-156-0 01 1 1402-
26 PLATE; SHOE GUIDE
M/T MYY5T(RSM) 		8-98043-959-0 01 1 1402-
29 LEVER; PARKING BRK
M/T MSB5S(R45) 		8-94128-765-0 01 1 1401-
29 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-98043-949-0 01 1 1402-
30 STRUT; PARKING BRK
M/T MSB5S(R45) 		5-46251-007-0 01 1 1401-
30 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-98043-953-0 01 1 1402-
31 SPRING; SHOE TO STRUT
M/T MSB5S(R45) 		9-09942-521-1 01 1 1401-
31 SPRING; SHOE TO STRUT
M/T MYY5T(RSM) 		8-94132-158-0 01 1 1402-
32 PLATE; SUPPORT,PARKING BRK
M/T MSB5S(R45) 		9-46213-601-2 01 1 1401-
32 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM) 		8-97308-176-0 01 1 1402-
34 PIN; BRK SHOE
M/T MSB5S(R45) 		9-47162-034-0 02 1 1401-
34 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-98043-955-0 02 1 1402-
37 NUT; SUPPORT PLATE
M/T MSB5S(R45) M12 		8-97033-122-0 01 1 1401-
37 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-98029-927-0 04 1 1402-
48 RETAINER; PIN,PARKING BRK
M/T MSB5S(R45) 		9-46349-005-1 01 1 1401-
48 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		8-98043-958-0 01 1 1402-
112 BOLT; COVER TO BRK DRUM
M/T MSB5S(R45) M6X16 W/LK WASHER 		0-50540-616-0 01 1 1401-1401
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50540-616-0 01 1 1402-
114 STUD; SUPPORT PLATE
M/T MYY5T(RSM) 		8-98029-929-0 04 1 1402-
172 CUP; SHOE HOLD
M/T MSB5S(R45) 		8-94378-404-0 04 1 1401-
172 CUP; SHOE HOLD
M/T MYY5T(RSM) 		8-98043-956-0 04 1 1402-

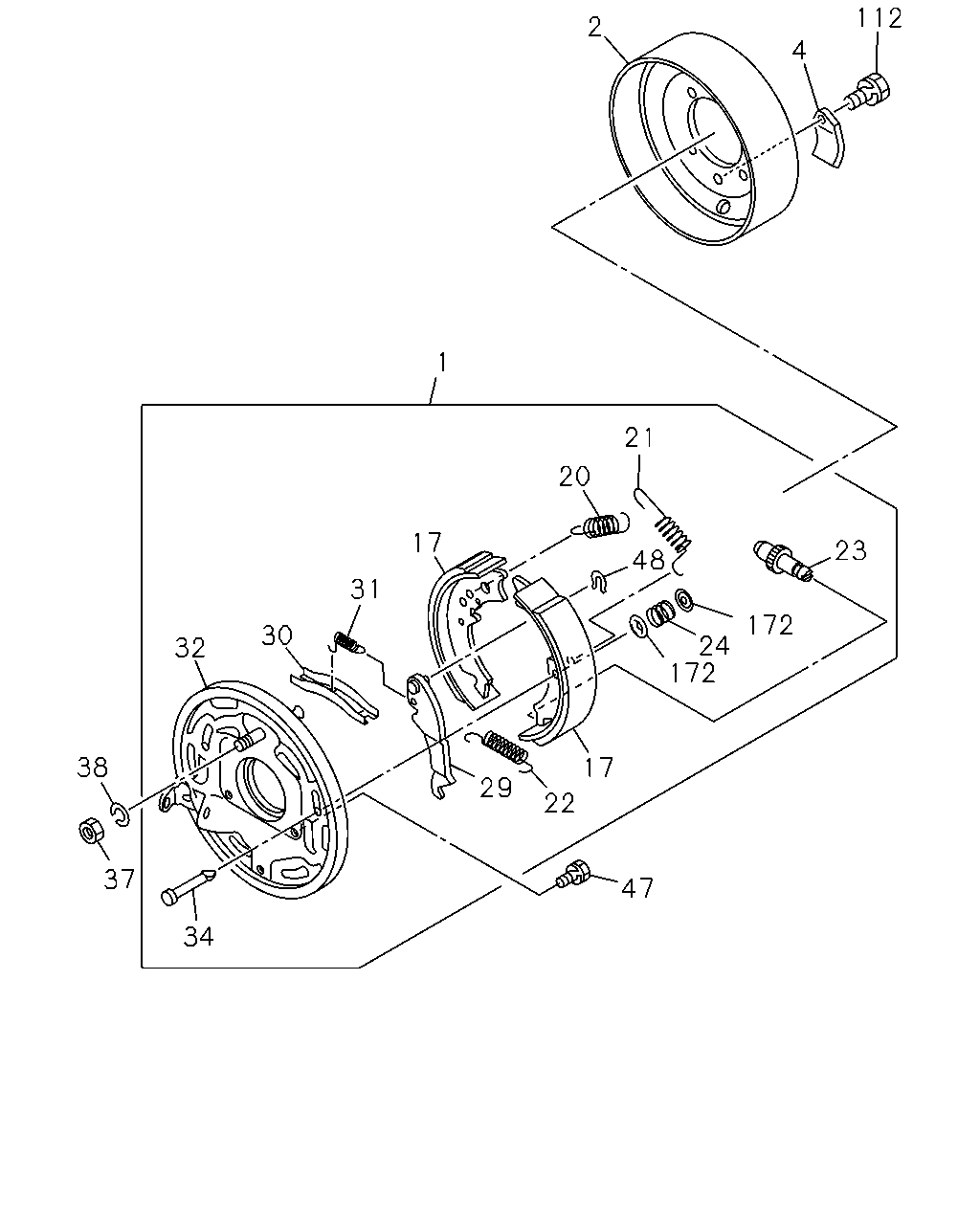

çizim 401436
112 4 2 1 20 21 17 31 30 32 38 37 34 47 22 29 17 172 24 172 23 48
BalonParca AdiParca NoAdetTipApplied Date
1 BRAKE ASM; CENTER,PARKING
M/T MSB5S(R45) 		8-97034-553-2 01 1 1401-
1 BRAKE ASM; CENTER,PARKING
M/T MYY5T(RSM) 		8-98029-922-0 01 1 1402-
2 DRUM; PARKING BRK
M/T MSB5S(R45) MAL 		5-46210-005-3 01 1 1401-
2 DRUM; PARKING BRK
M/T MYY5T(RSM) MAL 		8-97033-989-1 01 1 1402-
4 COVER; ADJ HOLE
M/T MSB5S(R45) 		5-42319-003-0 01 1 1401-
4 COVER; ADJ HOLE
M/T MYY5T(RSM) 		8-98029-820-0 01 1 1402-
17 SHOE; PARKING BRK
M/T MSB5S(R45) 		8-97042-933-1 02 1 1401-
17 SHOE; PARKING BRK
M/T MYY5T(RSM) 		8-97020-250-2 02 1 1402-
20 SPRING; RETURN,SECONDARY,PARKING BRK
M/T MSB5S(R45) 		9-09942-553-1 01 1 1401-
21 SPRING; RETURN,PARKING BRK SHOE
M/T MSB5S(R45) 		9-09942-552-1 01 1 1401-
21 SPRING; RETURN,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-94132-157-0 02 1 1402-
22 SPRING; ADJ SCREW,PARKING BRK
M/T MSB5S(R45) 		9-09942-340-1 01 1 1401-
22 SPRING; ADJ SCREW,PARKING BRK
M/T MYY5T(RSM) 		8-94107-618-0 01 1 1402-
23 SCREW; ADJ,PARKING BRK SHOE
M/T MSB5S(R45) 		5-47165-025-0 01 1 1401-
23 SCREW; ADJ,PARKING BRK SHOE
M/T MYY5T(RSM) 		8-98043-954-0 01 1 1402-
24 SPRING; BRK SHOE
M/T MSB5S(R45) 		9-09941-062-1 02 1 1401-
24 SPRING; BRK SHOE
M/T MYY5T(RSM) 		8-94132-155-1 02 1 1402-
29 LEVER; PARKING BRK
M/T MSB5S(R45) 		8-94128-765-0 01 1 1401-
29 LEVER; PARKING BRK
M/T MYY5T(RSM) 		8-98043-949-0 01 1 1402-
30 STRUT; PARKING BRK
M/T MSB5S(R45) 		5-46251-007-0 01 1 1401-
30 STRUT; PARKING BRK
M/T MYY5T(RSM) 		8-98043-953-0 01 1 1402-
31 SPRING; SHOE TO STRUT
M/T MSB5S(R45) 		9-09942-521-1 01 1 1401-
31 SPRING; SHOE TO STRUT
M/T MYY5T(RSM) 		8-94132-158-0 01 1 1402-
32 PLATE; SUPPORT,PARKING BRK
M/T MSB5S(R45) 		9-46213-601-2 01 1 1401-
32 PLATE; SUPPORT,PARKING BRK
M/T MYY5T(RSM) 		8-97308-176-0 01 1 1402-
34 PIN; BRK SHOE
M/T MSB5S(R45) 		9-47162-034-0 02 1 1401-
34 PIN; BRK SHOE
M/T MYY5T(RSM) 		8-98043-955-0 02 1 1402-
37 NUT; SUPPORT PLATE
M/T MSB5S(R45) M12 		8-97033-122-0 01 1 1401-
37 NUT; SUPPORT PLATE
M/T MYY5T(RSM) M12 LOCK NUT 		8-98029-927-0 04 1 1402-
38 WASHER; LK,SUPPORT PLATE
M/T MSB5S(R45) ID=8.2 		0-91510-808-0 02 1 1401-
47 BOLT; SUPPORT PLATE
M/T MSB5S(R45) 		8-98073-190-0 02 1 1401-
48 RETAINER; PIN,PARKING BRK
M/T MSB5S(R45) 		9-46349-005-1 01 1 1401-
48 RETAINER; PIN,PARKING BRK
M/T MYY5T(RSM) 		8-98043-958-0 01 1 1402-
112 BOLT; COVER TO BRK DRUM
M/T MSB5S(R45) M6X16 W/LK WASHER 		0-50540-616-0 01 1 1401-1401
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50540-616-0 01 1 1402-
172 CUP; SHOE HOLD
M/T MSB5S(R45) 		8-94378-404-0 04 1 1401-
172 CUP; SHOE HOLD
M/T MYY5T(RSM) 		8-98043-956-0 04 1 1402-
