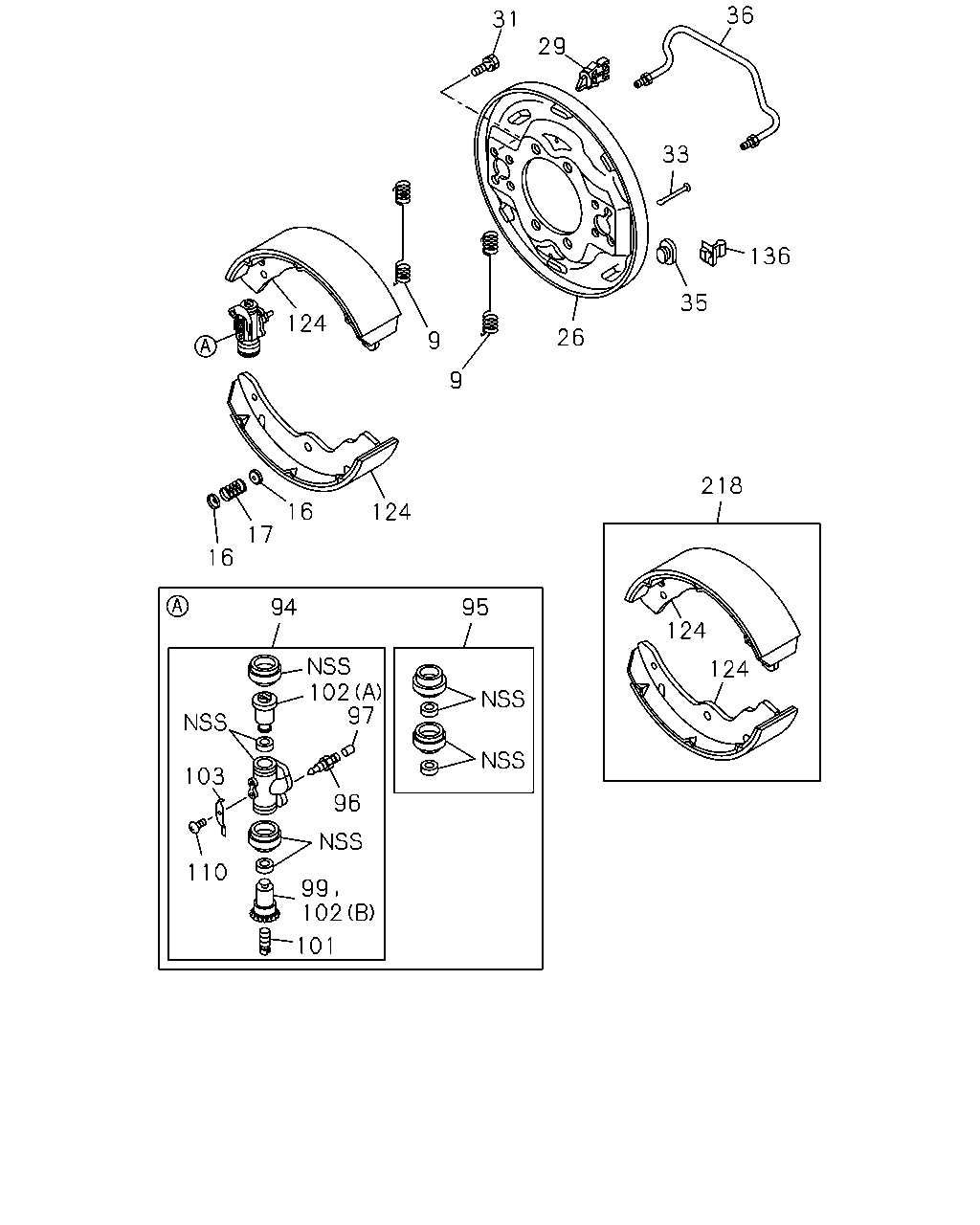

3-05 — REAR WHEEL BRAKE
(#132466) — 25 parça
31
29
33
136
35
26
9
9
124
124
16
17
16
94
102
97
96
99
102
101
110
103
95
124
124
218
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
SPRING; RETURN,BRK SHOE
8-97078-739-0
04
1
1401-
16
CUP; SHOE HOLDING
9-47162-033-0
08
1
1401-
17
SPRING; SHOE HOLD DOWN
9-09940-989-1
04
1
1401-
26
PLATE; BACK,RR BRK
8-97093-934-0
01
1
1401-
26
PLATE; BACK,RR BRK
8-97093-935-0
01
1
1401-
29
CLIP; PIPE,BRK
8-94128-307-0
02
1
1401-
31
BOLT; RR WHEEL CYL
5-09030-036-1
16
1
1401-
33
PIN; SHOE HOLD DOWN
9-47162-607-0
04
1
1401-
35
GROMMET; CHECK HOLE
8-94344-919-0
02
1
1401-
36
PIPE; OIL,RR BRK
8-94128-192-0
02
1
1401-
94
CYLINDER; WHEEL,RR BRK
FRONT
8-97139-840-0
01
1
1401-
94
CYLINDER; WHEEL,RR BRK
REAR
8-97139-841-0
01
1
1401-
94
CYLINDER; WHEEL,RR BRK
8-97139-842-0
02
1
1401-
95
CUP SET; RR WHEEL CYL
MAL
5-87831-621-0
01
1
1401-
96
SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
1401-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
1401-
99
PISTON; RR WHEEL CYL
8-97078-698-0
03
1
1401-
101
SCREW; ADJ,RR WHEEL CYL
8-97078-623-0
04
1
1401-
102
PISTON; REAR WHEEL CYL
(A) D=25.4
8-94128-531-1
04
1
1401-
102
PISTON; REAR WHEEL CYL
(B)
8-97078-698-0
01
1
1401-
103
SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
1401-
110
SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
1401-
124
SHOE ASM; BRK,RR
8-97035-085-1
04
1
1401-
136
GROMMET
9-09956-640-0
04
1
1401-
218
SHOE KIT; BRK,RR
5-87832-045-0
01
1
1401-
